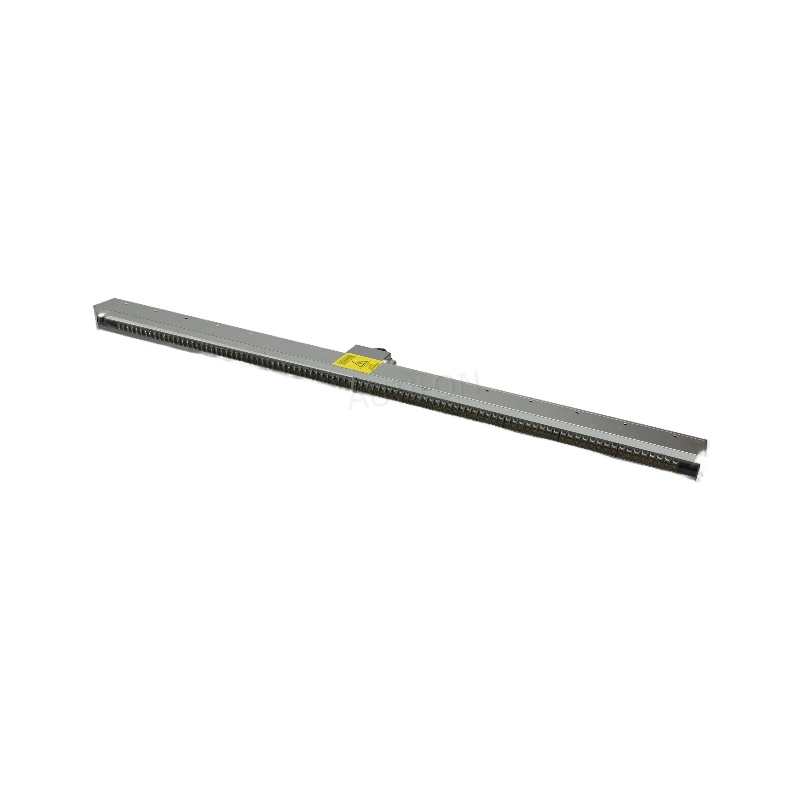

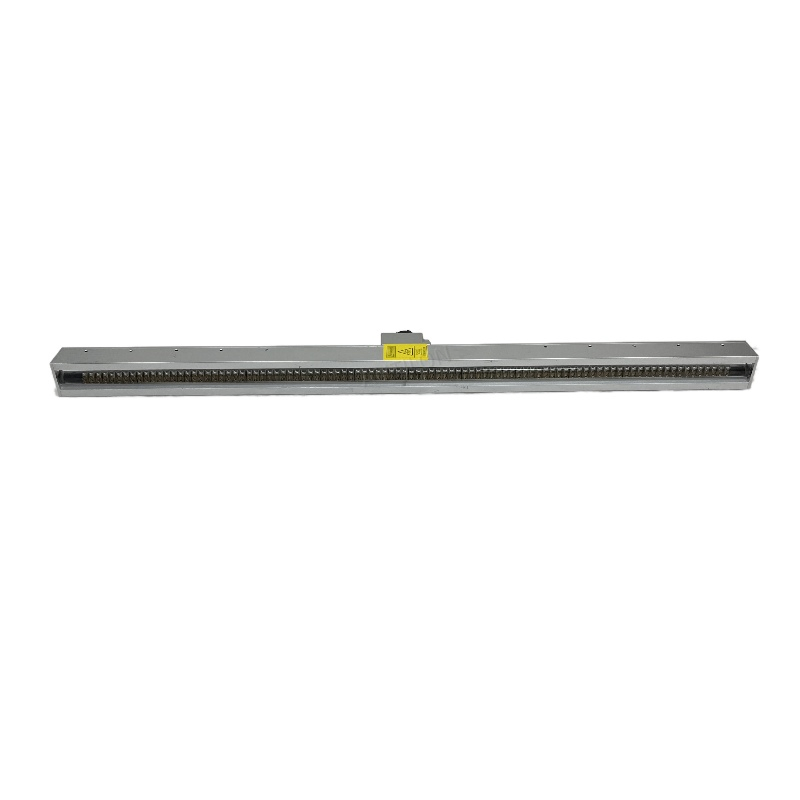

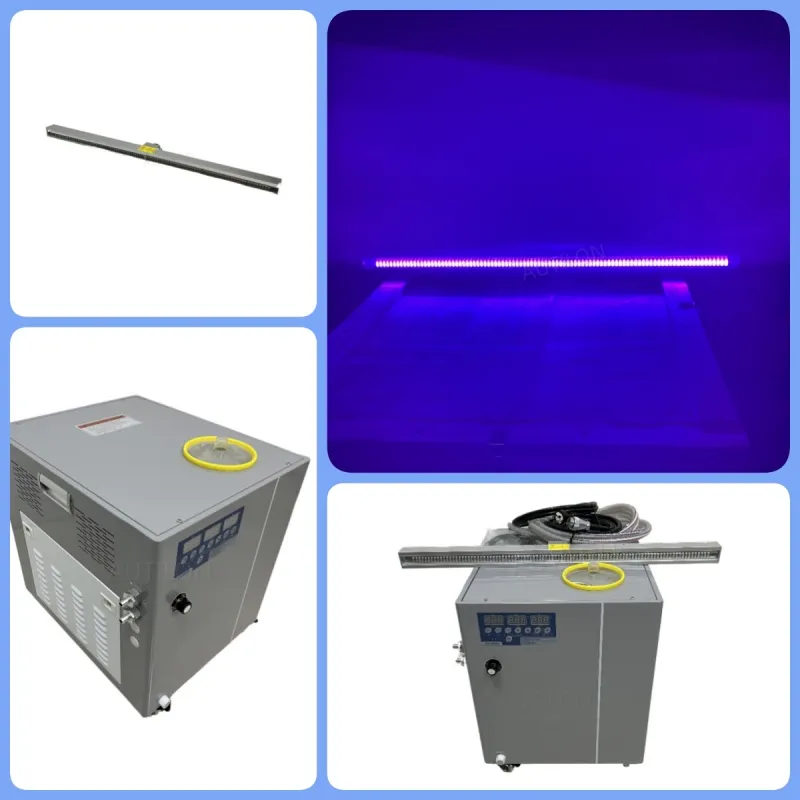

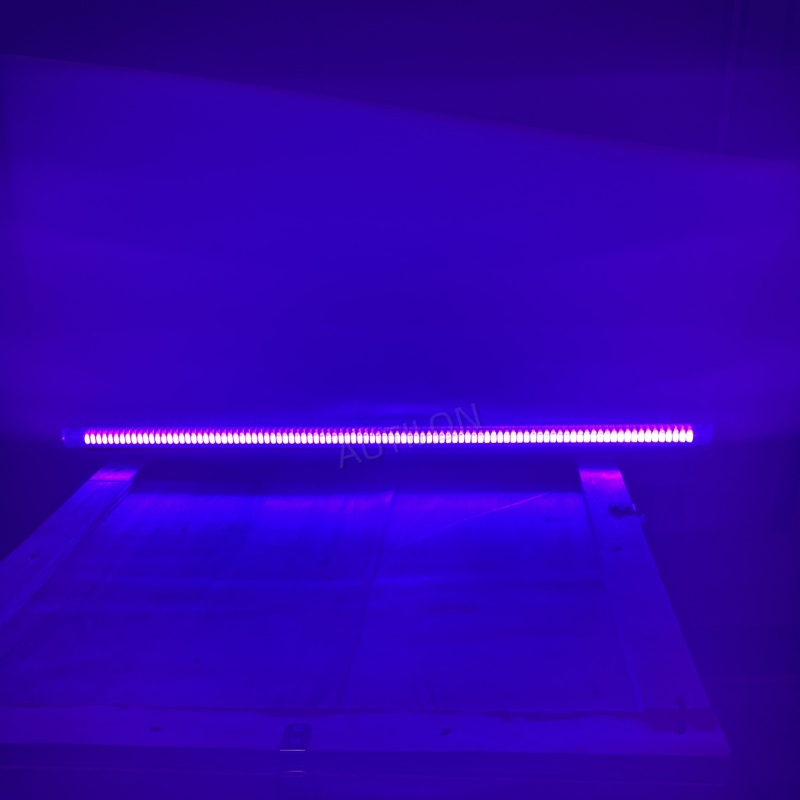

Customized Water Cooled LED Curing System 2000W UV LED Lamp Ultraviolet LED Light Source For Industrial Printing UV Machine Equipment
Product Description
Product Parameters
| Chip |
LG/ SEOUL/EPILEDS/SAN AN |
Operating ambient temperature |
0ºC-35ºC |
| Life time |
Above 20,000hrs depends on operation environment working time, heat dissipation etc. |
Environment humidity |
30%-85%RH |
| Cooling method |
Water cooled |
Material |
Aluminum alloy |
| Irradiation distance |
10-20mm |
Irradiation method |
by Manual/Automatic/Pedal |
| Item |
Emitting window size |
UV intensity (mW/CM2) |
Power dissipation |
Product dimension |

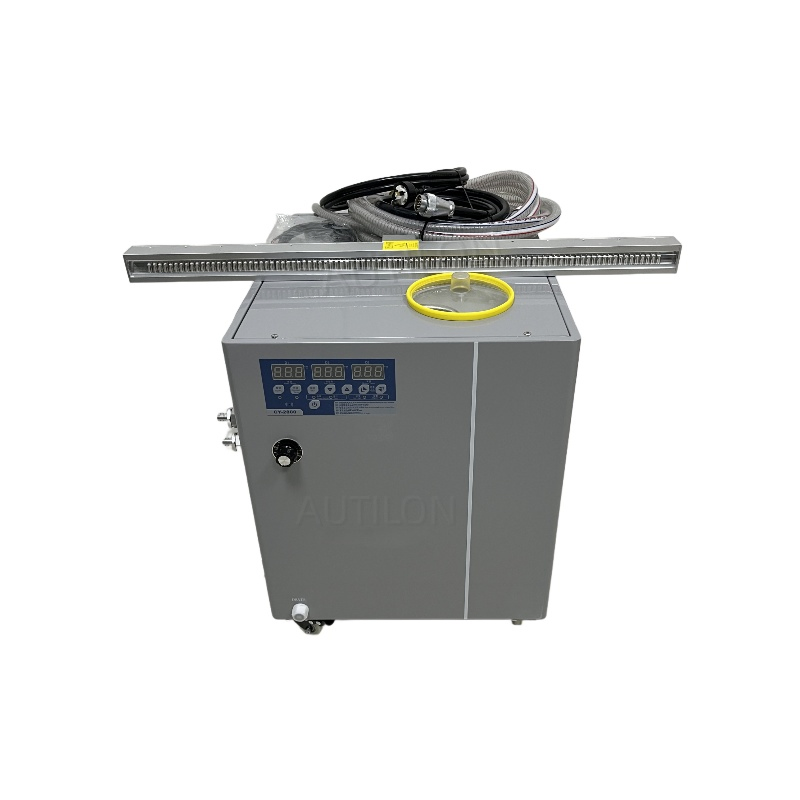

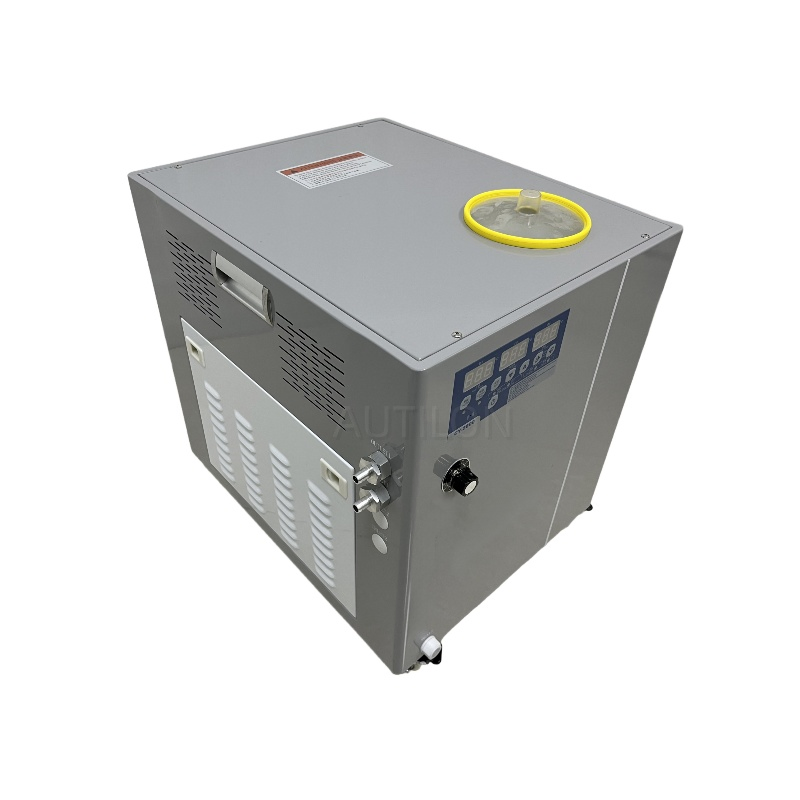

Power supply controller and Water cooling system |
| 365nm |
385/395/405nm |
| Water cooled system |
110*20mm |
11000 |
22000 |
240W |
L130*W42*H63mm |
power controller water cooled integration |
| 150*20mm |
450W |
L194*W42*H63mm |
power controller water cooled integration |
| 180*20mm |
600W |
L195*W42*H63mm |
power controller water cooled integration |
| 215*20mm |
600W |
L246*W42*H63mm |
power controller water cooled integration |
| 320*20mm |
900W |
L350*W42*H63mm |
power controller water cooled integration |
| 430*20mm |
1200W |
L454*W42*H63mm |
power controller water cooled integration |
| 535*20mm |
1500W |
L558*W42*H63mm |
power controller water cooled integration |
| 640*20mm |
1800W |
L662*W42*H63mm |
power controller water cooled integration |
| 720*20mm |
2100W |
L730*W42*H63mm |
power controller water cooled integration |
| Customized |
lamp length can be customized. each additional 50mm=150W |
Product Application
Application:
- UV glue curing
- Painting industry
- Wood curing
- UV printing field etc.
Product Advantage
Advantages of UV LED compared with UV mercury lamp
- Cold light source: No thermal radiation, the surface temperature of the illuminated item is low.
- High efficiency: Enhanced curing output and performance.
- Super long life: The service life of UV LED is more than 20 times that of traditional mercury lamp, and the service life is not affected by the number of switches.
- Fast reaction time: UV LED do not need to be preheated and can be printed immediately after turning on, increasing productivity.
- High security: UV LED has no UVC rays, no ozone release and are not easy to break, and do not need to be equipped with exhaust pipes, which is conducive to environmental protection.
- High stability: Provides uniform and consistent curing output.
- Low energy consumption: Reduces operation costs significantly.
Packaging & Shipping
Frequently Asked Questions
Do you have your own factory?

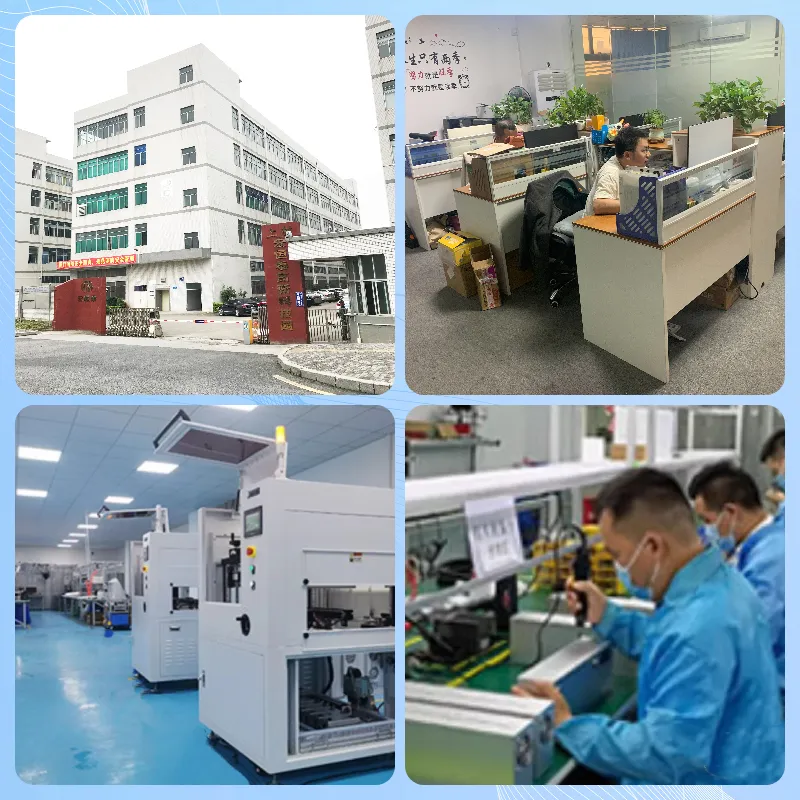

Yes, we have our own factory and we are professional in UV LED fields with over 8 years of experience.
Do you support OEM and ODM services?
Yes, we support OEM/ODM services and customized products.
What are your main products?
Our main products include UV LED light sources, UV LED curing lights, and UV LED COB Arrays, etc.
Do you have any MOQ limit for sample orders?
No, an MOQ of 1 unit is acceptable.
What are your normal payment terms?
We accept T/T, PayPal, Western Union, etc.
How long does it take for my order to be shipped?
It usually takes 7-15 working days, depending on the quantity.
