Explore our high-performance, precision-engineered industrial curing systems optimized for LOCA, OCR, and optical glass lamination processes.
In modern electronics manufacturing, the transition from traditional mechanical display assembly to optical bonding is paramount. Displays used in rugged industrial terminals, automotive dashboard centers, military aviation, and medical imaging demand excellent contrast, minimal reflection, and maximum physical durability. Optical bonding utilizes LOCA (Liquid Optically Clear Adhesive) or OCR (Optically Clear Resin) to fill the tiny gap between the protective glass and the display panel.
Traditional mercury vapor curing lamps have long posed major operational disadvantages: excessive heat emission, structural distortion of flexible displays, ozone pollution, and brief lifespans. As a leading manufacturer and exporter, Dongguan LumiCure Light Co., Ltd. supplies high-precision UV LED Optical Bonding Curing Systems engineered to eliminate these bottlenecks.
Unlike general-purpose coating applications, optical bonding calls for precise control over the polymer cross-linking reaction. If curing is too rapid, the adhesive suffers shrinkage, resulting in the dreaded Mura effect (uneven optical density) and visual distortions. If curing is too slow or uneven, display layers will delaminate under extreme temperatures. A fine-tuned wavelength profile (365nm + 405nm) combined with high-grade optical quartz lenses prevents structural yellowing and yields an optimal refractive index match.
By transitioning from mercury discharge bulbs to solid-state UV LED modules, manufacturing lines yield predictable, repeatable results. Our UV LED platforms provide instantaneous on/off switching, eliminating warm-up and cool-down cycles. Additionally, our integrated water-cooling or air-cooled thermal dissipation designs keep surface temperatures under 40°C, safeguarding temperature-sensitive OLED, TFT-LCD, and e-paper displays from thermal cracking.
Every UV LED Optical Bonding Curing System engineered by Dongguan LumiCure is designed around strict industrial requirements. Below is the reference architecture parameters optimized for global display lamination and cleanroom integration:
| System Parameter | Specification Details | Industrial Value & Application Advantage |
|---|---|---|
| Wavelength Selection | Dual or Single: 365nm, 385nm, 395nm, 405nm | Matches specific photoinitiator profiles in LOCA / OCR adhesives to prevent yellowing. |
| Maximum Peak Irradiance | 2,000 mW/cm² to 16,000 mW/cm² (Customizable) | High energy penetration for complete cure through thick cover glass substrates. |
| Cooling Methods | High-Volume Air Cooled / Precision Closed-loop Water Cooling | Guarantees steady optical power output ±2% and extends LED chip lifespan. |
| Control Interface | PLC Integration via RS485 / Analog Signals / Touchscreen HMI | Allows automated stepless power adjustments from 10% to 100% via feedback loop. |
| Uniformity Rating | >95% spatial uniformity over cure area | Ensures equal chemical cross-linking, eliminating visual distortion. |
The manufacturing sector is seeing an unprecedented wave of technological integration. We observe three primary drivers that require state-of-the-art curing setups:
Modern cars employ multi-screen curved dash arrays, integrating HUDs (Heads-Up Displays) and digital instrument clusters. These systems encounter high thermal fluctuation and sunlight exposure. Curing via high-performance UV LED ensures display systems survive strict vibration and humidity-chamber tests.
Foldable phones, tablets, and wearable electronics utilize complex multi-layered thin films. The heat generated by legacy mercury curing lines damages these substrates. Narrowband UV LED wavelengths protect the organic light-emitting polymers.
Augmented and Virtual reality lenses and optical waveguides require precision adhesive bonding at micro-scales. High-intensity spot UV curing systems with quartz lenses apply rapid spot-tack curing to preserve sub-micron alignment.
Dongguan LumiCure Light Co., Ltd. sits in the heart of China’s premium electronics manufacturing cluster. This localization allows us to deliver unique cost-performance and manufacturing benefits:
By sourcing raw components, quartz lenses, premium LED chips (such as Seoul Viosys, San'an, and Epitex), and housing materials locally within a 50-mile radius, we mitigate international shipping delays and reduce component acquisition overhead.
Our in-house R&D and engineering department develops bespoke systems (including wavelength mixing and custom mechanical frames) in as little as 10 to 15 working days. This flexibility allows global buyers to shorten their time-to-market.
For multinational electronics manufacturing providers (EMS), purchasing industrial machinery from China requires strict safety and operational guarantees. At LumiCure, we address these concerns through active compliance and localized service partnerships:
All our UV LED curing chambers, modules, and handheld devices adhere to CE, RoHS, and FCC standards. We implement rigorous QA testing protocols before export.
Through distributors in North America, Western Europe, and Southeast Asia, we supply localized engineering assistance, setup support, and rapid spare-parts deployment.
We back our industrial-grade components with up to a 2-Year Warranty. Our LED modules maintain high output stability over years of continuous shift work.
Our systems are designed for seamless integration across a wide range of industrial applications, providing high-yield throughput in critical assembly environments:
LumiCure’s linear UV LED systems integrate directly into automated Class 100 cleanroom lines. They output minimal air disturbance and low outgassing, ensuring that dust particles are not trapped inside LOCA / OCR layers during curing.
Our customizable water-cooled systems are mounted on multi-axis robotic arms. They run synchronized curing paths along curved panels, maintaining uniform distance and power output to ensure a seamless bond across curved glass surfaces.
Find solutions to common engineering challenges associated with optical bonding and UV LED curing systems.
The choice depends on the substrate absorption and adhesive chemistry. Standard clear cover glass allows 365nm UV wavelengths to pass through, curing standard LOCAs. However, if the glass features UV blockers or anti-reflective layers, higher wavelengths like 385nm or 405nm are required. Wavelengths like 405nm penetrate deeper, curing thick OCR layers without yellowing or damaging sensitive LCD structures.

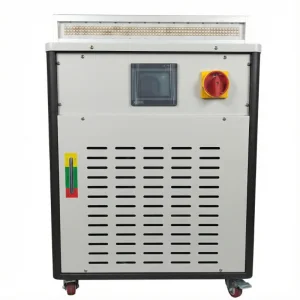

Water-cooled systems are preferred for cleanrooms because they do not blow dust around and can maintain stable LED temperatures even when running high-power, continuous cycles. Air-cooled systems are more compact, budget-friendly, and easier to install, making them ideal for localized spot curing or low-throughput assembly lines.

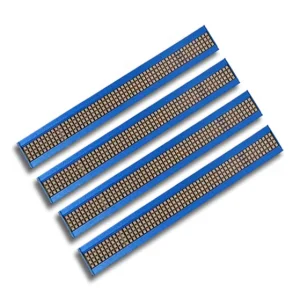

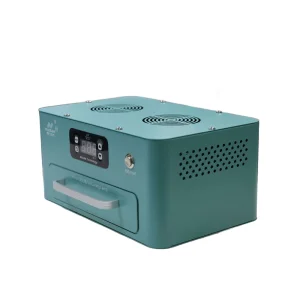

Yes, our dual-wavelength systems can output 365nm and 405nm light simultaneously or sequentially. This capability allows manufacturers to configure a fast-tack cure phase using one wavelength, followed by a complete deep cure using another, all within a single workstation.
Our UV LED systems are rated for a working lifetime of over 20,000 hours when operated under proper thermal conditions. This is roughly ten times longer than conventional mercury lamps, which usually need replacing every 1,500 to 2,000 hours.
Display wrinkling is caused by rapid, uneven polymer shrinkage. To prevent this, our systems feature HMI-controlled stepless power adjustments. This allows you to apply a low-intensity pre-cure to fix the assembly in place, followed by a high-intensity main cure. We also ensure a spatial uniformity of over 95% across the curing zone to prevent localized stress buildup.
Dongguan LumiCure Light Co., Ltd. is a professional China UV LED curing lamp manufacturer specializing in the research, development, production, and supply of industrial UV curing systems and customized UV LED solutions. With a strong focus on innovation, quality, and customer satisfaction, LumiCure has become a trusted partner for manufacturers worldwide seeking efficient and reliable curing technologies.
Our product range includes UV LED curing lamps, UV LED spot curing systems, flood curing lamps, conveyor UV curing machines, UV LED modules, printing curing systems, adhesive curing equipment, and customized industrial UV solutions. These products are widely applied in printing, electronics assembly, semiconductor packaging, optical bonding, automotive manufacturing, medical devices, 3D printing, and various precision industrial processes.
Backed by an experienced engineering team and advanced manufacturing facilities, LumiCure is committed to developing energy-saving and environmentally friendly UV curing technologies. Our products feature high curing efficiency, precise wavelength output, long service life, low maintenance requirements, and intelligent control capabilities, helping customers improve productivity while reducing operating costs.
Quality remains the foundation of our business. Every product undergoes rigorous testing and strict quality control procedures throughout the manufacturing process to ensure consistent performance and reliability. We also provide comprehensive OEM and ODM services, enabling customers to customize products according to their specific technical and application requirements.
Serving clients across Europe, North America, Asia, the Middle East, and other global markets, Dongguan LumiCure Light Co., Ltd. continues to deliver innovative UV LED curing solutions that support sustainable and efficient industrial manufacturing.
