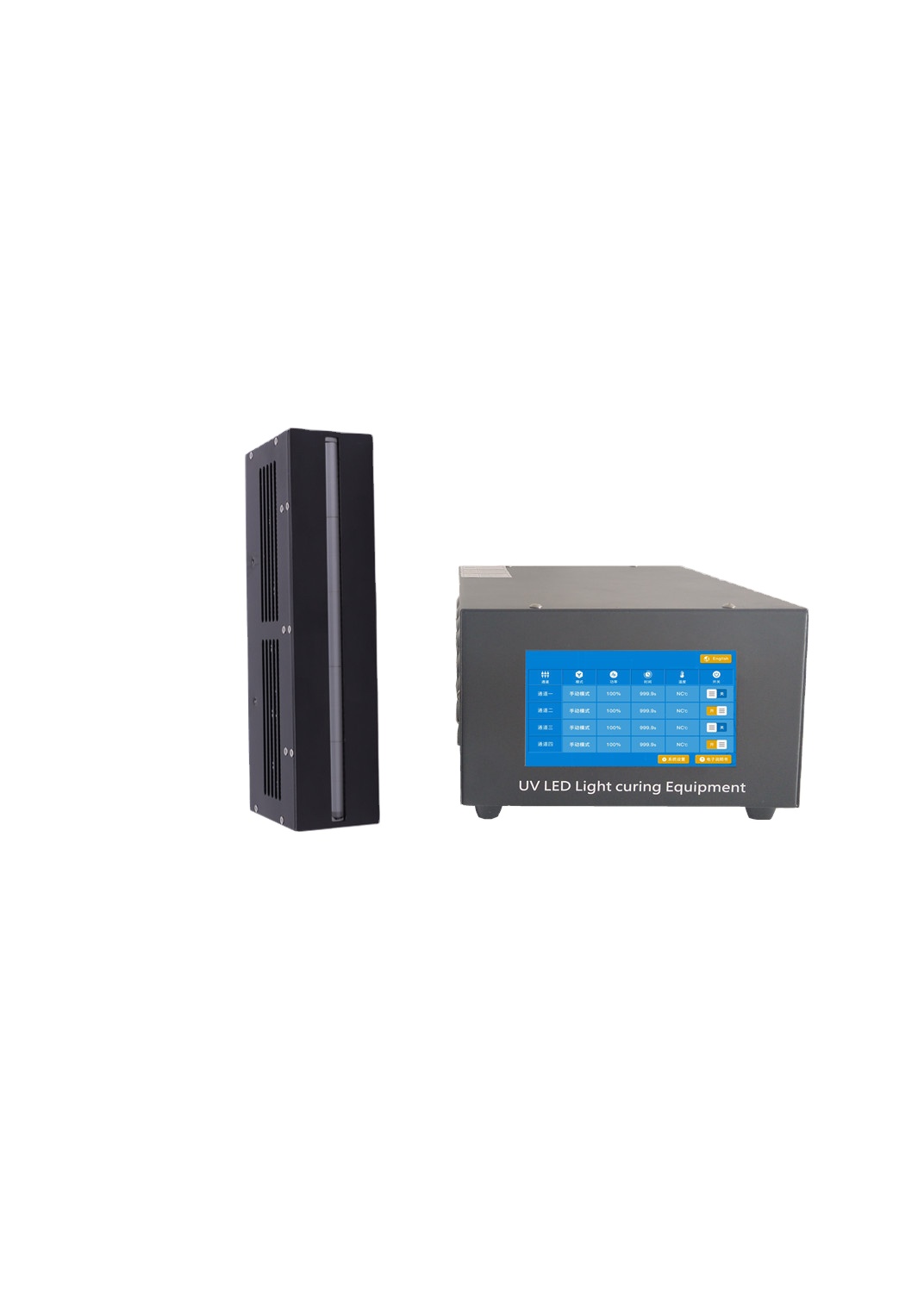

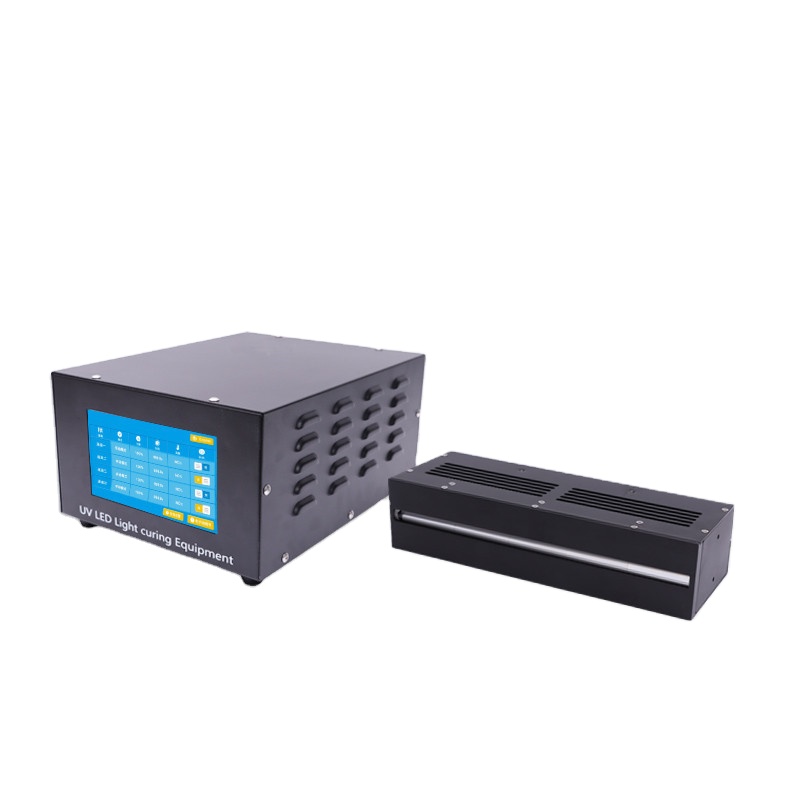

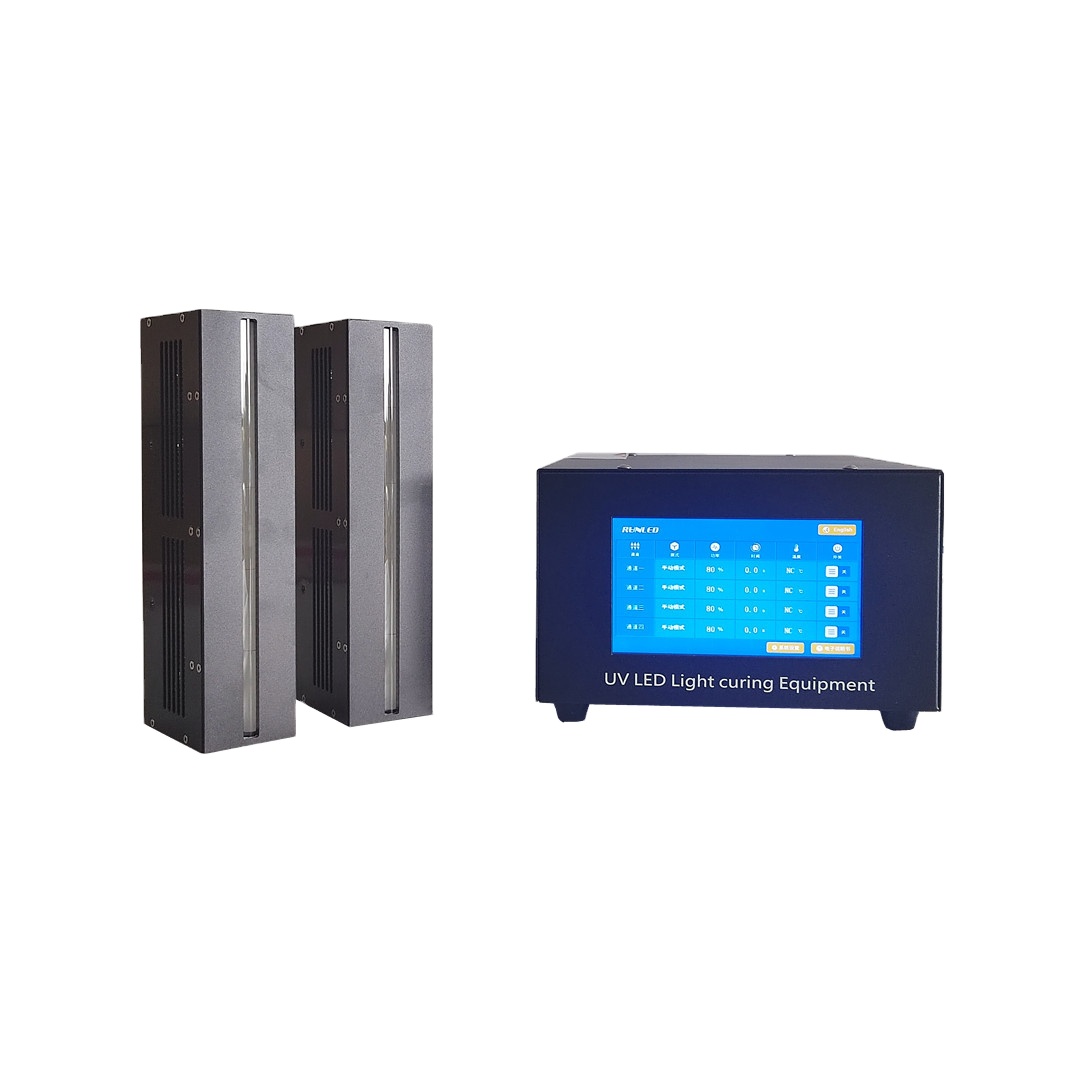

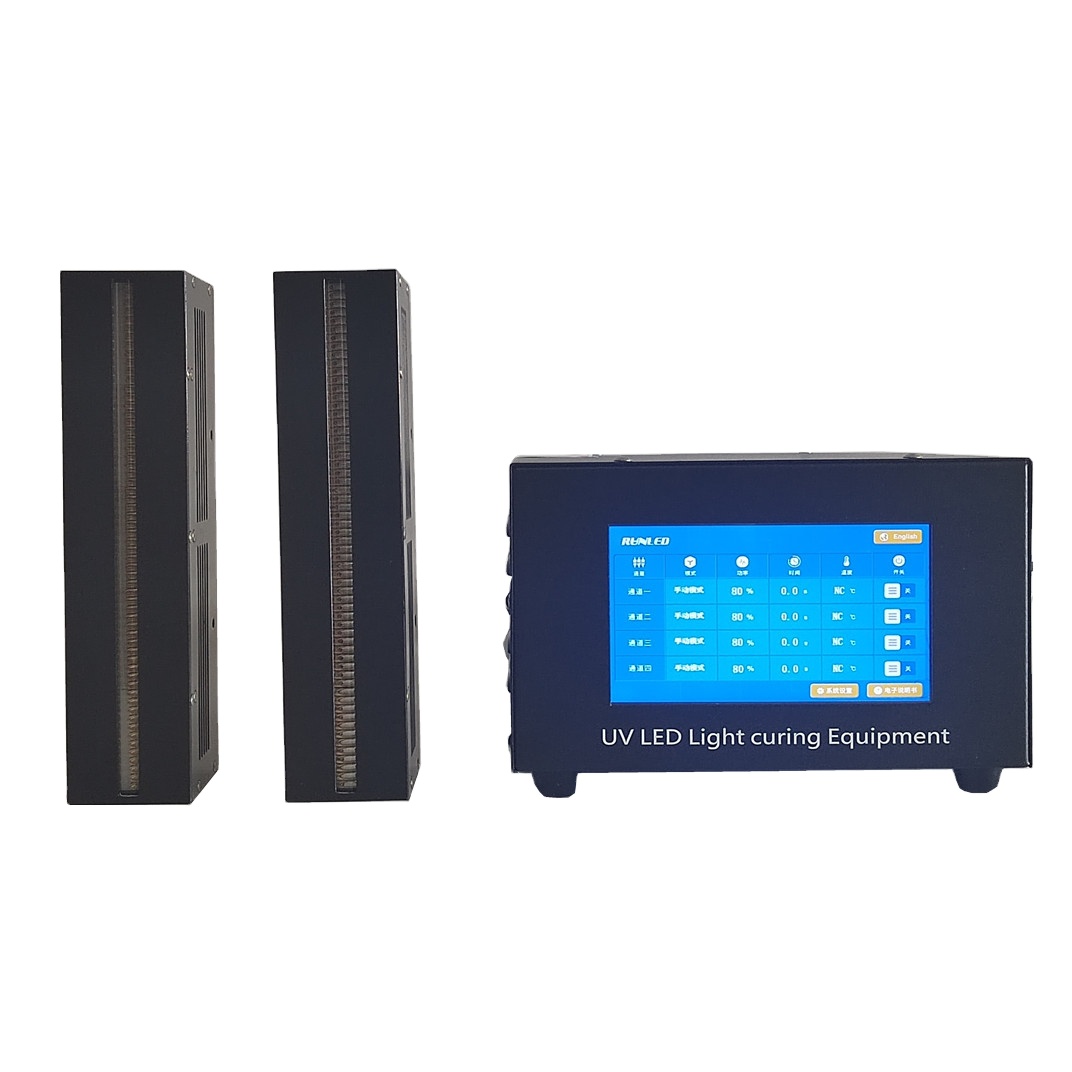

UV LED Linear Light Source Curing System High-Power 250W Natural/Fan Cooling UV Glue Bonding Fast Curing Drying Equipment

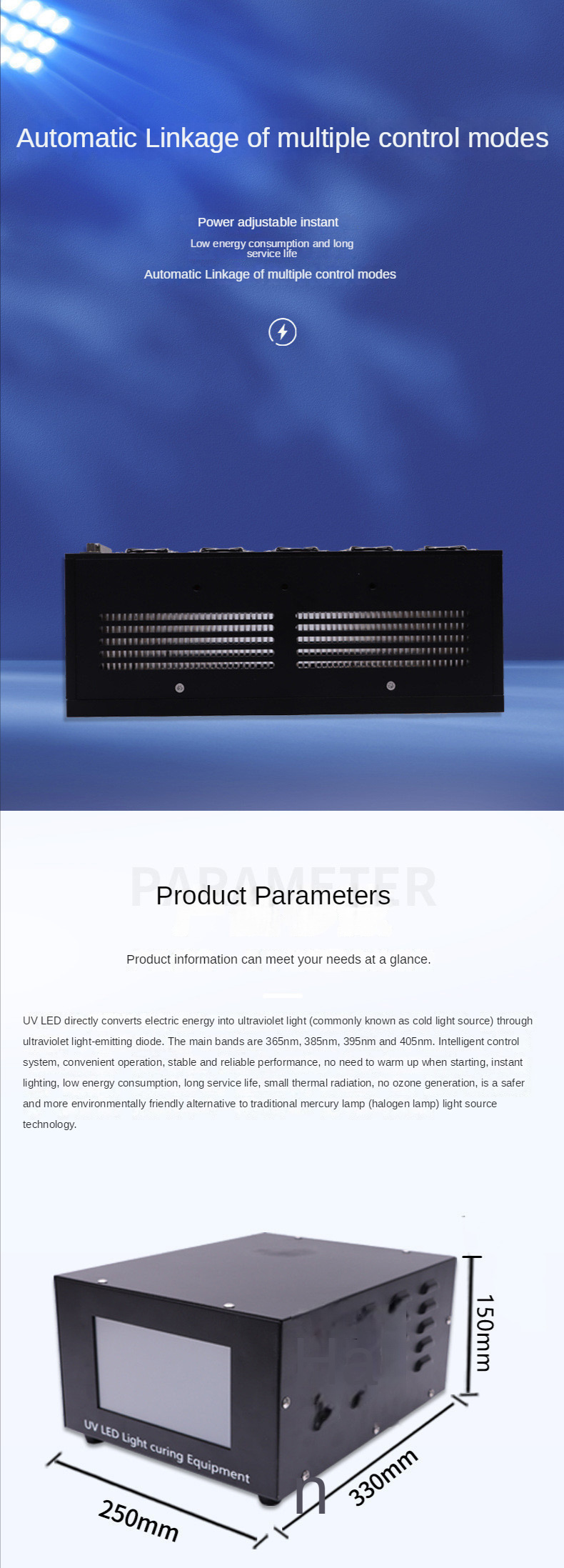

UV LED Area Light Source Controller Specifications
UV LED area light source controller
Optional Channel
Channel
CH1, CH2, CH3, CH4
Power setting
mw/cm²
0% - 100%
Irradiation mode
Manual mode
Touch control, pedal, 0-10V
Automatic mode
Timing Control
Advanced Mode
Circular Step irradiation
Control mode
Four
Touch control, pedal, 0-10V, PLC control
Type of cooling
Air-cooled
Fan cooling
Voltage
100-240VAC, 50/60HZ
Working Temperature/Humidity
+5 ± 40°C, 20-85%
Storage Temperature/Humidity
-10 ± 60°C, 20-85%
Size
mm
350 * 250 * 150
Weight
KG
10KG

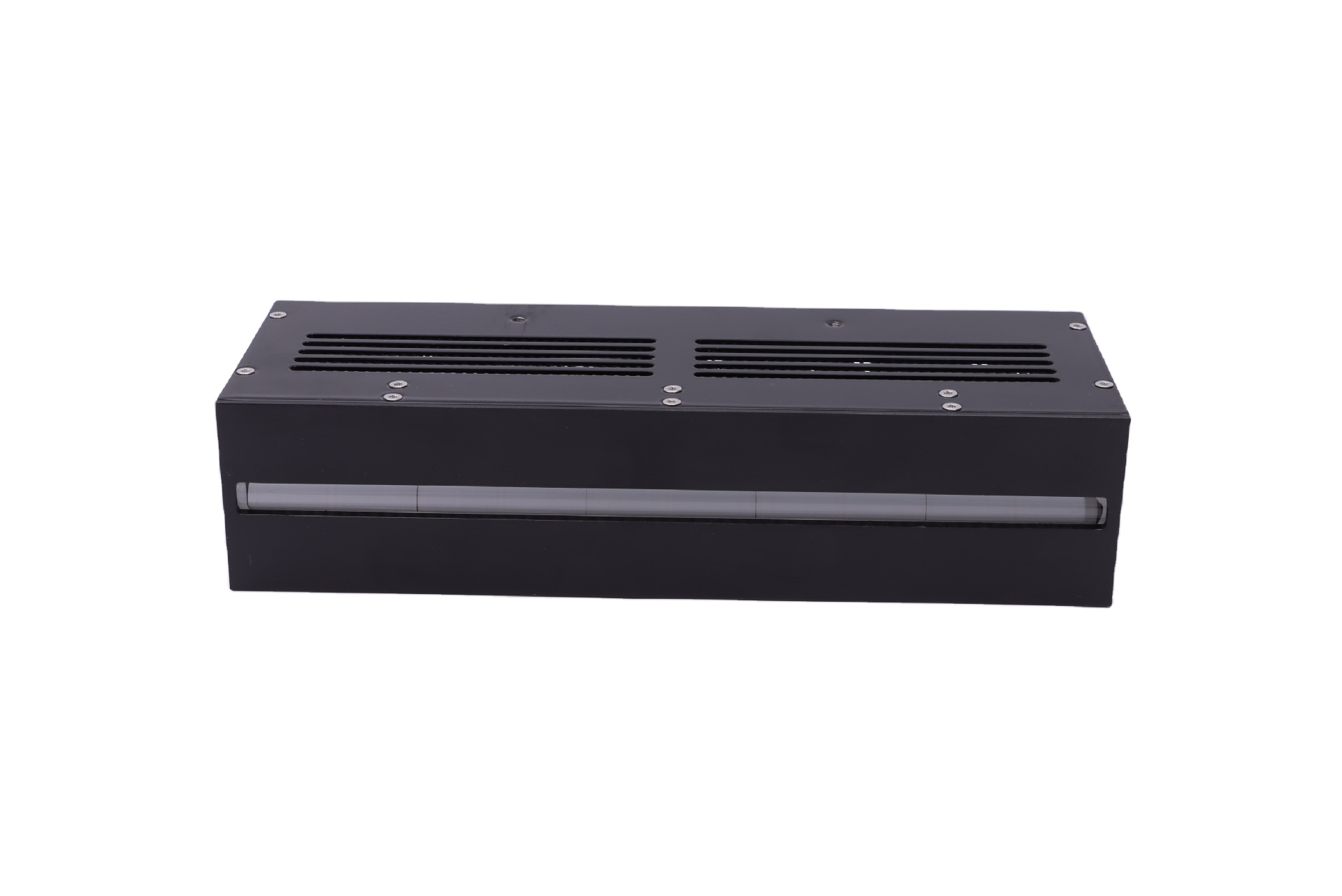

Irradiation Head Specification (BU10-250)
Irradiation head specification (BU10-250)
LED type
Ultraviolet LED
Wavelength range
nm
365, 385, 395, 405...
Lamp Dimensions
mm
260 * 60 * 93
Light area
mm
10 * 250
Working distance
mm
5 - 30
Light intensity
mw/cm²
0 - 3000
Heat-dissipating method
Mandatory
Fan cooling
LED service life
H
20000
Electric power
w
120 - 250
Working Temperature/Humidity
5 ± 40°C, 20-85%
Storage Temperature/Humidity
-10 ± 60°C, 20-85%
Power cord
Cable
m
2
Connecting Cable
Flexible cable
m
2
Frequently Asked Questions
Which wavelengths does the BU10-250 UV LED irradiation head support?
The irradiation head supports multiple ultraviolet wavelengths, including 365nm, 385nm, 395nm, and 405nm, which can be specified based on requirements.
What are the available control and irradiation modes for this system?
The controller supports four control methods: touch control, pedal, 0-10V, and PLC control. The operation can be performed via Manual, Automatic (Timing Control), or Advanced Mode (Circular Step irradiation).
What type of cooling mechanism does the UV LED area light source use?
Both the area light source controller and the BU10-250 irradiation head utilize a mandatory air-cooled fan cooling system to manage working temperatures.
What is the expected service life of the UV LED?
The LED is designed for longevity, offering a nominal service life of up to 20,000 working hours under optimal operating conditions.

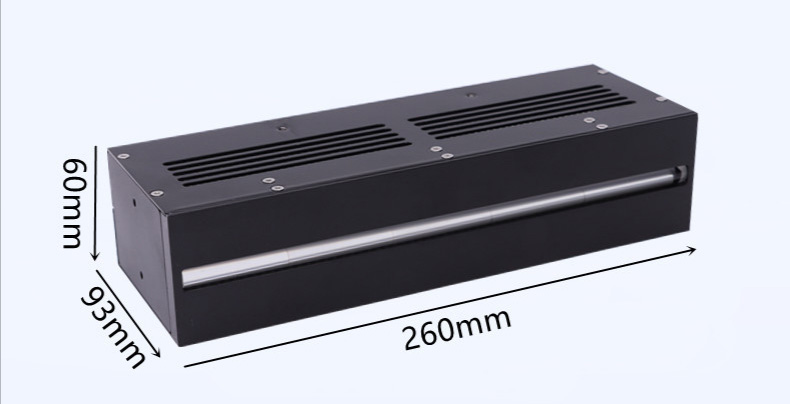

What is the size and light area of the BU10-250 irradiation head?
The physical dimensions of the BU10-250 irradiation head are 260 * 60 * 93 mm, and it provides an effective light area of 10 * 250 mm.
What are the power requirements and environmental operating limits?
The controller operates on a voltage range of 100-240VAC at 50/60HZ. The working environment temperature should remain within +5 to ±40°C with humidity levels between 20-85%.
