EPS-203 Wall-mounted 2 Stage 20 Inch PP Filter Housing Ultraviolet Water Purifier System For Whole House

Send Inquiry

Product Description

EPS Series Whole House UV Water Purification System is an advanced all-in-one water treatment solution for residential use. It integrates 3/4-stage filtration, adsorption and UV disinfection to effectively remove sediment, bacteria, viruses, cysts and other pathogens, while significantly improving water taste, clarity and odor. Safe drinking water from every faucet in your home.

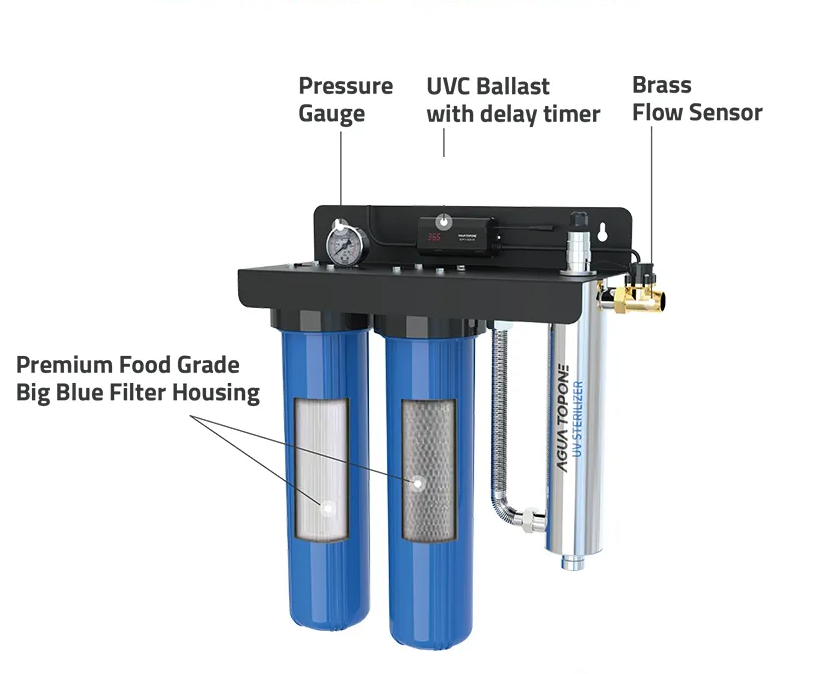

Features

Premium food-grade Big Blue filter housings

304 stainless steel UV reactor (316L optional)

Digital controller with delay timer

Brass flow sensor (auto shut-off when not in use)

Pressure gauge (EPS-203 / EPS-204)

UVC ballast with timer

Wall-mounted, compact design

Specification

Key Protection & Benefits

99.99% Pathogen Elimination: Destroys E. Coli, Cryptosporidium, Giardia, bacteria and viruses
All-House Safe Water: Drinkable, shower-safe water throughout the home
Chlorine & Odor Removal: Improves taste and smell of tap, bore and rainwater
Chemical-Free Disinfection: No added chemicals, safe for family and appliances

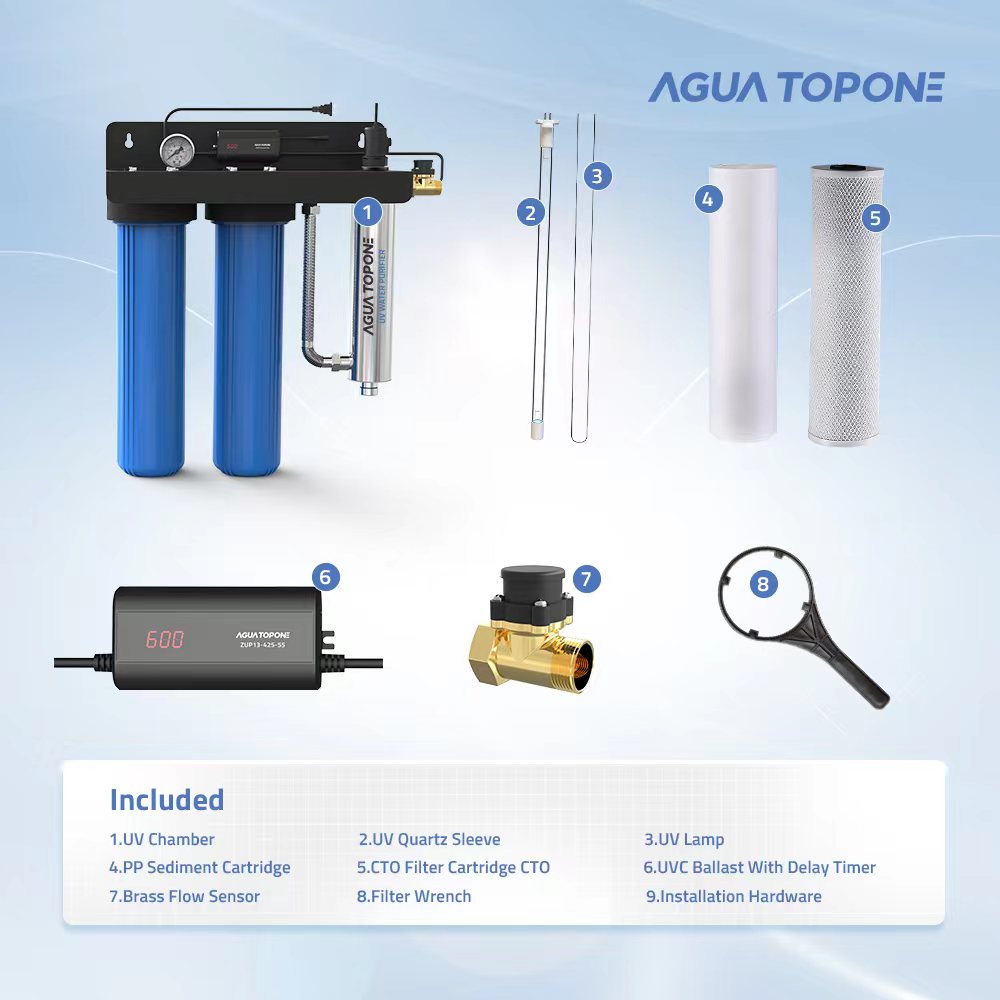

Low Maintenance: Only filter and lamp replacement needed
Quick Plug & Play: Pre-assembled for fast, easy installation
Corrosion-Resistant: Iron bracket + food-grade filter housings
Wide Compatibility: Works with municipal, well, lake and river water sources

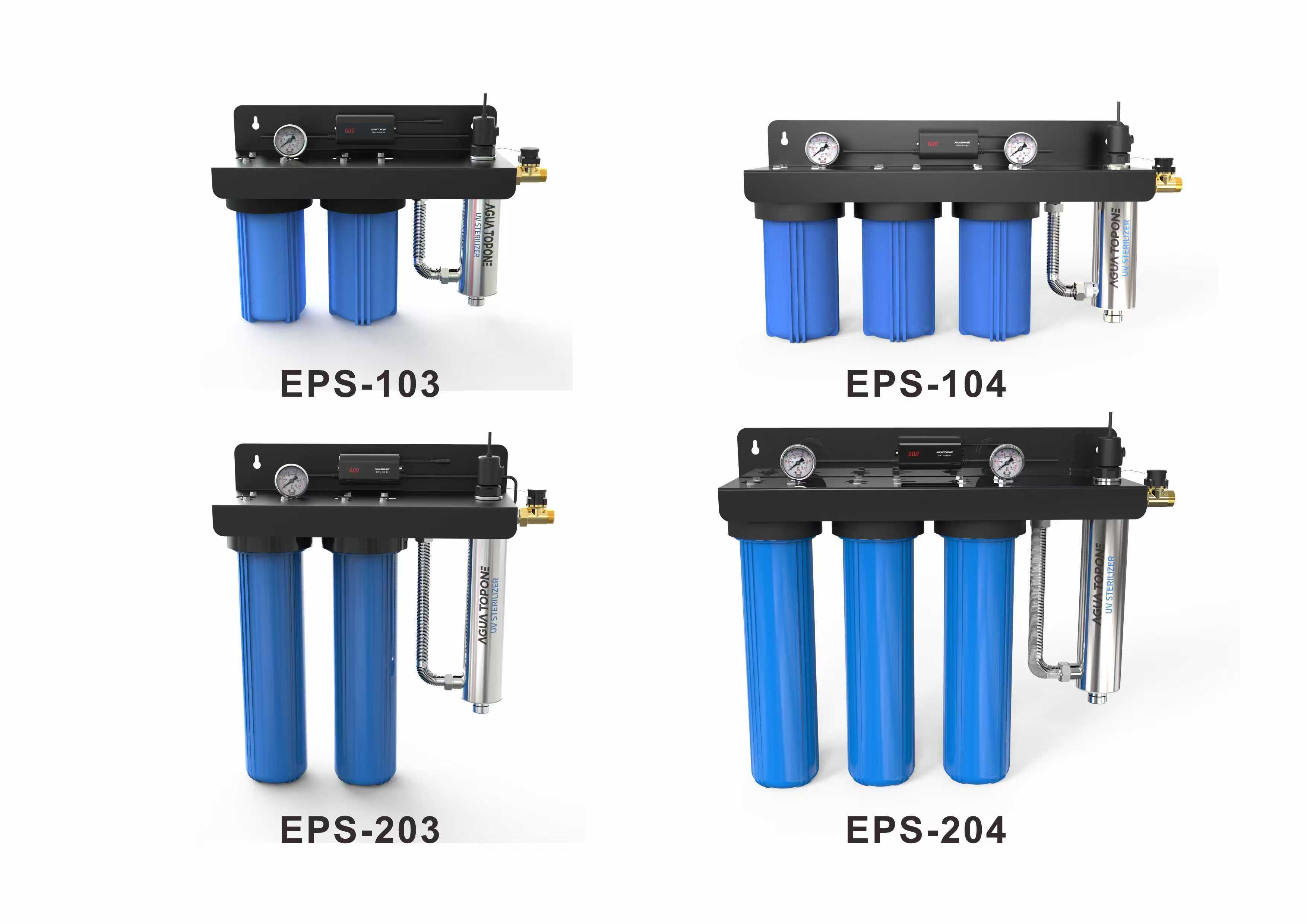

Model	Inlet/Outlet	1st Stage	2nd Stage	3rd Stage	UV Lamp	Max Pressure
EPS-103	1" Female / 1" Male	5μm Sediment (10x4.5")	Carbon (10x4.5")	-	33W	10 bar
EPS-203	1" Female / 1" Male	5μm Sediment (20x4.5")	Carbon (20x4.5")	-	48W	10 bar
EPS-104	1" Female / 1" Male	5μm Sediment (10x4.5")	Carbon (10x4.5")	Carbon Block (10x4.5")	33W	10 bar
EPS-204	1" Female / 1" Male	5μm Sediment (20x4.5")	Carbon (20x4.5")	Carbon Block (20x4.5")	48W	10 bar

Applications

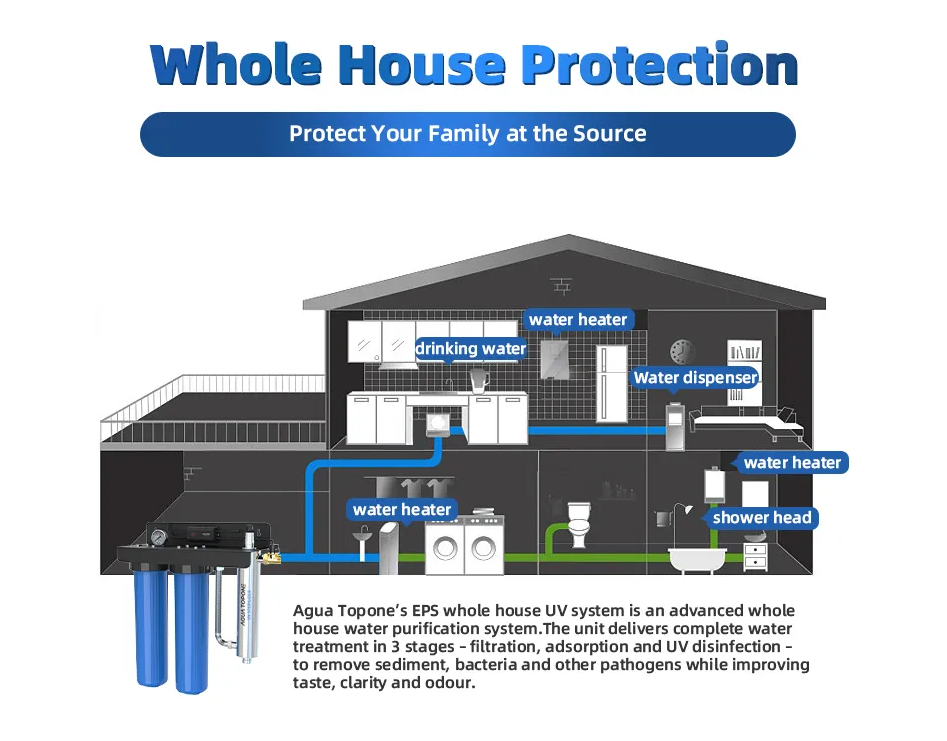

Residential Household

Apartments, villas, townhouses, family houses
Whole home water supply: kitchen, bathroom, shower, toilet
Protect water heaters, washing machines, dishwashers
Safe water for drinking, cooking, bathing, brushing teeth

Rural & Off-Grid Areas

Well water, bore water, lake water, river water treatment
Remote houses, farms, ranches, mountain cabins
Areas without municipal tap water supply

Small Commercial & Public

Small offices, clinics, kindergartens, community rooms
Guesthouses, bed-and-breakfasts, vacation rentals
Campsites, mobile home parks, RV stations

Daily Life & Multi-Use

Coffee, tea, beverage, juice making
Pet drinking water, garden plant irrigation
Food cleaning, fruit and vegetable washing

Frequently Asked Questions

How does the EPS Series Whole House UV Water Purification System work?

The system integrates multiple stages of filtration. The sediment filter removes physical particles like rust and silt, the carbon filters adsorb chlorine, bad taste, and odors, and the final UV disinfection stage sterilizes bacteria, viruses, and other pathogens by destroying their DNA.

What types of water sources can this system treat?

This system features wide compatibility and works effectively with municipal tap water, well water, bore water, rainwater, lake, and river water sources.

Is the water treated by this UV system safe for the entire house?

Yes. The system is designed to provide safe, chemical-free drinking and shower water throughout the home, protecting not only your health but also household appliances from sediment build-up.

What is the purpose of the digital controller and flow sensor?

The digital controller helps manage the filtration and UV cycles, while the brass flow sensor automatically shuts off the unit when water is not in use to save energy and extend the lifetime of the UV lamp.

What maintenance is required for the EPS UV system?

Maintenance is low. It typically requires periodic filter cartridge replacements and UV lamp replacement to ensure continuous and optimal pathogen elimination.

Are the filter housings and brackets durable?

Yes, the system is constructed with premium food-grade Big Blue filter housings and a corrosion-resistant iron mounting bracket, ensuring durability and long-term performance.
