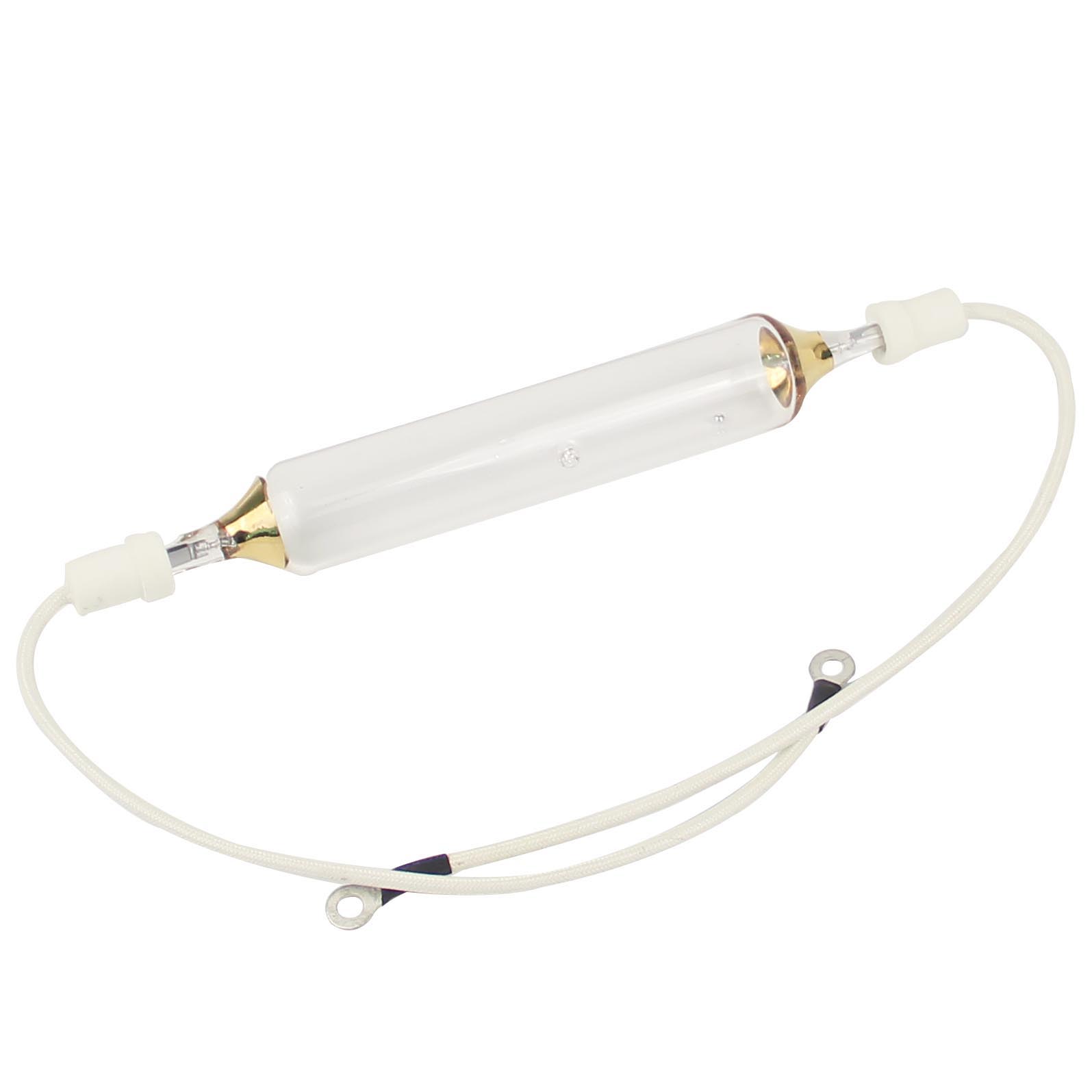

| UV Curing High-pressure Mercury Lamp Technical Parameter List | |
|---|---|
| Product Name | High pressure uv mercury lamp |
| Total Length | 150mm~2000mm(5.9"~79") |
| Arc Length | 70mm~1900mm(2.7"~75") |
| Tube Diameter | 17/18/20/25/26/28/30/32/40mm (0.6"/ 0.7"/ 0.8"/ 0.9"/1"/1.1"/1.2"/1.25"/1.57") |
| Lamp Base | Ceramic or metal |
| Fill | Mercury |
| Watts Per Inch | 200 WPI |
| End Caps | Ceramic / Metal (More than 100 kinds) |
| Application | UV Curing Machine |
| Wavelength | 320nm to 450nm (peak at 365nm) |
1. The lamp must be used with the corresponding ballast and flip-flops.
2. It commonly needs 1-2 minutes to stable work after lighting the lamp.
3. There will be 5-10 minutes to cool the lamp before rebooting the lamp again.
1. Due to the high strength UV output from the Mercury lamp, direct irradiation of ultraviolet rays should be avoided; your eyes should also be avoided caught by the glowing tube in case of harming them.
2. Turn the power off first to prevent unexpected results when replacing new tubes.
3. Illegal use is strictly prohibited.

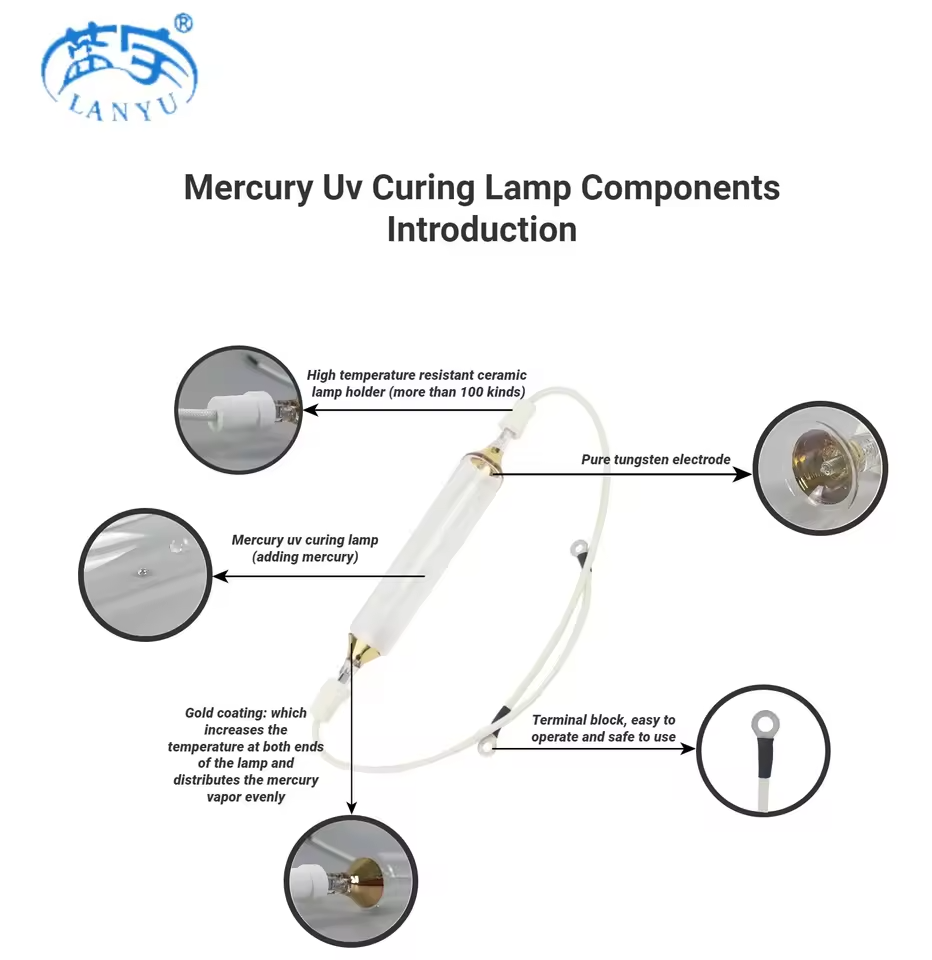

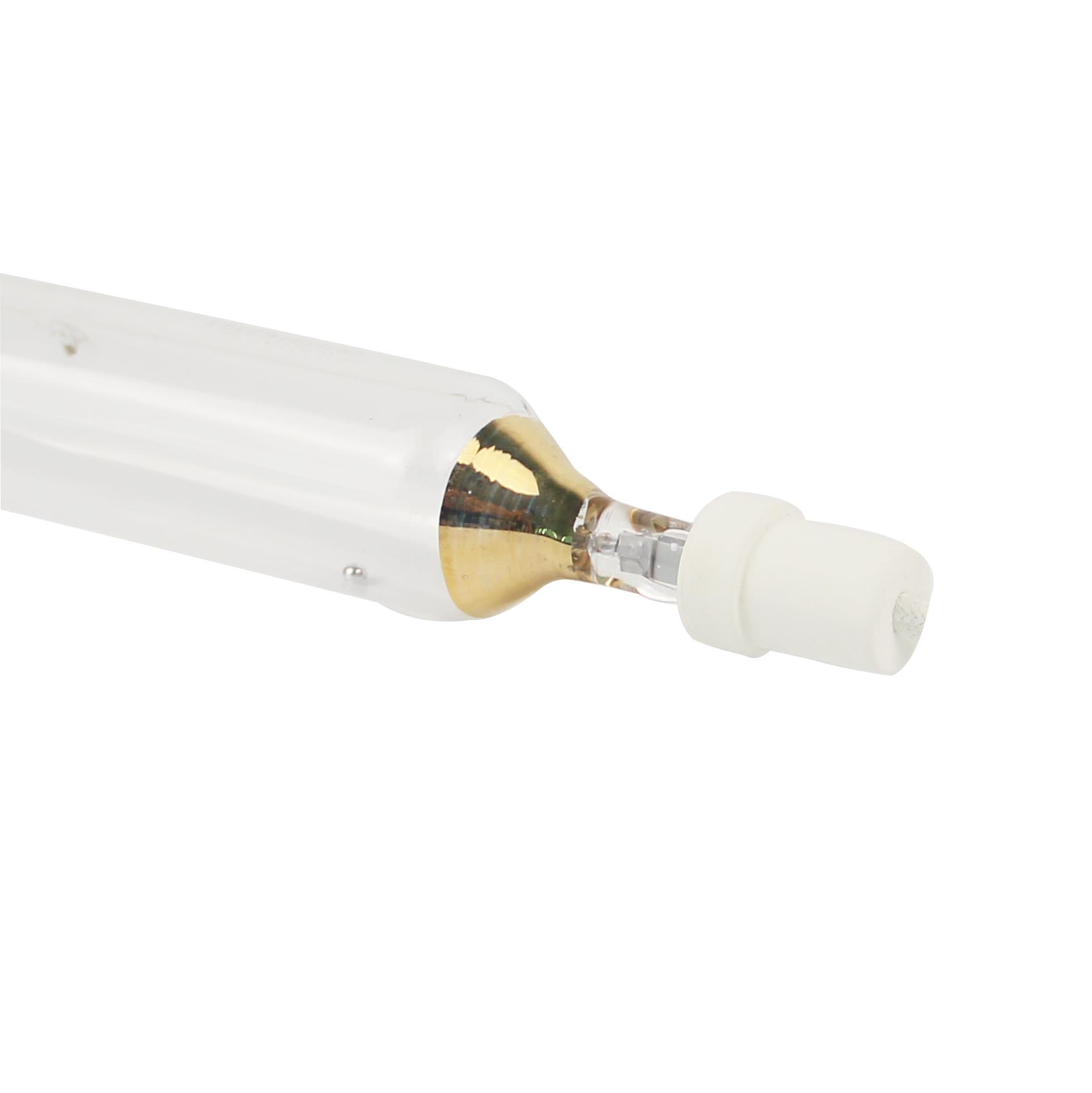

Made of high-quality ceramic materials, resistant to high temperatures and not easy to age.

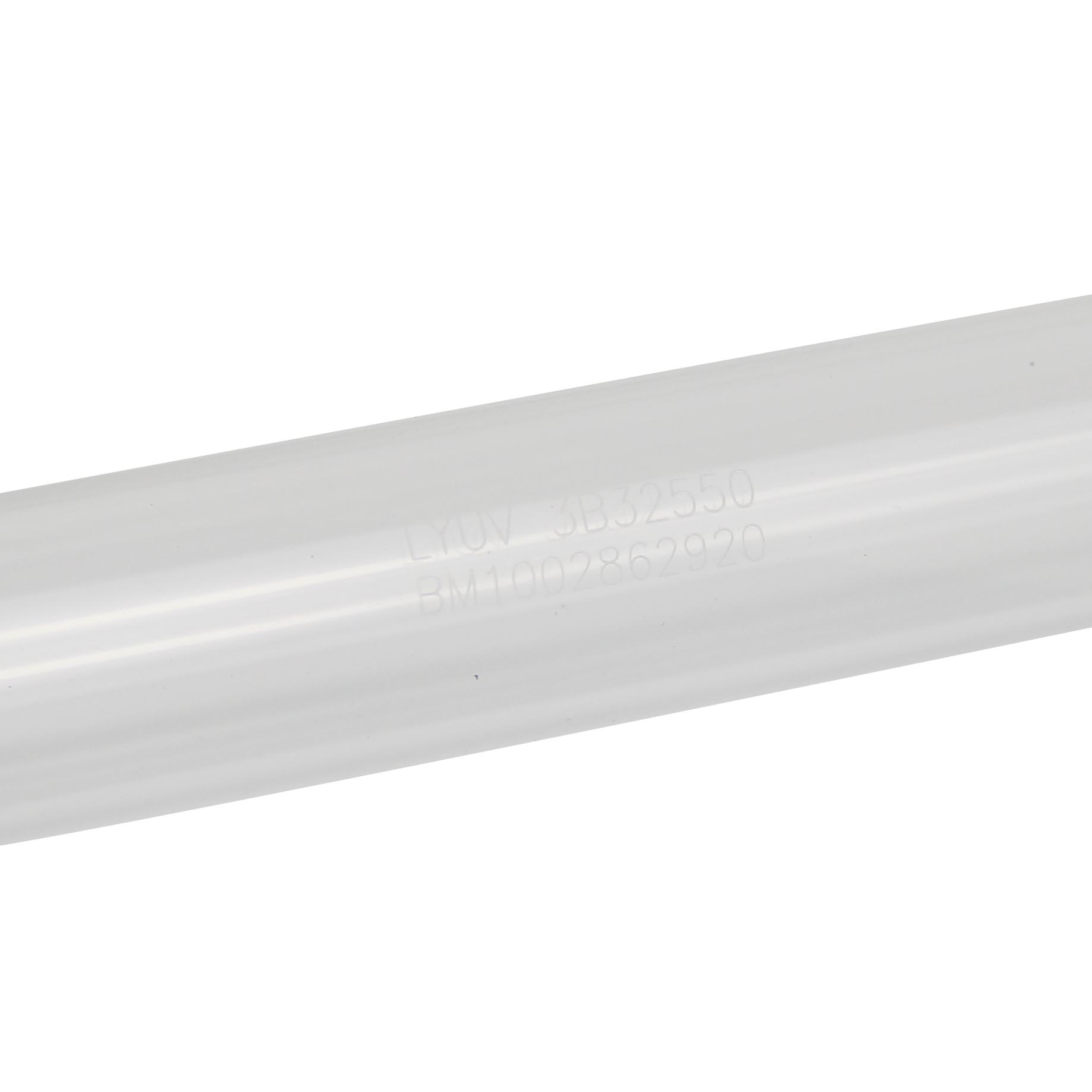

The ultraviolet decay rate is slow, and not easy to oxidize. DIY text patterns are supported on the surface of the lamp.

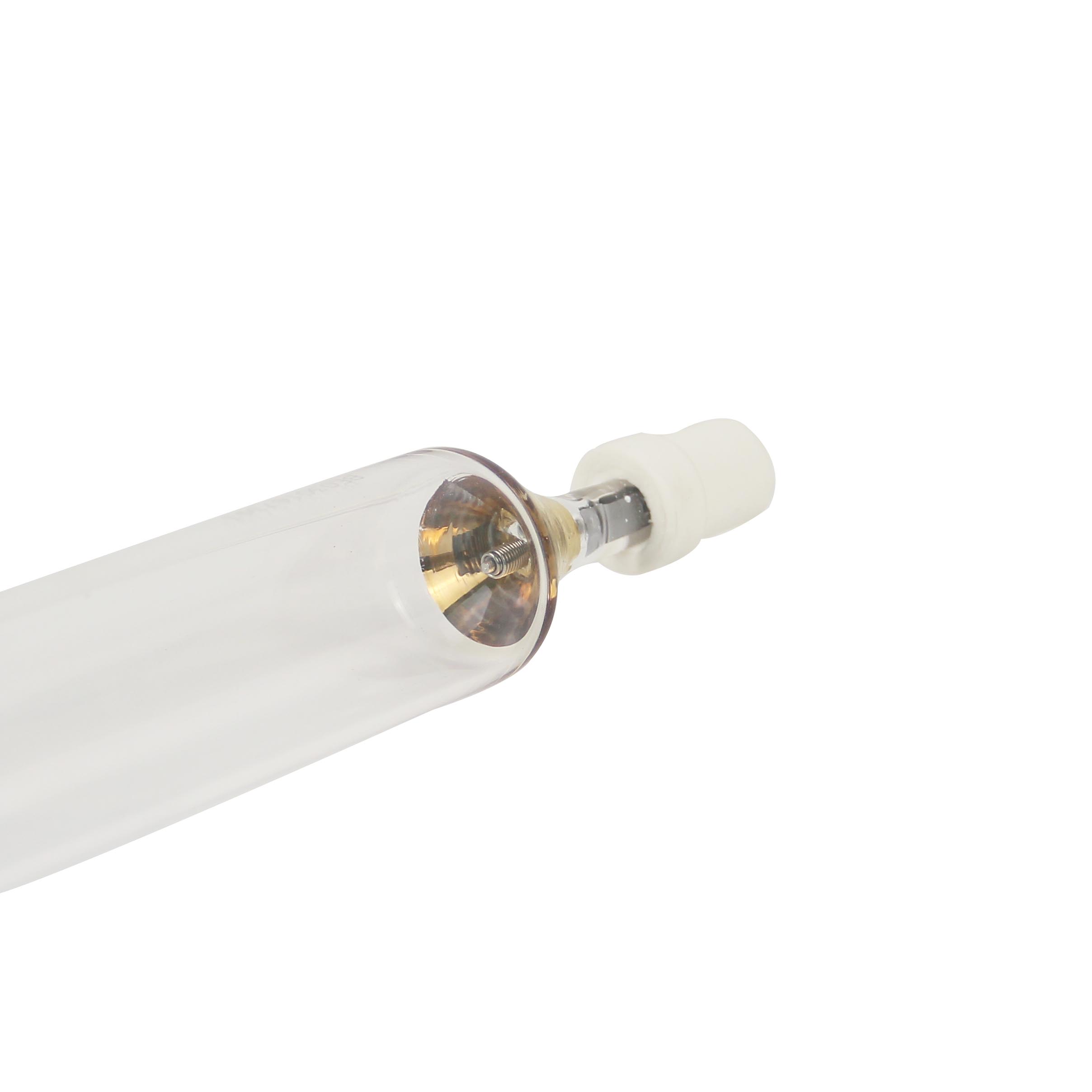

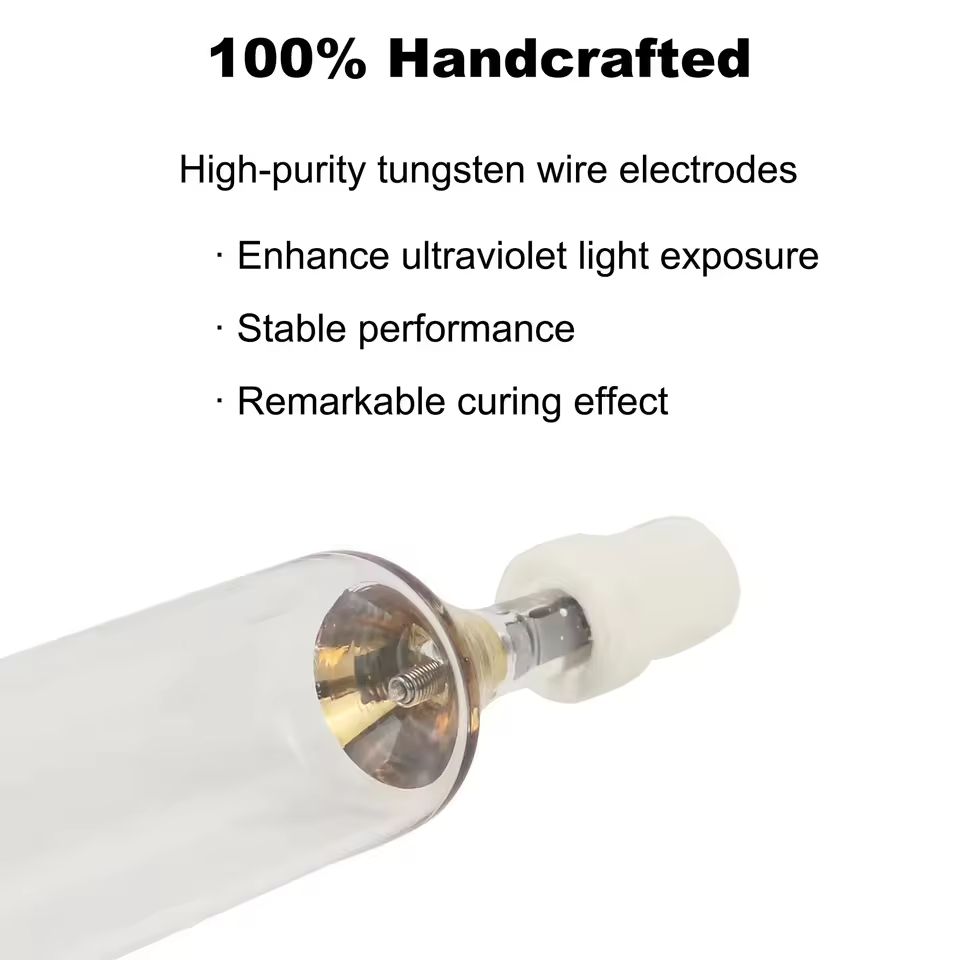

Pure tungsten electrodes can enhance ultraviolet light exposure, stable performance, and remarkable curing effect.
| The Parameter Range Of Lamps And Lanterns Produced By Our Factory | |
|---|---|
| Power output | 500w to 40kw |
| Wavelength | 320nm to 450nm |
| Arc length | 50mm to 2000mm |
| Pipe diameter | 18mm to 32mm |
| Power density | 30/60/80/120/160/200 w/cm |

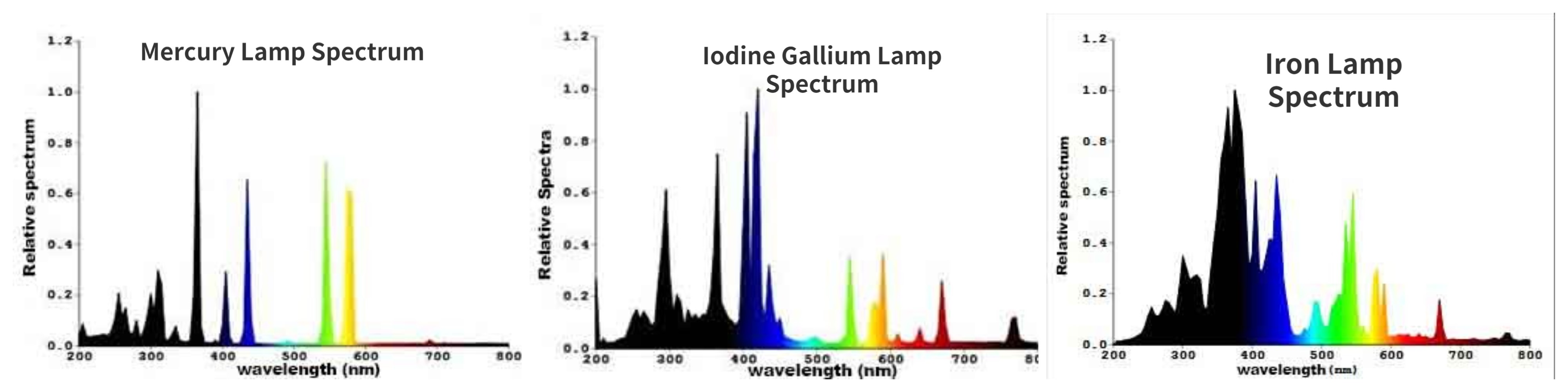

| Spectrum | UVA / UVB / UVV |
| Fill | Mercury / Metal halide / Gallium iodide |
| Material | US General Electric, Raesch Quartz Germany |
| End caps | Ceramic / metal (more than 100 kinds) |
| Service life | 800 to 1000 hours |
