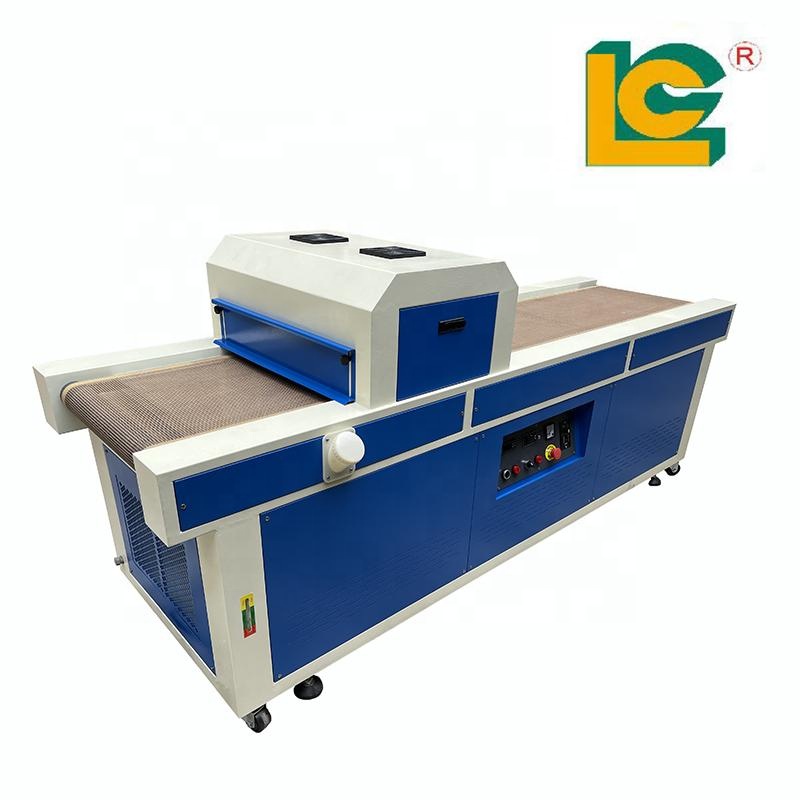

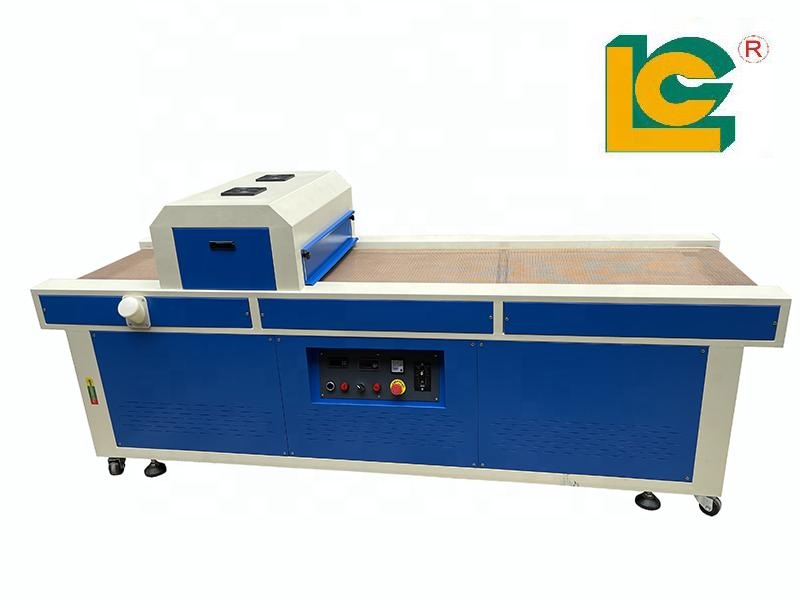

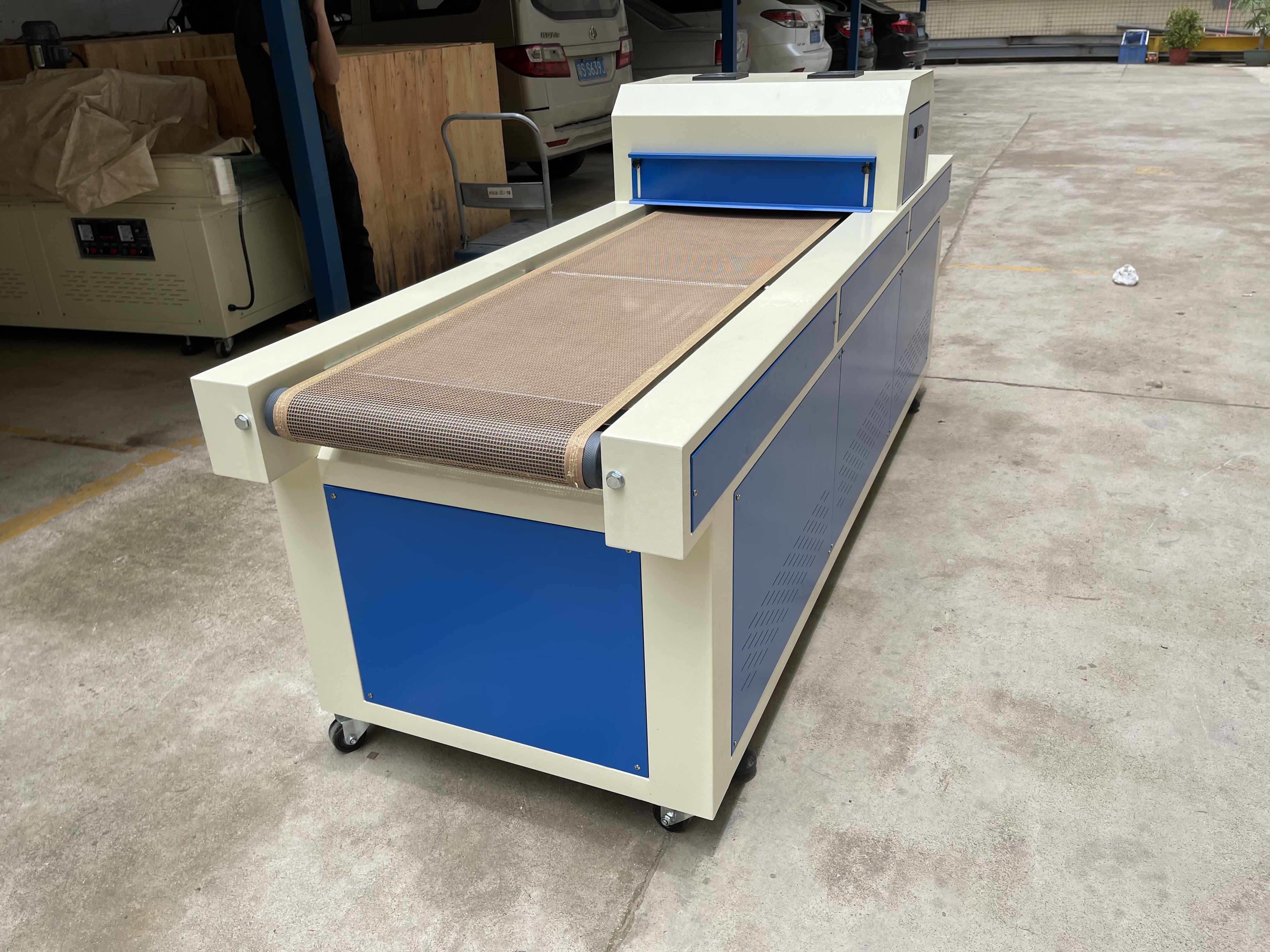

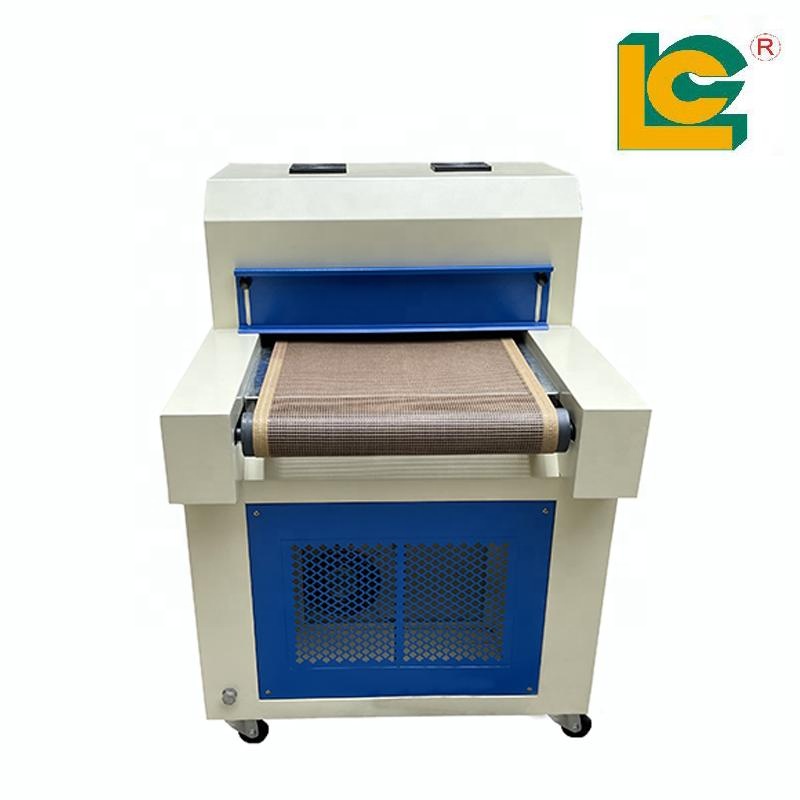

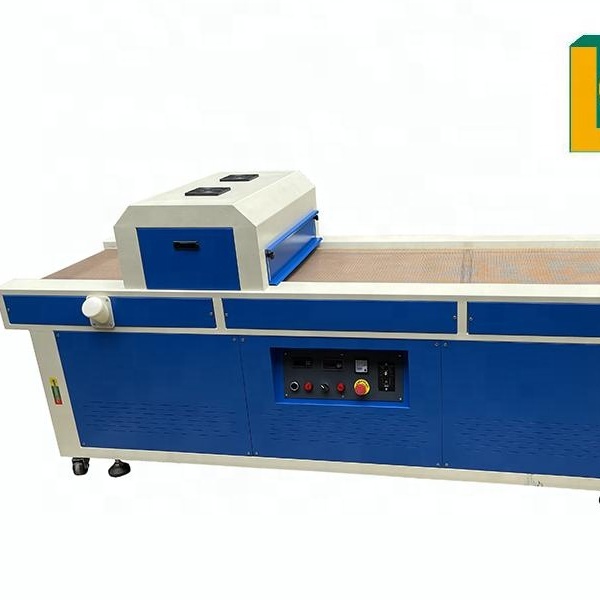

Latest Plane UV LED Curing Machine UV Dryer Tunnel for LED UV Ink Paper Glue PVC Sheet PCB

Post-press equipment plane UV LED curing machine for screen printing LED UV ink

Favorable price and high quality UV LED drying tunnel

Our last new LED UV Curing Machine is small Volume and easy carrying. Widely used for drying printing LED UV ink, LED UV paper printing, LED UV glue, LED UV tunnel drying, LED UV ink, LED UV testing and so on.

Advantages

1 Cold light source, no heat radiation, suitable for bonding heat sensitive materials.
2 Immediately on and off without preheating. The irradiation intensity can reach 500mw/cm2 to 12000mw/cm2 or higher.
3 Compact size, making it easy to integrate into fully automated production lines and equipment.
4 More environmentally friendly and safer. UV LED has no infrared radiation, no harmful gas, and meets ROHS standards.
5 Long service life (over 20,000 hours) can greatly reduce operating costs and maintenance work hours.
6 Bending-resistant cable can be installed at the movable part at will, to meet the needs of repeated movement.

Specifications

Model number	TM-500LEDUVF	Style	Standing
Max product width	500mm	UV Lamp power	3KW × 1PCS
Max product length	1200mm	Conveyer belt size	2500x500mm
UV Process shine area	500×500mm	UV Machine Dimension	2600×520×1350mm
Conveyer speed	0-10m/min	Net Weight	230kg

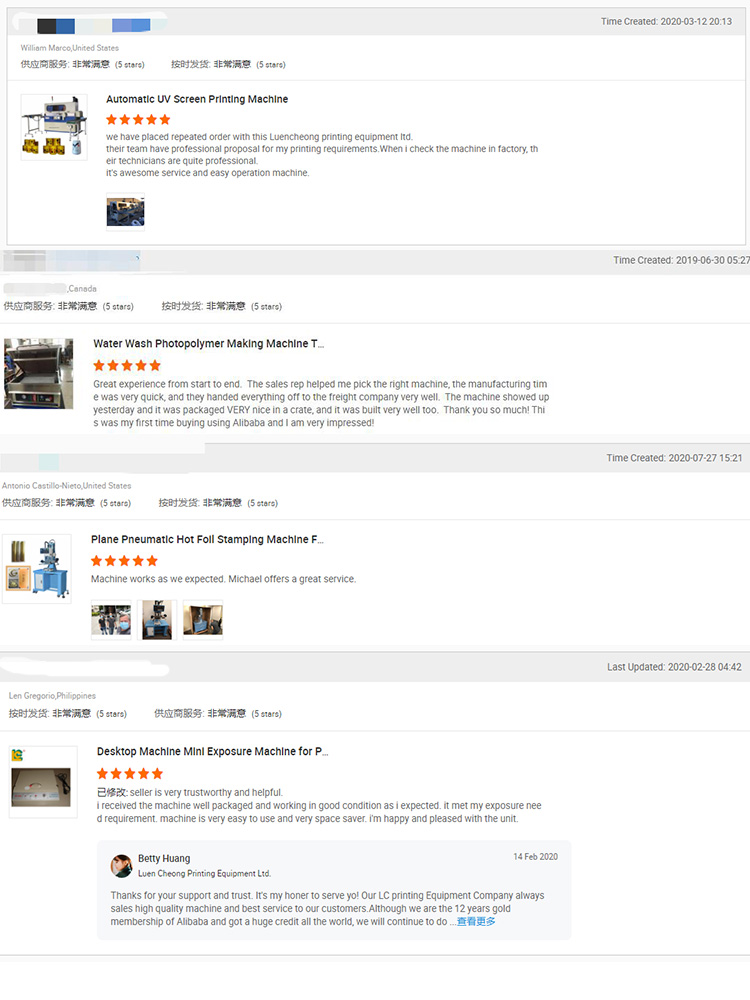

Feedback

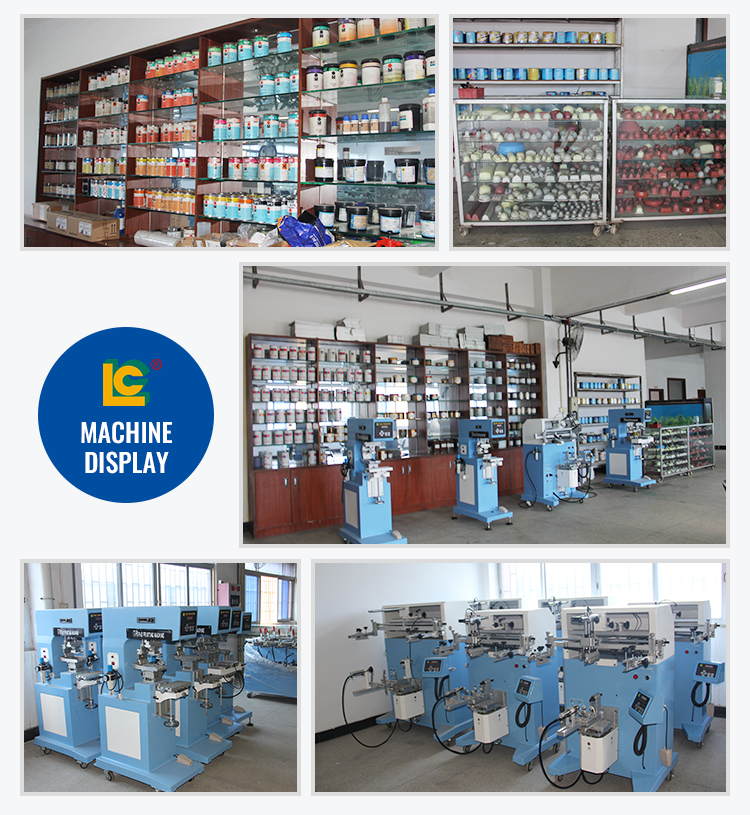

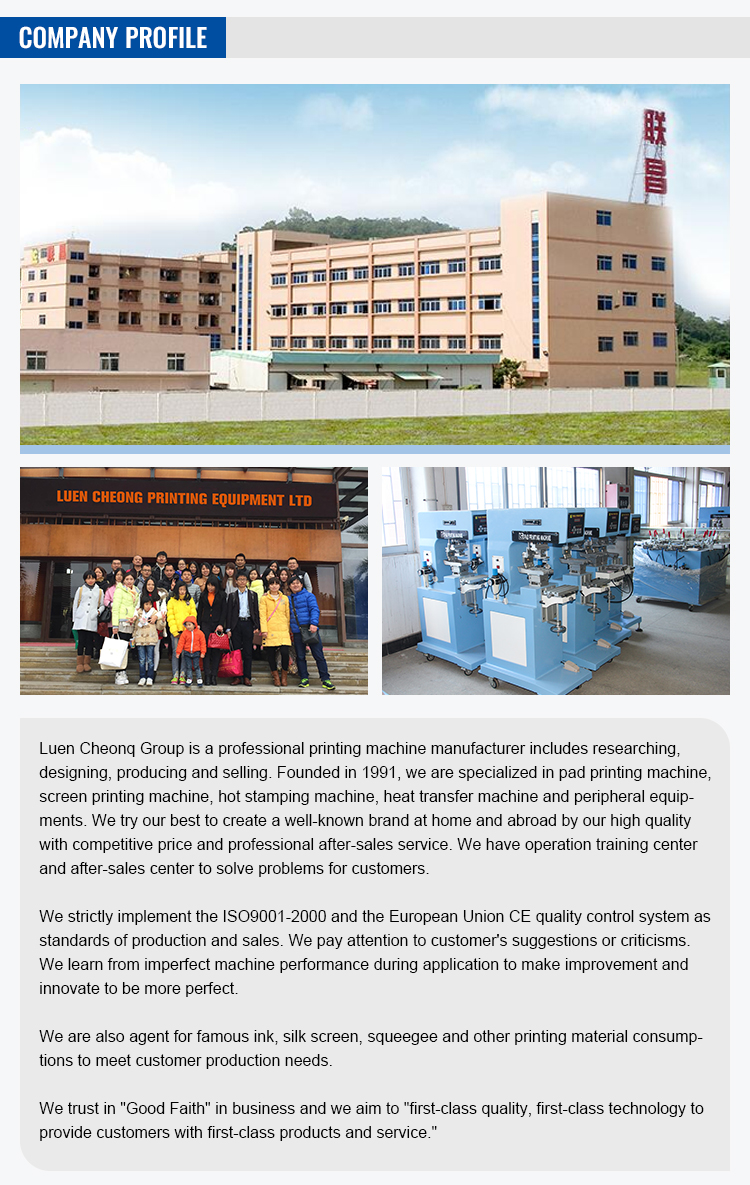

Production Facility

Packaging & Shipping

FAQ Reference

Frequently Asked Questions

Q: What materials are suitable for curing with this UV LED curing machine?

This machine is highly suitable for curing UV inks on screen printing projects, UV paper printing, UV glue bonding, UV tunnel drying, and various heat-sensitive substrates.

Q: What is the advantage of using a cold light source?

The cold light source generates no heat radiation during operation. This makes it ideal for curing heat-sensitive materials (like plastics and thin films) without causing distortion, warping, or damage.

Q: Does the UV LED lamp require preheating before operation?

No, the system features instant on and off capability. You do not need to wait for a preheating cycle, which helps improve overall production efficiency.

Q: What is the lifespan of the UV LED lamps on this machine?

The UV LED lamps offer an exceptionally long service life of over 20,000 hours, significantly reducing maintenance downtime and operating costs compared to traditional mercury lamps.

Q: Is the conveyor belt speed adjustable?

Yes, the conveyor speed is adjustable and ranges from 0 to 10 meters per minute, allowing you to fine-tune the curing time according to different ink thicknesses and production requirements.

Q: Is this curing machine environmentally friendly?

Yes, the UV LED technology does not emit infrared radiation, produces no harmful gases like ozone, and fully complies with RoHS safety and environmental standards.
