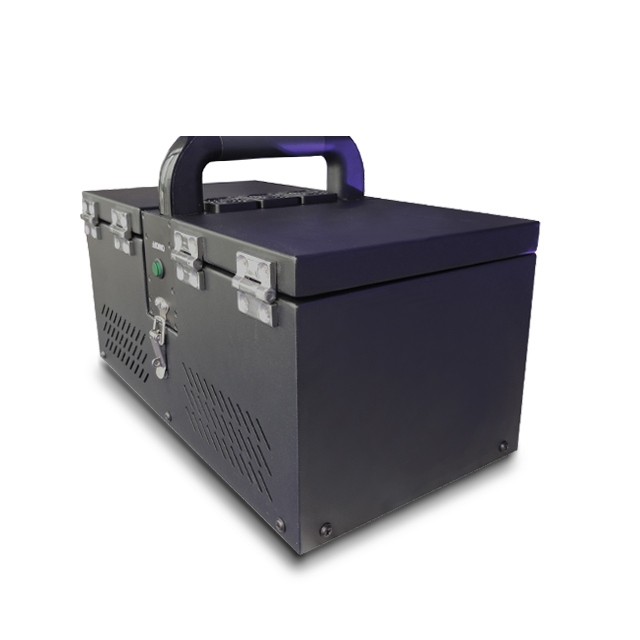

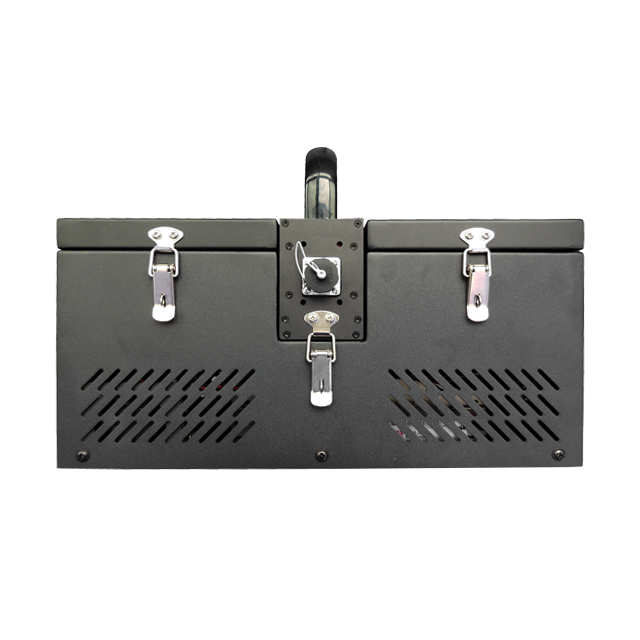

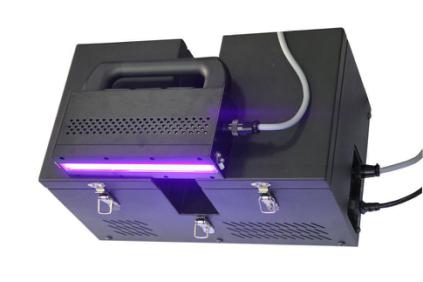

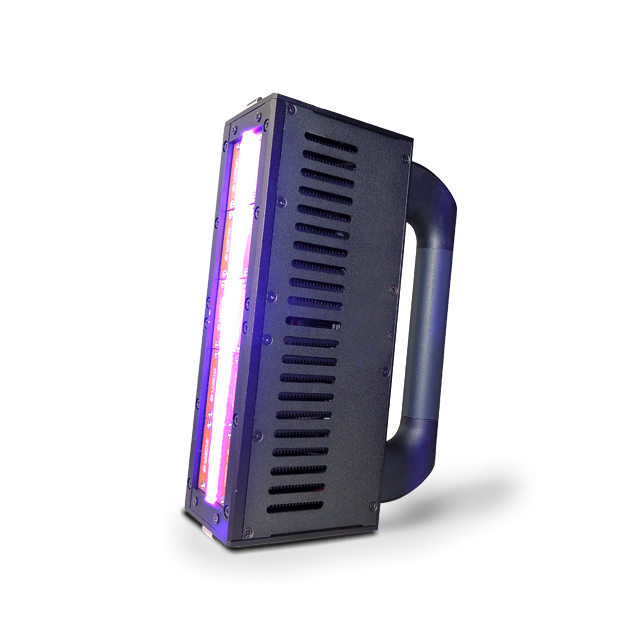

Professional 395Nm Portable Wood Floor Led UV Dryer Paint Furniture UV Drying Machine Curing System
Products Feature
Ergonomic design, portable and convenient
High light intensity, Max 12000mW/cm²

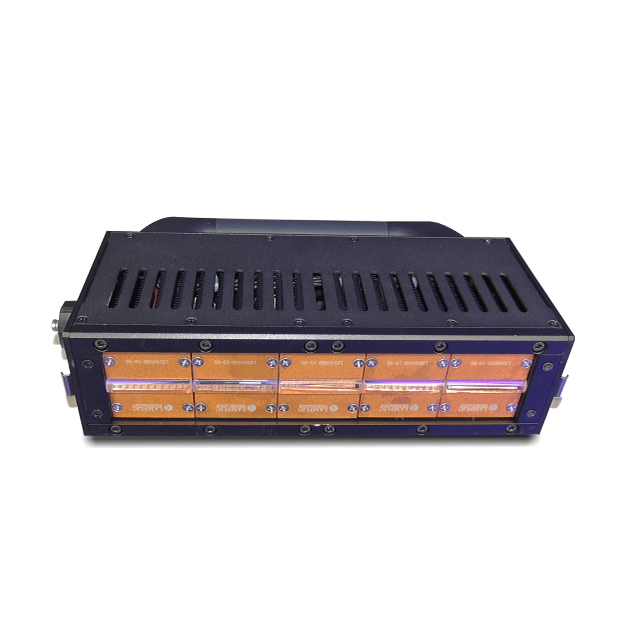

COB package, better curing effect
Good-looking appearance, strong structure
Easy to use, Just need On the lamp
Energy saving and eco friendly, no ozone
Can adjust working distance from 0-30cm, guarantee curing effect and quality
No hurt to human body
Advantages
Excellent light intensityUse high technology optic components, Max light intensity is 12W/cm² for air cooling
Outstanding light evenProvide high light even to fulfill the curing needing
Convenient for usingPortable design, use very convenient
Eco friendlyNo Ozone, no poison and pollute material
Improve work efficiencyCan curing the coat in 5 to 15S according working distance, reduce produce time
Durable after curingProvide high quality curing effect
Technical Specifications
Product Name
200X15
Model Name
L200X15 NA1
Wavelength
395nm-B
Irradiance
20 W/cm²

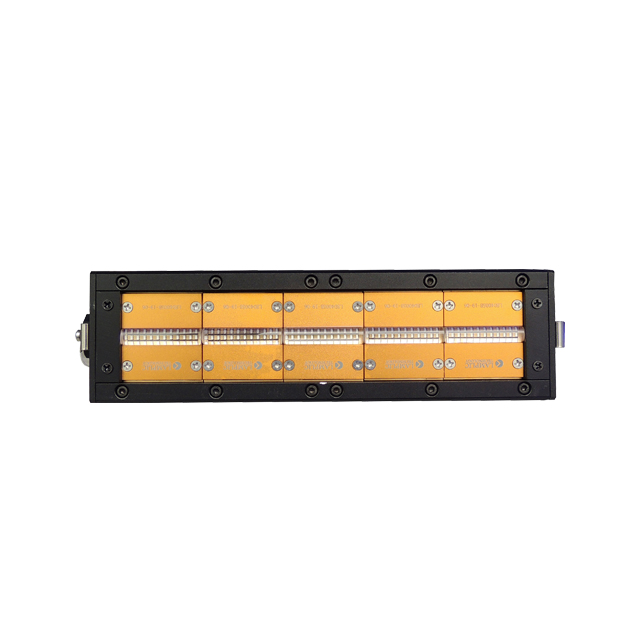

Valid Emitting Area
200X15 (mm)
Recommended Radiation Distance
10-15 cm
Cooling Method
Forced air cooling

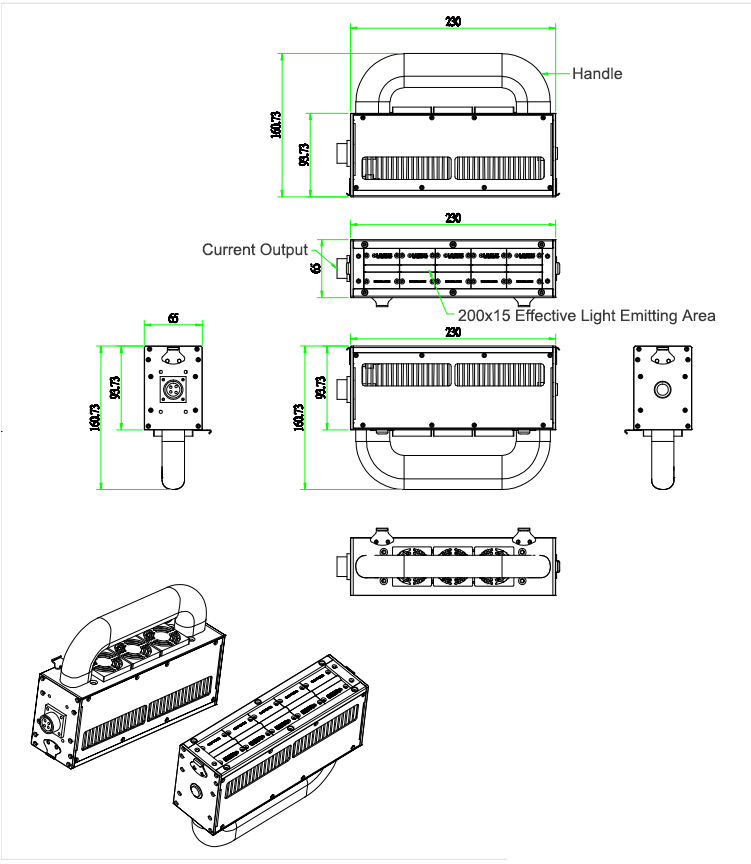

Dimension
230mm * 65mm * 160.73mm
Weight
<4kg
Control Method
Switch control
Power Supply
Constant current
Power Consumption
540W
Company Profile
Our Factory
Certifications
Exhibition
FAQ Preview
Frequently Asked Questions
What is the primary wavelength of this portable UV curing system?
This portable UV drying machine operates at a dominant wavelength of 395nm, which is optimal for curing wood floor coatings, specialized UV paint, and furniture surface finishes efficiently.
How fast does it cure coatings on wood floors or furniture?
Thanks to its high light intensity of up to 12W/cm², the system can successfully cure coatings in just 5 to 15 seconds depending on the thickness of the paint and the actual working distance.
What is the recommended radiation distance for optimal curing?
For the best curing effect and quality assurance, we recommend a radiation distance of 10 to 15 cm. However, the working distance can be flexibly adjusted from 0 to 30 cm based on your specific requirements.
What cooling method does the system use to prevent overheating?
The unit uses a high-performance forced air cooling system. This guarantees that heat is dissipated efficiently from the COB LED package, ensuring a stable performance and prolonging the machine's overall service life.
Is this UV curing dryer environmentally friendly and safe?
Yes, this curing system is eco-friendly. Unlike traditional mercury lamps, it does not produce ozone, contains no toxic components, and operates safely without causing harm to the human body when standard safety precautions are followed.
