LumiCure Light
1 / 5

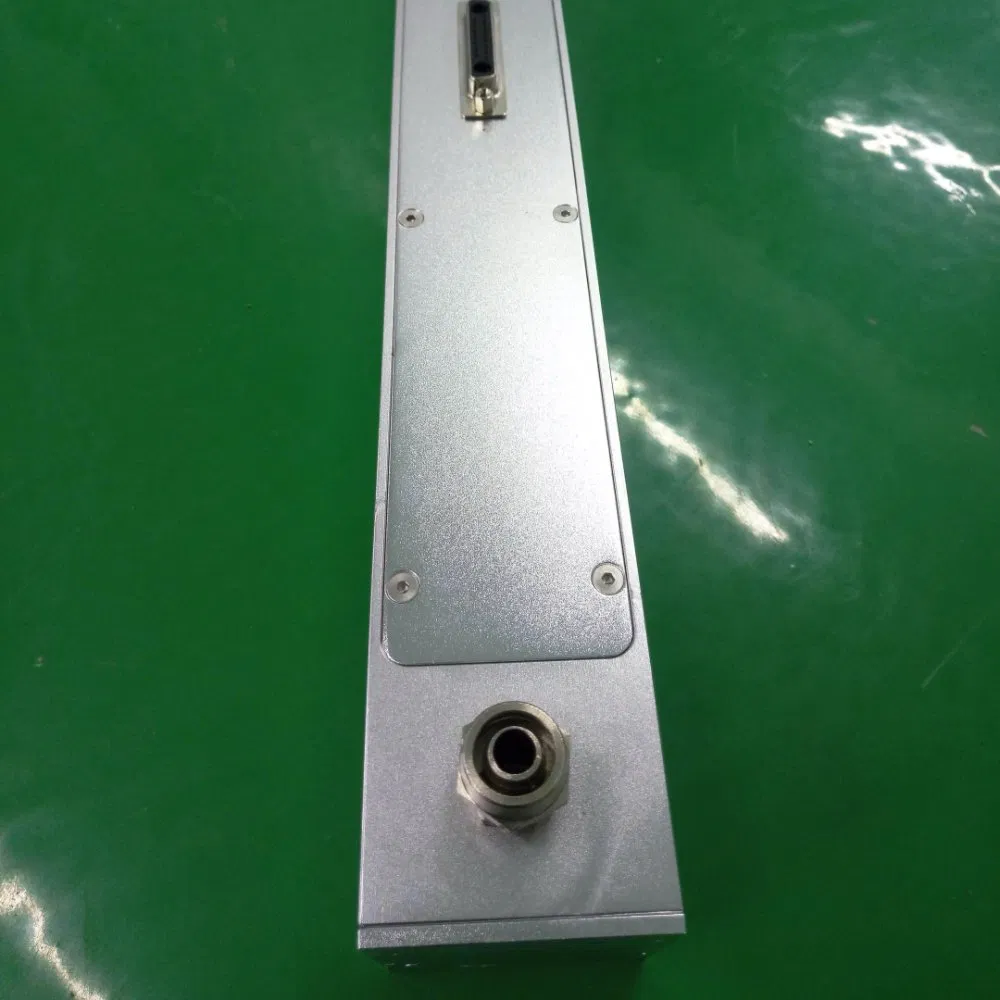

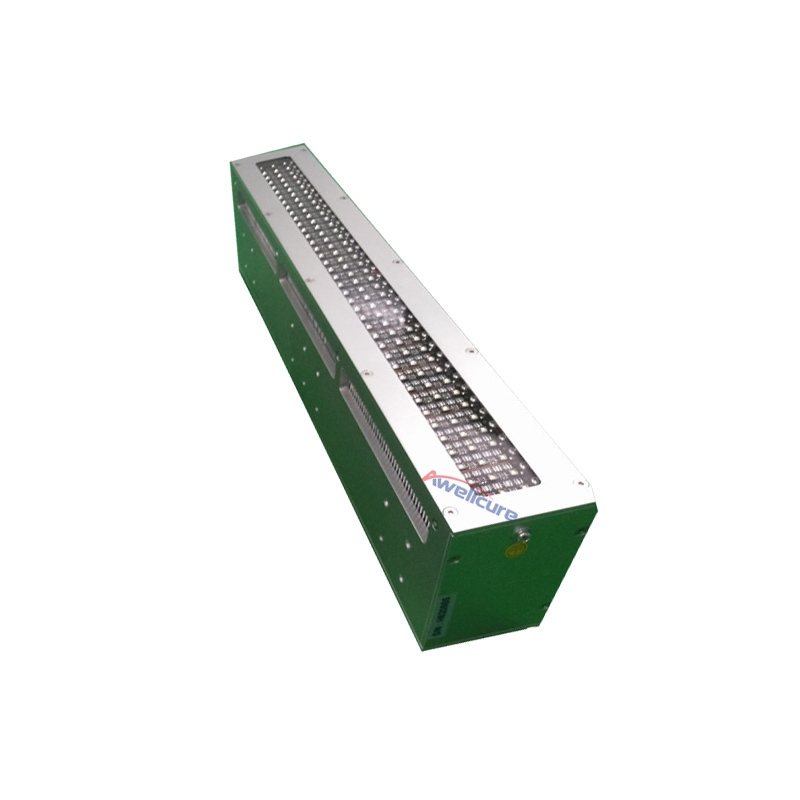

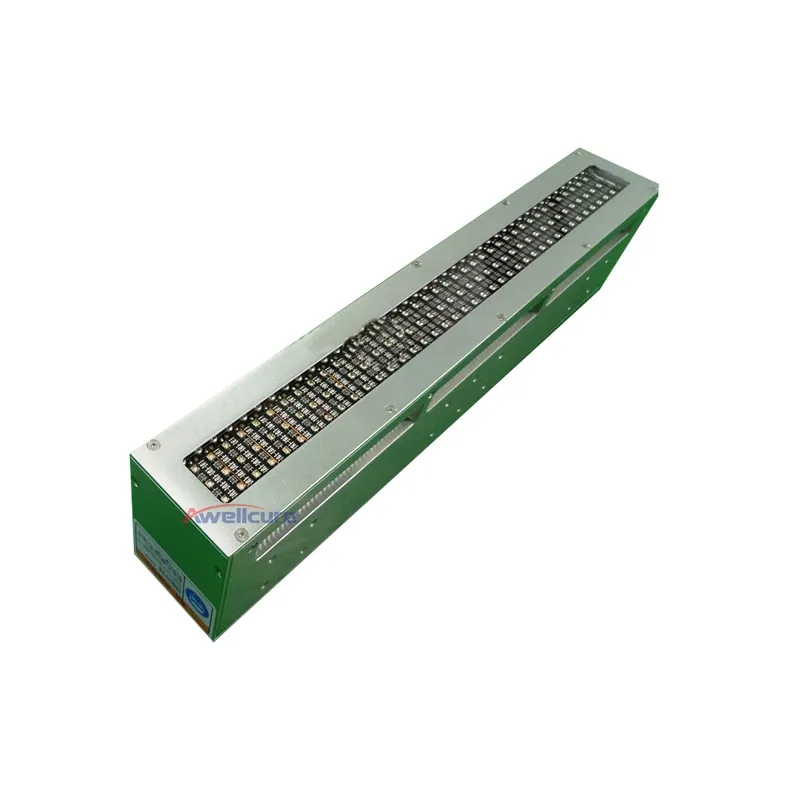

Product model: AW30400H

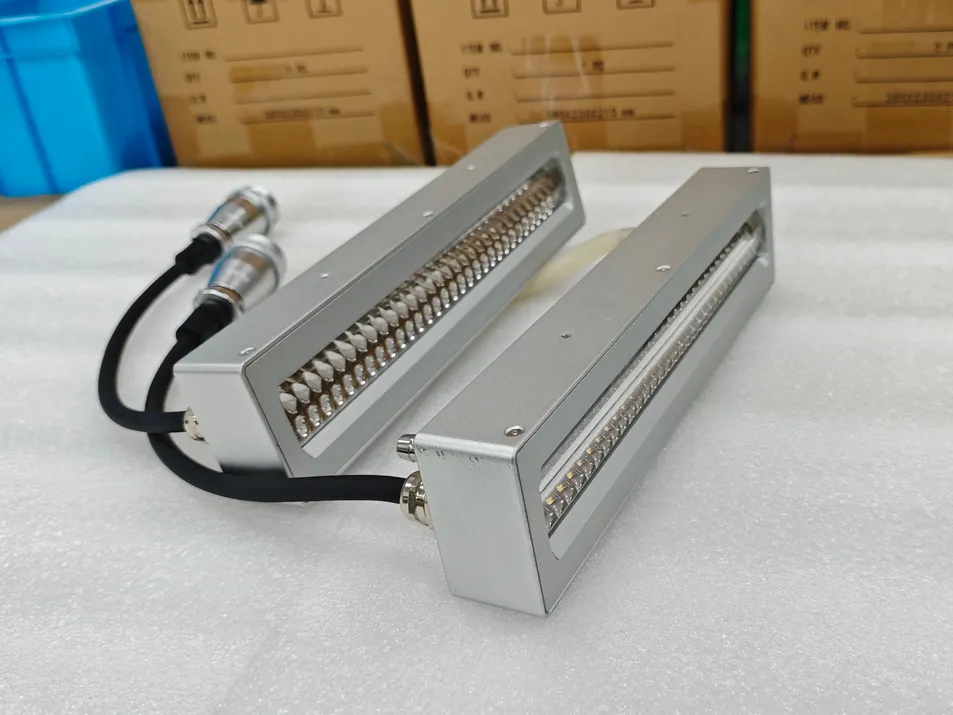

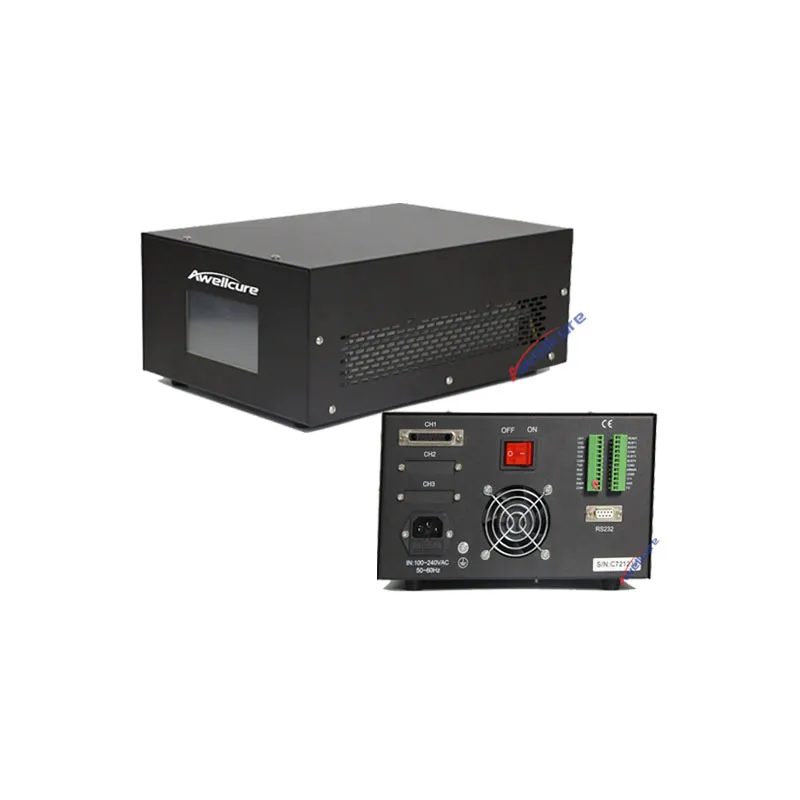

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)
(Custom configurations available upon request.)
| Parameter | Details |
|---|---|
| Voltage | 100-240V AC |
| Material | Pure Aluminum |
| Heat Dissipation Method | Water |
| Controller Method | Touch/Pedal/RS232 Port/PLC |
| Irradiation Power adjustable range | 10%~100%mW |
| Irradiation Mode | Manual (Touch/Pedal/RS232 Port) |
| Automatic (Set the irradiation time 0.1-999.9S) | |
| ladder (Different irradiation power and time, achieve step illumination 1-20 Step number) | |
| Pulse (Cycle ladder Single/Infinite) | |
| Communication Control | RS232 Serial Port, can realize read and write communication |
| I/O Interface, can realize read and write communication | |
| Working Temp. | 0-45℃ |
| Preservation of Ambient Temp. / Humidity | -10-60℃ / 30-85RH |

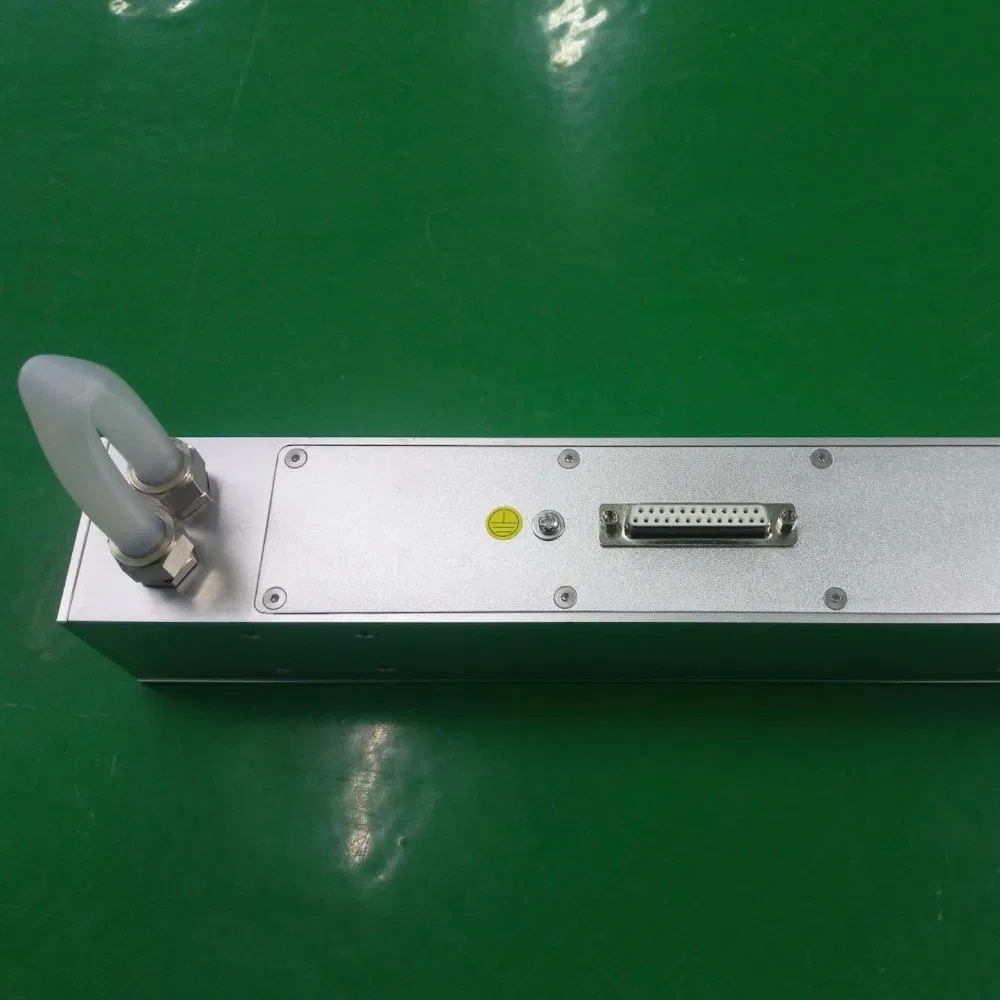

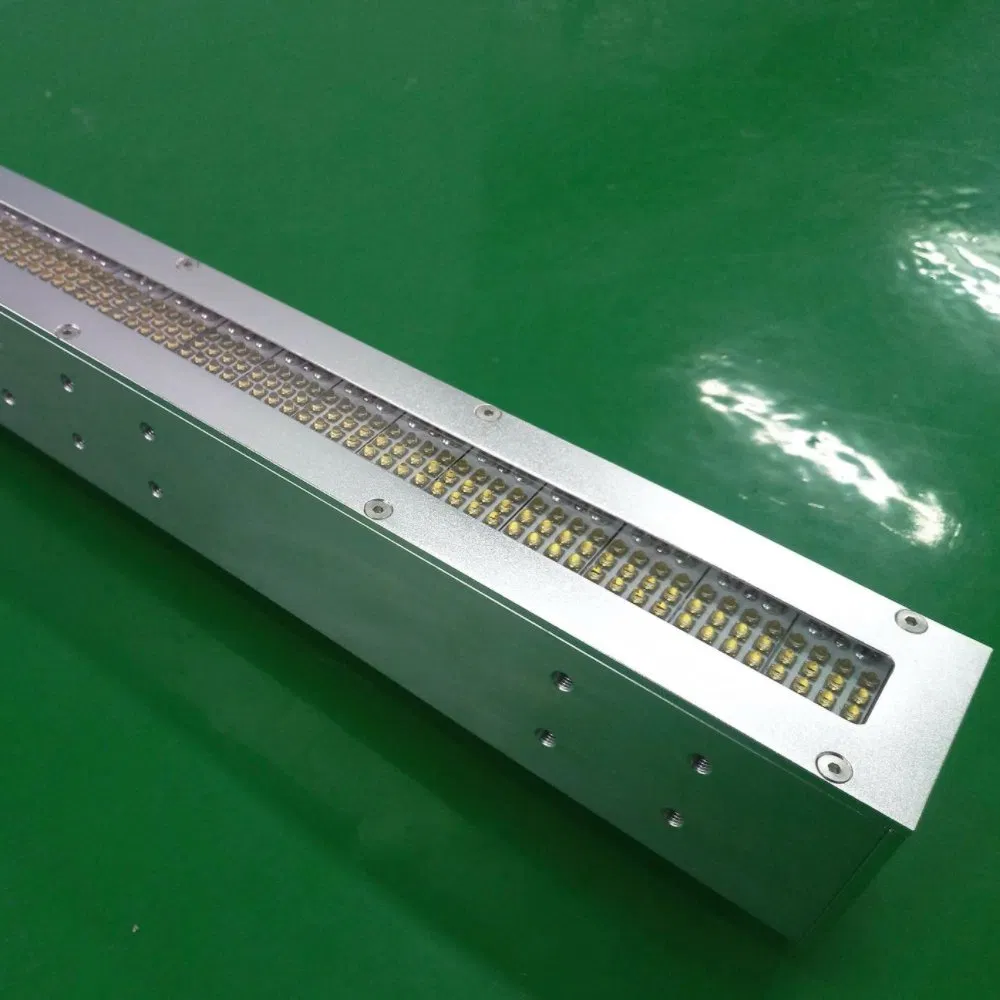

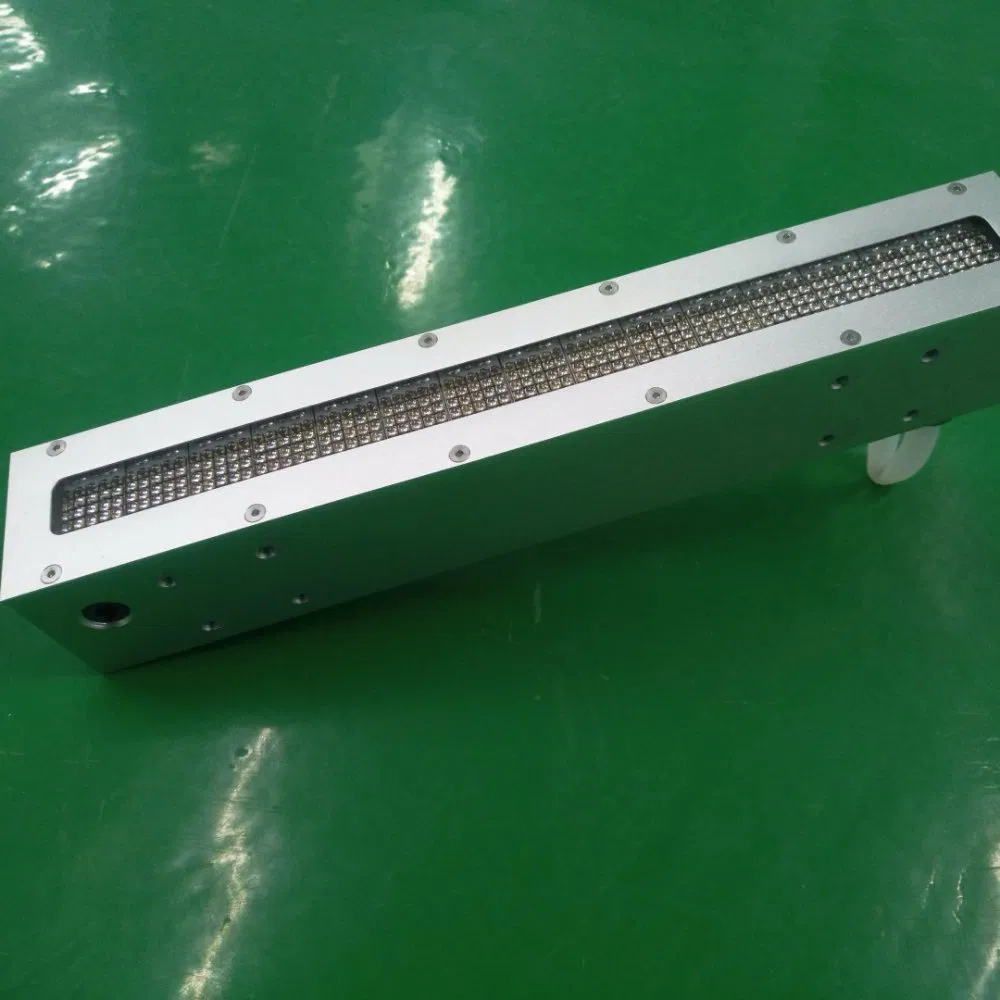

| Specification Item | Details |
|---|---|
| LED Type | Imported |
| UV LED Usage Time | 20000Hrs @80% power |
| Cooling Method | Water cooled |
| Wavelength Range | 385nm 395nm |
| Luminous Size | 30x400mm |
| Recommend Distance Range | 10mm |
| Peak Irradiation Intensity | 14W/cm² |
| Working Temp. | 0-45℃ |
| Preservation of Ambient Temp. / Humidity | -10-60℃ / 30-85RH |
| Power Cord | Standard 2M |
| Connecting Cable | Standard 2M/5M or Customized Length |

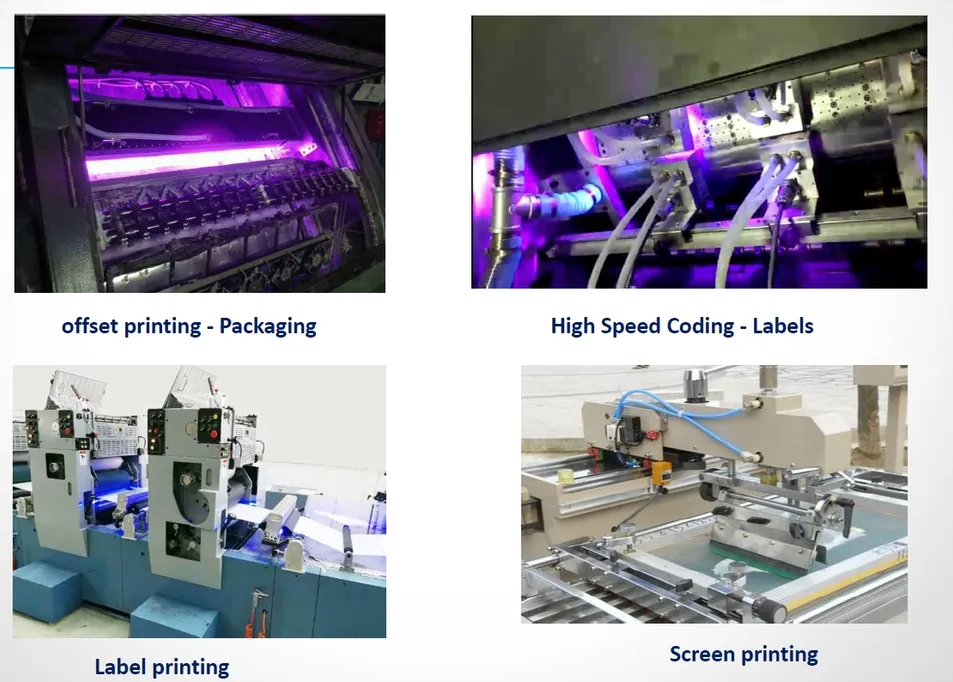

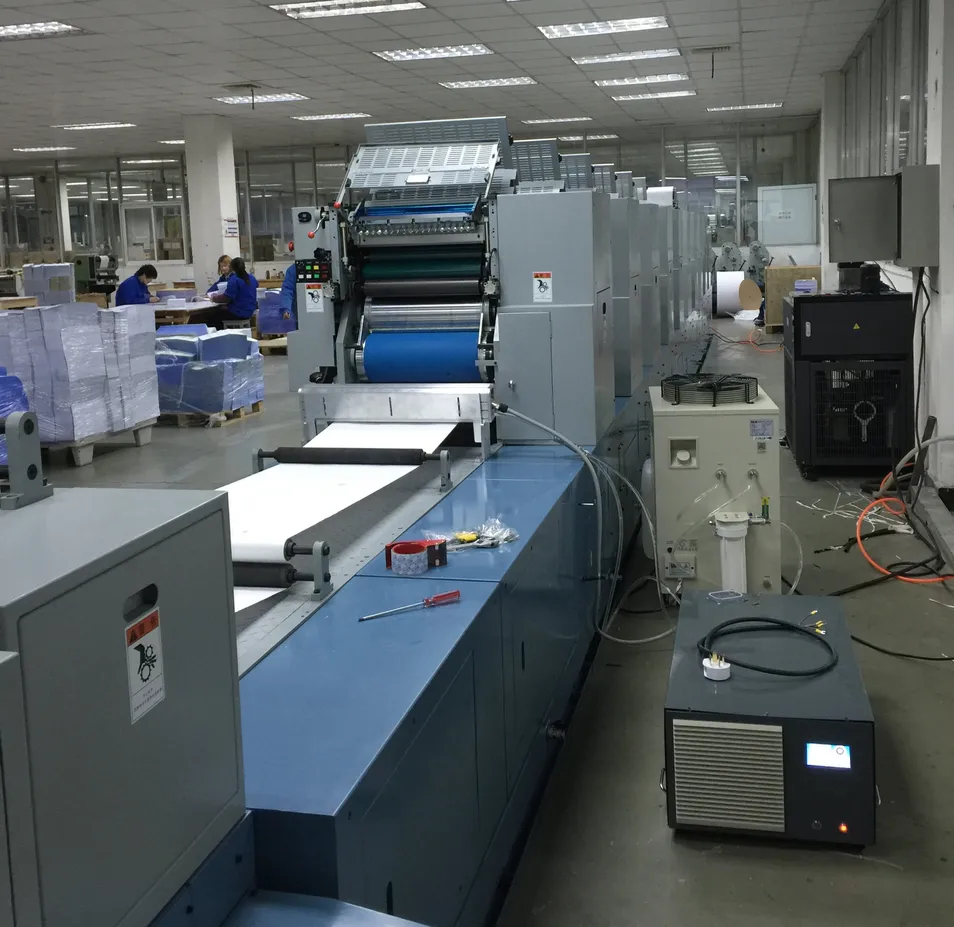

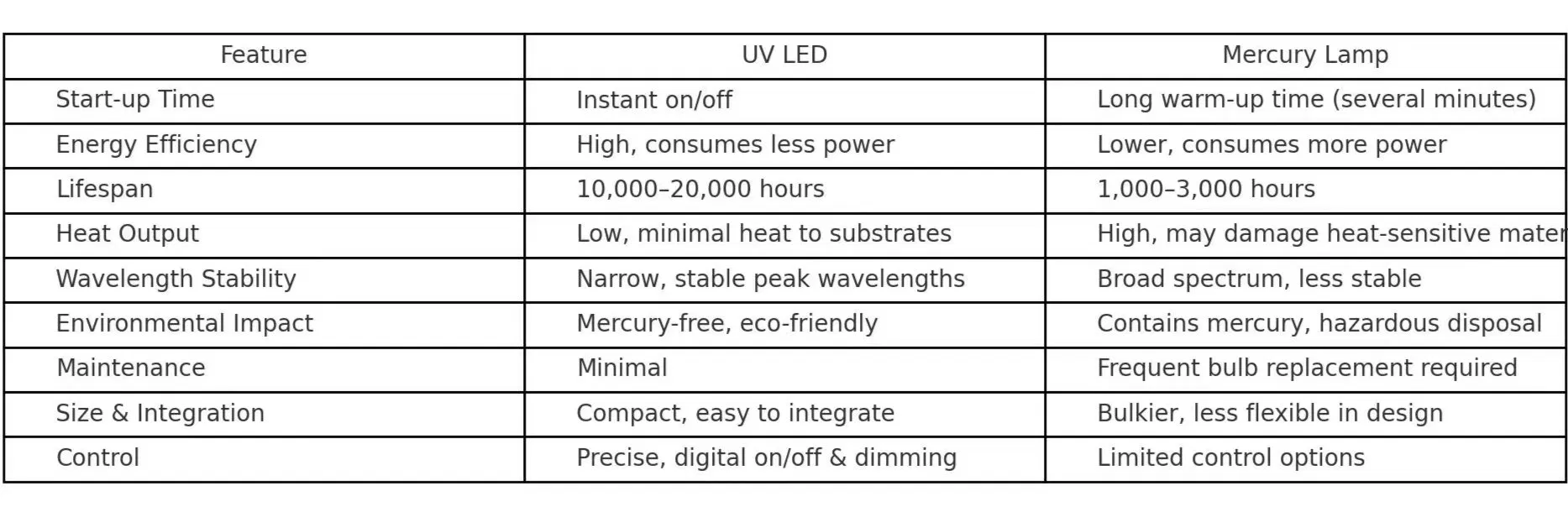

UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and a more environmentally friendly alternative to traditional mercury lamps, making them ideal for modern printing and industrial applications.
Awellcure is a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable UV curing machines backed by R&D innovation and strict quality control. We operate our own dedicated R&D center, sales center, factories, and branch facilities.
