UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
1 / 5
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery
UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery

UV-LED Double-Side PCB Exposure Machine PCB Machine Electronic Products Machinery

Send Inquiry

Product Description

Products Description

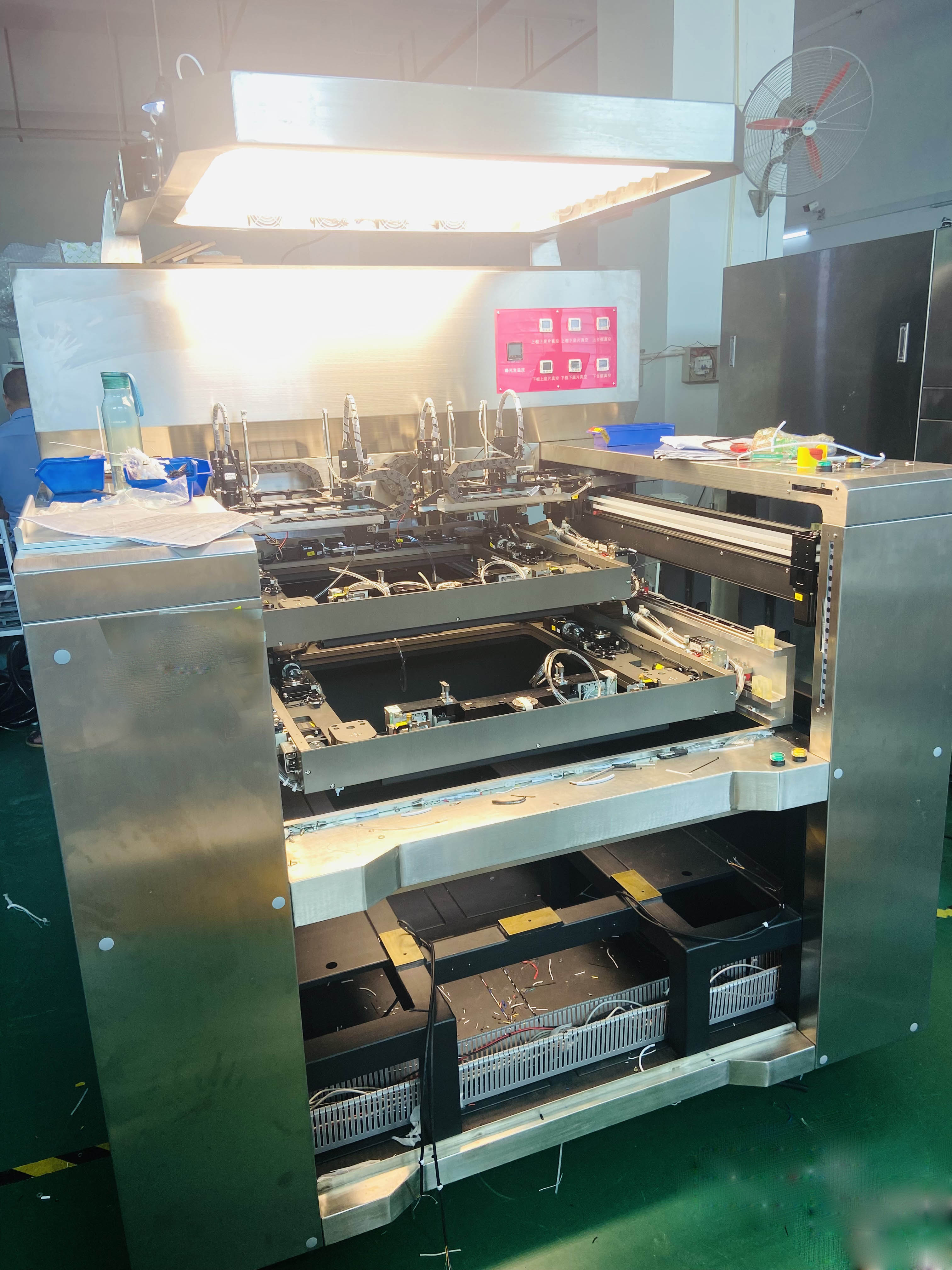

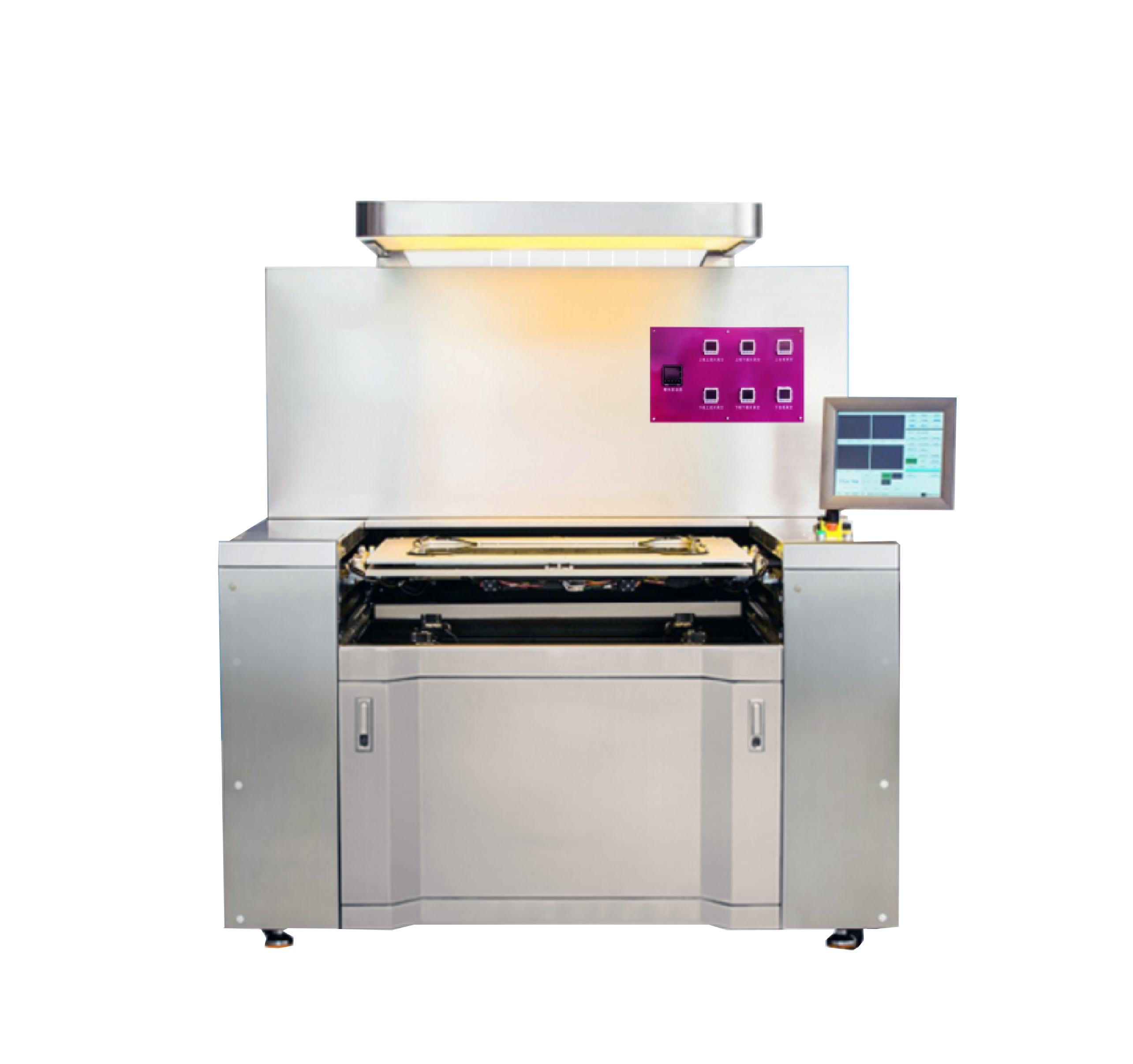

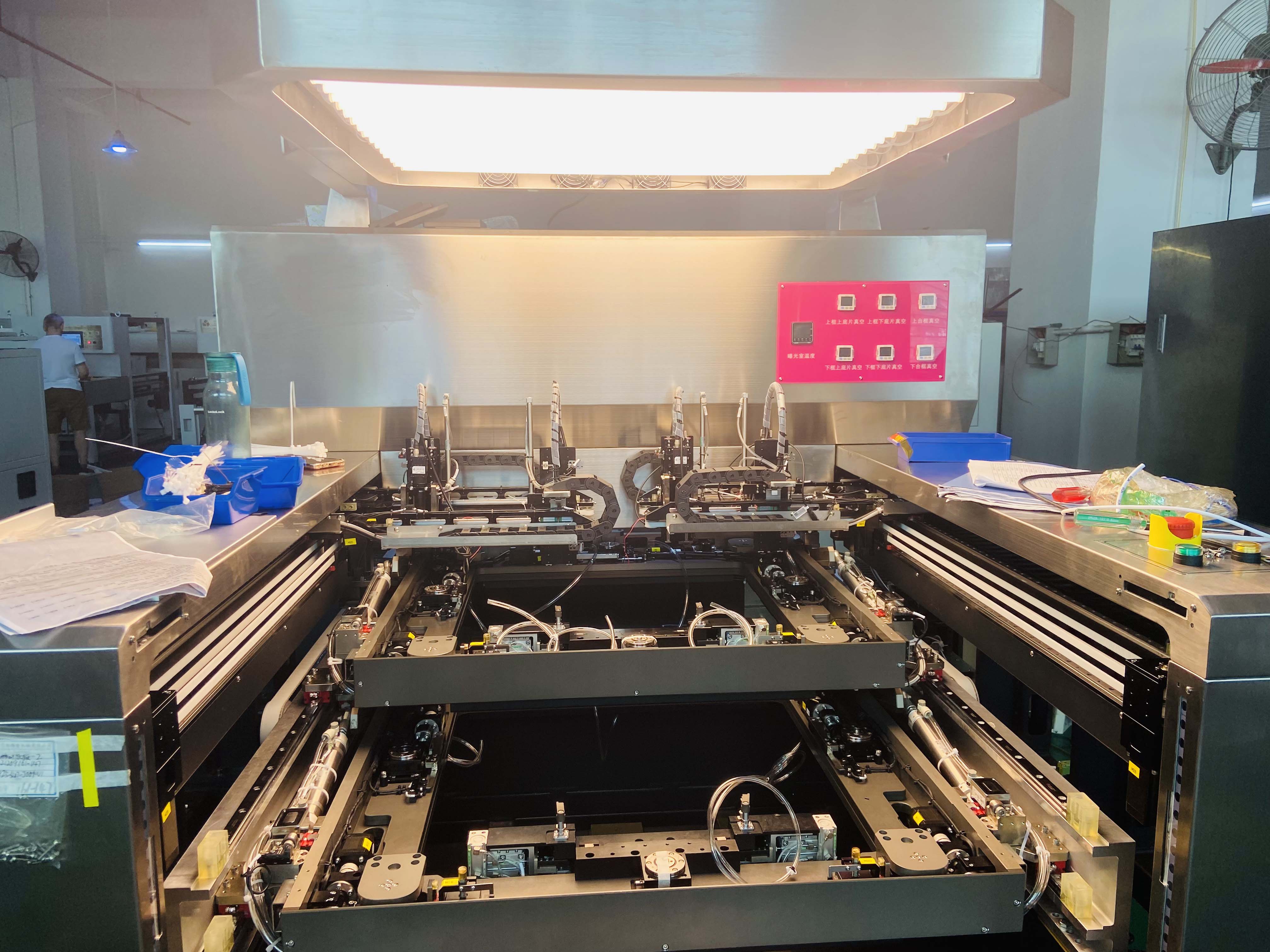

  • ✦ Double-Side Exposure With High Output
  • ✦ High Resolution: 2.0mil/2.0mil

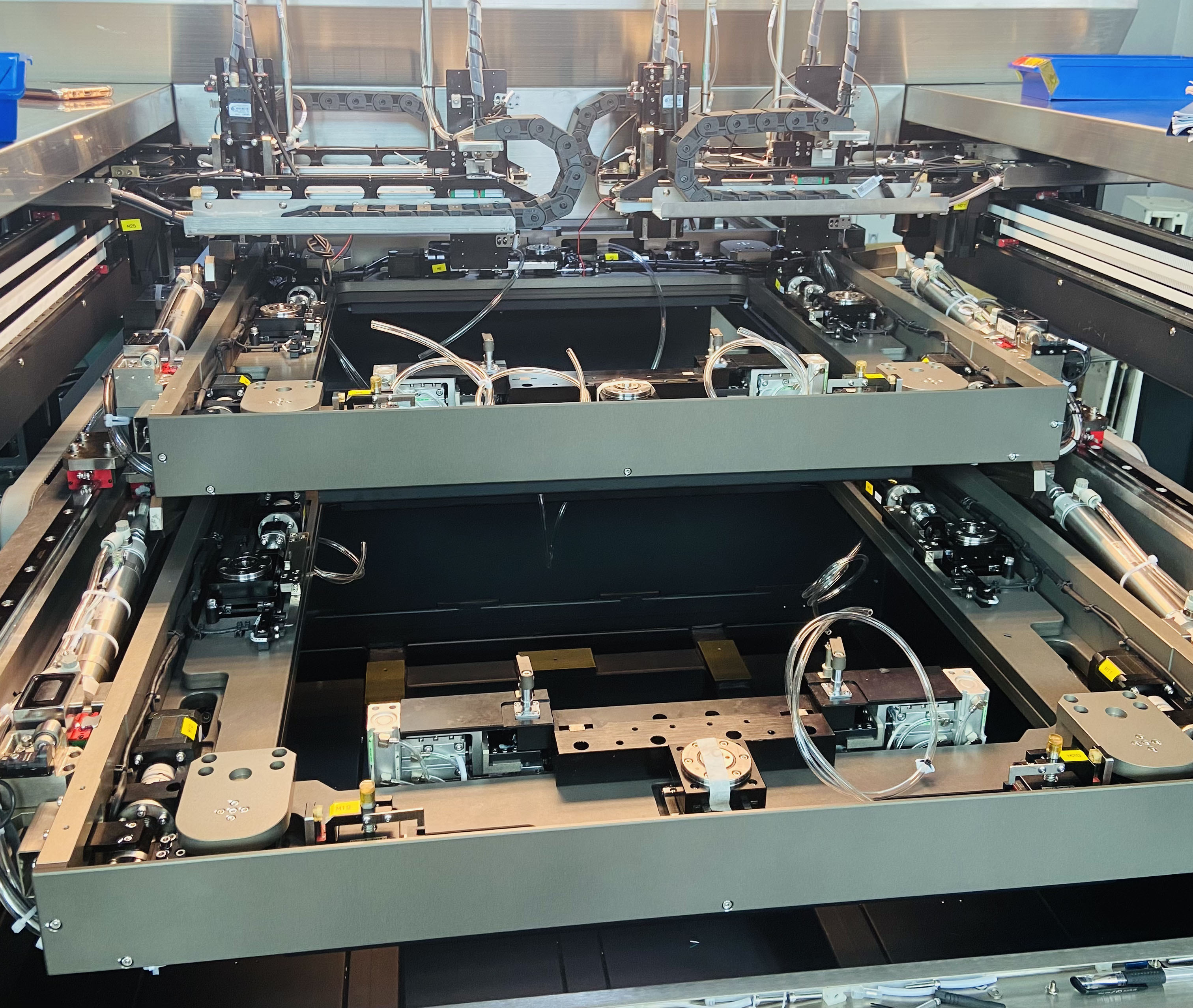

  • ✦ 4CCD Adopts High-Resolution Visual Alignment System
  • ✦ Less Than 5kWh Of Electricity / Hour, Energy Saving
Product Image 1
Product Image 2
Product Image 3
Product Image 4
Product Image 5
Machine Technical Parameters
Parameter Specifications
Model KX-SA2421-OL / KX-SA2824-OL
Exposure size Min: 10"*12" Max: 21.5"*24.5" / Min: 10"*12" Max: 24"*28"
Film size 24" X 26" / 26" X 30"
Application Wet Film, Dry Film
Resolution 2.0mil/2.0mil
Board thickness range 0.1mm-3.2mm (including copper thickness)
Tolerable board weight <2.0 kg
Light source type UV-LED parallel light source
Energy uniformity ≥85%
Exposure intensity control Light intensity: 0-100%, adjustable
Exposure time Grade 9-12 energy exposure time < 10S
Cooling mode Intelligent temperature-controlled ice water cooling
Service life of LED light Three-year warranty
Exposure mode Double-sided simultaneous exposure
Exposure glass Optical tempered glass
Number of CCDs 4 CCDs, moving freely (with switchable and selectable targets)
Film Fixed method Vacuum adsorption
Frame repeated accuracy 12um
Alignment accuracy ±15um / ±0.5mil
Machine weight 1300kg / 1500kg
Machine size 2760*1740*2040mm / 2800*1740*2040mm
Related Product
Related Products
Packing & Delivery
Packing and Delivery
  • 1. Trade Term: FOB Shenzhen USD by T/T in advance.
  • 2. Discount is allowed against your quantity.
  • 3. OED/OEM is accepted.
  • 4. Delivery will be carried out by Express or your requirement.
  • 5. Lead Time: 2~7 days after payment.
