| Series | Package | Brightness (mcd) | Test Conditions | Voltage (V) | Size (mm) | Wavelength (nm) |
|---|---|---|---|---|---|---|

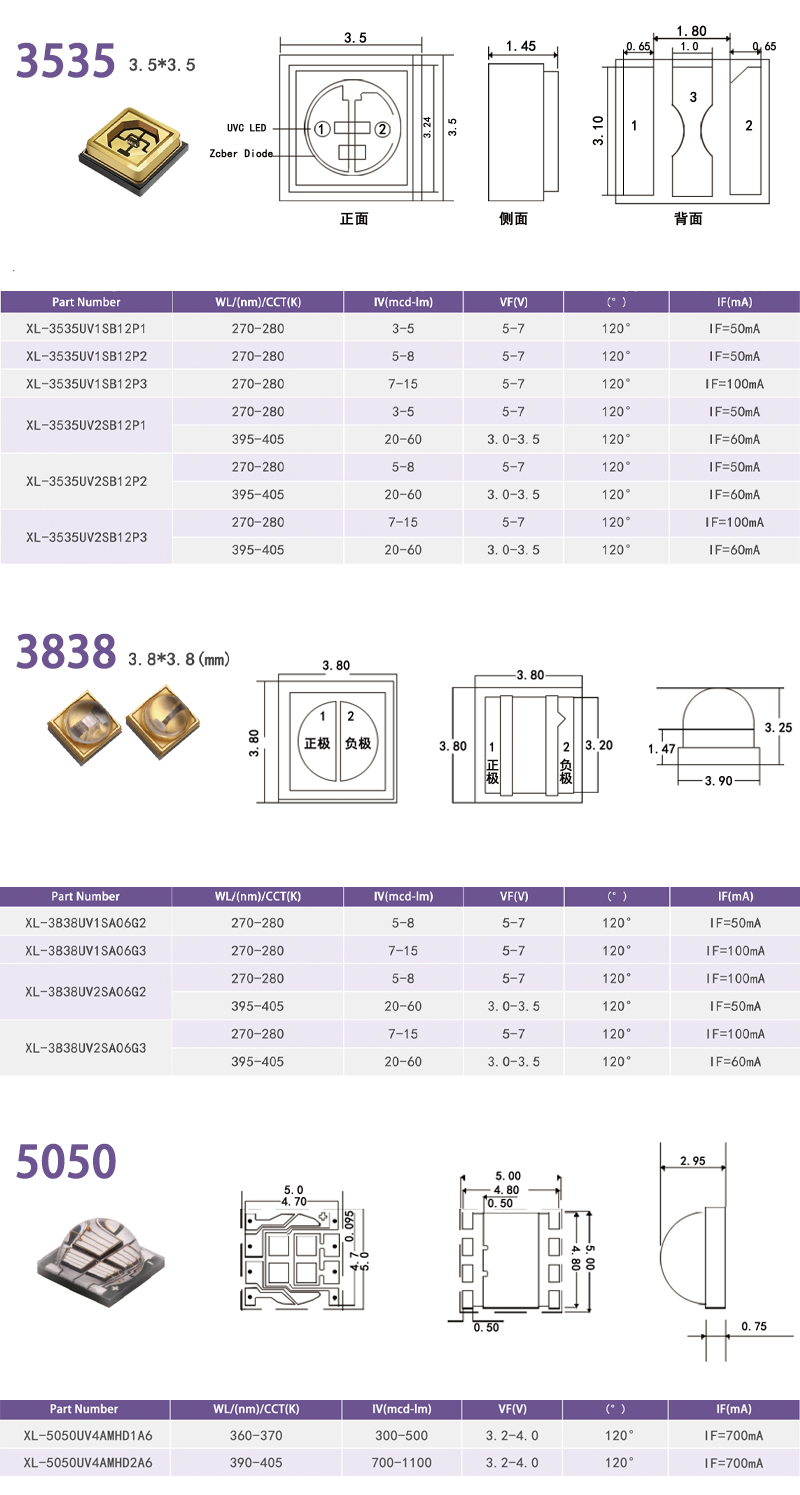

| UVC | 3535UVC single wave UV germicidal lamp 3-5mW milliwatt optical power | / | IF=50mA | 4.5-8 | 3.5x3.5x1.45 | 260-280 |
| UVC | 3535UVC single wave UV germicidal lamp 5-8mW milliwatt optical power | / | IF=50mA | 4.5-8 | 3.5x3.5x1.45 | 260-280 |
| UVC | 3535UVC Single Wave UV Germicidal Lamp 7-15mW Milliwatt Optical Power | / | IF=100mA | 4.5-8 | 3.5x3.5x1.45 | 260-280 |
| UVC | 3535UVC+UVA dual wave UV germicidal lamp 3-5mW milliwatt optical power | / | IF=50mA | 4.5-8 | 3.5x3.5x1.45 | UVC:270-280 UVA:390-410 |
| UVC | 3535UVC+UVA dual-wave UV germicidal lamp 5-8mW milliwatt optical power | / | IF=50mA | 4.5-8 | 3.5x3.5x1.45 | UVC:270-280 UVA:390-410 |
| UVC | 3535UVC+UVA dual-wave UV germicidal lamp 7-15mW milliwatt optical power | / | IF=100mA | 4.5-8 | 3.5x3.5x1.45 | UVC:270-280 UVA:390-410 |

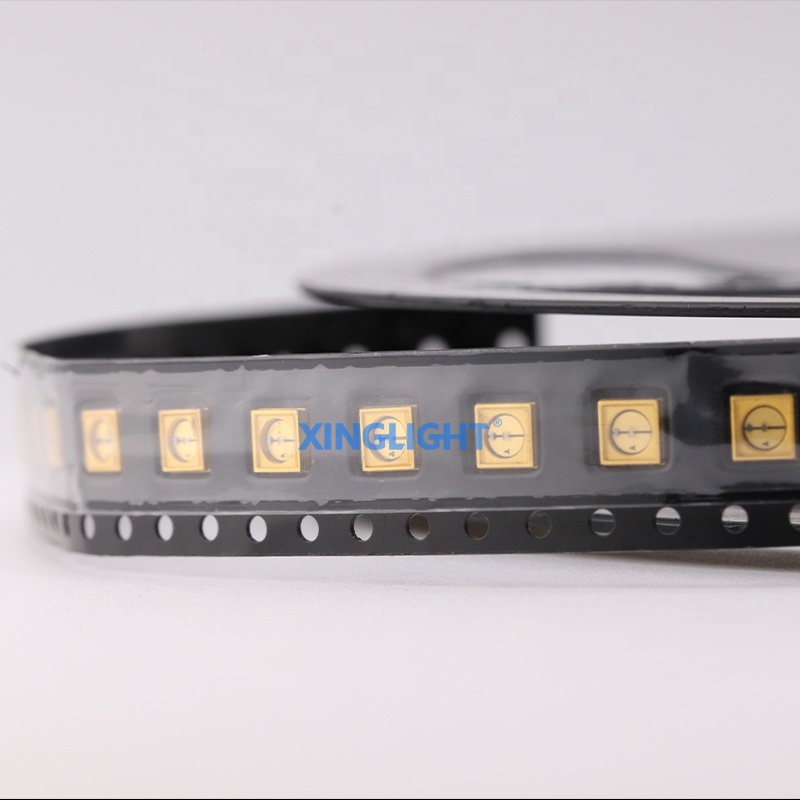

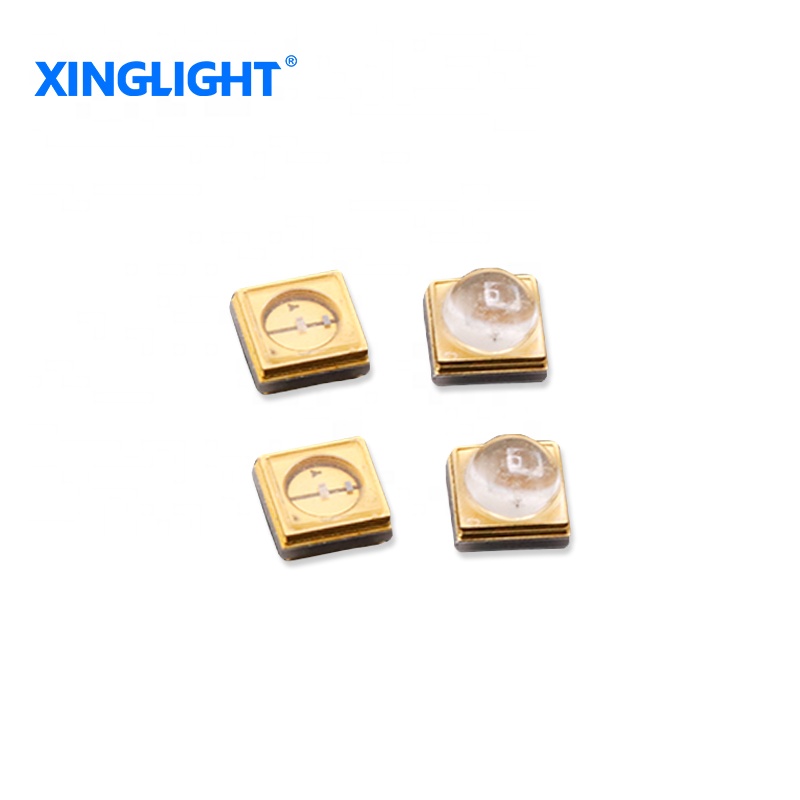

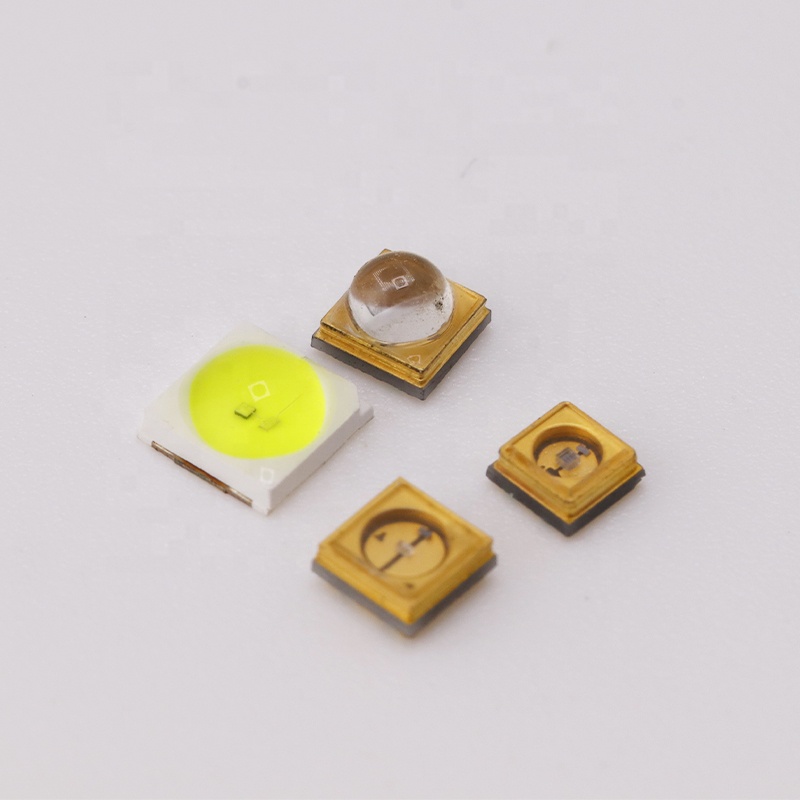

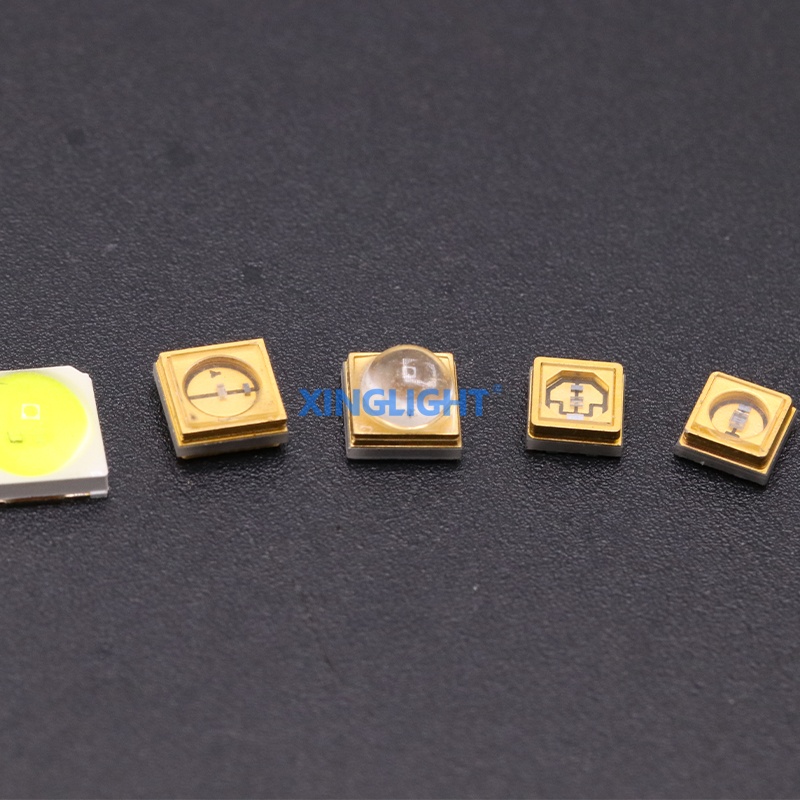

| UVC | 3838 Single Wave Purple 5-8mw (with lens) | / | / | / | / | 260-280 |
| UVC | 3838 Single Wave Purple 7-15mw (with lens) | / | / | / | / | 260-280 |
| UVC | 3838 Double Wave Purple 5-8mw (with lens) | / | / | / | / | UVC:270-280 UVA:390-410 |
| UVC | 3838 Double Wave Purple 7-15mw (with lens) | / | / | / | / | UVC:270-280 UVA:390-410 |
| UVA | 3535 Purple 1W | 600-650 | IF=500mA | 3.5-3.7 | 3.5*3.5*2.8mm | 365-370 |
| UVA | 3535 Purple 1W | 1100-1300 | IF=500mA | 3.2-3.4 | 3.5*3.5*2.8mm | 390-395 |
| UVA | 2835 Purple 0.5W (395) | Radiant Flux: 120~180mw | / | / | / | 390~400nm |
| UVA | 2835 Purple 0.5W (365) | Radiant Flux: 150~220mw | / | / | / | 360~375nm |
| UVA | 2835 Purple 1W (365+395) | Radiant Flux: 180~300mw | / | / | / | 360~375nm; 390~400nm |
| UVA | 3838 Purple 3w (365) | 800-1000 | IF=500mA | 3.0-3.4 | 3.85*3.85*3.1 | 360-370 |
| UVA | 3838 Purple 4w (395) | 1000-1200 | IF=500mA | 3.0-3.4 | 3.85*3.85*3.1 | 395-405 |
