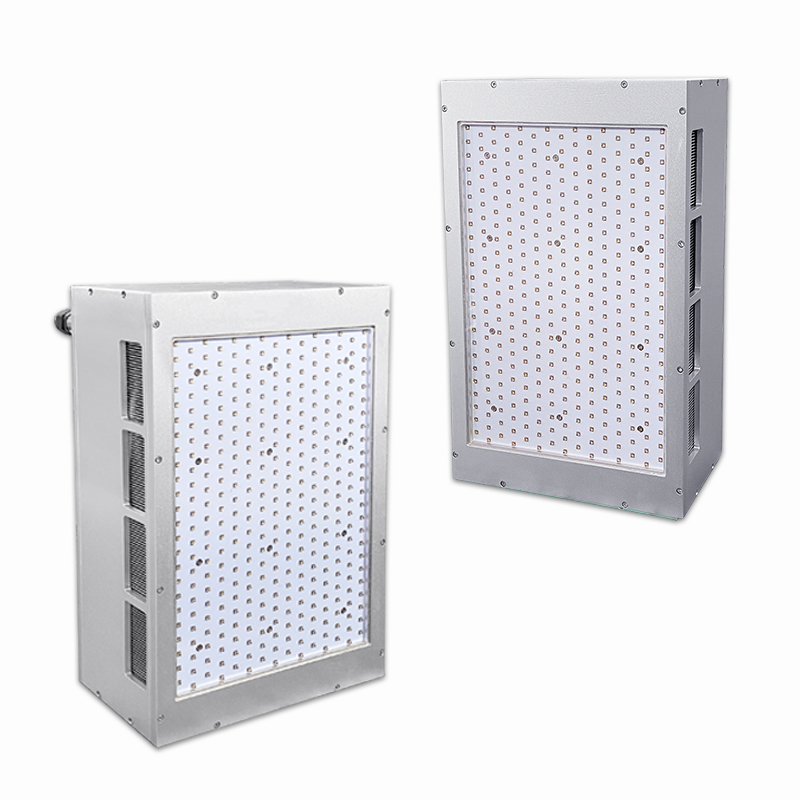

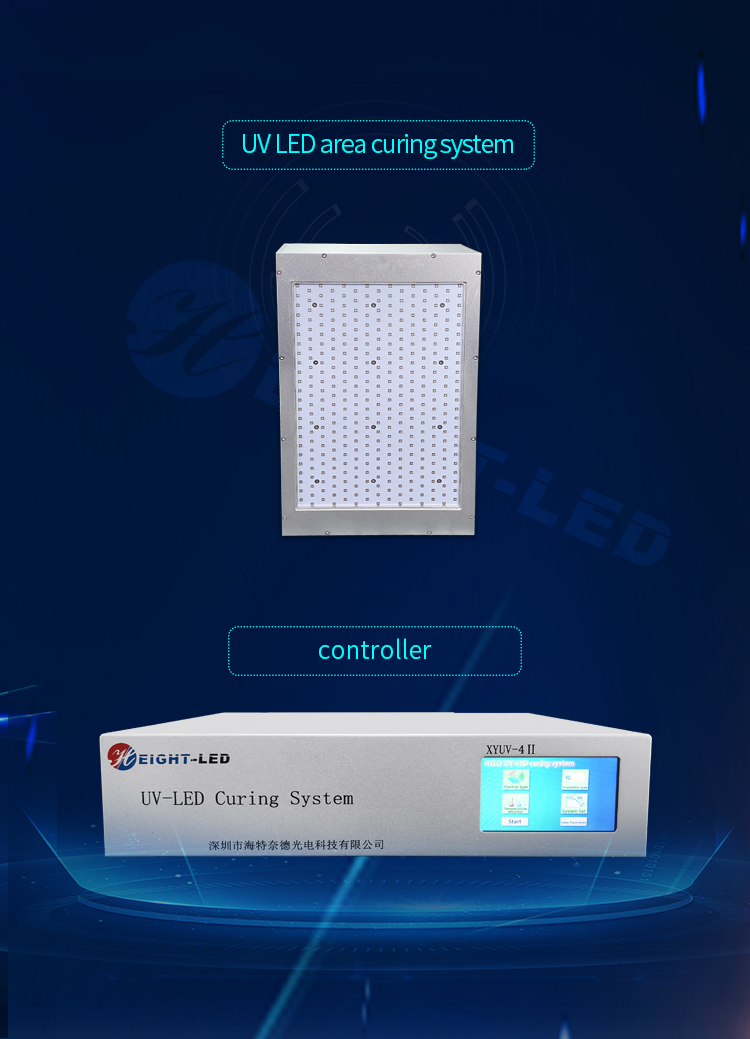

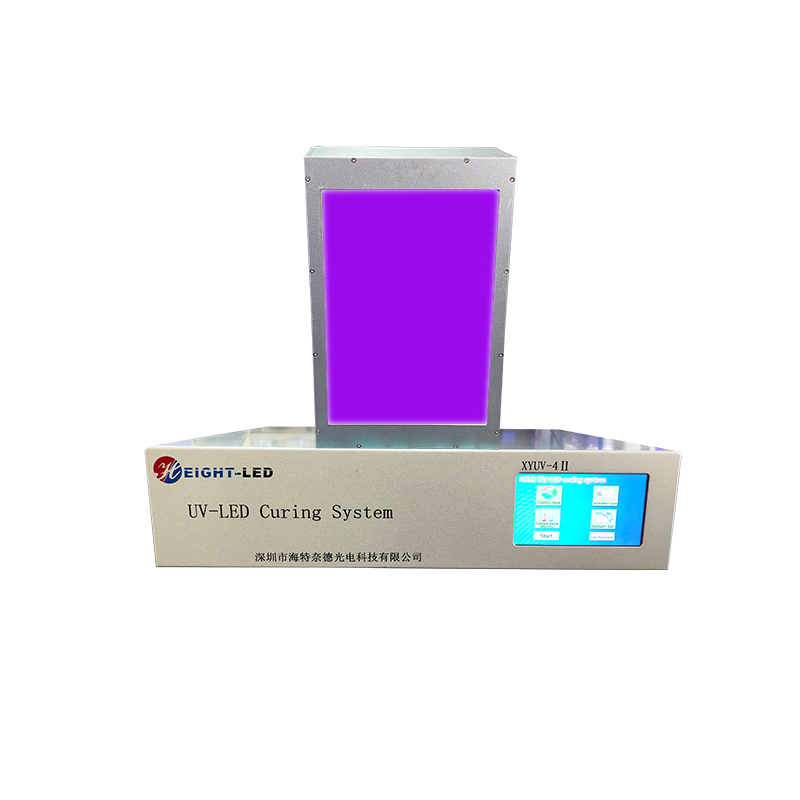

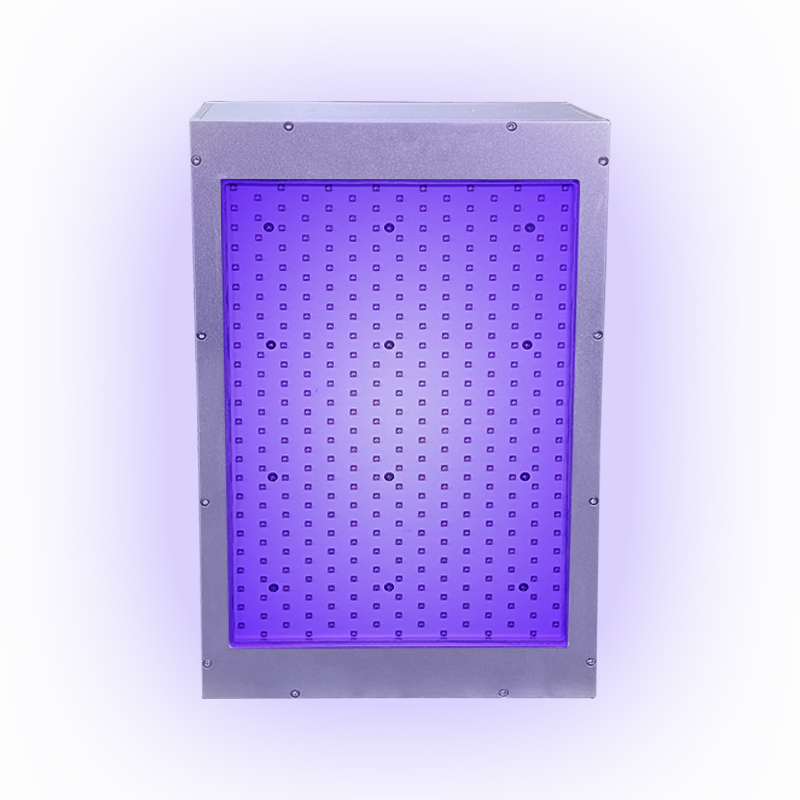

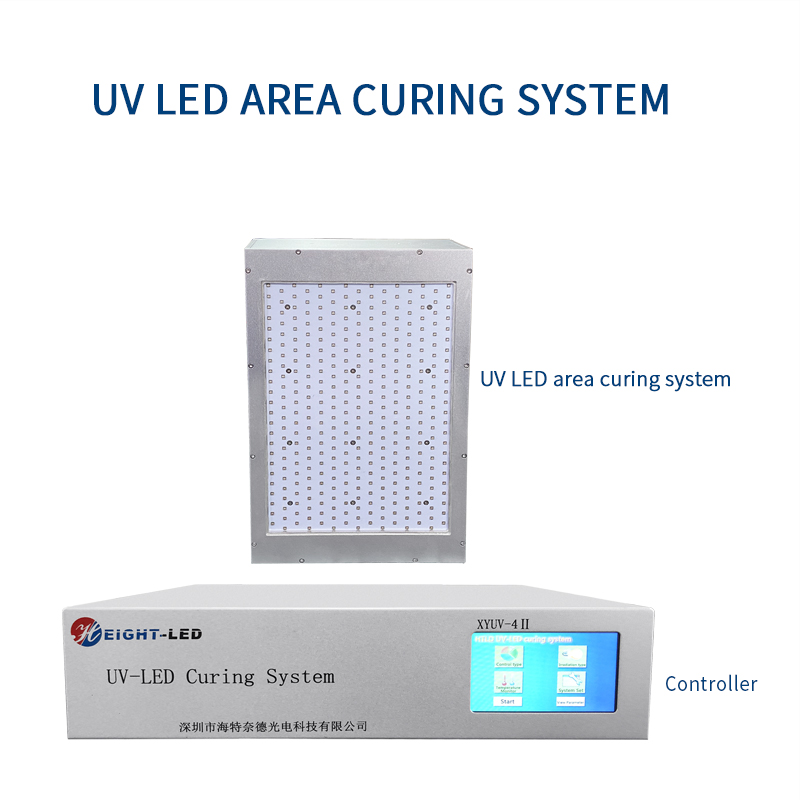

This machine could be used for curing uv glue like delo, loctite, dymax, norland and other brand uv adhesive. The UV LED curing system contains two parts: Controller and Irradiation Head.
| Model | XYUV-4II-FS300200-BH |
| Controller size | 384*284*100mm (L*W*H) |
| Dimension of UV LED Lamp | 380mm*245mm*110mm (L*W*H) |

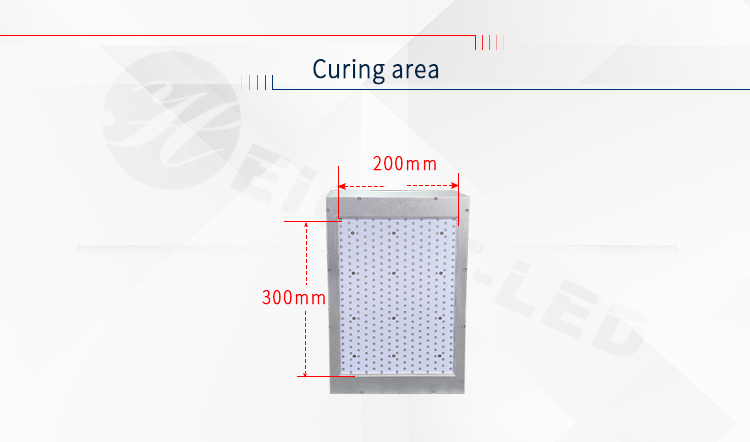

| Curing area | 300x200mm |
| Wavelength | 365/385/395/405nm(Optional) |
| Optical intensity (365nm / 385nm) | 0.8W/cm² |
| Optical intensity (395nm / 405nm) | 1.2W/cm² |
| Lamp beads | imported LED lamp beads |
| Lamp beads life | ≥20000H |
| Cooling method | Fan cooling |
| Control style | MCU+HMI |
| Parameter setting | Touch screen operation + RS485 Remote operation |
| Power adjustment | Digital dimming (1-100%) |
| Voltage | AC100V-AC240V (50/60Hz) |
| Total power consumption | 1100W |
| Net weight | 18KG |
| Ambient temperature | -10°C—50°C |
| Relative humidity | 25%—80%RH |
| Customized service | All parameters can be customized according to customer needs |
DON'T WORRY! Any wavelengths, sizes and power intensity can be customized, and more high-power UV LED can meet your requirements.
| UV LED and Mercury Lamp Parameters Comparison | ||
|---|---|---|
| Project | Mercury UV Lamp | LED UV Lamp |
| Life | ≤1000 Hours | ≥20000 Hours |
| Applicability | Cannot be used in thermal materials | Almost all materials |
| Start | Slow start, completely cooling when start again | Instant ON/OFF |
| Volume | Large volume | Small volume, easy to carry and install |
| Stability | Not good | Good |
| Maintenance | Difficult | Easy |
| Energy consumption | High | Low consumption about 1/6 of mercury lamp |
| Thermal effects | High temperature | Cold light source |
| Switch | Constant light | Arbitrary switch |
| External control | No | I/O signal |
| Safety | Explosive | Stable |
| Ozone | A lot | No |
| Environment | Harmful gases | No harmful gases |
