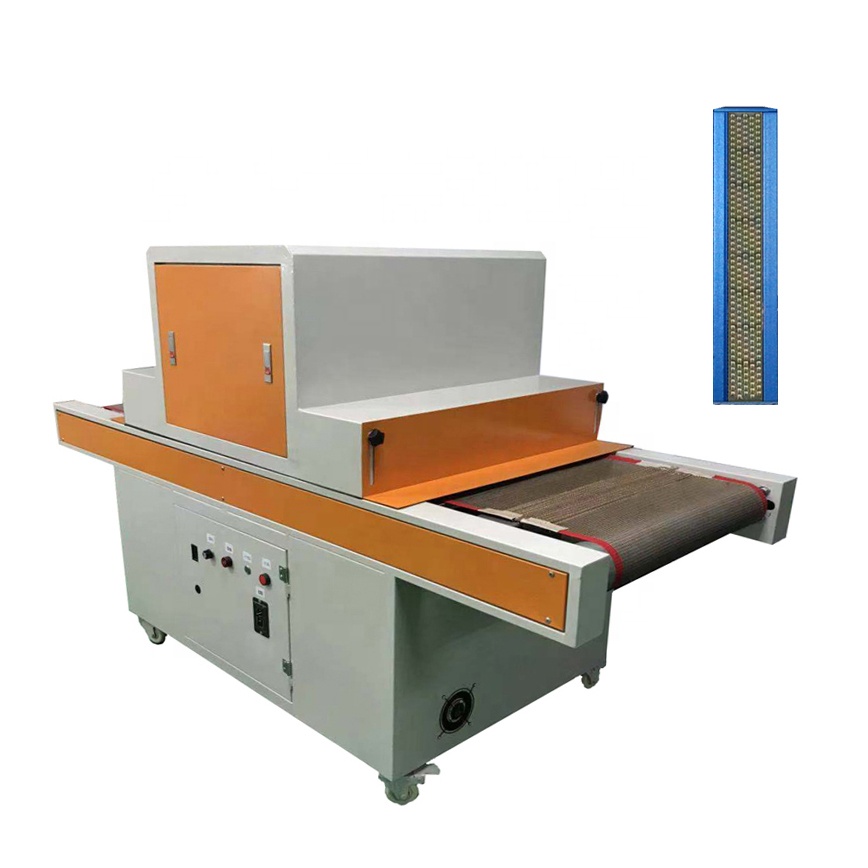

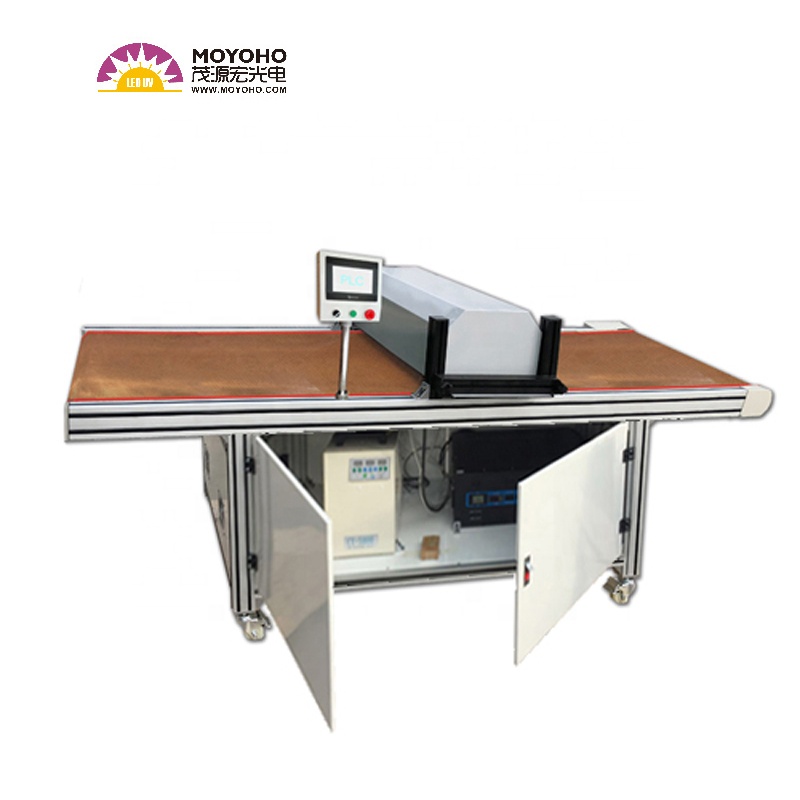

365nm 385nm 395nm 405nm LED UV Oven Conveyor Belt Dryer UV LED Curing Machine for Drying Ink Glue Paint Varnish

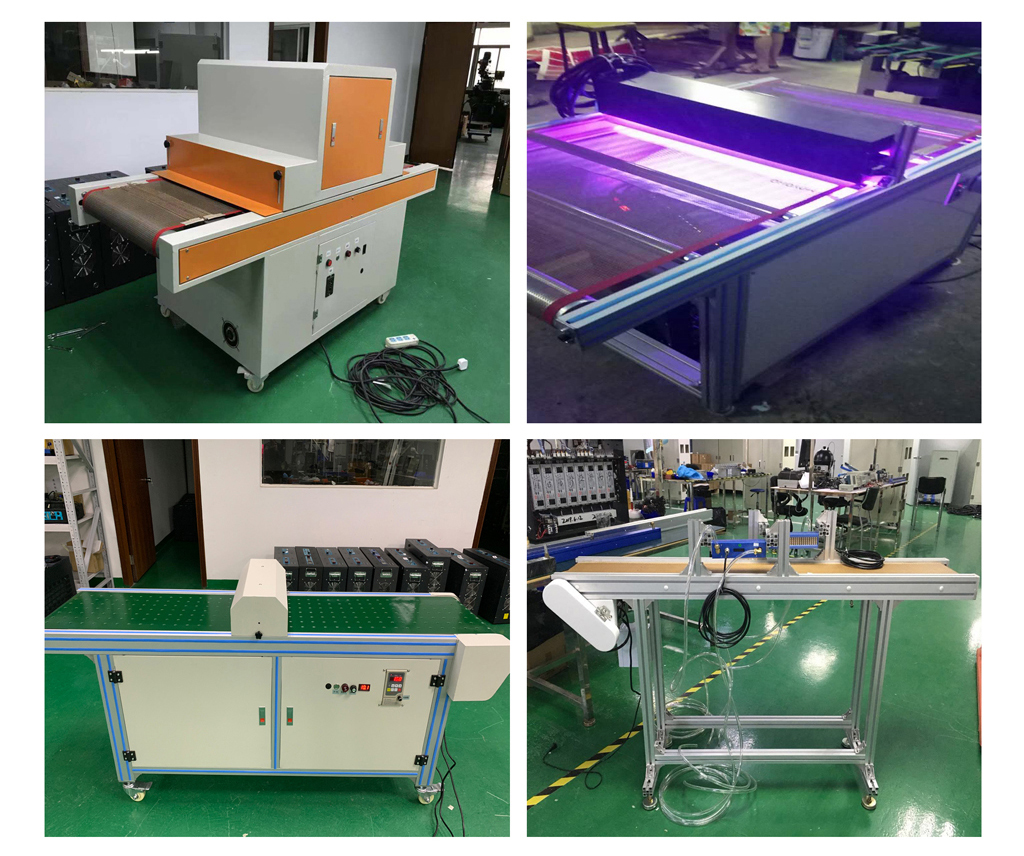

APPLICATIONS

This series of products is suitable for drying/curing silk-screen printing, pad printing, painting, varnish and adhesive glue, etc. It serves as an efficient replacement for ordinary lamps.

PRODUCT DESCRIPTIONS

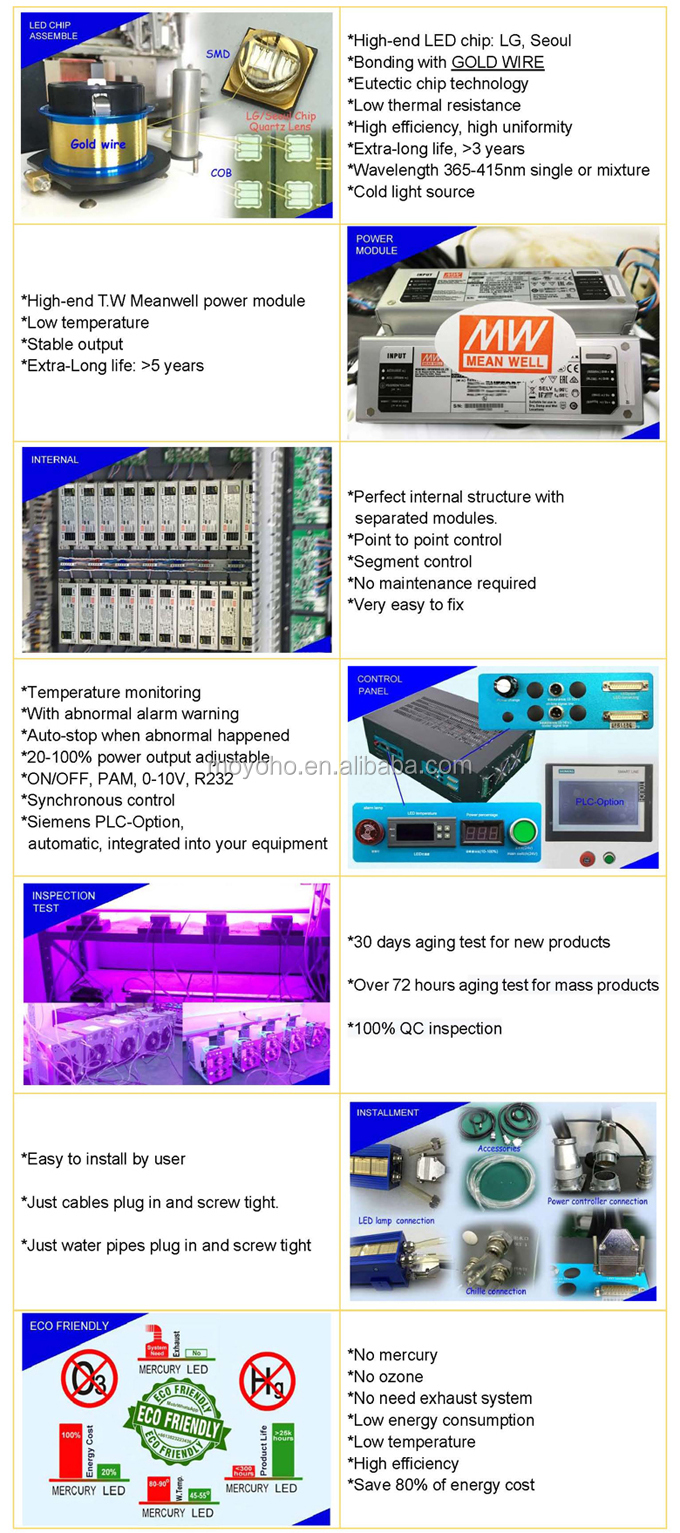

Product Characters of UV LED Curing System

Product Specifications

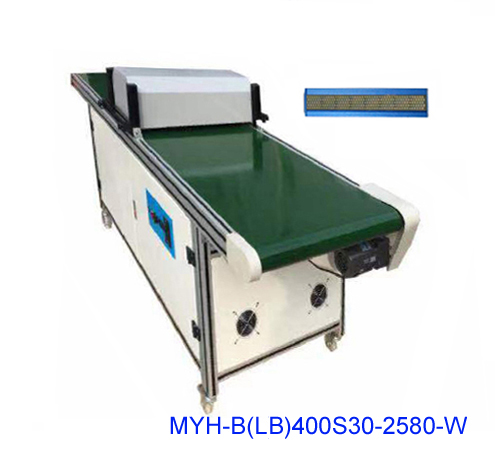

MODEL#: MYH-B(LB)400S30-2580-W

Power Controller: P12, L365*W500*H160mm
Emitting Window Size: Le422 * We30mm
Radiation Intensity: 0-22W/cm²
Wavelength: 365 / 385 / 395 / 405nm (Single or Mix)
Curing Time/Speed: 0.1-2s (Depends on UV chemical)
Cooling Method: Water cooling
Frame Material: Aluminium
Frame Size: L(1000-2000)*W500*H800mm
Conveyor Material: PVC, Teflon or Metal mesh
Conveyor Belt Size: L(1000-2000)*W400mm
Running Speed: 0-15m/min
Electric Power: 2580W

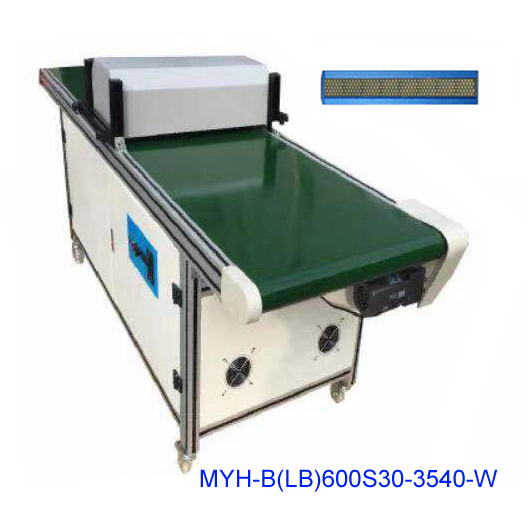

MODEL#: MYH-B(LB)600S30-3540-W

Power Controller: P18, L690*W500*H230mm
Emitting Window Size: Le617 * We30mm
Radiation Intensity: 0-22W/cm²
Wavelength: 365 / 385 / 395 / 405nm (Single or Mix)
Curing Time/Speed: 0.1-2s (Depends on UV chemical)
Cooling Method: Water cooling
Frame Material: Aluminium
Frame Size: L(1000-2000)*W700*H800mm
Conveyor Material: PVC, Teflon or Metal mesh
Conveyor Belt Size: L(1000-2000)*W600mm
Running Speed: 0-15m/min
Electric Power: 3540W

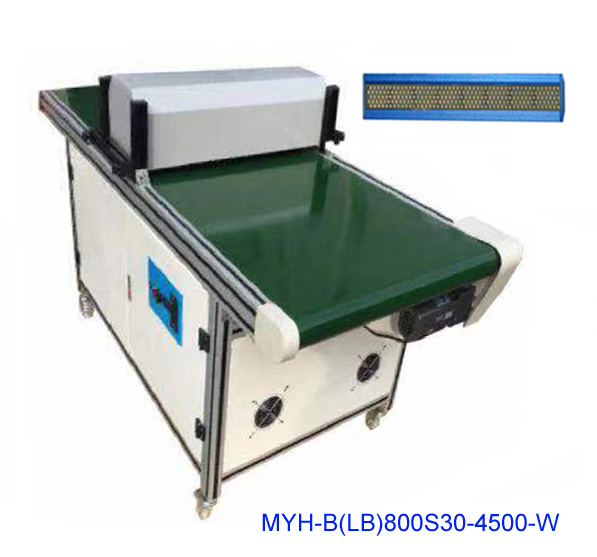

MODEL#: MYH-B(LB)800S30-4500-W

Power Controller: P18, L690*W500*H230mm
Emitting Window Size: Le810 * We30mm
Radiation Intensity: 0-22W/cm²
Wavelength: 365 / 385 / 395 / 405nm (Single or Mix)
Curing Time/Speed: 0.1-2s (Depends on UV chemical)
Cooling Method: Water cooling
Frame Material: Aluminium
Frame Size: L(1000-2000)*W900*H800mm
Conveyor Material: PVC, Teflon or Metal mesh
Conveyor Belt Size: L(1000-2000)*W800mm
Running Speed: 0-15m/min
Electric Power: 4500W

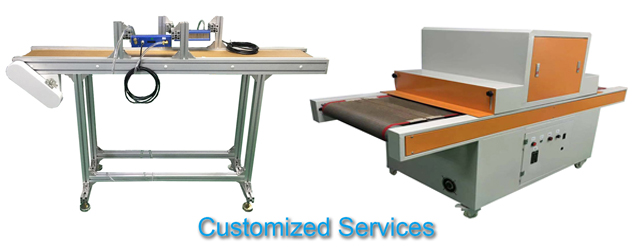

Customized Configuration Available

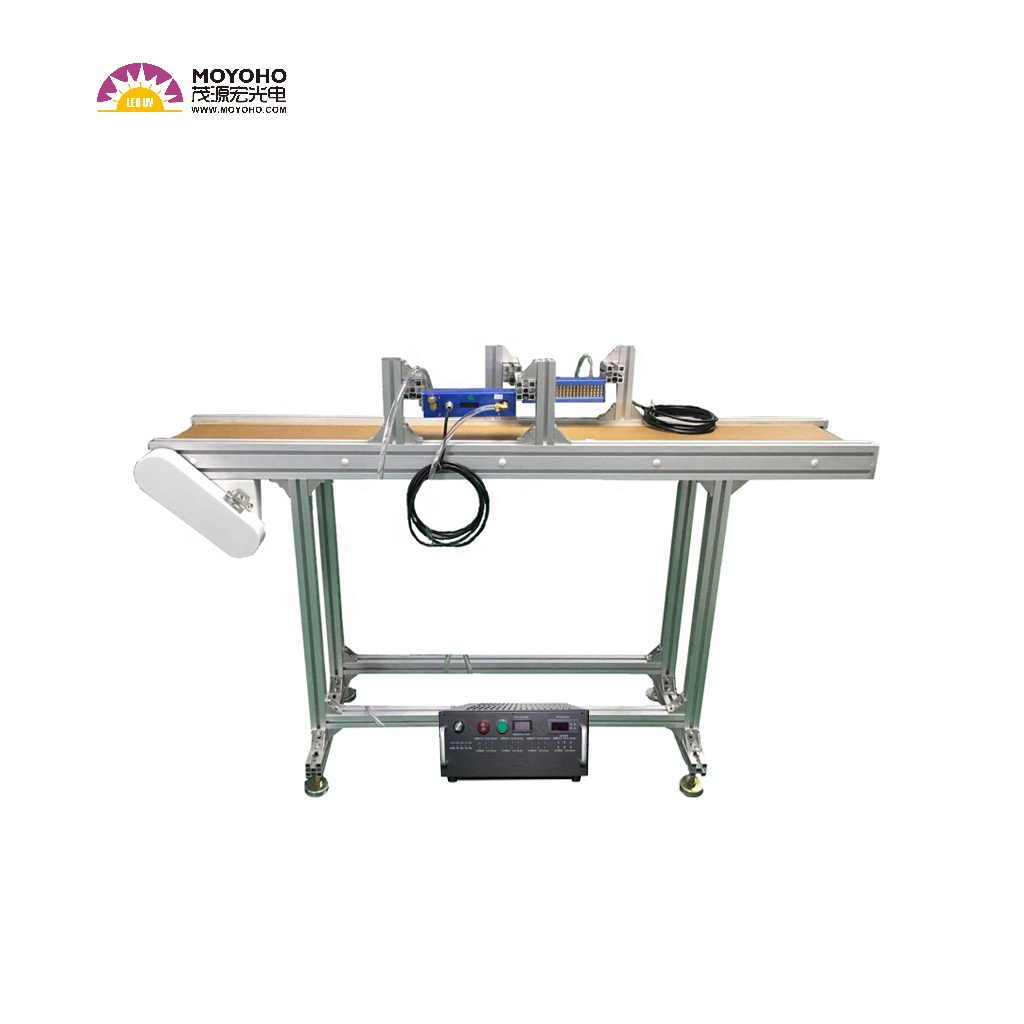

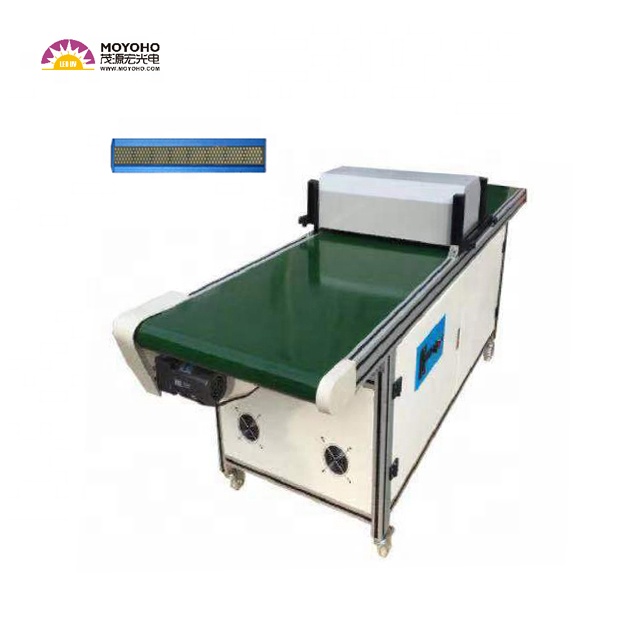

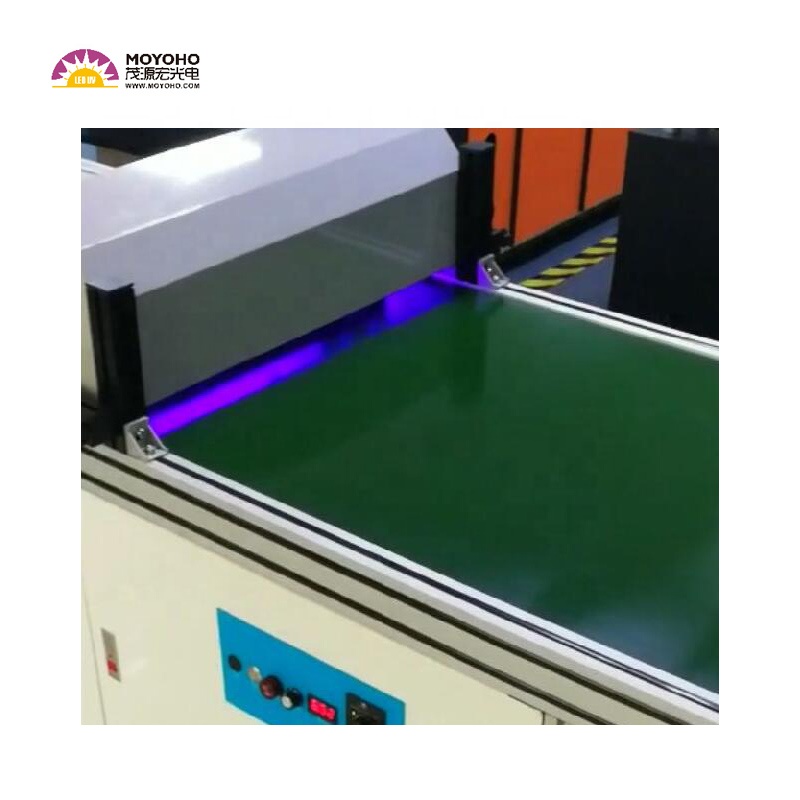

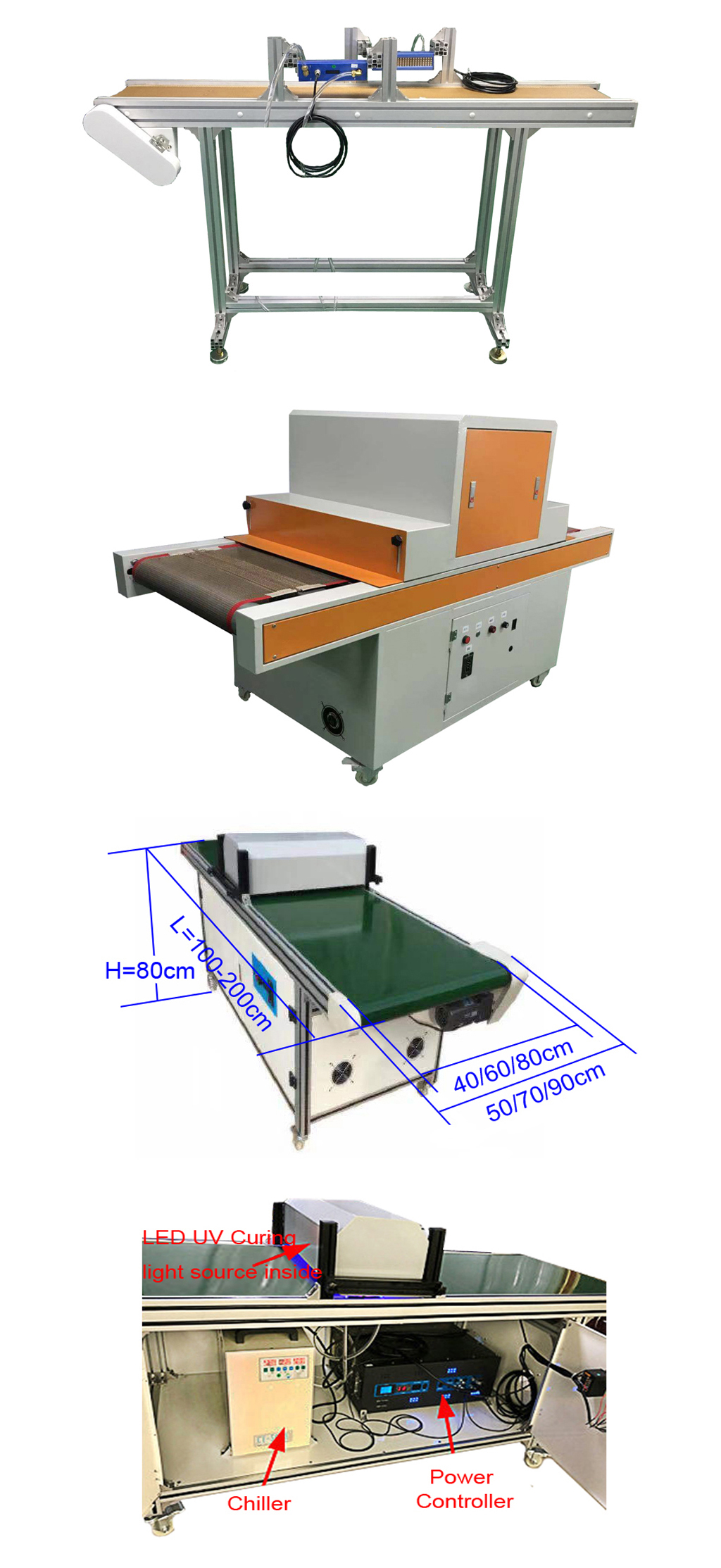

Product Photos

Product Packaging & Shipping

Packed with PE foam, export carton box or plywood box.
Shipped by sea, by air or by express.

MORE CHOICES

We offer a wide range of products as a one-stop solution for the UV LED industry. We provide curing and drying solutions for most UV chemicals including UV ink, UV adhesive, UV coating, UV varnish, and more. We believe you can find the ideal items to suit your specific requirements.

OUR PATENTS AND CERTIFICATIONS

CE, RoHS, CCC qualified.

OUR CLIENTS AND PARTNERS

OUR SERVICES

The warranty period of our UV LED products is 2 years.
We offer spare parts or modules for replacement.
24-hour online technical support.
Video technical support.

FAQ

Q1 Why should I replace a traditional lamp with a UV LED Lamp?

UV LED working lifetime is more than 25,000 hours, which is 10 times longer than traditional lamps. Furthermore, UV LED curing is highly efficient, saves up to 80% on energy costs, and is environmentally friendly.

Q2 Do all current UV chemicals work well with UV LED?

No, the chemical formulation must be specifically matched to take advantage of the narrow UV LED wavelength. Please consult your chemical supplier for the optimal wavelength, and we can customize a high-efficiency system matching that wavelength.

Q3 What is the warranty period for the products?

All of our products come with a full two-year warranty. We will provide replacement parts for free if any components are damaged under warranty.

Q4 What after-sales service support do you offer?

We provide spare parts for replacement, along with 24-hour online support and troubleshooting via video guides.

Q5 How can I get the best solution at the right price?

To offer you the best configuration, we need the following details:

1. Application: What is your intended use? (e.g., drying silk-screen printing)
2. Wavelength: What wavelength does your UV chemical require? (e.g., 365 / 385 / 395 / 405nm)
3. Emitting Window Size: What dimensions do you need? (Based on product width or curing method)
4. Peak Irradiance: What intensity is required for your production line speed?
5. Custom Specifications: Standard specifications can be modified to fit your needs.

Q6 Are customized UV LED curing systems available?

Yes, customized solutions are fully supported. If our standard models do not meet your production specifications, we can custom-build dimensions, wavelength distributions, and power capacities to meet your requirements.
