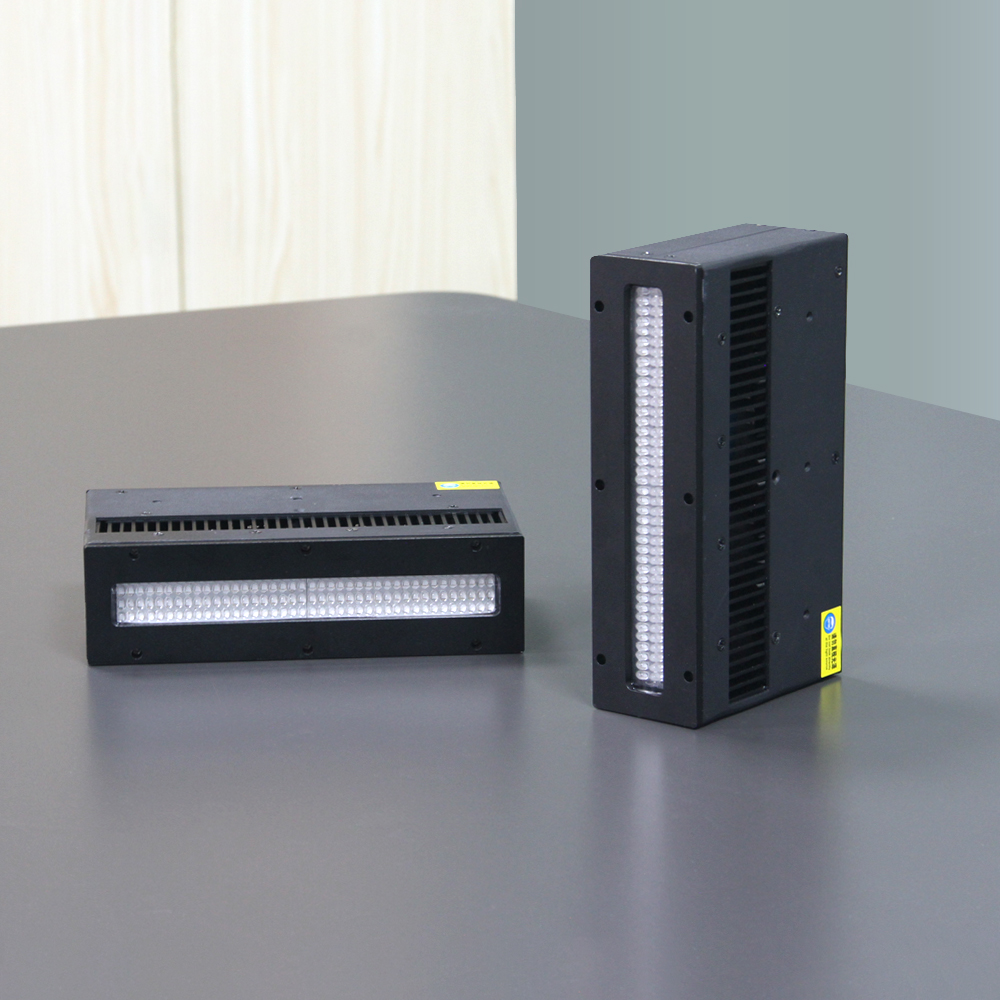

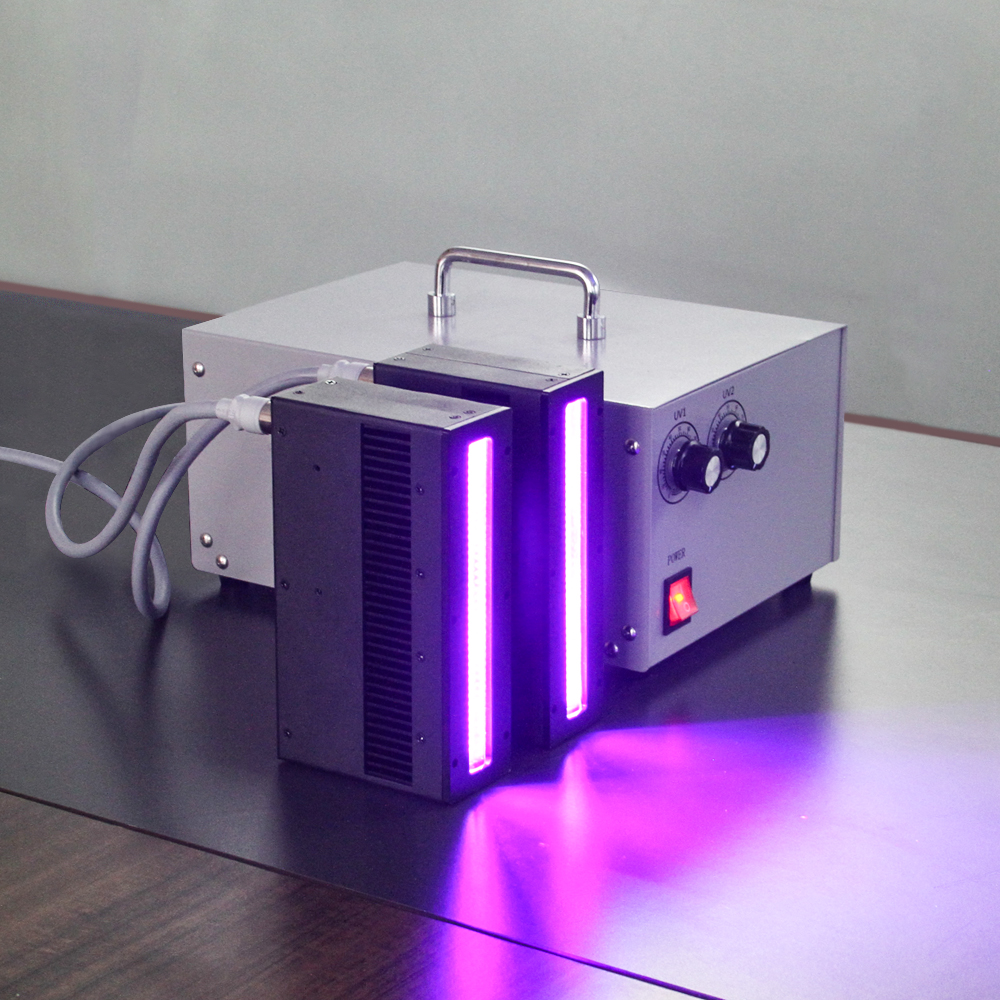

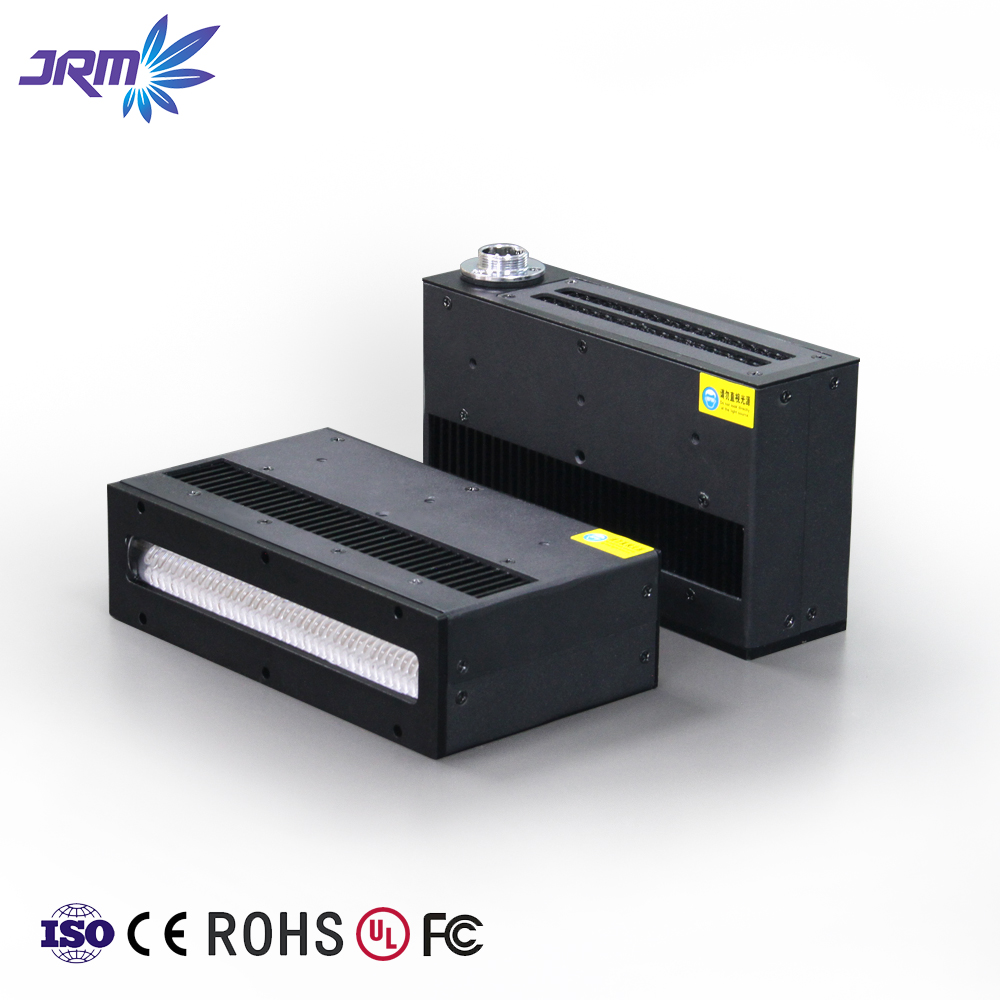

Fast Drying UV Lamp 160x20mm 365/395/405nm Air-cooled UV LED Ink Curing Module for Inkjet Printer

Send Inquiry

Product Description

Main Products

Direct Manufacturer Deal

Looking for a reliable UV LED Curing System for printing, bonding or coating?

100% Customizable Size | Wavelength | Power – Direct from Manufacturer

Click “Send inquiry” or “Chat now” – Get instant quote & free technical advice!

Product name	Air-cooled UV LED Ink Curing Module
Model	JRM-F16020A02-C2

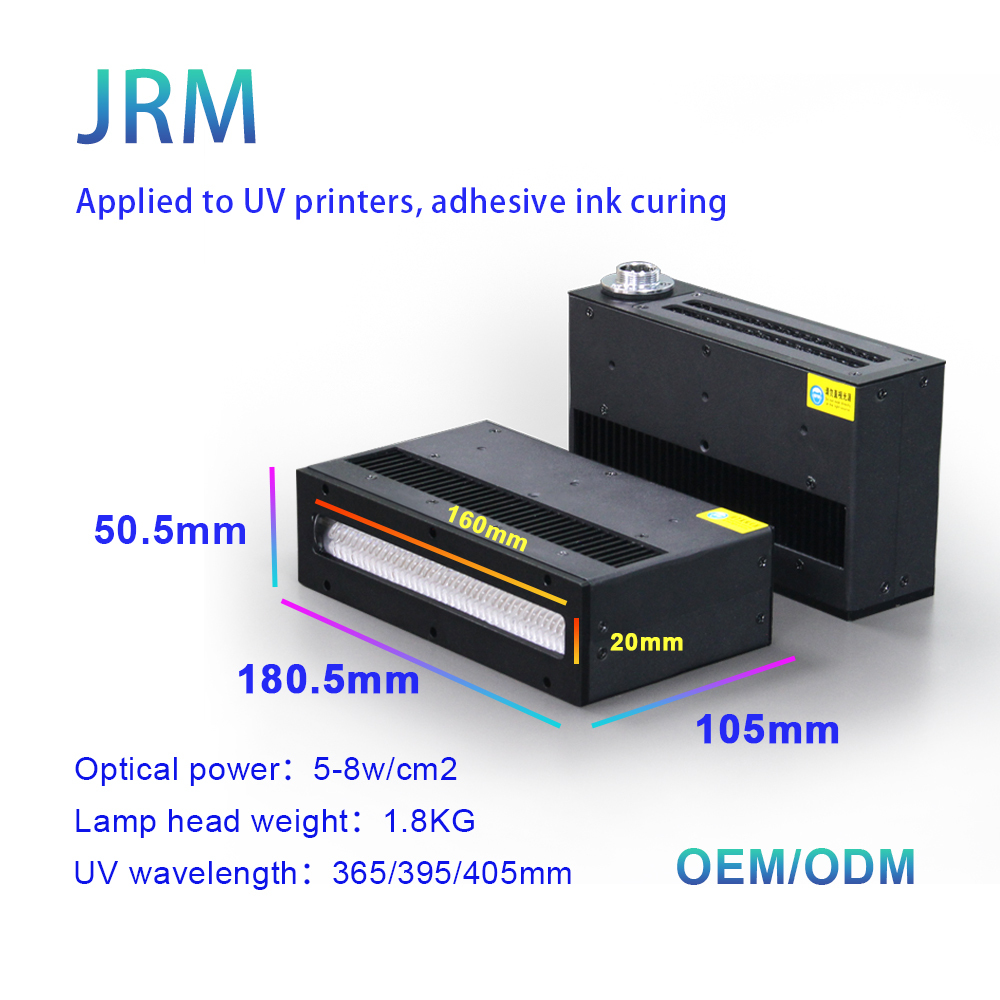

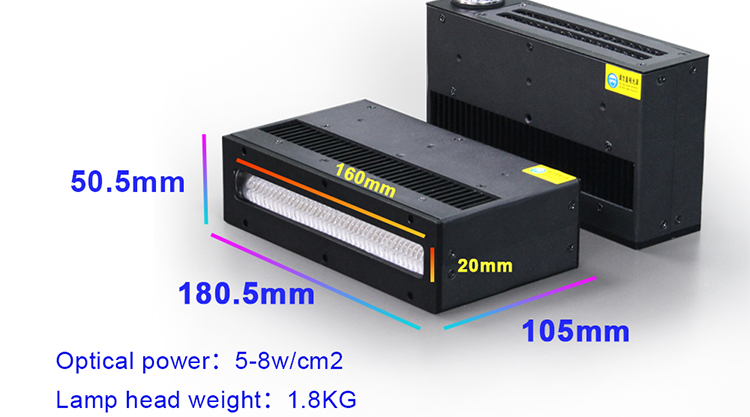

Irradiation head size	180.5mmX50.5mmX105mm
Irradiation window area	160X20mm
Input voltage	AC 220V

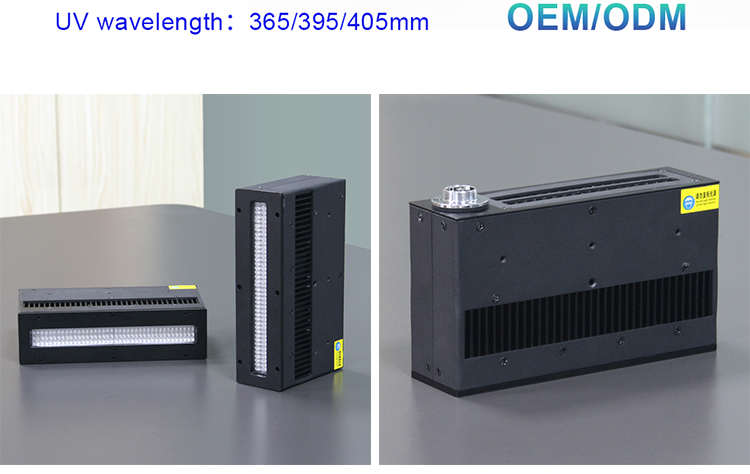

Wavelength	365/395/405nm
Total system power	900W
Optical power	5-7W/CM²
Lamp head weight	1.8KG
Irradiation head electrical power	800W
Power canister size	300mm190mm110mm
Startup control mode	3-32v DC signal control
Weight(Power supply and lamp)	10.5KG
Brightness adjustment method	Potentiometer knob adjustment
The working height of the irradiation head	3-7mm
Application	UV Label Printing, Flatbed printers, Flexo Label Printing, UV Glue Ink Curing, Industrial Applications to Cure or Dry Inks, Coatings, Adhesives and Polymers

Application

Manufacturing Facility & Quality Control

Frequently Asked Questions

Q1 Are you a factory?

Yes! We are a professional factory. We have been producing UV LED products for 15 years.

Q2 Can we customize the product?

Yes! We can manufacture the products according to your specific requirements.

Q3 Do you have any MOQ limit for LED light orders?

No! Ordering even one unit is acceptable.

Q4 How to choose the size of the UV LED LAMP?

Please reach out to us and our team will provide you with professional advice!

Q5 What brand of UV LED chips do you use?

We use high-quality chips from reputable brands including LG, Epileds, Seoul, and Epistar.

Q6 What is the lifespan of the UV LED LAMP?

Our LED chips have a lifespan of 20,000 hours, and it can be even longer when proper care is taken during operation.
