LumiCure Light
1 / 5

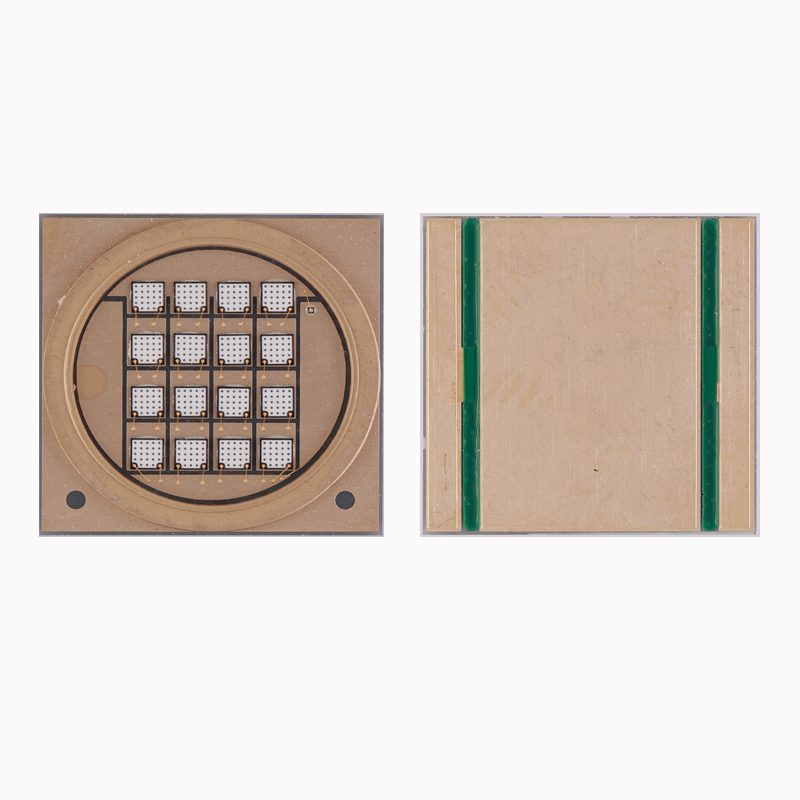

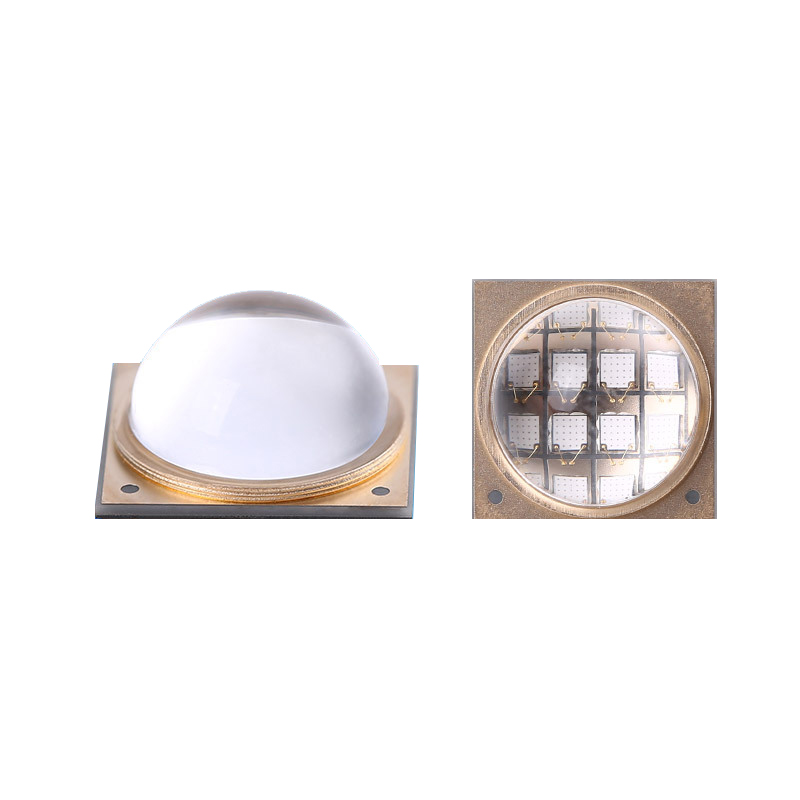

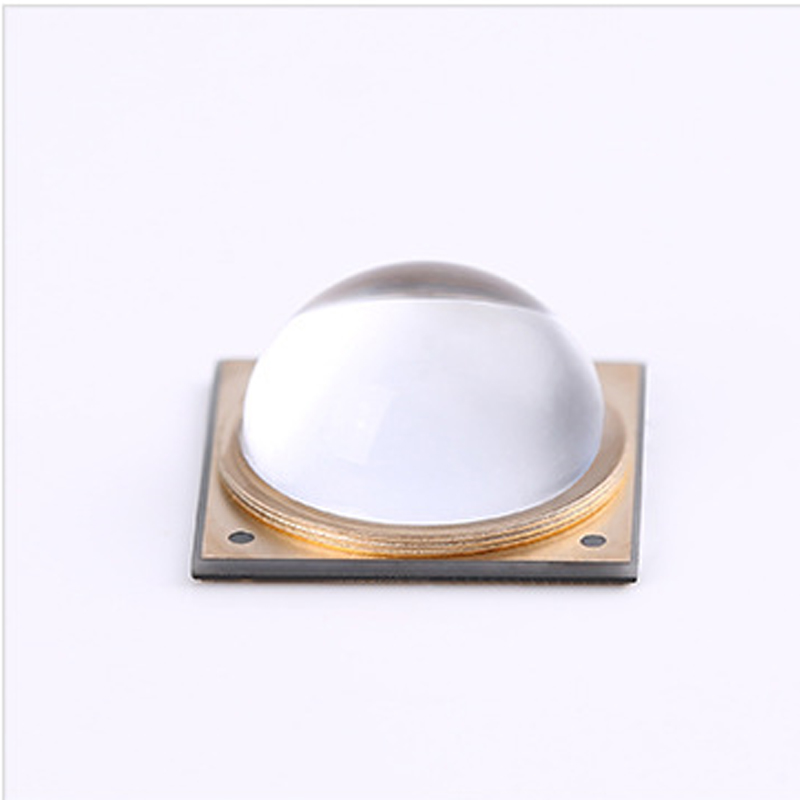

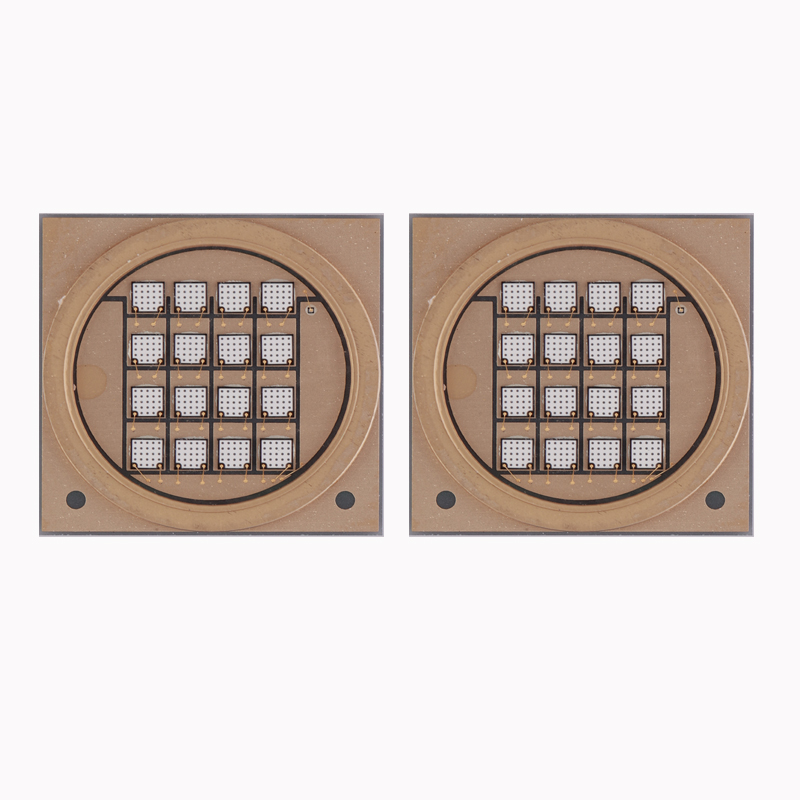

| Product Model | Voltage (V) | Peak Wavelength (nm) | Optical Power (mW) | Current (mA) | Spectrum Half width (nm) | Angle (°) |
|---|---|---|---|---|---|---|
| HYF120X43B365AG-D16A | 13-16 | 365-370 | 15000-20000 | 2800 | 9 | 90 |
| HYF120X43B380AG-D16A | 12-14 | 380-390 | 15000-20000 | 2800 | 12 | 90 |
| HYF120X43B400AG-D16A | 12-14 | 395-405 | 15000-20000 | 2800 | 18 | 90 |
| HYB110X45B365AG-M16E | 13-15 | 365-370 | 17000-21000 | 4000 | 9 | 90 |
| HYB110X45B380AG-M16E | 12-14 | 380-390 | 17000-21000 | 4000 | 11 | 90 |
| HYB110G45N400AG-M16E | 12-14 | 400-410 | 17000-21000 | 4000 | 15 | 90 |
| HYB110G45N410AG-M16E | 12-14 | 410-420 | 13000-16000 | 2800 | 17 | 90 |
| HYB110G45N420AG-M16E | 12-14 | 420-430 | 13000-16000 | 2800 | 17 | 90 |
| HYB110G45N430AG-M16E | 12-14 | 430-440 | 12000-14000 | 2800 | 19 | 90 |
Our High-power and low-power series LEDs cover a wide range of wavelengths in the ultraviolet (UV), visible, and infrared (IR) spectra, from 200 nm to 2000 nm, based on reliable technological experience developed over 16 years.
You can select the suitable LED wavelength for your application, with shorter wavelength emitters available in 20 nm increments (below 1000 nm), and longer wavelength emitters every 50 nm (over 1000 nm).
We maintain sample stock and small quantities of ready-to-ship inventory for all our product lines to support your urgent testing and small batch needs.

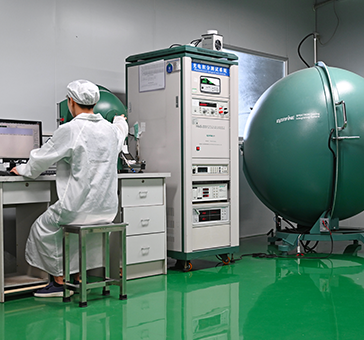

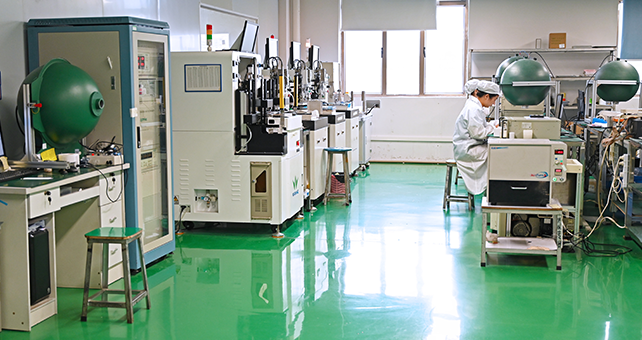

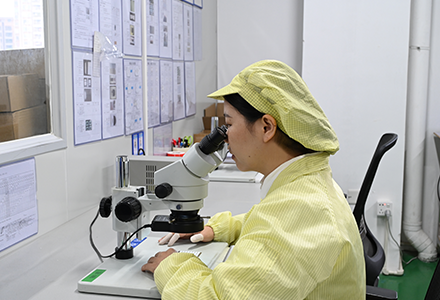

Strict testing is carried out on raw materials such as chips, brackets, gold wires, and fluorescent powder to ensure reliable welding strength of the gold wires and compliance with finished product light attention standards.

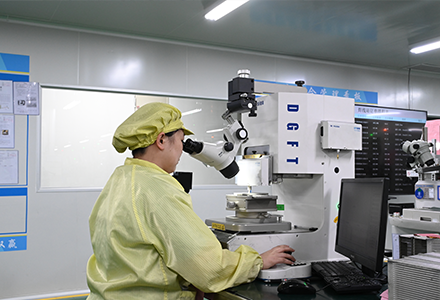

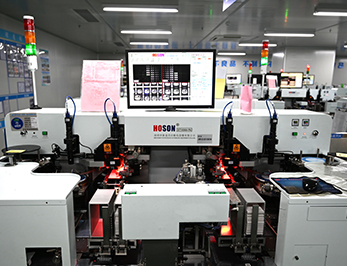

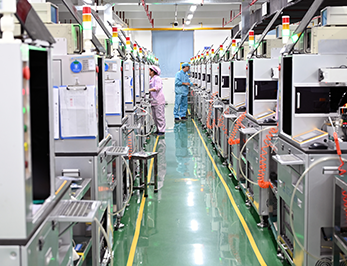

Production inspection includes the inspection of equipment, tools, materials, auxiliary materials, and processes, and the inspection process is strictly carried out according to the corresponding inspection regulations.

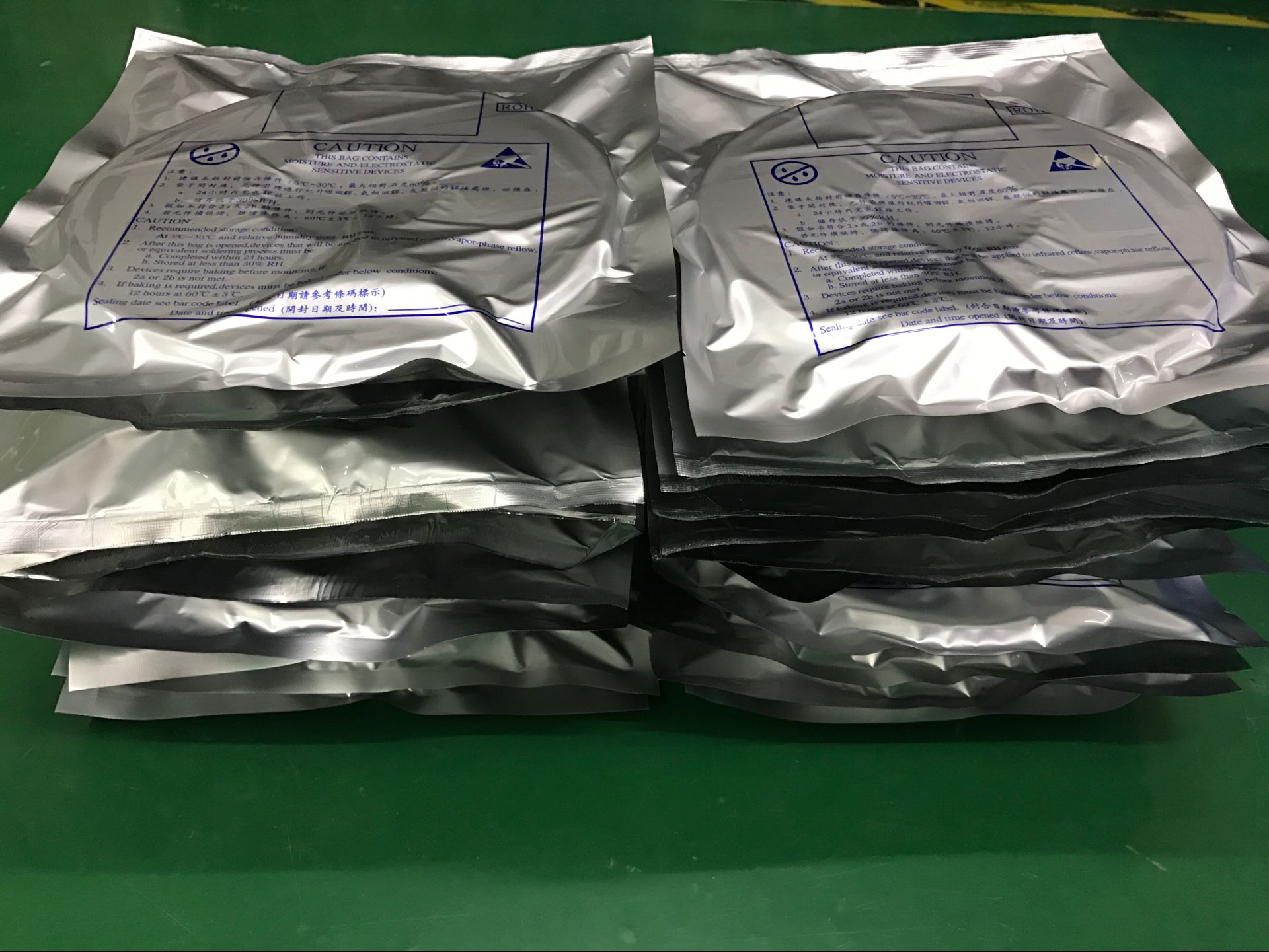

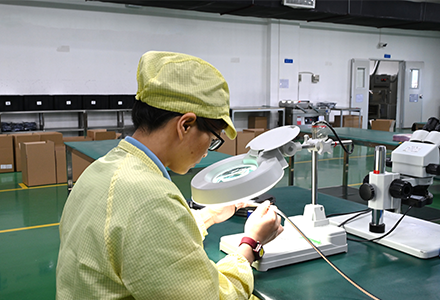

The shipment inspection options are a visual full inspection method, mainly checking which product information is consistent with the label information, and ensuring that the packaging is clean, sealed, and moisture proof.

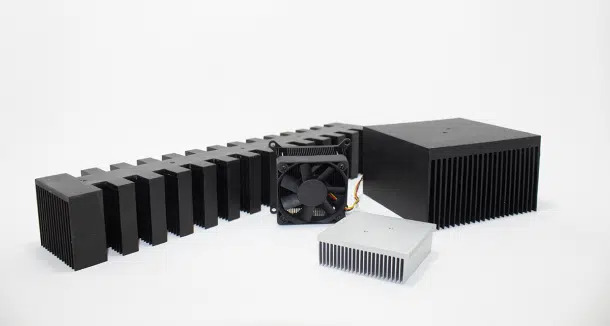

• Aluminum heatsinks with screws and thermal pads
• Pre-drilled mounting holes for every COB product

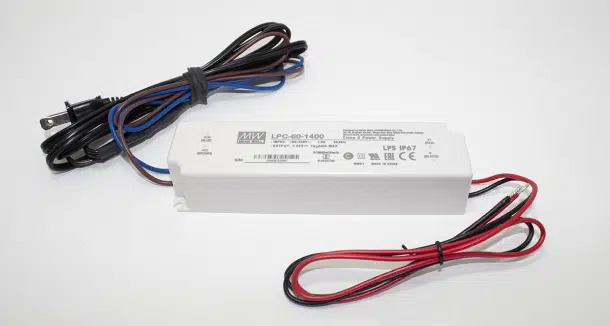

• Driver kits assembled with power cords and plugs
• Constant current power supplies for SMD and COB products
In high-power and high-precision UVA LED applications, thermal performance and electrical stability are core factors that determine component lifespan and sensing accuracy. We ensure our full range of UV LED products adopts a world-class raw material supply chain:
Grade A Chips: All products are 100% equipped with authentic Grade A chips sourced from top-tier manufacturers. These high-grade chips deliver excellent internal quantum efficiency and low radiometric decay. They effectively prevent wavelength shift, extend service life, and sustain stable radiant intensity — even in rigorous application scenarios including security surveillance, optical sensing, and industrial night vision systems.
Thermal Substrate: All devices are packaged with Aluminum Nitride (AlN) ceramic substrates. With an ultra-high thermal conductivity of over 170 W/m·K, AlN rapidly dissipates heat from the chip, maintaining low junction temperatures during continuous high-current operation and significantly slowing lumen depreciation.
High-Purity Quartz Glass Packaging Technology: This series adopts high-purity quartz glass packaging, completely resolving the aging and yellowing defects common to traditional organic resin encapsulation. Quartz glass features superior UV resistance and high deep-UV transmittance, ensuring zero performance degradation under long-term intensive UV exposure and stable optical power output. In addition, its excellent high-temperature resistance, low coefficient of thermal expansion (CTE), and strong chemical inertness enable reliable hermetic sealing. It provides durable protection against high heat, humidity, and chemical corrosion, ensuring long-term and stable equipment operation.
Bonding Wire: Internal electrical interconnection adopts imported 99.99% high-purity thickened gold wire. The upgraded thick-wire structure greatly enhances surge current resistance, eliminates the risk of individual LED open-circuit failure, and guarantees long-term stable electrical conduction.
To ensure smooth customer assembly and high first-pass yield, we implement a strict quality control system compliant with IATF 16949 automotive-grade standards.
100% Full Inspection: Batch sampling inspection is strictly prohibited. Every UV LED undergoes fully automated testing of electro-optical performance, spectral bin consistency, and appearance quality before shipment.
3-Month Safety Stock Strategy: To mitigate global semiconductor supply chain volatility, we consistently maintain a minimum three-month safety stock of core wafers and mass-production finished UV LED products. Regardless of raw material price fluctuations or seasonal supply shortages, we ensure uninterrupted customer production and stable year-round supply.
