Hight-Power LED UV Curing Lamp for Ink Printing and Post-Press UV Curing in Industry Equipped with a Water Chiller

Products Description

High Power LED UV Curing System Introducing our High Power LED UV Curing System, a highly efficient water cooling LED UV Curing solution designed for UV Printing Coating Inks applications. The UV intensity could catch up to 35000mw/cm².

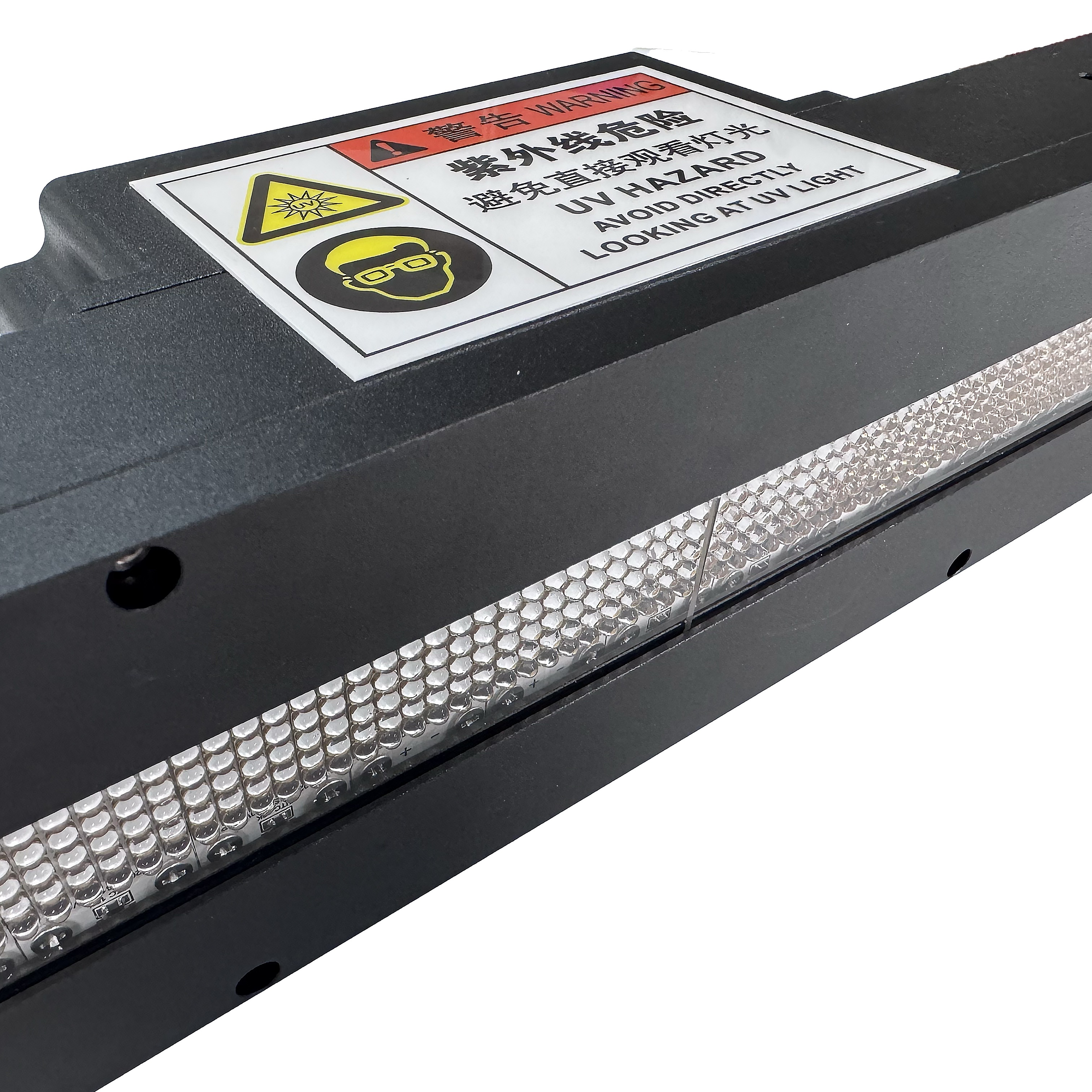

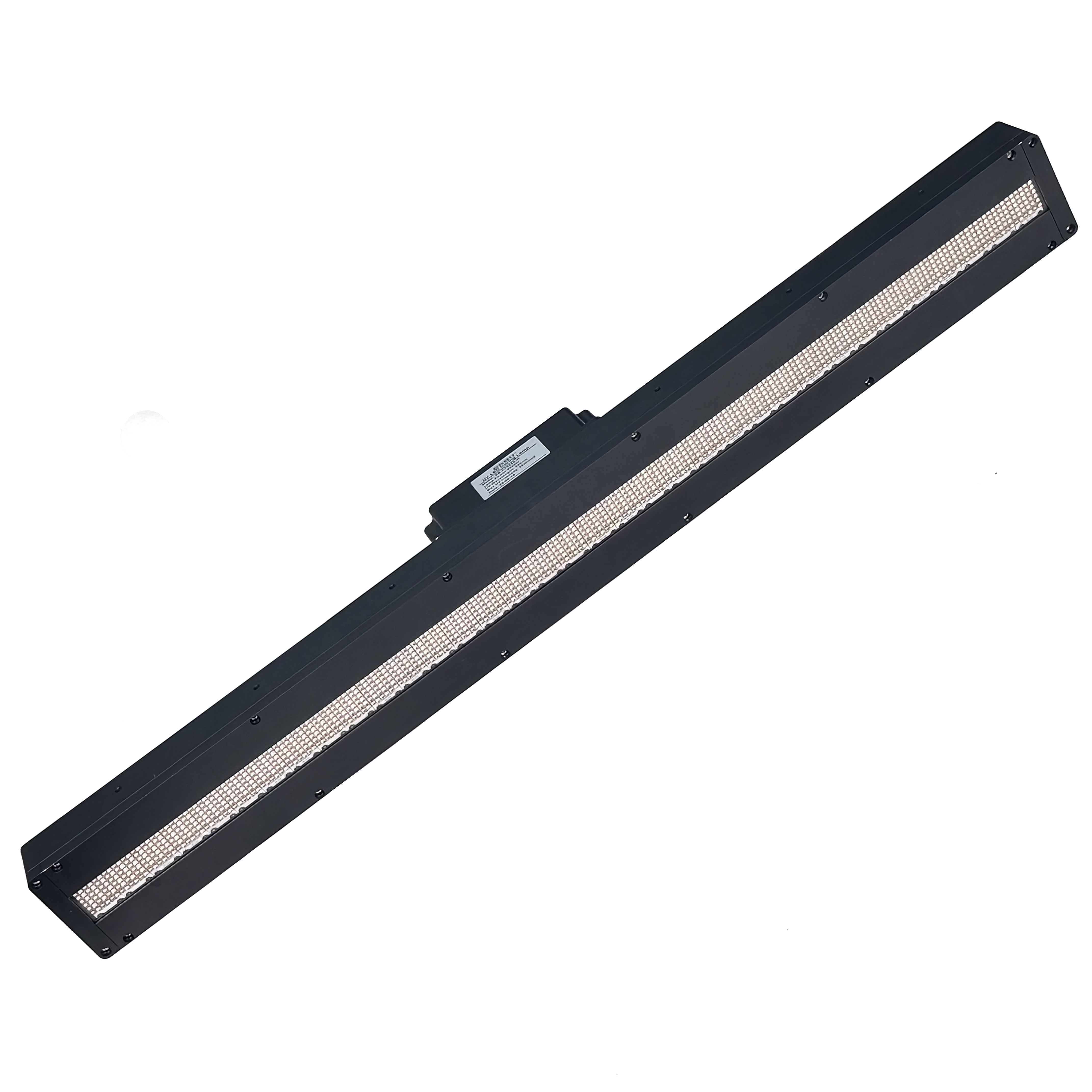

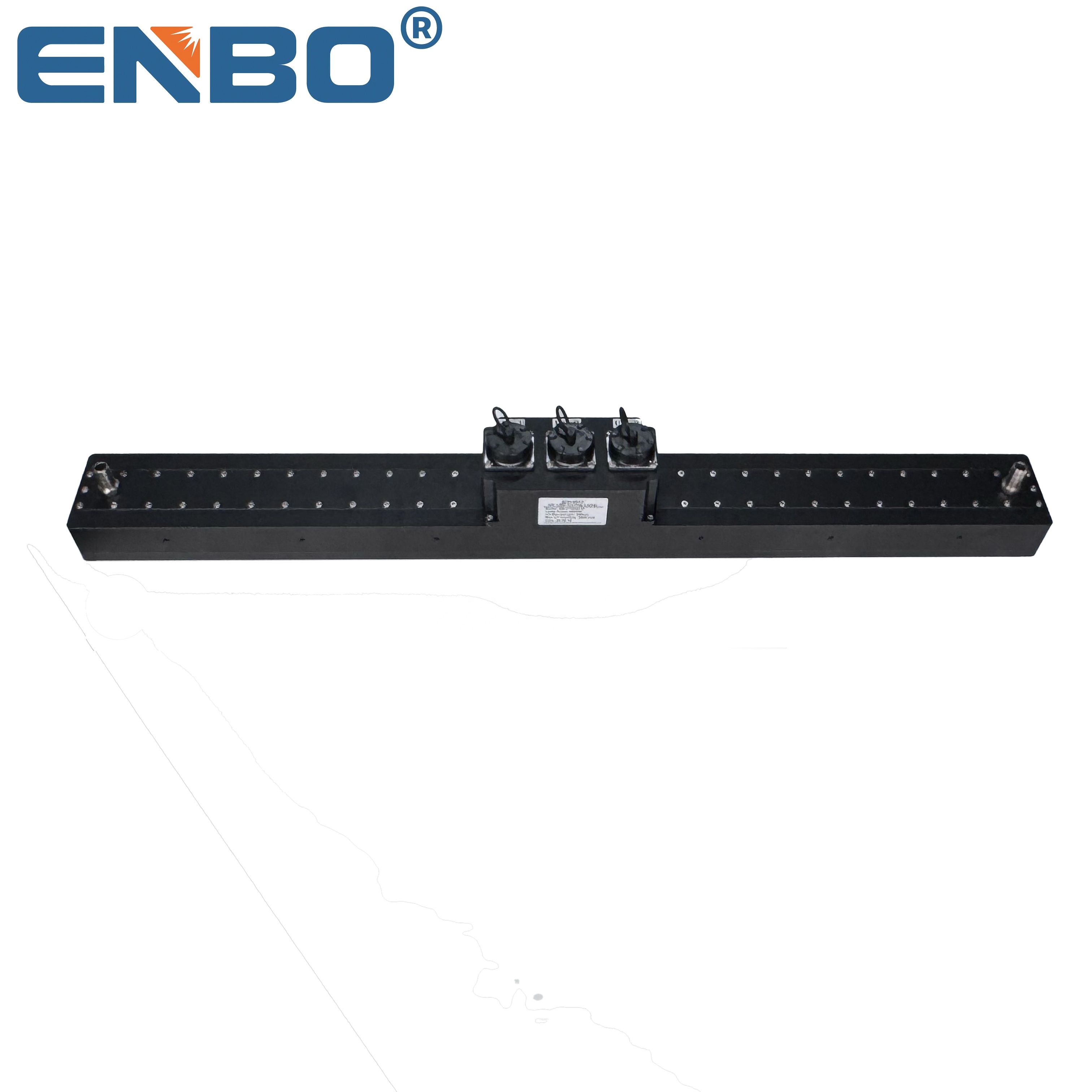

LED UV Lamp head (Support Customization)

Designed for high-efficiency curing applications, offering strong, uniform UV output with precise wavelength control. Using advanced water-cooling technology, the lamp maintains a stable operating temperature even under continuous high-power use, which significantly extends its lifespan and performance reliability. The lamp is available in a range of standard sizes, and the length can also be customized to meet specific process or equipment requirements. It is ideal for integration into industrial printing, coating, and bonding systems.

Integrated Controller and Water Chiller

The integrated controller and water chiller unit combines intelligent system control with efficient thermal management. The touchscreen interface allows precise adjustment of curing parameters such as power level, exposure time, and operation mode. The built-in water chiller provides closed-loop cooling for the LED lamp head, ensuring consistent temperature control and stable UV output. This all-in-one unit simplifies installation and is ideal for compact production setups requiring high reliability.

Specification

Power	6000W	UV Wavelength	365nm / 395nm / 405nm / 485nm
Cooling Method	Water Cooling	UV Intensity	35000mw/cm²
Display	5-inch Touch Screen	Curing Size	700 * 20mm

Attentions & Precautions

1. General Precautions

The LED irradiation head connection cable is designed to support bending. Under standard test conditions, the bending performance of the cable is met. However, performance under all actual use conditions cannot be guaranteed.
Do not disassemble, modify, or set up the internal structure. Any failure, breakdown, or damage caused by modification will void the warranty.

2. Installation Environment

Operating temperature & humidity: 0°C to +45°C, ≤85%RH (no condensation or freezing).
Storage temperature & humidity: -10°C to +60°C, ≤85%RH (no condensation or freezing).
Keep away from dust, soot, conductive dust, corrosive or flammable gases, salt, and iron.
Avoid contact with water, oil, medicines, or chemicals.
Avoid environments with severe temperature changes, strong vibration, impacts, direct sunlight, or strong magnetic/electric fields.

3. Power Supply and Wiring

Use a single-phase 200V-240V (50Hz-60Hz) power supply voltage with proper grounding.
Do not share the power line with motors, induction machinery, or high-power devices.
Only use the attached cable to connect the controller and the LED irradiation head.
For bending applications, ensure the minimum bending radius is greater than 110mm. Operating below this radius may cause cable rupture in a short period.

4. About Installation

Keep both the controller and the irradiation head level during installation. Do not tilt, tip, or install them in reverse to avoid overheating and damage.
Do not install in confined spaces. Do not block the radiator vents.

5. Connection Precautions

Verify all electrical and system connections are correct before switching on the power supply.

Company Profile

We are a manufacturer specializing in the production of LED functional lighting used in professional equipment, and also a trader of general lighting fixtures, electronic components, and wires. We have more than ten years of LED production and 8 years of foreign trade experience, and have been actively recognized and trusted by many partners. In recent years, we have focused on providing professional equipment lighting solutions, continuing to optimize and innovate our products. Our products are CE and RoHS certified, with select items compliant with UL standards, strictly adhering to EU electrical safety guidelines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Frequently Asked Questions

1. What does the complete UV LED curing system include?

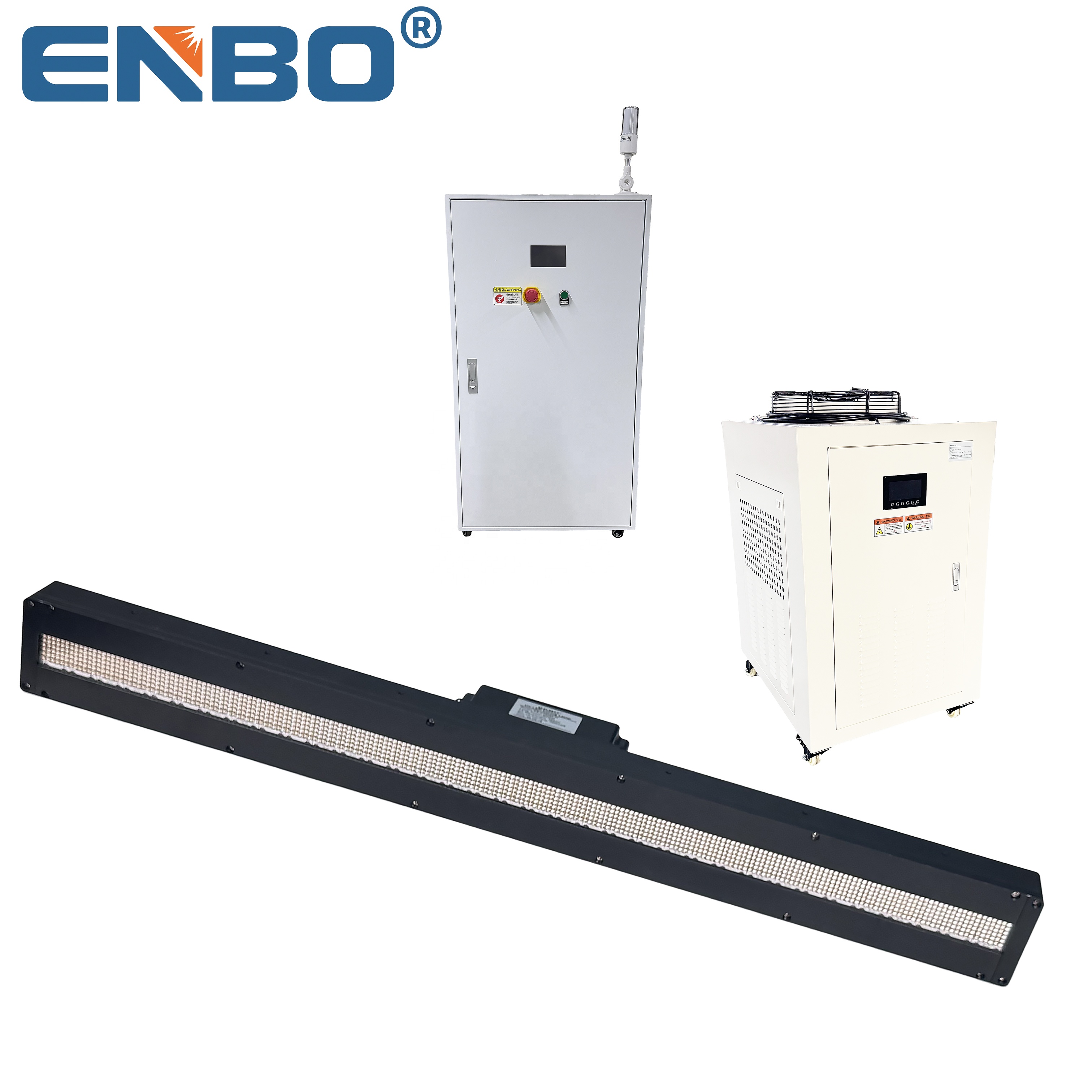

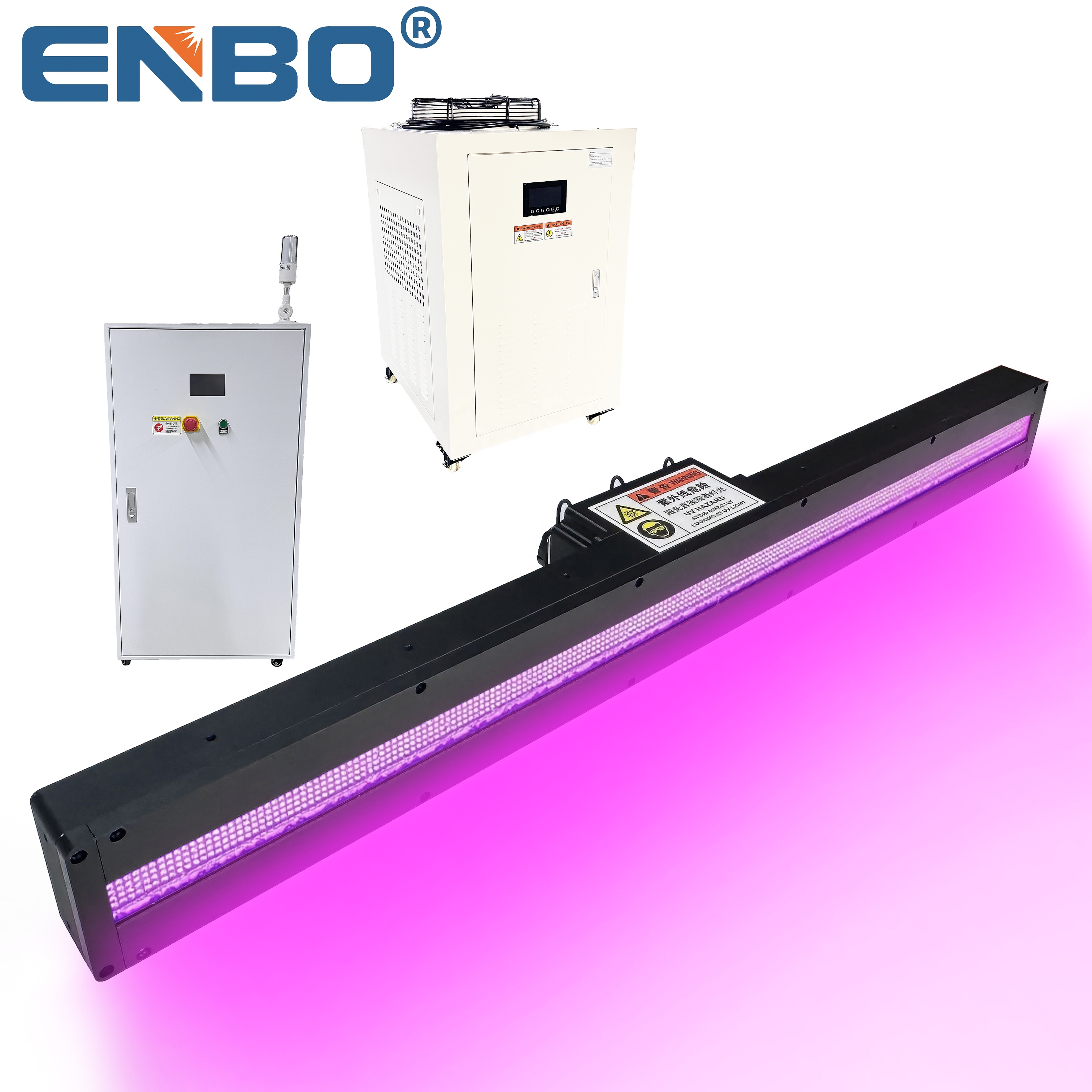

The complete system includes the UV LED lamp head, a water cooling chiller, and a touchscreen controller.

2. Can I use my own PLC and electrical cabinet?

Yes, our UV LED drivers support RS485 communication protocols, allowing direct integration into your existing PLC systems.

3. How do I proceed with an order for the UV LED curing system?

First, share your specific requirements or application. Second, we will provide a quotation based on those requirements. Third, the customer confirms the specifications/samples and submits a deposit. Fourth, we arrange the production.

4. Is it possible to print my custom logo on the UV LED curing system?

Yes. Please inform us formally before production begins and confirm the design based on our pre-production sample.

5. Do you offer guarantees and installation services for the products?

Yes, we offer a 1-year free warranty along with a 20,000-hour service life guarantee. Installation support can be provided; pricing varies based on the region and specific system requirements.

6. What are the key advantages of sourcing your products?

We deliver premium product quality, guarantee short lead times, maintain a fast supply of spare parts, and offer highly competitive factory pricing.
