LumiCure Light
1 / 2
| Application | LED UV Curing System Automatic Silk Screen Printing Machine |
| Cylinder Bottle Speed | 4000 PCS/HR |
| Ellispcs Bottle Speed | 5000 PCS/HR |
| Printing Diameter | 25mm - 90mm |
| Compress Air | 5 Bar |
| Liquid Gas | 1.5 Bar |
| Dominate Machines Size | 1900mm * 1200mm * 1600mm |
| Scrambler Size | 3050mm * 1300mm * 1500mm |
| Machine Size | 2290mm * 600mm * 750mm |
| Mainly Power | 380VAC / 3-PHASE (UV LED Curing System Less Than 1KW) |
| Feed Motor | 380VAC / 3-PHASE / 1KW |
| Transmission Motor | 220VAC / 1-PHASE / 0.2KW |
Full automatically printing suitable to print on various shades of cylindrical, elliptical and flat workpieces.
Coupled with auto workpiece feeding and loading system.
Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion.
The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing.
Electric sensor creates "no workpiece no printing" that leads to intelligent monitor and smart control.
High printing speed that up to 4000pcs/hr will bring you with high productivity.
Conveniently and easily fixture adjustment and change that save your valuable time.
Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system.

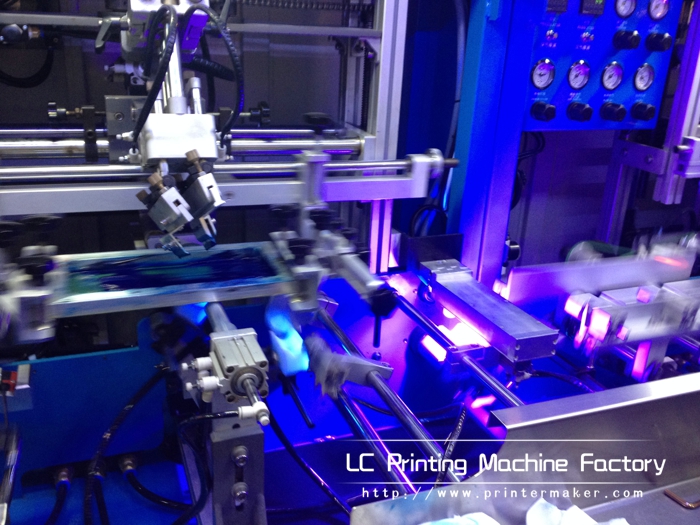

Adopting the most advanced UV Led Drying system, power saving, eco-friendly, which features instant startup, easy setup and low maintenance cost.
