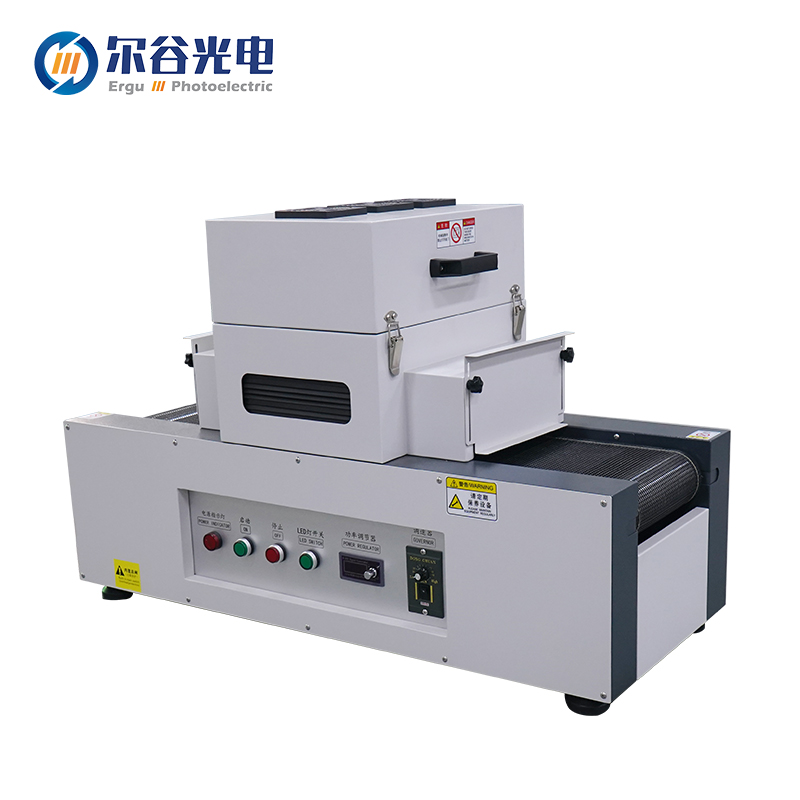

RX200-LED UV LED Curing Machine Low Temperature Energy Saving UV Drying Equipment UVA 395nm Glue Dryer

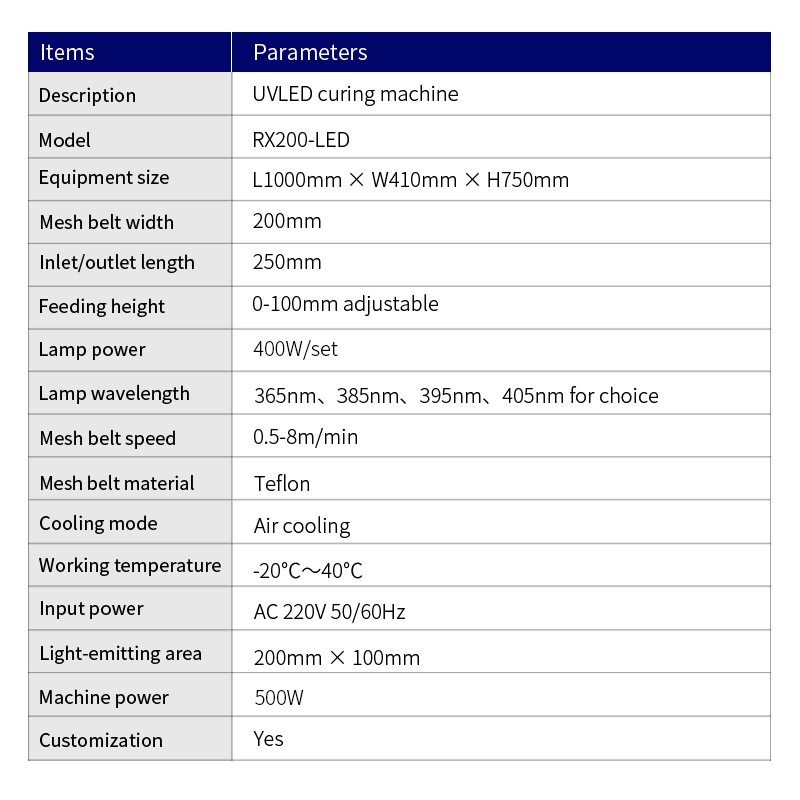

Product Description

Product Description

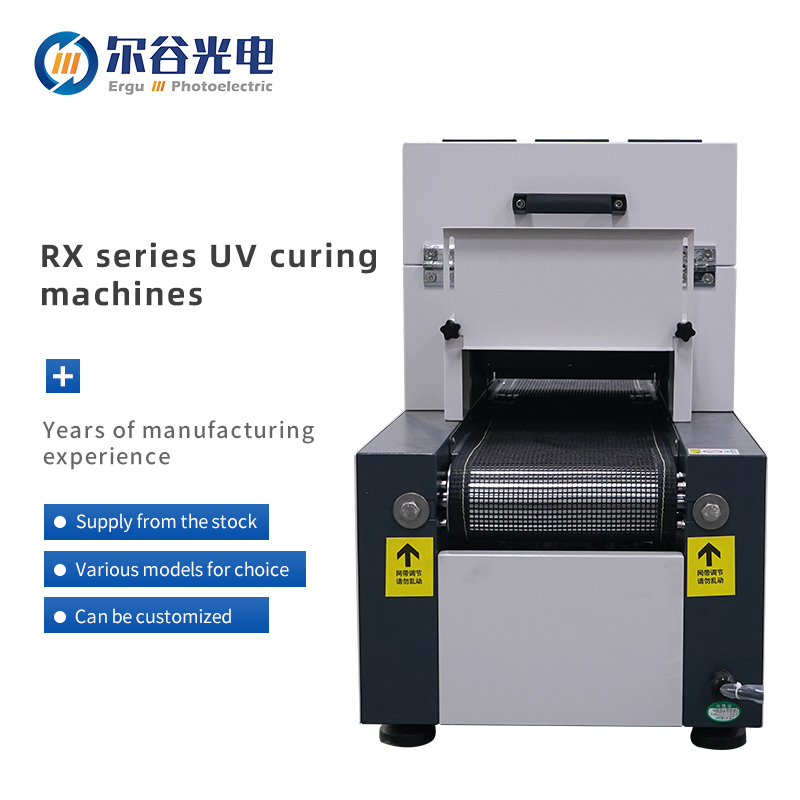

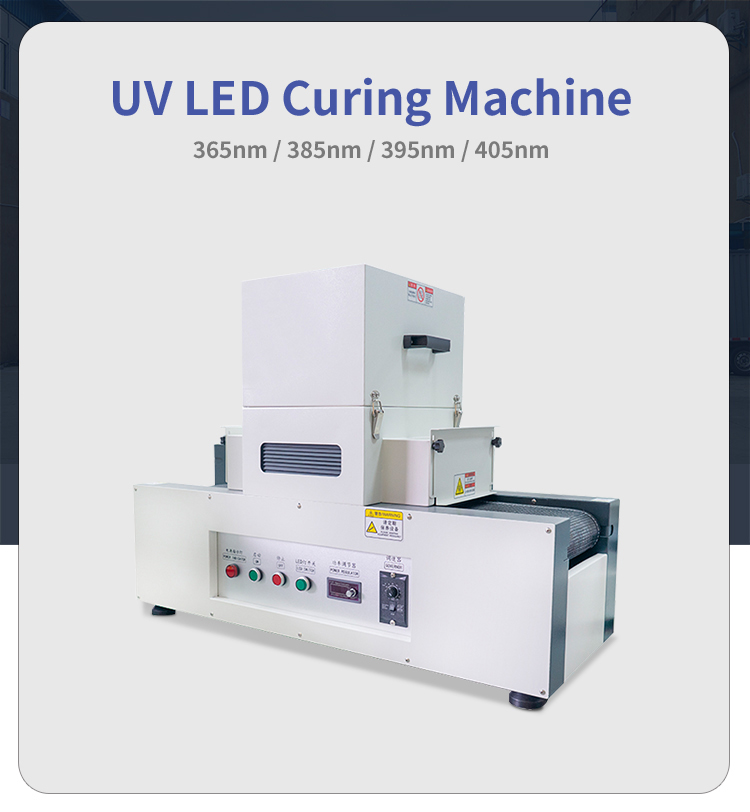

UV LED Curing Machine

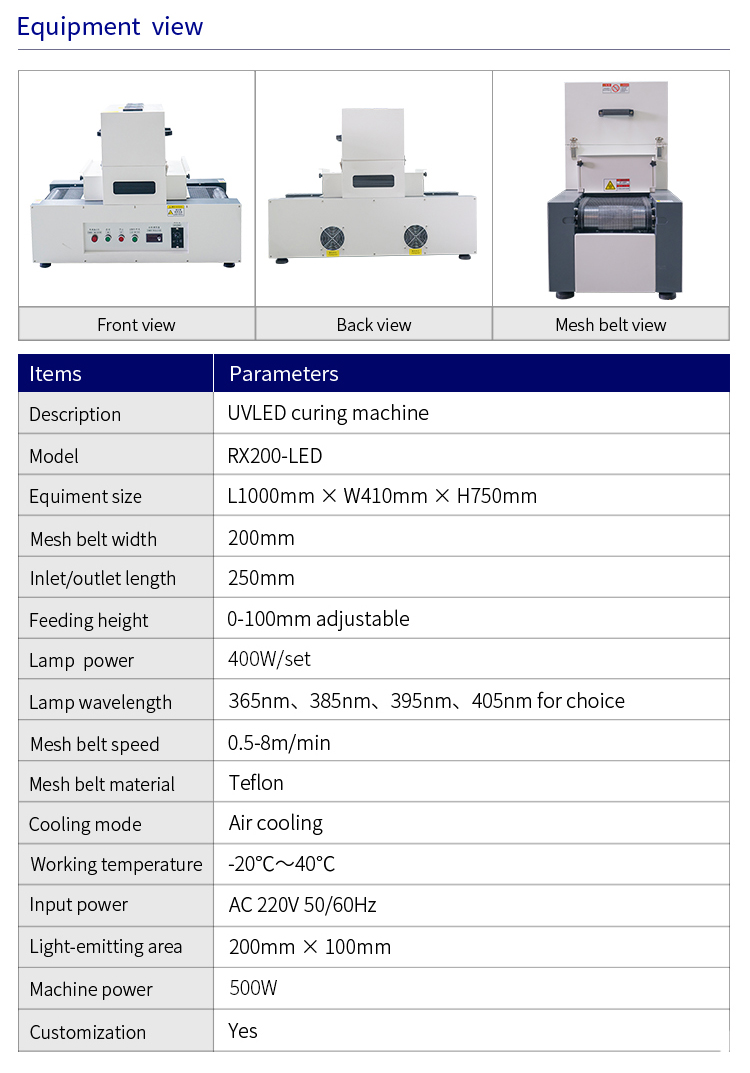

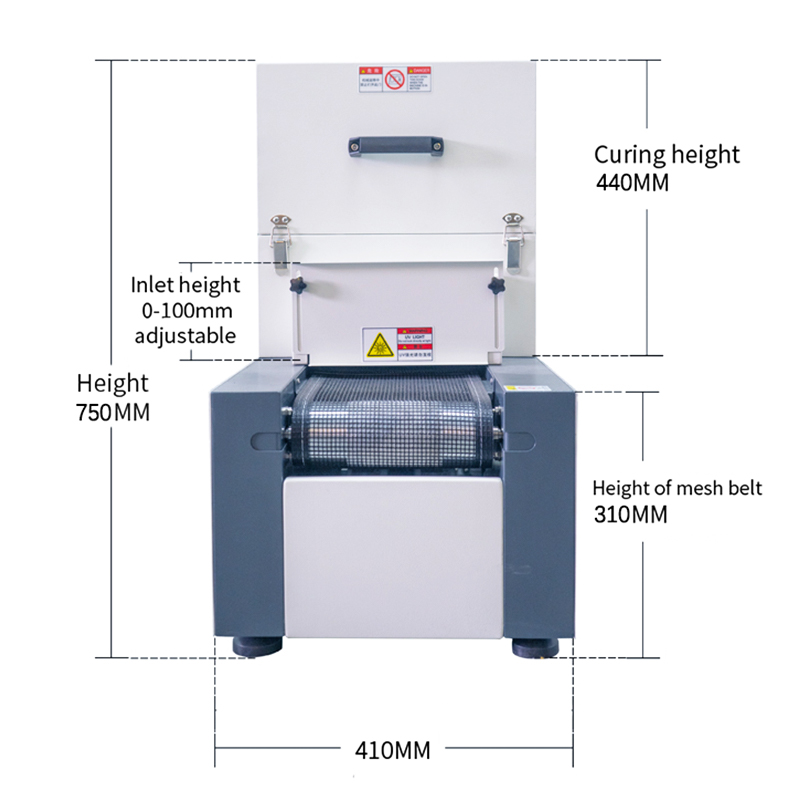

UV LED Curing Machine Dimensions

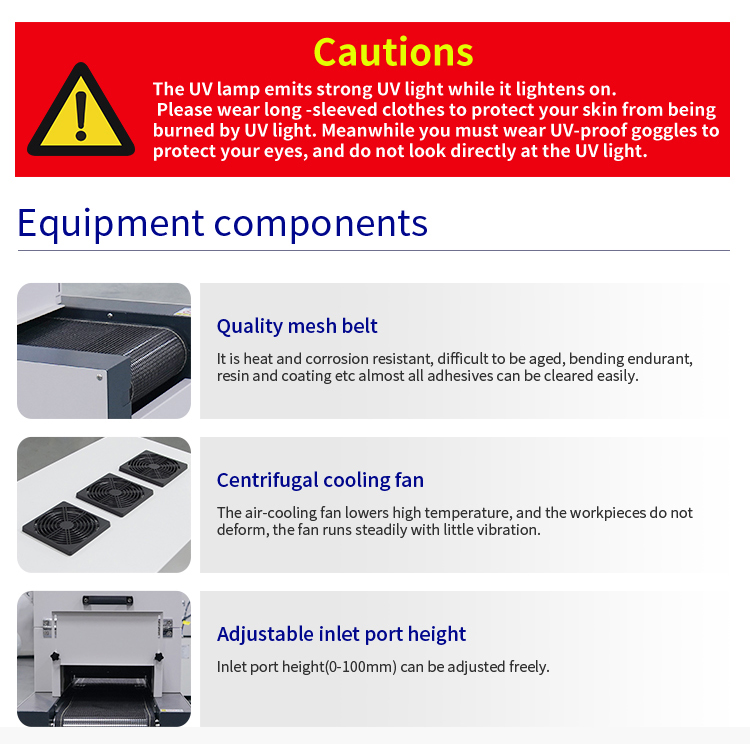

UV LED Drying Details

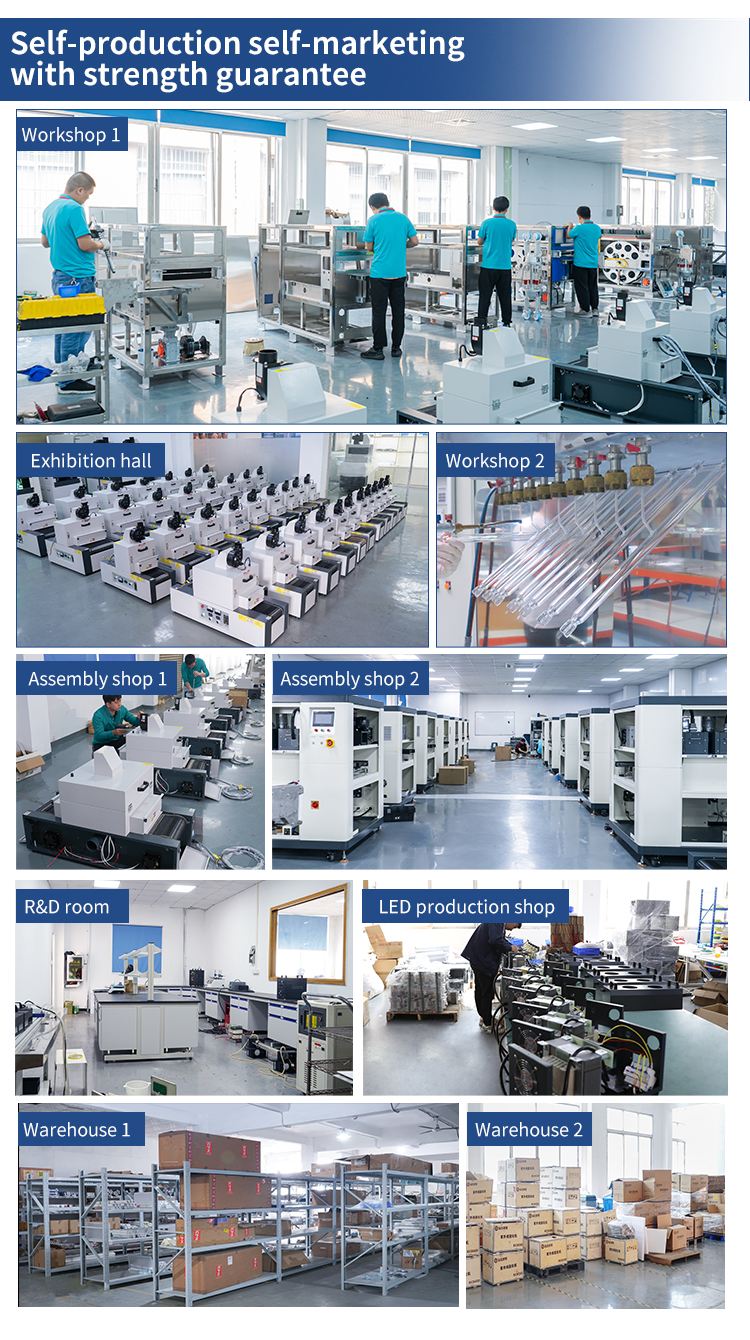

Production Facility

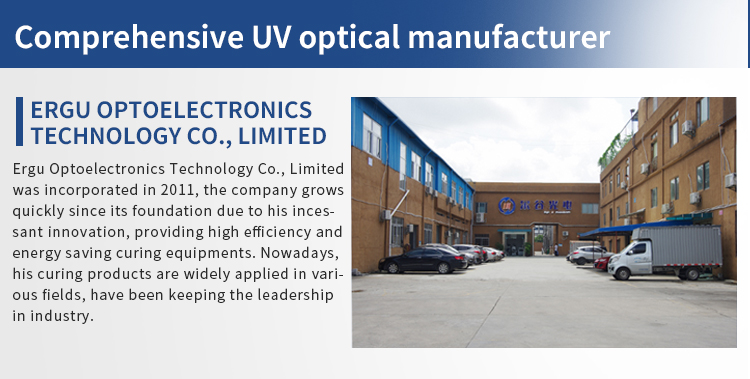

Workshop overview
Assembly process
Quality inspection
Finished products
Safety & Operation Guidelines
Cautions
  • Do not toggle the switch of the UV lamp or the main switch while the machine is working.
  • The rotating direction of the fan must match the direction of the arrow; otherwise, the internal temperature of the machine may become abnormal.
  • Do not change the irradiation distance of the UV lamp arbitrarily.
  • Verify whether the current is normal when the UV lamp is active, as excessive current can cause lamp failure and excess voltage may damage the transformer.
  • Overheating, operating at voltages higher than the rated limit, or insufficient air emission may result in a fire hazard.
  • In the event of an abnormal shutdown of any component while running, turn off the main power immediately and restart only after resolving the issue.
  • Always disconnect the input power supply before inspecting any machine parts to avoid electric shock.
Warnings
  • Do not look directly at the active UV lamp to prevent serious eye injury.
  • Avoid exposing bare skin to the UV light for extended periods to prevent skin damage.
  • High voltage risk present; do not touch any live electrical parts.
  • Ensure the main power supply is turned off during part replacement or maintenance procedures.
  • Keep clear of moving parts during operation to avoid physical injury.
Frequently Asked Questions
Q: Can the UV machine be produced according to custom requirements?

A: Yes, custom configurations can be produced. Please state your detailed requirements to evaluate customization possibilities.

Q: What is the lifespan of the machine and is there a warranty?

A: The machine is backed by a one-year warranty (excluding the lamps). The UV lamps are consumables, designed to operate for up to 800 hours. Keeping spare lamps on hand is highly recommended.

Q: What is the wavelength spectrum of the UV lamp?

A: The standard lamp is a high-pressure mercury design, featuring a spectral output range of 250–450nm (with a dominant peak at 365nm).

Q: What energy output levels can the curing system achieve?

A: Energy density is determined by the duration of illumination and the installation distance. The energy level increases as the exposure time lengthens or the distance to the substrate decreases.

Q: What personal protective equipment is required during operation?

A: Direct visual exposure to the light is strictly prohibited. Avoid exposing your skin to the UV beam. We recommend wearing long-sleeved workwear, UV-blocking gloves, and a protective mask or face shield.

Q: What should be done if the curing system powers off abnormally?

A: In case of an unexpected shutdown, shut down the main power switch immediately. Always isolate the input power before examining system parts to prevent high-voltage hazard, and only restart after the root cause is resolved.
