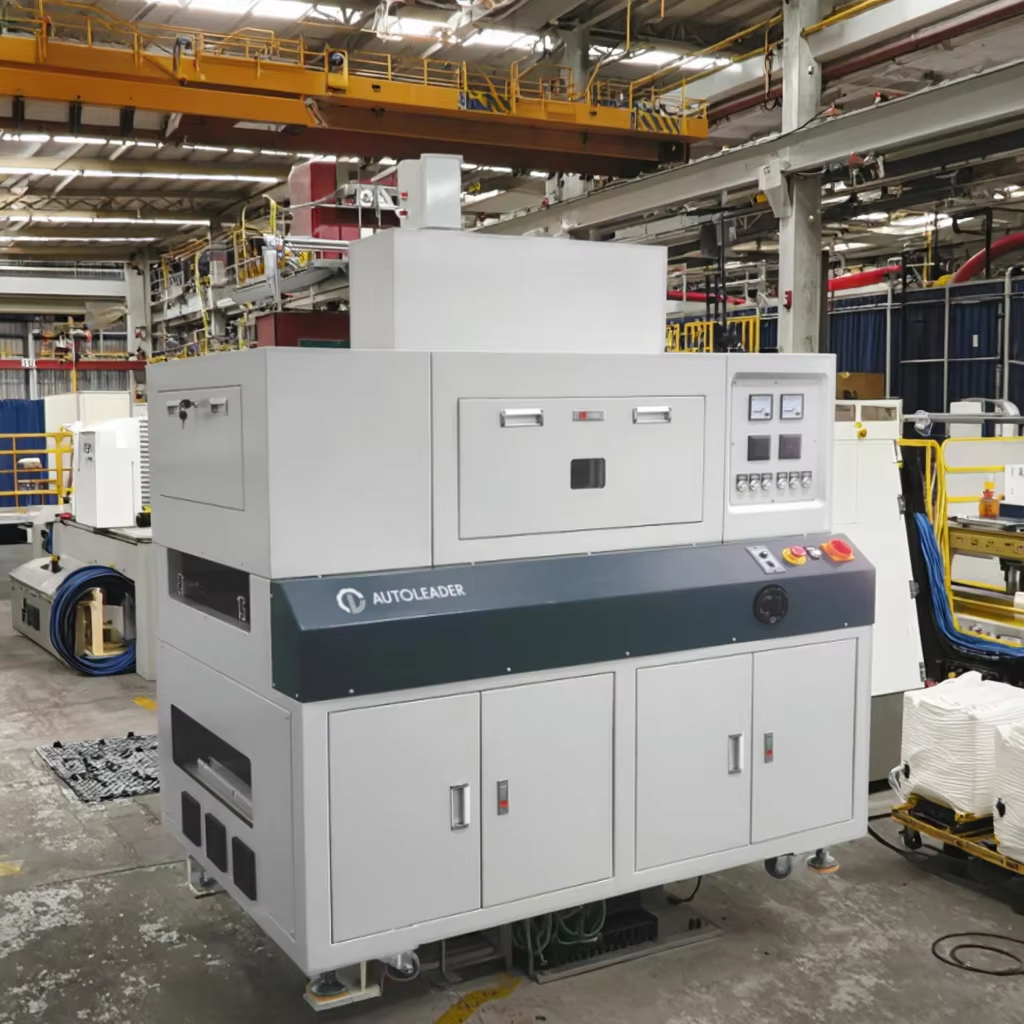

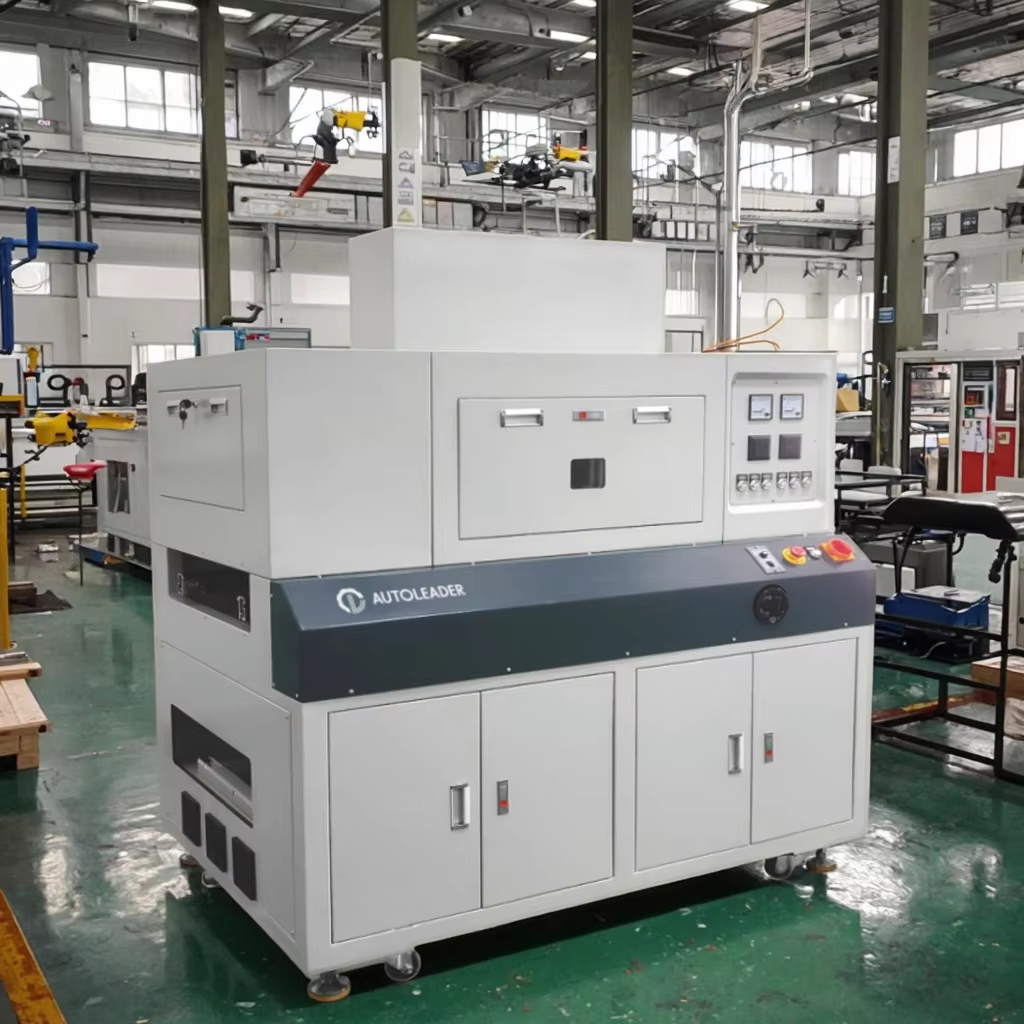

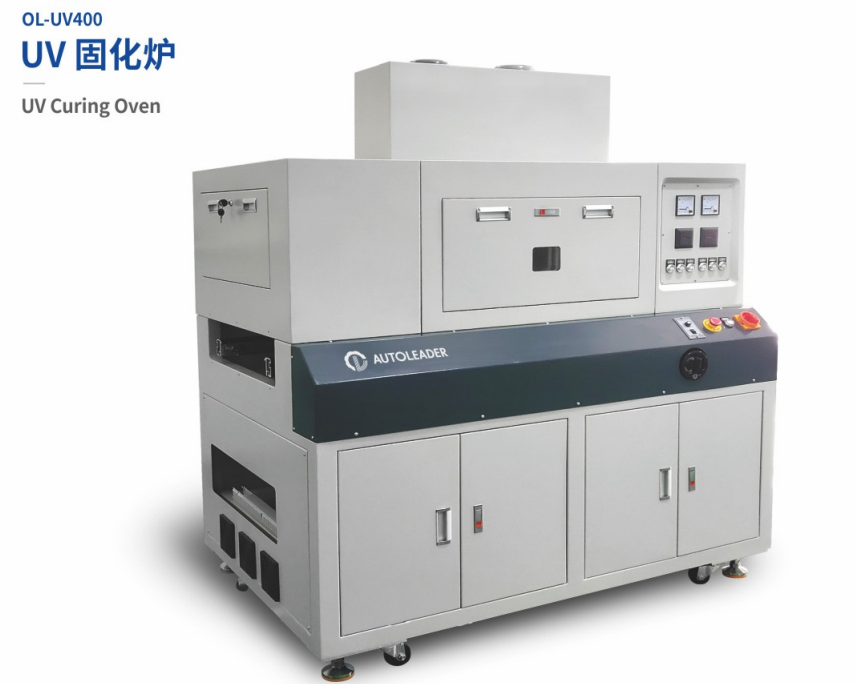

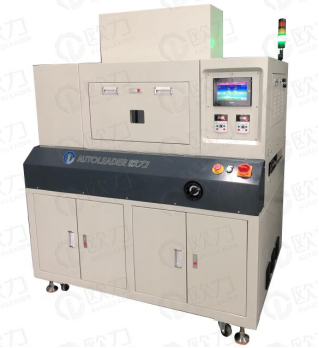

UV LED Dry Cabinet Curing Oven with Motor for Glue Adhesive and Electronic Component Curing

Send Inquiry

Product Description

Products Description

Product Features / Features

Input/output ports equipped with light shields and adjustable baffles;
High-temperature spray coating on the entire machine surface; corrosion-resistant and easy to clean;
Halogen lamps, 3KW per set (2 sets total), evenly distributed inside the oven;
Equipped with transformers, reflectors, lamps, triggers, and UV-reflective devices. A bottom reflector plate significantly improves UV light utilization. Each UV lamp unit can be independently controlled and vertically adjusted;
Light distance is freely adjustable with a 3-stage light adjustment switch;
Built-in automatic timer to monitor lamp usage time for easy replacement. Each lamp unit has an independent thermal-insulation cold-light mirror to block infrared heat radiation and prevent product damage;
Specialized aluminum alloy rails with stainless steel chains; adjustable width (max 450mm). Conveyor speed is adjustable to optimize throughput based on workflow;
High-capacity centrifugal exhaust fan with internal small fans. Front/rear air supply systems include filters. Double-louvered inlets on the oven cover reduce internal temperature and extend lamp life;
Power supply: 380V, three-phase five-wire system.

Body Parameters
Dimensions LWH	L1500MMW1050MMH1880MM
Weight	Approx.580kg
PCB Conveyance Section
PCB Conveyance Height:	920±20mm
Conveyance Speed	0-3500mm/min Adjustable
Conveyance Direction:	L→R (R→L)
Conveyance Motor Power	AC220V 120W
Amplitude Adjustment Section Parameters
PCB Width	50–450mm
PCB Size	MAX W450*L450
Curing Section Parameters
Light Source Type	Imported UV Lamp (Palma)
Number of Light Sources	2
Light Source Activation & Energy	Stepless Adjustable
Irradiation Direction & Height	Adjustable
Lower Light Source Direction Requirement	Perpendicular to Rails
Light Source Power	3KW*2
Light Source Wavelength	365nm
Cooling Fan Power	2~0.5HP
Control Section Parameters
Operation Method	PLC + Touch Screen
Temperature Control Method	Temperature Control Module + Frequency Converter + Fan
Dual Safety Protection	Automatic Temperature Control Module + Mechanical Temperature Control Power-off Safety Protection
Power Supply	AC380V
Total Power	7.0KW

Functional Description:

The UV oven adopts sheet metal design and manufacturing, featuring an aesthetically pleasing appearance and high reliability. The conveyor rails use specialized hardened aluminum profiles, the conveyor chains use 5mm extended-pin stainless steel chains, and the UV lamps use imported tubes. Energy control employs electronic stepless adjustment.
The system is controlled via a touch screen, PLC, and temperature control module. After startup, it operates automatically and intelligently. When the UV lamp is activated, it waits for the UV energy to reach normal levels. When the internal temperature exceeds 40°C, the PLC and temperature control module activate the frequency converter to start the fan for low-frequency cooling. When the temperature rises to 60°C, the PLC and temperature module intelligently increase the fan frequency to normal operation. If the temperature exceeds the safe range, an over-temperature alarm (red light and buzzer) is triggered. The PLC automatically stops the UV lamp and keeps the fan running to cool the chamber. If the temperature reaches an extreme safety threshold, the mechanical thermostat will cut off power for dual protection.
The device uses hierarchical password control. Operator-level passwords grant access only to the operational interface, while administrator-level passwords allow access to system parameter settings.
A UV working time accumulator is included to remind users of lamp maintenance and replacement schedules.
