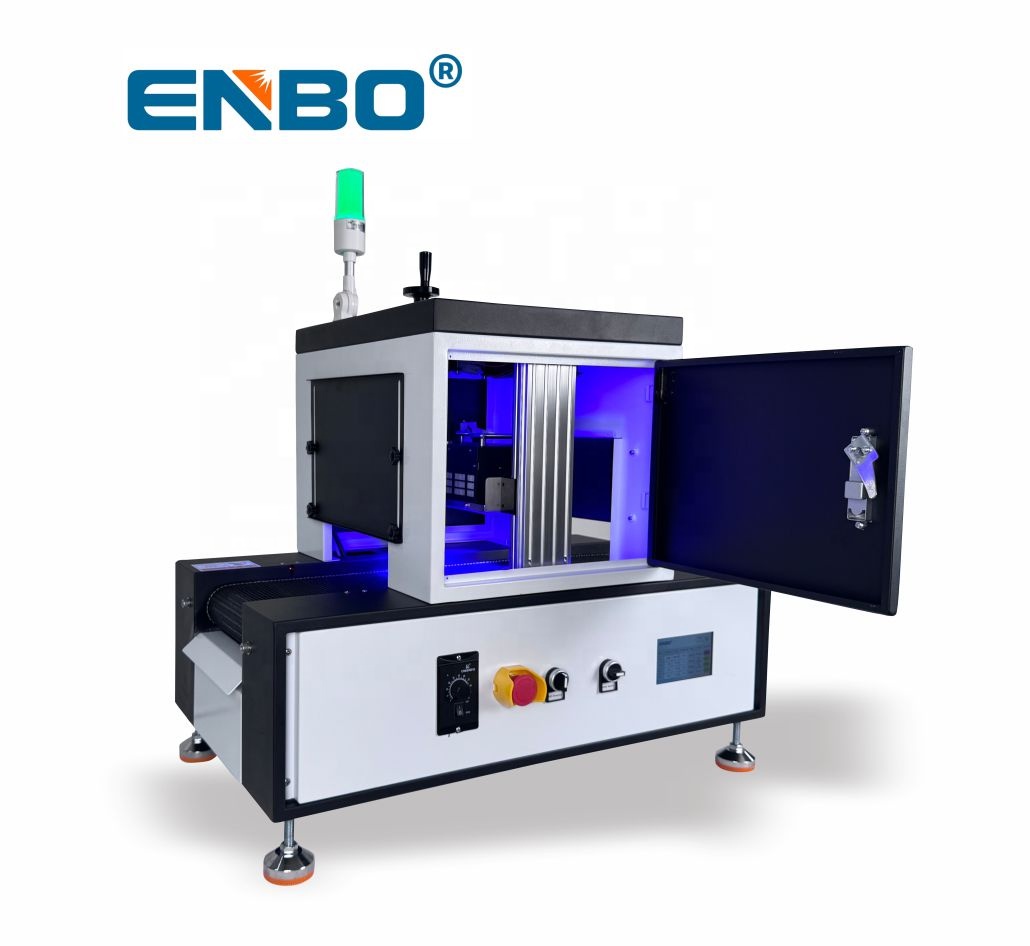

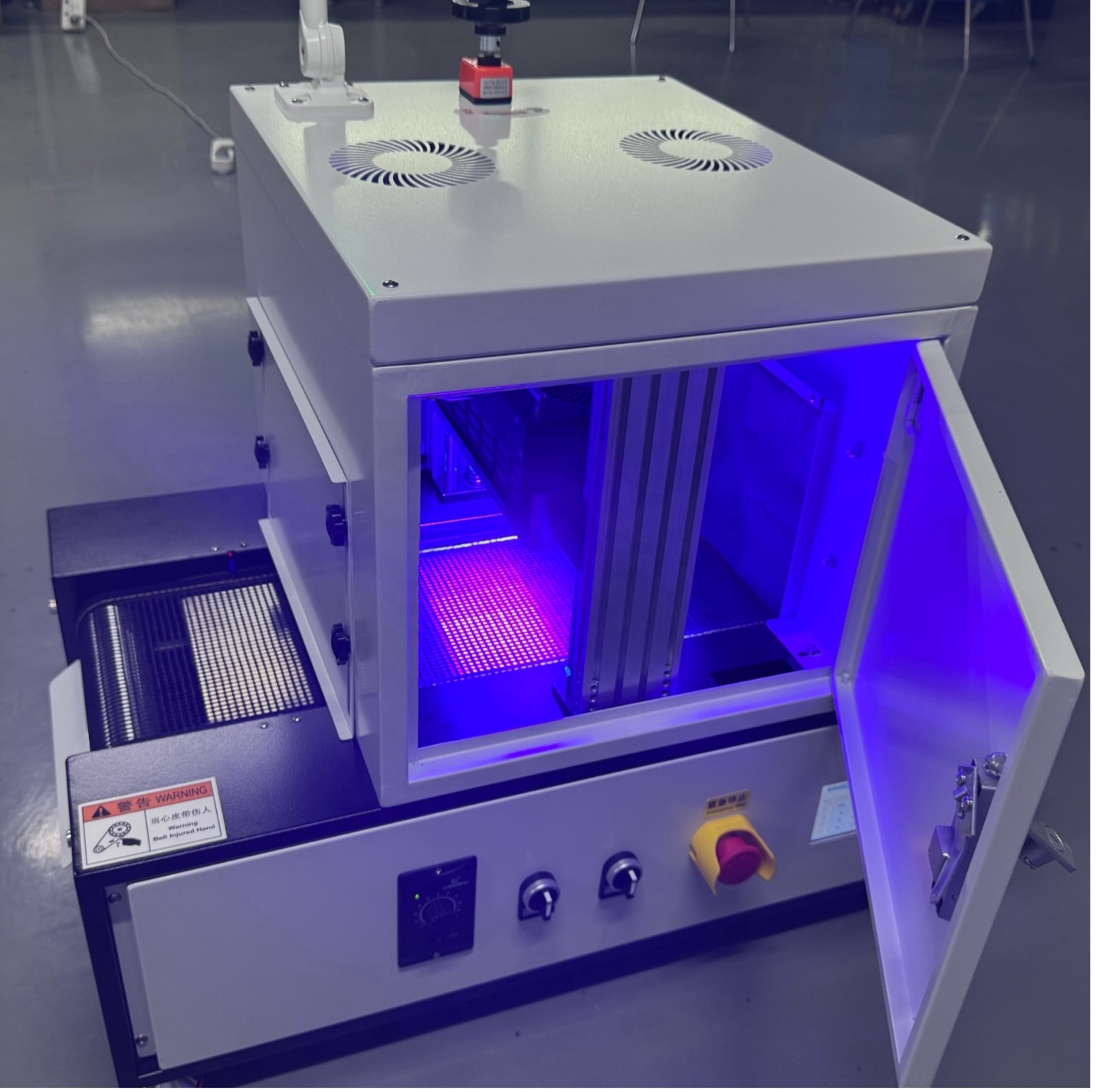

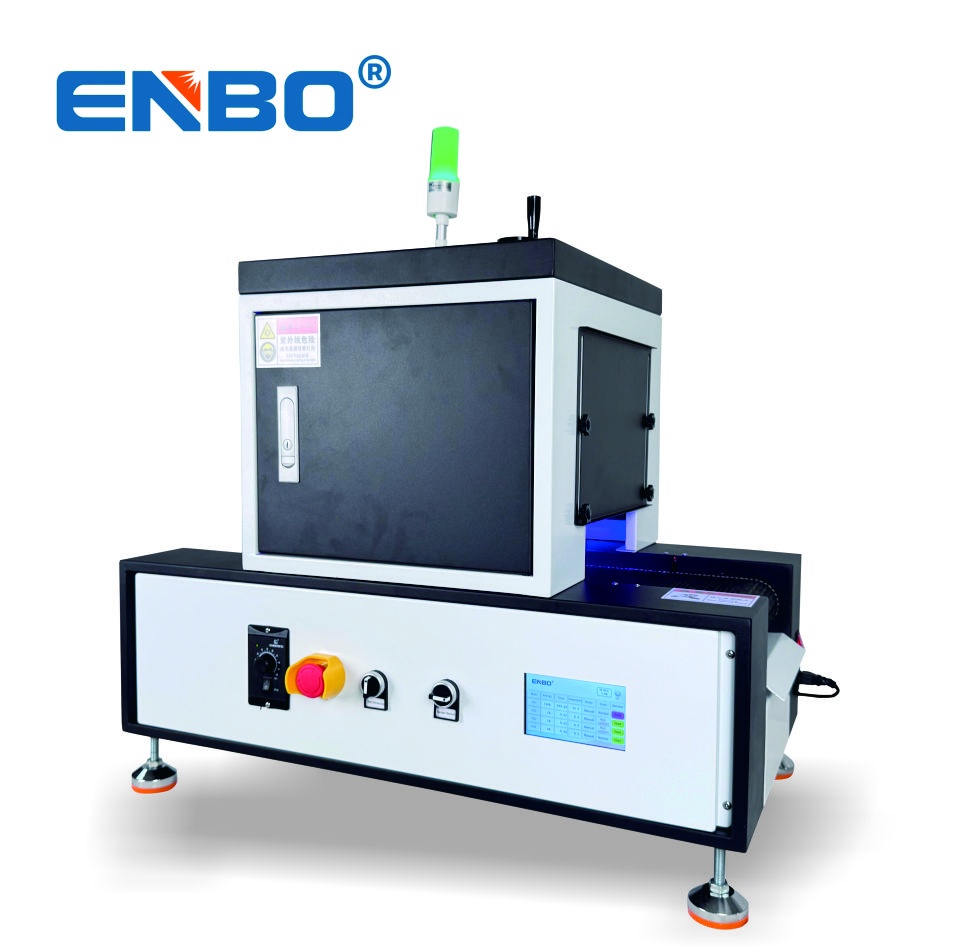

Enbo LED UV Curing Conveyor System with 5-inch Touch Display for UV Varnish Coatings Adhesives Curing

Products Description

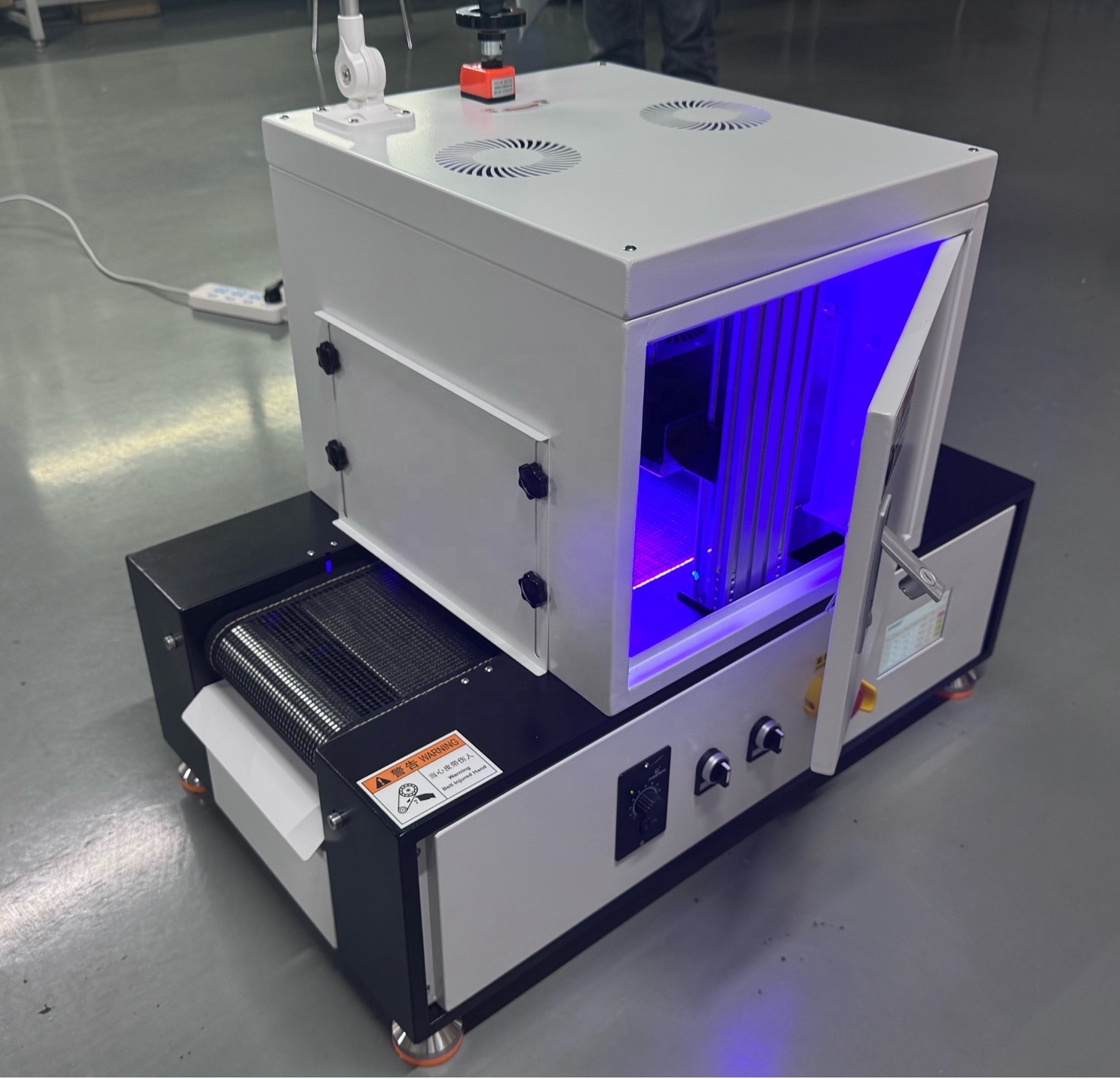

Desktop LED UV Curing Conveyor

EB-DK200 is desk LED UV curing conveyor system with 200mm conveyor belt width; 600mw-35000mw/cm2 optional. This a compact solution designed for efficiency. The conveyor features a standard width of 200mm, with material options including Teflon, stainless steel, PVC, and more. The standard height from the lamp heads to the conveyor belt is adjustable from 10mm to 180mm.

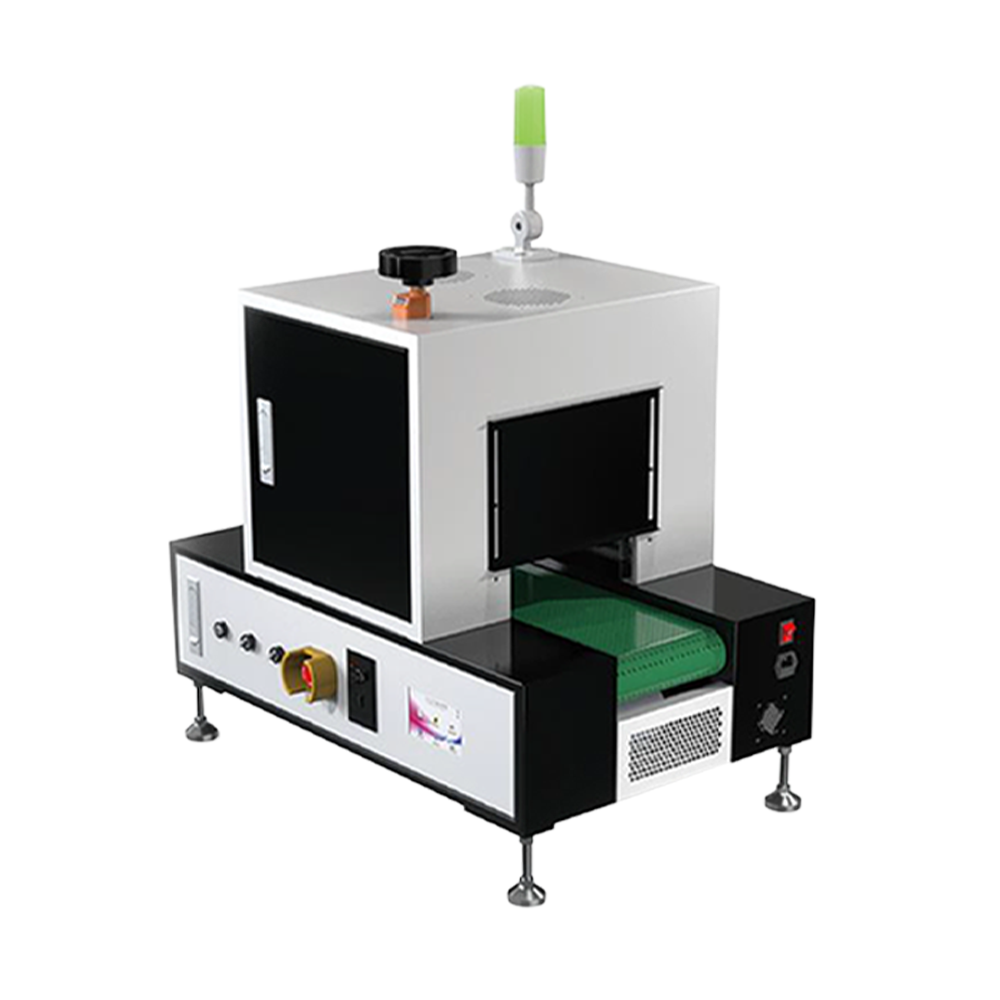

Desktop Conveyor System

The conveyor features a standard width of 200mm, with material options including Teflon, stainless steel, PVC, and more. The standard height from the lamp heads to the conveyor belt is adjustable from 10mm to 180mm. With a maximum conveyor belt speed of 5m/min, customizable to other speeds, this desktop conveyor provides versatility. Its small footprint makes it ideal for various settings.

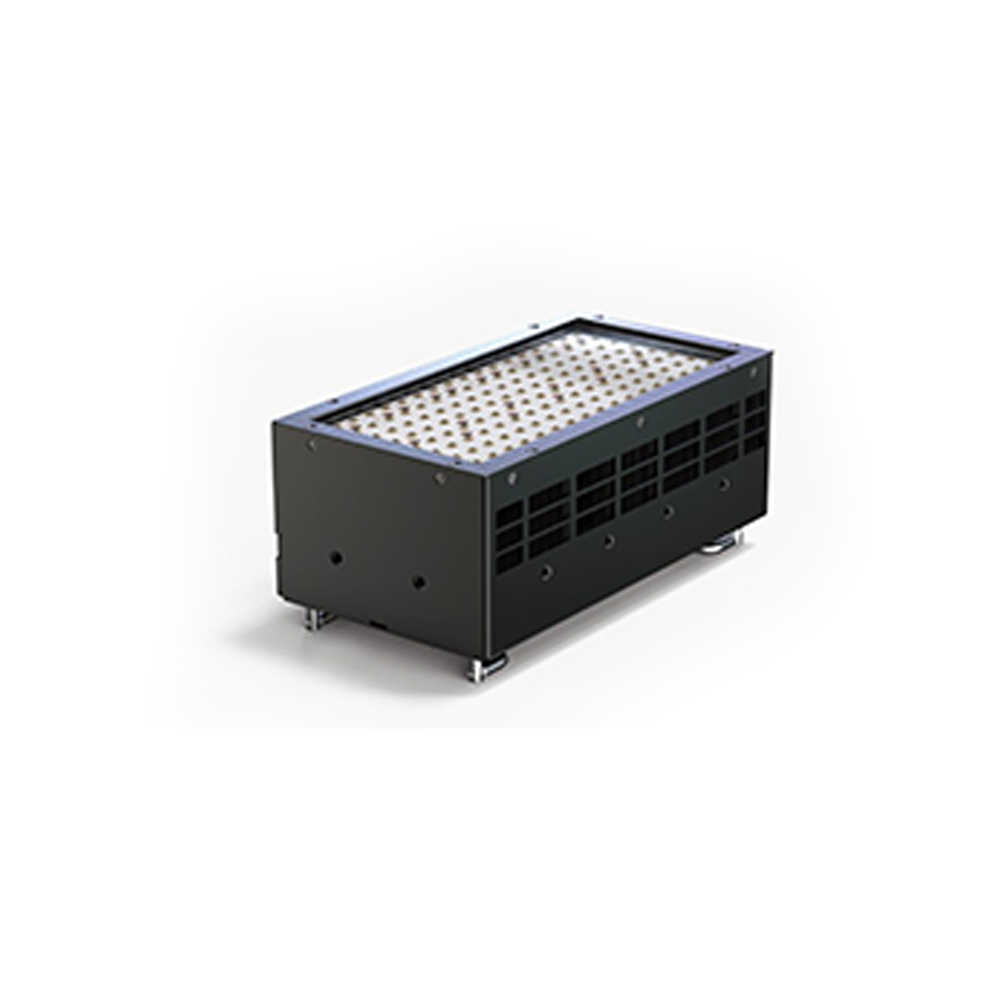

200*100mm LED UV Lamp Head

Equipped with a 200*100mm LED UV Flood Curing Lamp allowing for 0-100% control of the internal working power. The internal LED UV curing lamp’s size and wavelength intensity are adaptable to user preferences, making it an ideal choice for curing small areas of UV materials such as adhesives, inks, coatings, and more.

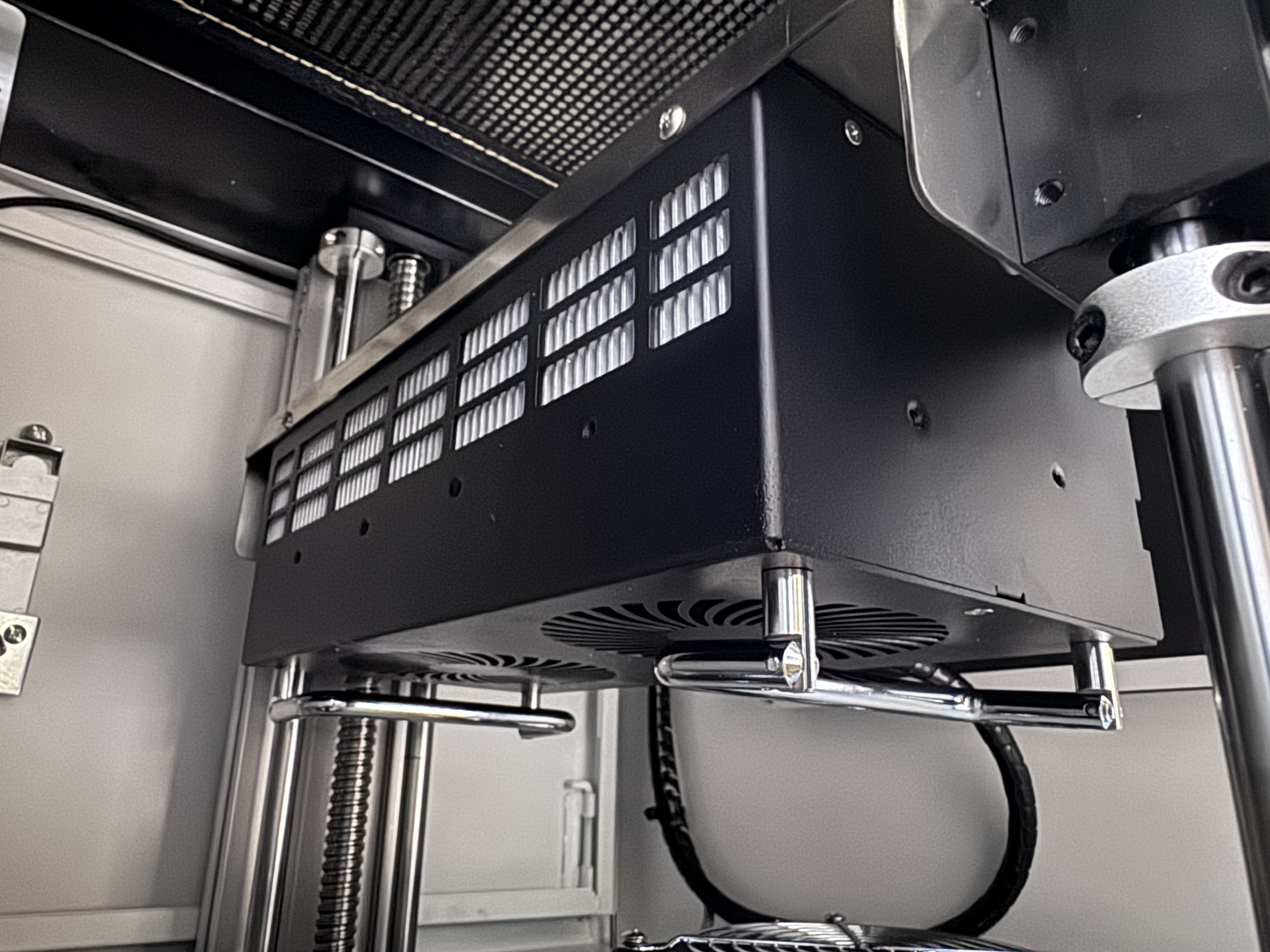

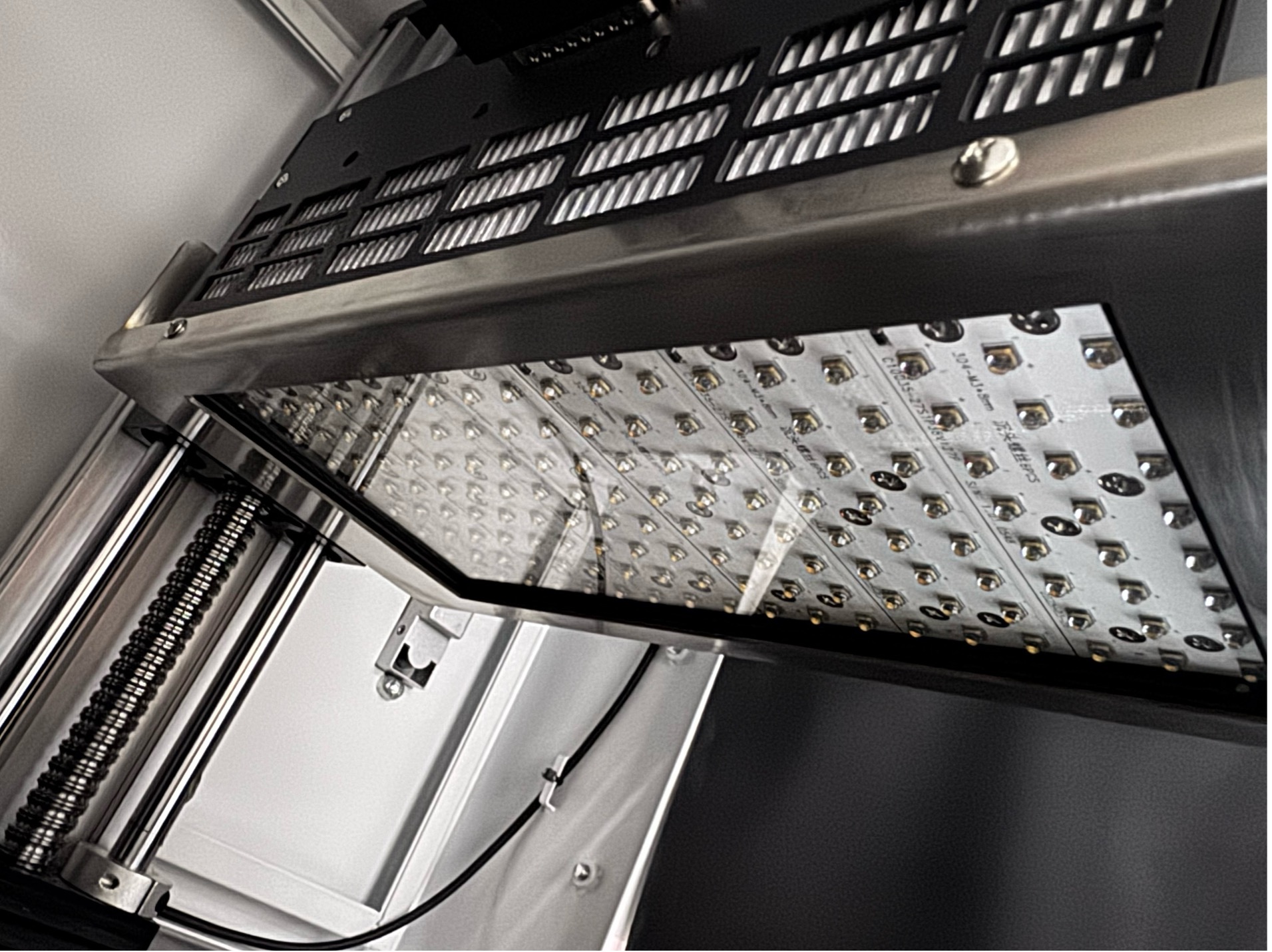

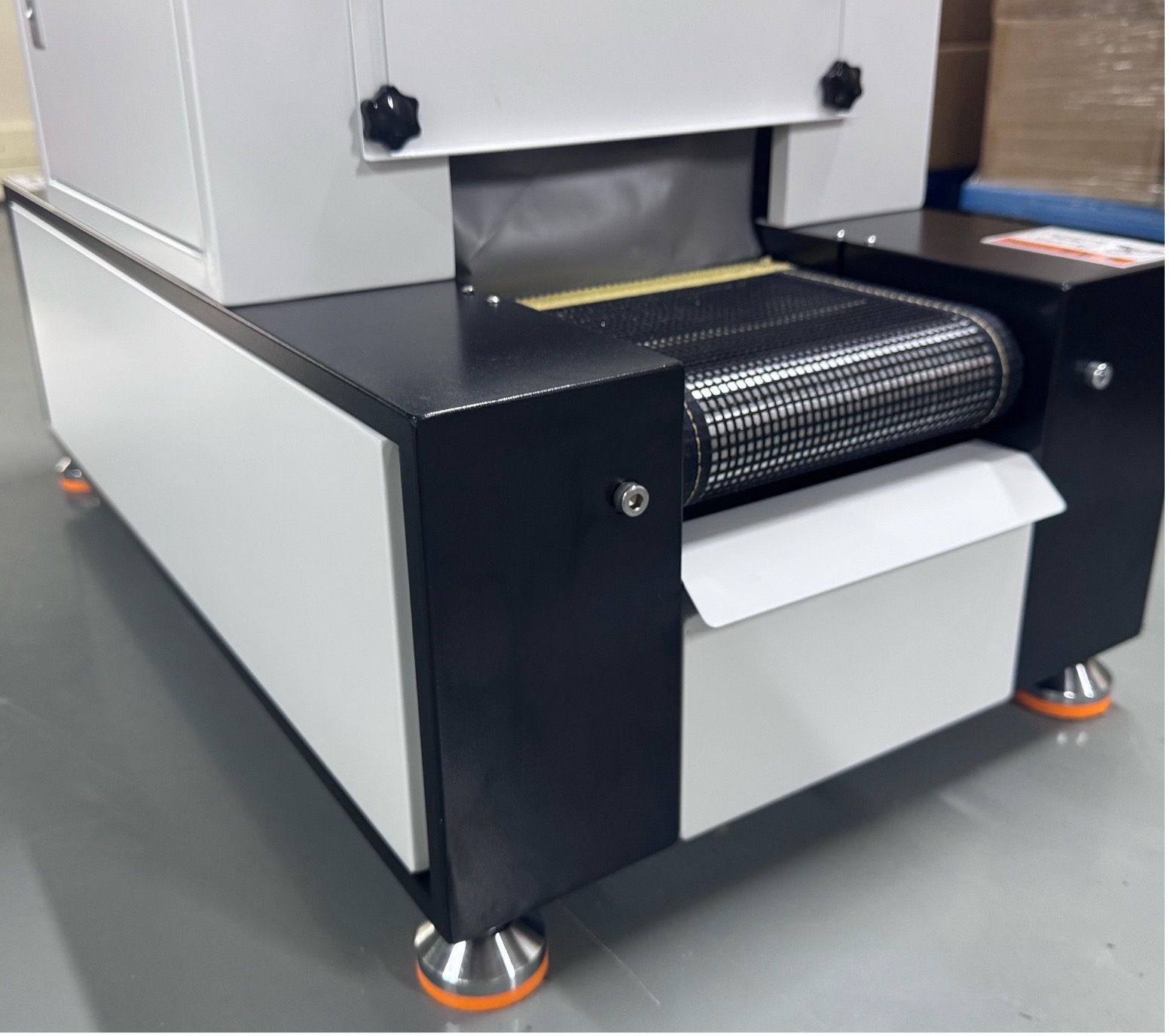

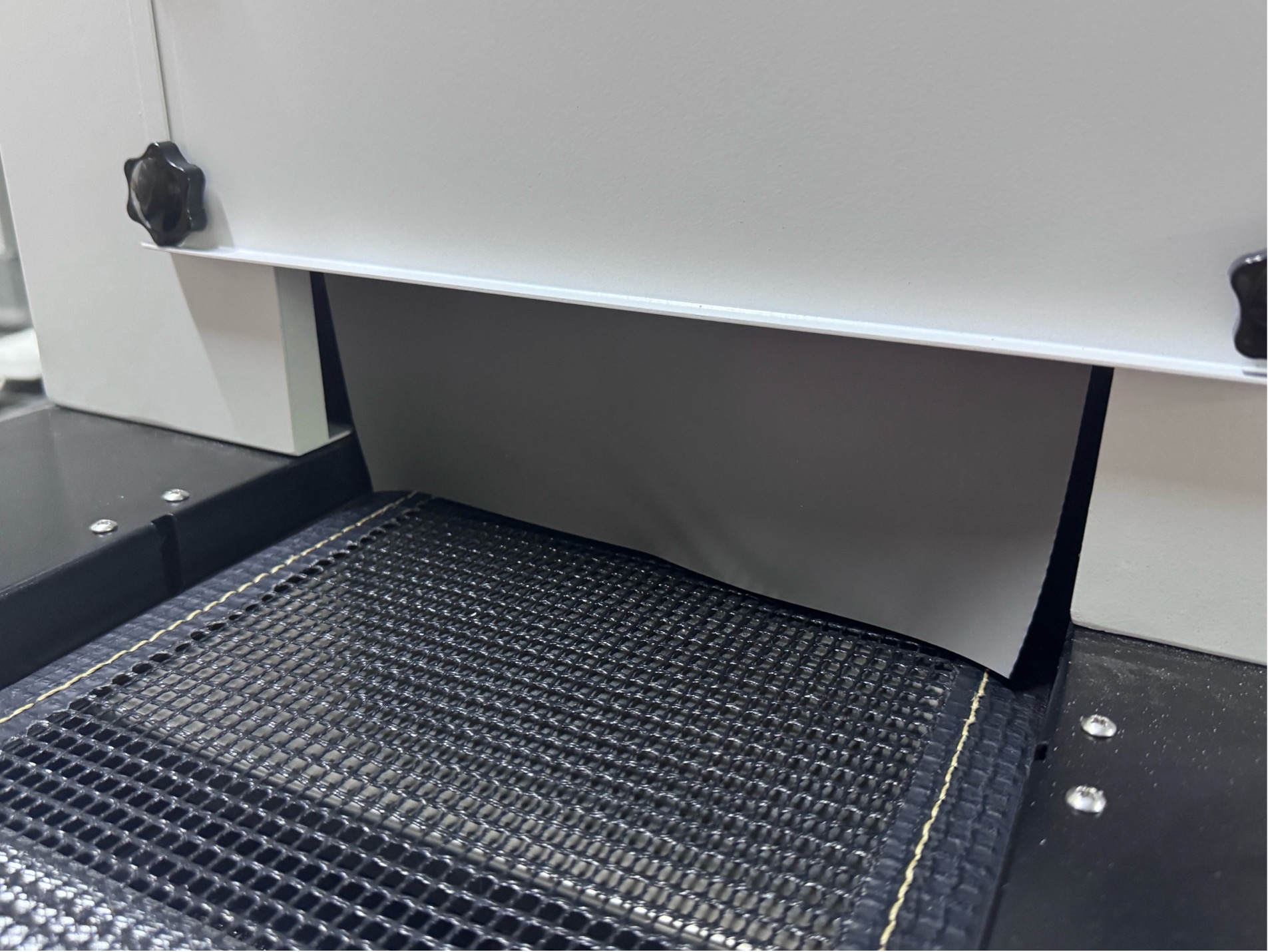

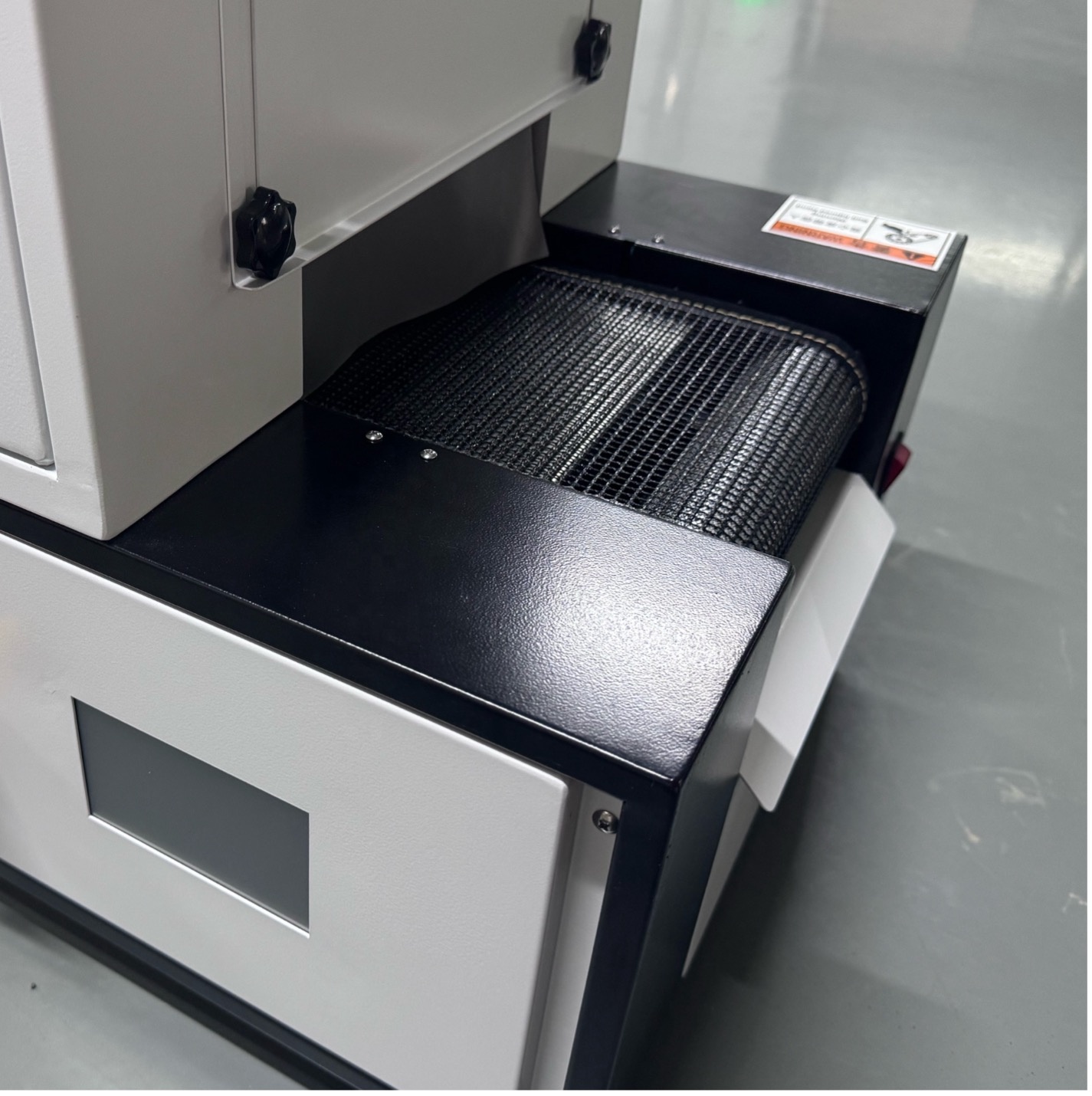

Details Images

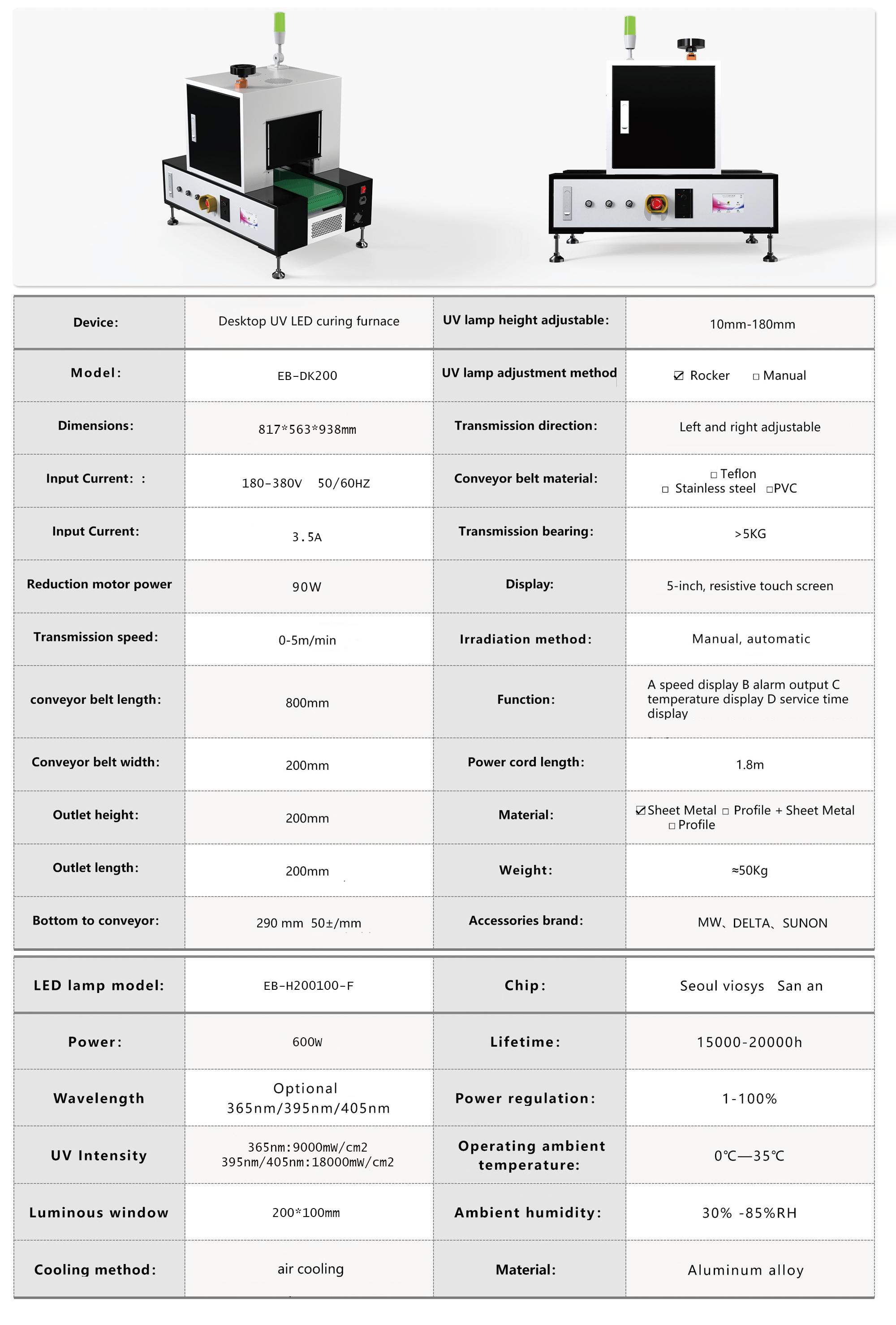

Product Parameters

Power	600W	UV Wavelength	365nm/395nm/405nm/485nm
Cooling Method	Air Cooling or Water Cooling	UV Intensity	9000-35000mw/cm2
Display	5-inch Touch Screen	Conveyor Belt Width	200mm (Support Customization)

Features

✓ High Efficiency: Capable of reaching a UV intensity of up to 35000w/cm² for rapid curing of UV materials.
✓ Versatility: Offers multiple UV wavelength options (365nm, 395nm, 405nm, etc.) to accommodate a variety of material requirements.
✓ User-Friendly Design: Features a 5-inch touch control display for easy operation and power control from 0-100%.
✓ Standard Width and Material Options: The conveyor features a standard width of 200mm, and users can choose from materials such as Teflon, stainless steel, PVC, among others.
✓ Professional Suitability: Ideal for use in medical, electronic, and laboratory settings.

FAQ

Q1Why choose our UV LED curing system?

We have over 10 years of experience in the UV LED curing industry and supply a full range of LED UV curing systems covering most UV applications.

Q2What is the application of our UV LED curing system?

Our UV LED curing system can be used for curing UV adhesives, UV ink, UV paint, UV varnish, and other UV sensitive materials, covering many industries such as electronics, medical, and printing.

Q3What are the major advantages of a UV LED curing system compared to other UV curing systems?

It features an extra-long service life, high energy efficiency, and is environmentally friendly.

Q4Which wavelength do I need?

It depends on the requirements of your specific UV-sensitive materials.

Q5What size of emitting window do I need?

It depends on the physical dimensions of the product that needs to be cured.

Q6Can the emitting window and Peak UV Intensity be customized if they don't meet my requirements?

Yes, any size of the emitting window and Peak UV Intensity can be fully customized to meet your exact specifications.

Attentions

1. General precautions

In the attached connection cable, the LED irradiation head connection cable is designed to be bent. Under standard test conditions, the bending performance of the cable is satisfied. However, its performance under all conditions of actual use cannot be guaranteed.
Do not disassemble, modify, or set up inside the system. Breakdown, modification, and usage issues caused by failure or damage under these circumstances are not covered within the scope of the warranty.

2. Install the environment

Installation and use ambient temperature and humidity: 0℃ to +45℃, ≤85%RH (no condensation or freezing).
Temperature and humidity of storage environment: -10℃ to +60℃, ≤85%RH (no condensation or freezing).
Avoid dust, soot, conductive dust, corrosive or flammable gas, salt, iron, etc.
Avoid contact with water, oil, medicine, and other liquids.
Avoid places with severe temperature changes, vibration, impact, direct sunlight, strong magnetic fields, or strong electric fields.

3. About power supply and wiring

Please supply single-phase 180V-240V (frequency 50Hz-60Hz) power supply voltage and connect to grounding.
Do not use the same power cord shared with motors, induction machinery, or high-power devices.
For the wiring between the controller and the LED irradiation head, please use the attached cable to connect.
When using in bending configurations, ensure a minimum bending radius greater than 110mm is designed into the system. Bending with a radius less than recommended may cause rupture to occur within a short period.

4. About installation

When installing the controller and irradiation head, keep them level. Do not tilt, tip, or install them in a reversed position. Otherwise, it may lead to heat generation and damage.
Do not install in a confined space. Do not block the radiator vents.

5. Precautions for power connection

Before switching on the power supply, please confirm that all connections are correct.
