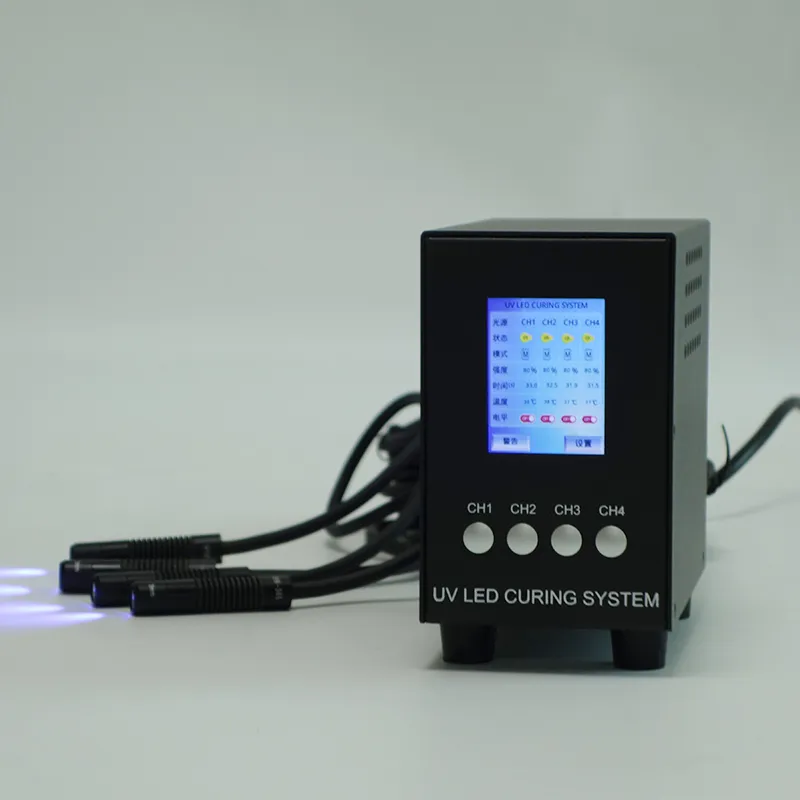

High Intensity 365nm LED and UV Spot Lamp Light-Curing Systems

Customization:	Available
Usage:	Industrial use
Shape:	Square

Overview

Basic Info

Model NO.	A1400-XTP-S
Wavelength	365/385/395/405/470nm
Specification	160X92X140mm, Gross weight: 3.5KG
Material	Metal
Certification	CE, RoHS
Input Voltage	AC100~240V(50/60Hz)
Cooling Method	Air Cooling / Fan Cooling
LED Life	More Than 20000 Hours
Application	Electronics, Medical Devices, Automotive, Adhesive
Function	Fast Curing UV Glue
Qms	ISO9001
Protocol	RS232
Luminous Intensity	1000-20000MW/Cm2
Transport Package	38X21X23cm
HS Code	8543709990
Production Capacity	10000PCS/Year

Packaging & Delivery

Package Size	38.00cm * 21.00cm * 23.00cm
Package Gross Weight	3.500kg

Product Highlights

High Intensity 365nm LED and UV Spot Lamp Light-Curing System. Engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating applications. Features advanced software programmable controls for customized intensities and durations, optimizing production line efficiency.

Specification

Applications

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
UV Ink: UV printing, 3D printing

Key Configurations

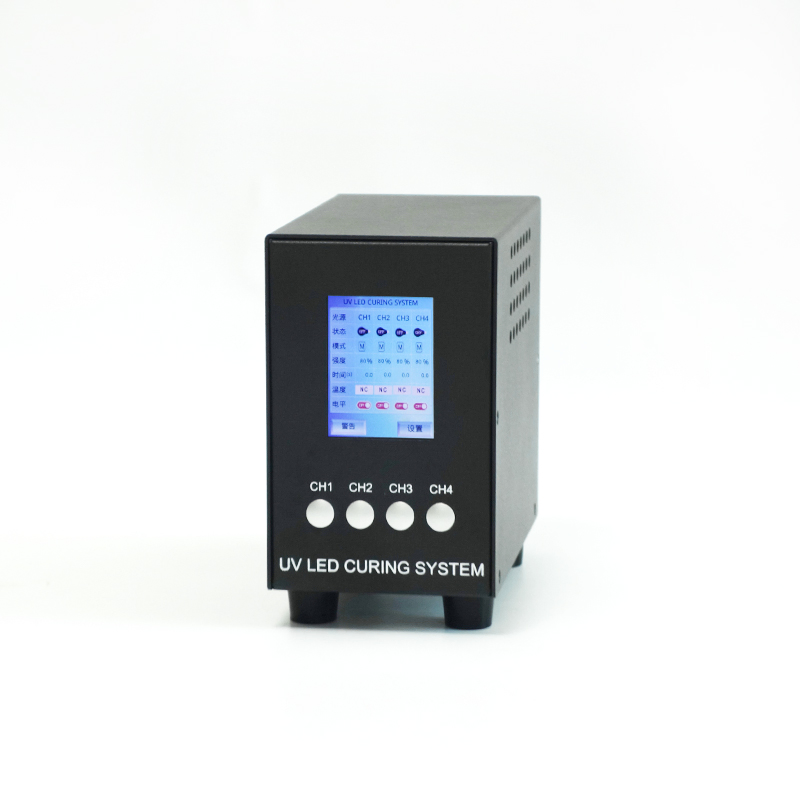

Controller: Supports multi-language; 1-8 channels; compact size; independent control for multiple LED heads; tracks working hours; abnormal condition warnings.
LED Head: Optional H56, H86, H86F types; 365/385/395/405/470nm wavelengths; up to 18W/cm² output; Nichia LED + Dow Corning + Hoya Quartz lens; Taiyo bending-resistant cable; >20,000 hours lifespan.
Lens Options: Standard (2mm to 15mm), Line (3x15mm, 5x20mm), and Vertical options.
UV Protective Glass: Protects eyes from direct UV exposure.
Foot Pedal: Connected with I/O port for manual on/off control.

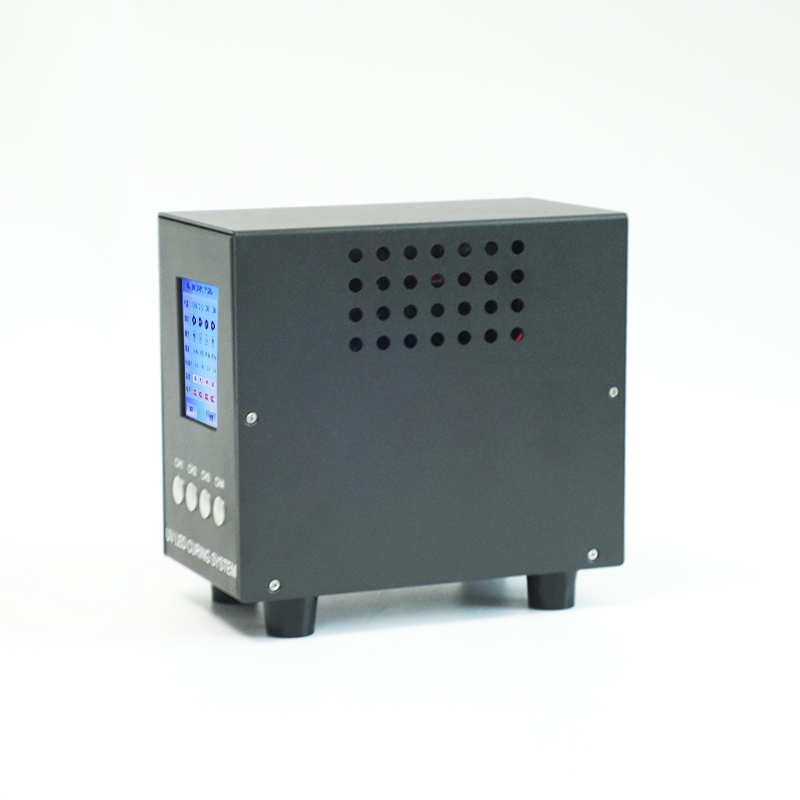

System Dimensions

Right Elevation

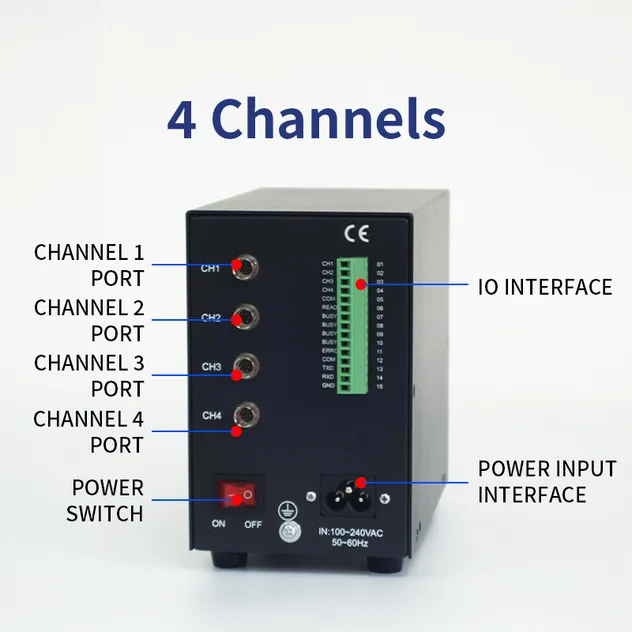

Left Elevation

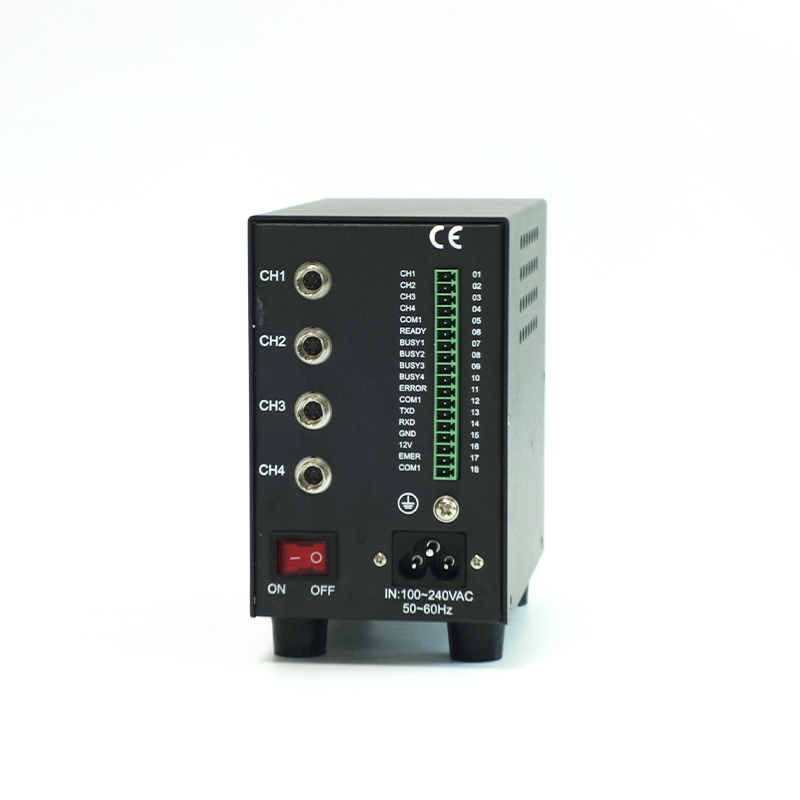

Front Elevation

Technical Specifications

Custom configurations available upon request.

Parameter	Details
Model	A1400-XTP-S
Wavelength	365nm, 385nm, 395nm, 405nm, 470nm
Irradiate lamp heads	1-4pcs
Maximum UV Intensity	18000mw/cm²
Adjustable range of power	1% - 100%
Control Method	RS232 / PLC / Pedal / Touch Screen
LED Life	20000 Hours
LED Head Type	H56, H86, H86F

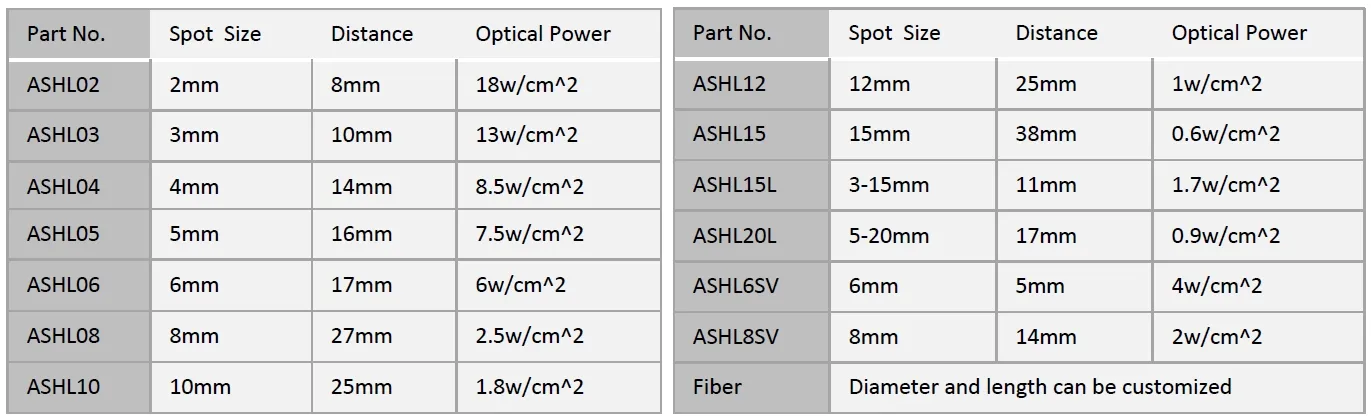

Optional Lens	Standard: 2mm to 15mm \| Line: 3x15mm, 5x20mm \| Vertical: 6mm, 8mm
Irradiated Mode	Manual, Automatic (0.1S~999.9S countdown), Step (1-20 steps), Cycle step
Cooling Method	Natural Cooling or Fan Cooling
Length of Cables	Power Cable: 2m \| LED Head Cable: 2m / 5m (custom lengths available)
Outer Dimension	160 * 92 * 140mm

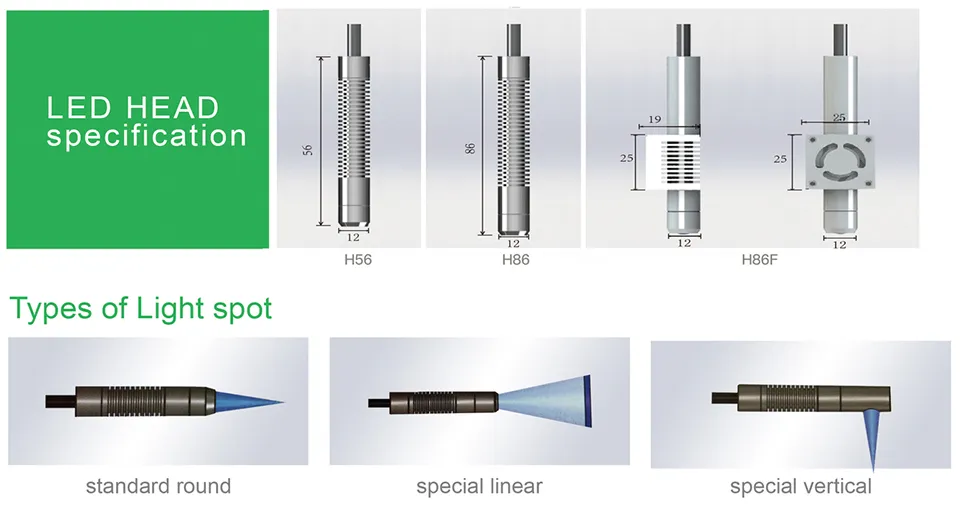

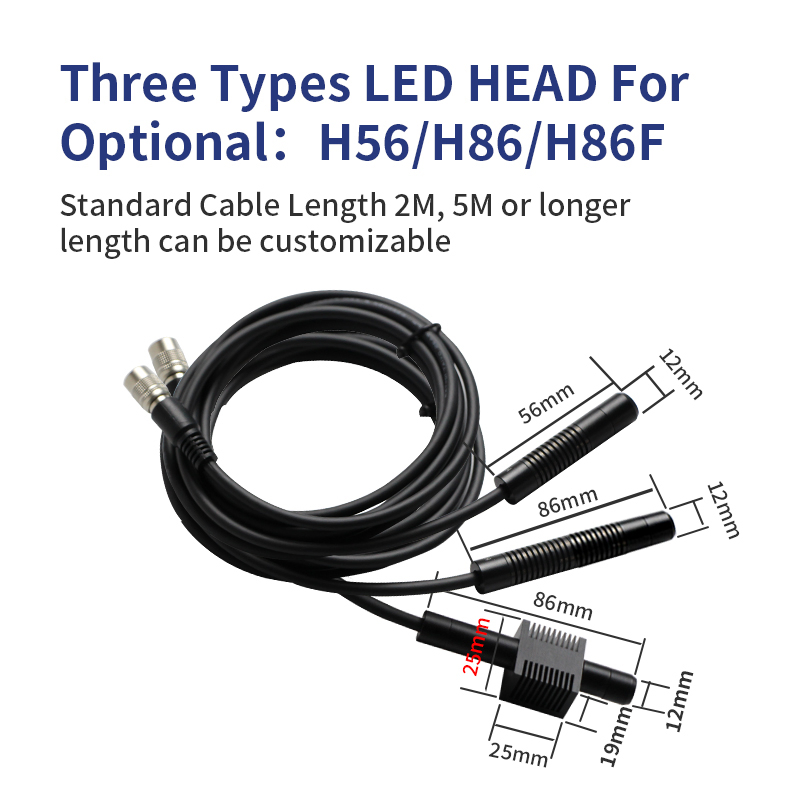

Optional LED Head Configurations

After Sales Service

Standard Warranty: 12 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

Company Profile

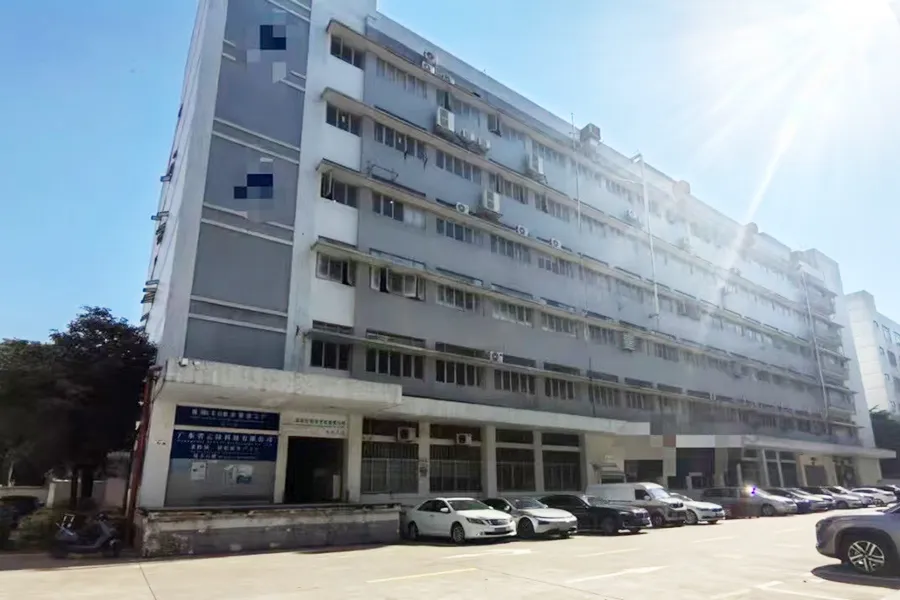

We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable UV curing machines backed by continuous R&D innovation and strict quality control. We operate our own dedicated R&D center, sales center, and manufacturing facility.

Main Products

UV-LED Spot curing systems
UV-LED Line curing systems
UV-LED Area curing systems
UV-LED Oven curing
UV-LED Conveyor curing
UV-LED Measuring systems

Main Applications

Adhesive Curing: Industrial bonding and sealing in electronics, optical, automotive, metal, and medical fields.
Drying: Curing of UV-LED inks, coatings, and lacquers in offset, flexo, inkjet, and label printing.

Why Choose Us?

Robust OEM/ODM capabilities
Competitive pricing & bulk volume discounts
Fast shipping & customs clearance assistance
Turnkey project solutions

Other Products

UV Radiometers

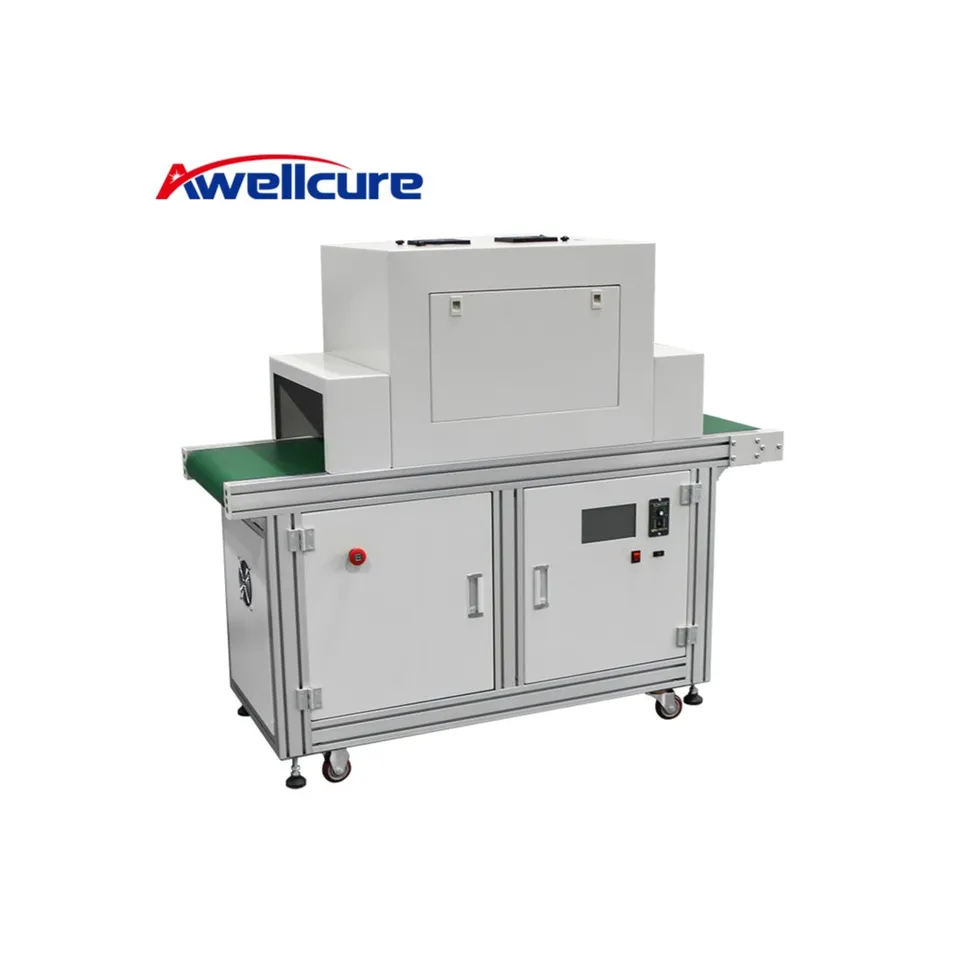

UV LED Conveyors
UV Curing Ovens
UV LED Line Curing Systems
UV LED Area Light Sources

Frequently Asked Questions

What is the standard lead time for orders?

Standard models typically ship within 10–15 days, while customized units require 20–30 days depending on the specifications.

Do you provide after-sales service overseas?

Yes, we support our international clients through partnered service centers located in key global regions to ensure minimum downtime.

Can I request a customized curing lamp size?

Absolutely. We specialize in custom configurations, offering tailored attachments, specific lens structures, and cable lengths to meet your integration requirements.

What documents do you provide for export shipping?

We provide a complete export documentation package, including Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and any other custom-required certificates.

How can I place an order or request a quote?

You can reach out to us via our inquiry forms with your exact technical demands, and our sales team will draft a detailed quotation for your confirmation with a Purchase Order (PO).

What wavelengths are supported by the UV Spot Curing System?

The curing system supports multiple wavelengths including 365nm, 385nm, 395nm, 405nm, and 470nm, depending on the LED heads selected for your UV glue or coating type.
