High Intensity LED and UV Spot Lamp Light-Curing Systems for Optical Lens

Customization:	Available
Usage:	Industrial use
Shape:	Square

Product Overview

Basic Info

Model NO.	A2400-TP4
Wavelength	365/385/395/405/470nm
Specification	185X140X135mm, Gross weight: 4KG
Material	Metal
Certification	CE
Input Voltage	AC100~240V(50/60Hz)
Cooling Method	Air Cooling / Fan Cooling
LED Life	20000hrs
Application	Electronics, Medical Devices, Automotive, Adhesive
Function	Fast Curing UV Glue
Transport Package	38X21X23cm
Origin	China
HS Code	8543709990
Production Capacity	10000PCS/Year

Packaging & Delivery

Package Size	38.00cm * 21.00cm * 23.00cm
Package Gross Weight	4.500kg

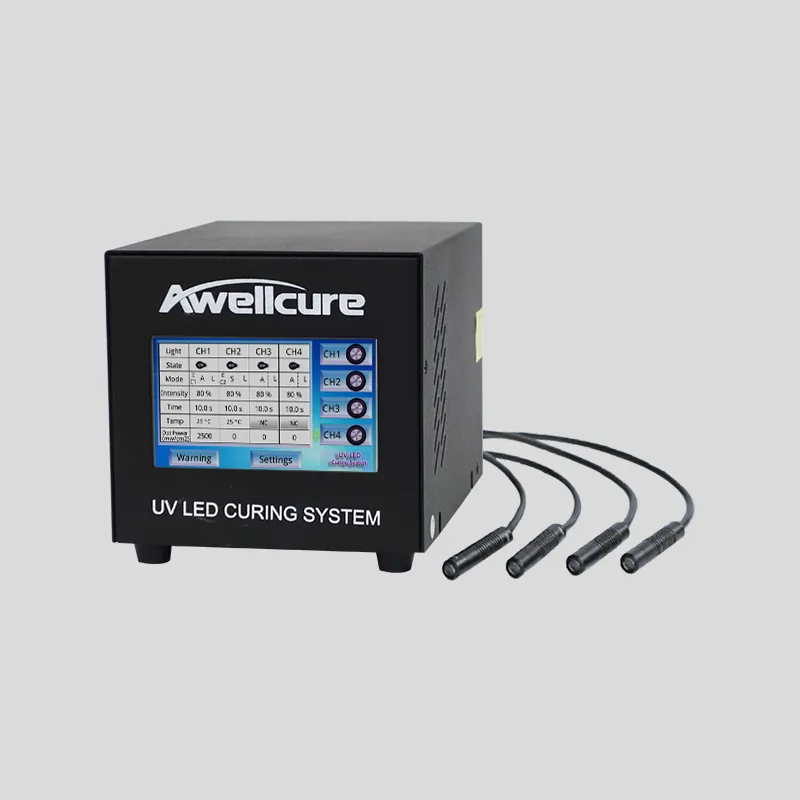

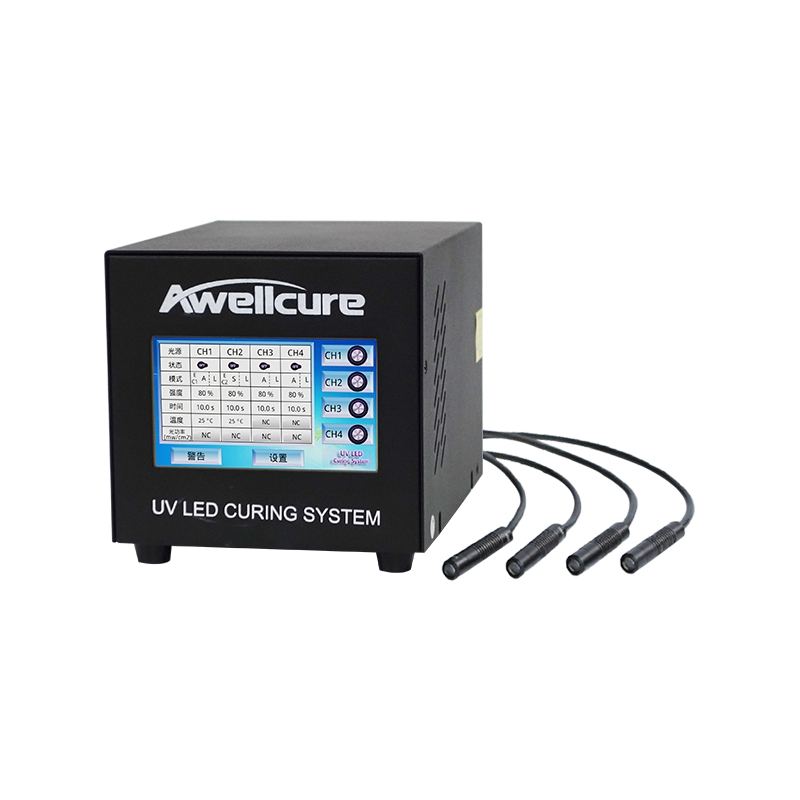

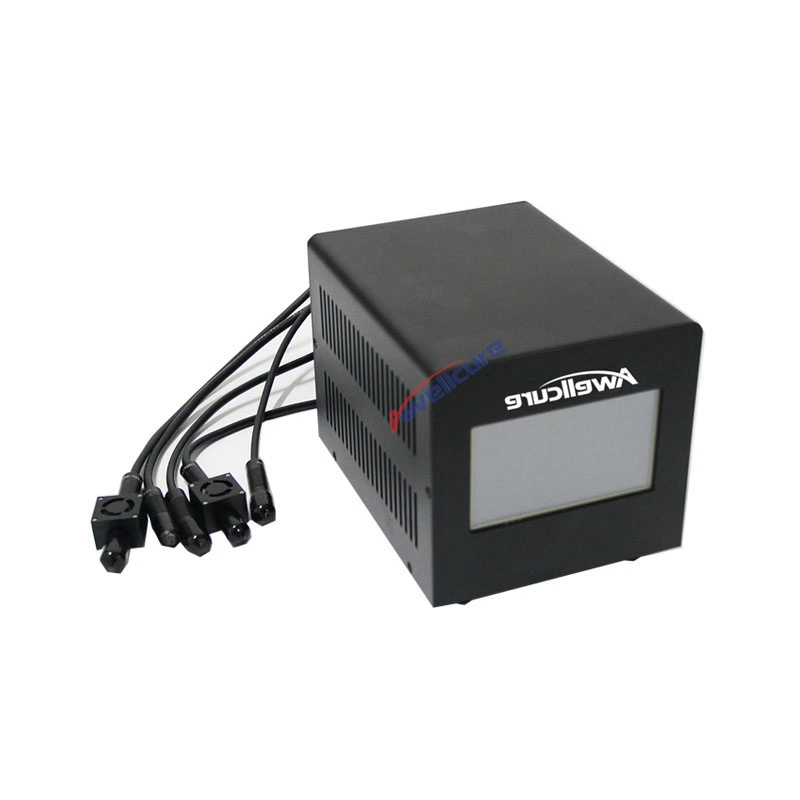

High Intensity LED and UV Spot Lamp Light-Curing Systems

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, it achieves optimized irradiation processes with customized intensities and times, ideal for fully automated production lines.

Specification

Applications

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
UV Ink: UV printing, 3D printing

Key Configurations

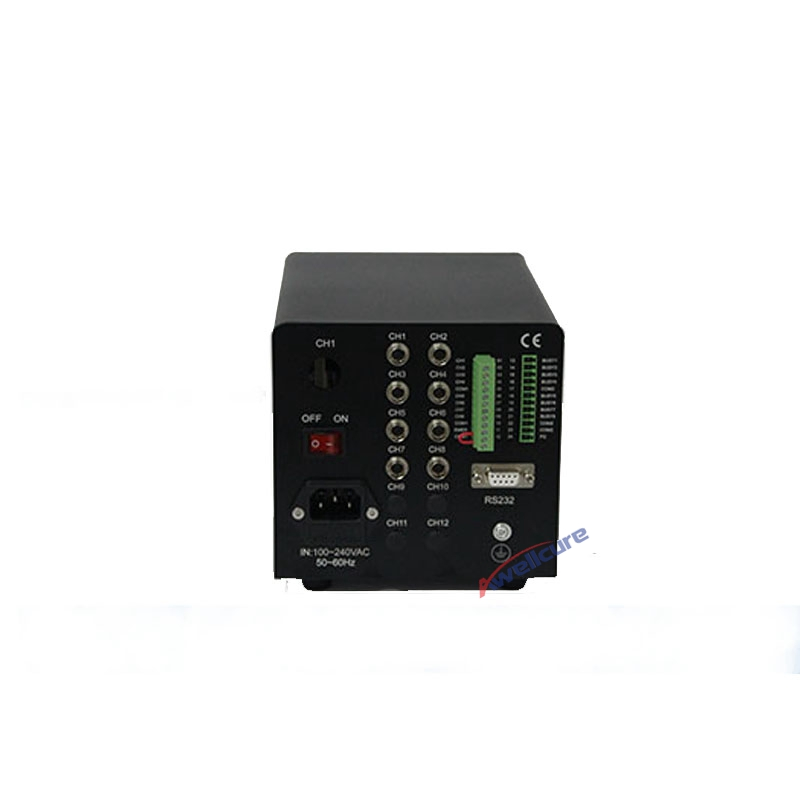

Controller Capabilities:

Support multi language interface.
Available for 1-8 channels expansion.
Compact size, lightweight and easy to deploy.
Multi LED heads can be independently controlled.
Simple installation process and intuitive operation.
Built-in timer to record working hours for timely maintenance.
Abnormal situation alarms and warnings.

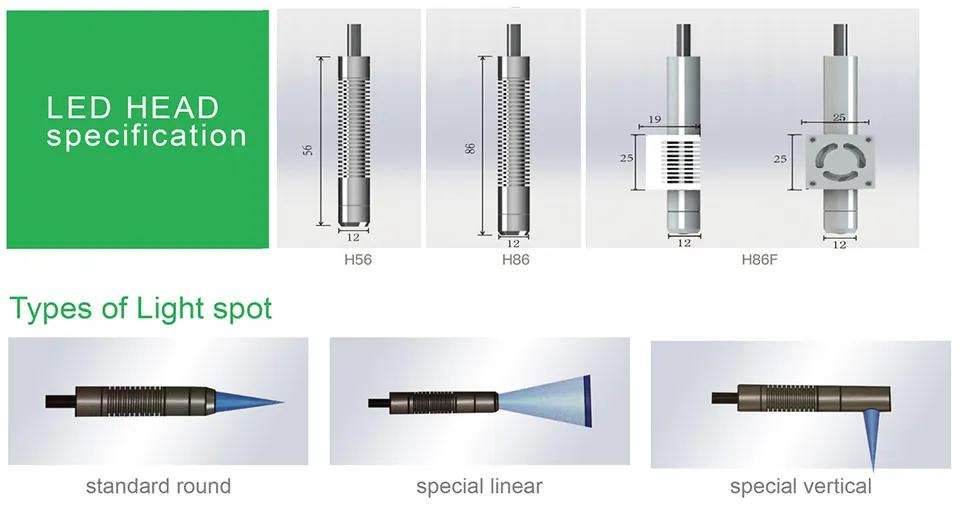

LED Head Features:

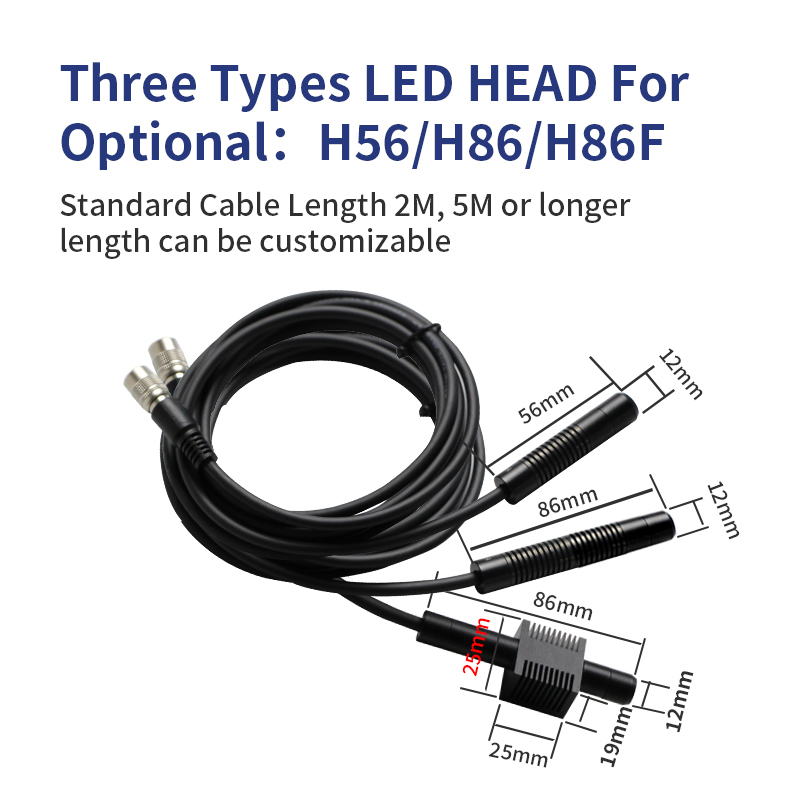

Three optional models: H56, H86, and H86F.
Available wavelengths: 365/385/395/405/470nm (+/-10nm).
Optical power output up to 18W/cm².
Premium core components (high-level LED, quartz lens).
High-flexibility bending-resistant cable.
Standard cable options: 2m/3m/5m (customizable).
Operational life exceeding 20,000 hours.

High Intensity LED and UV Spot Lamp Light-Curing Systems for Optical Lens

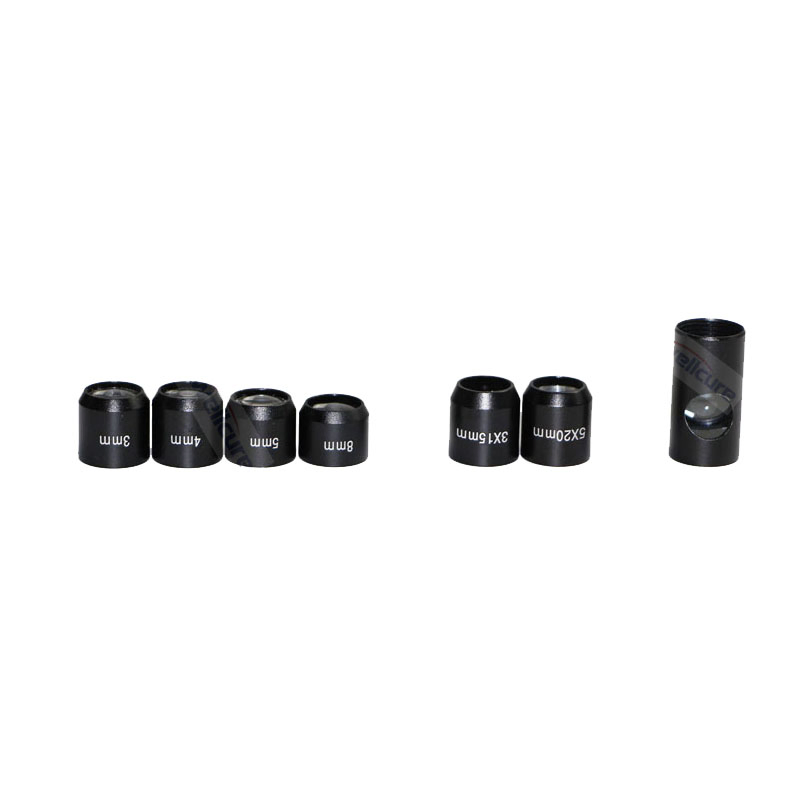

Optics & Accessories

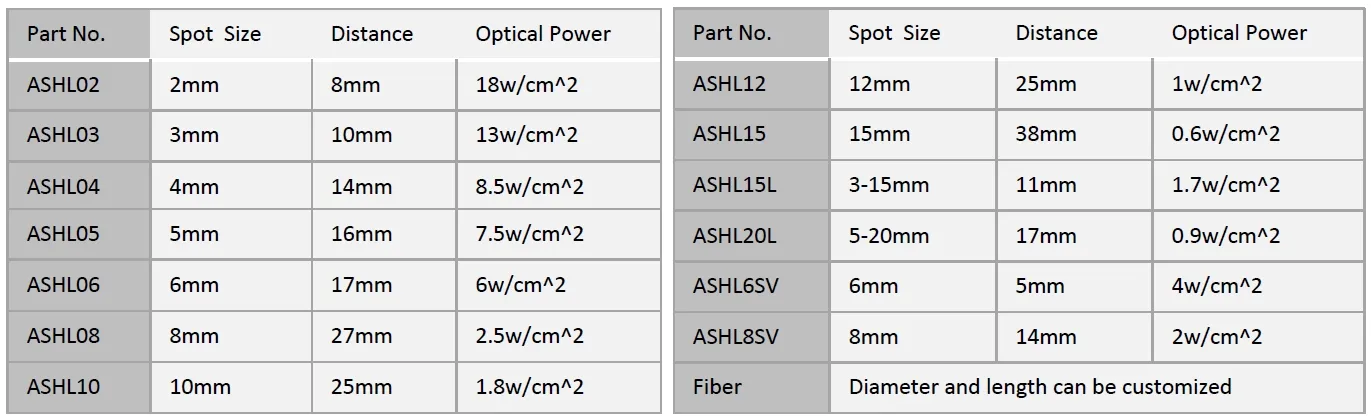

Standard Lens options: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, etc.
Line Lens options: 3x15mm, 5x20mm, etc.
Vertical Lens options: 6mm, 8mm, etc.
UV Protective Glass: Protects eyes from direct UV radiation.
Foot Pedal: Connects via I/O Port for hands-free on/off light control.

Product Dimensions & Viewpoints

Right Elevation

Left Elevation

Front Elevation

Technical Specifications

Parameter	Specification Detail
Model	A2400-TP4
Wavelength	365nm, 385nm, 395nm, 405nm, 470nm
Irradiate lamp heads	1-4pcs
Maximum UV Intensity	18000mw/cm^2
Adjustable range of irradiation power	1%-100%
Control Method	RS232/PLC/Pedal/Touch Screen
LED Life	20000Hrs
LED Head Type	H56, H86, H86F
Optional Lens	Standard (2-15mm), Line (3x15mm, 5x20mm), Vertical (6-8mm)
Irradiated Mode	Manual (always on) / Automatic (countdown 0.1S-999.9S) / Step (1-20 steps) / Cycle step (single or unlimited)
Cooling Method	Natural Cooling or Fan Cooling
Length of Power Cable	2m
Length of LED Head Cable	2m/5m (customizable)
Outer Dimension(LWH)	18540130mm	18540130mm

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon request. Custom system configurations can be manufactured to match your specifications.

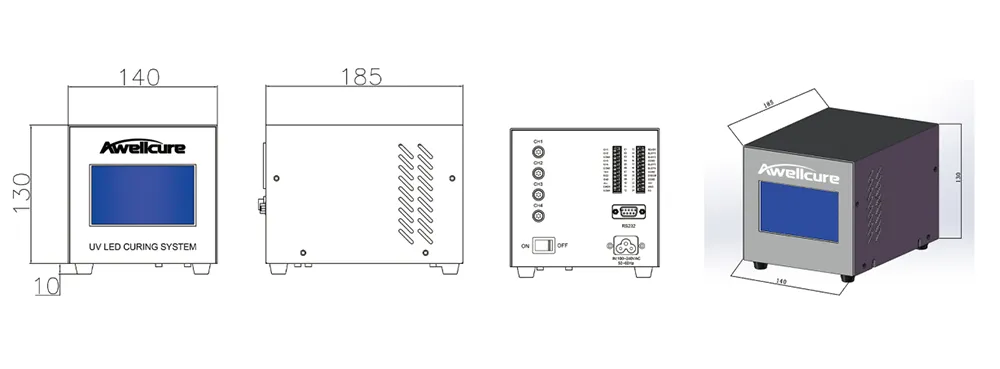

Detailed Technical Specifications Drawing

UV LED Spot Curing System Dimension Chart

After Sales Service

Warranty Coverage

Standard Warranty: 12 months from delivery.
Extended Warranty: Optional service agreements up to 36 months.

Technical Support

Global Support: 24/7 technical assistance and original spare parts supply.
Training Programs: On-site assembly support or remote operational and maintenance training.

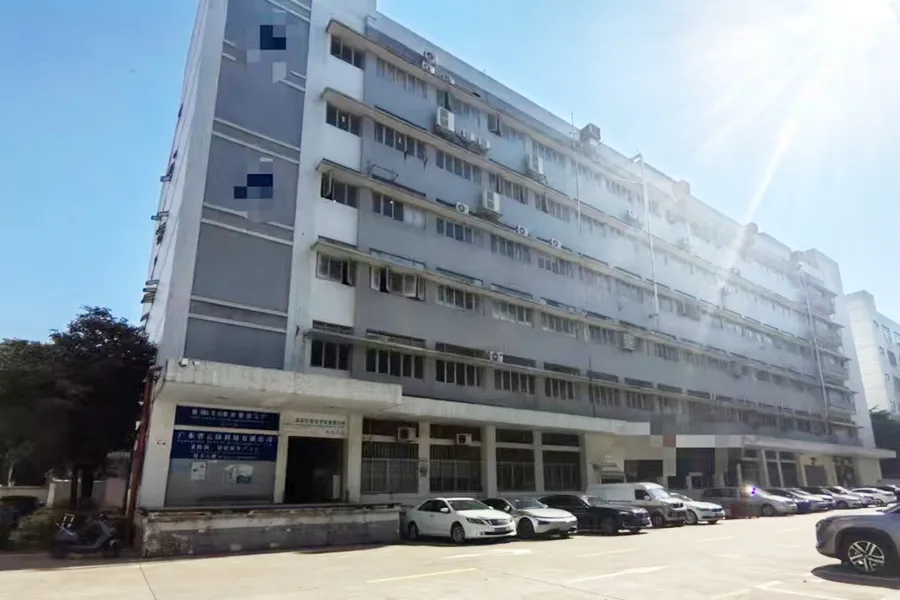

Company Profile

We are a leading developer and manufacturer of UV LED Curing Systems with over 12 years of industry expertise. Operating under ISO 9001 certifications with full CE and RoHS compliance, we distribute our systems globally across 50+ countries. We focus on providing high-efficiency curing technologies powered by continuous R&D and stringent quality assurance protocols.

Main Products

UV-LED Spot Curing Systems
UV-LED Line Curing Systems
UV-LED Area Curing Systems

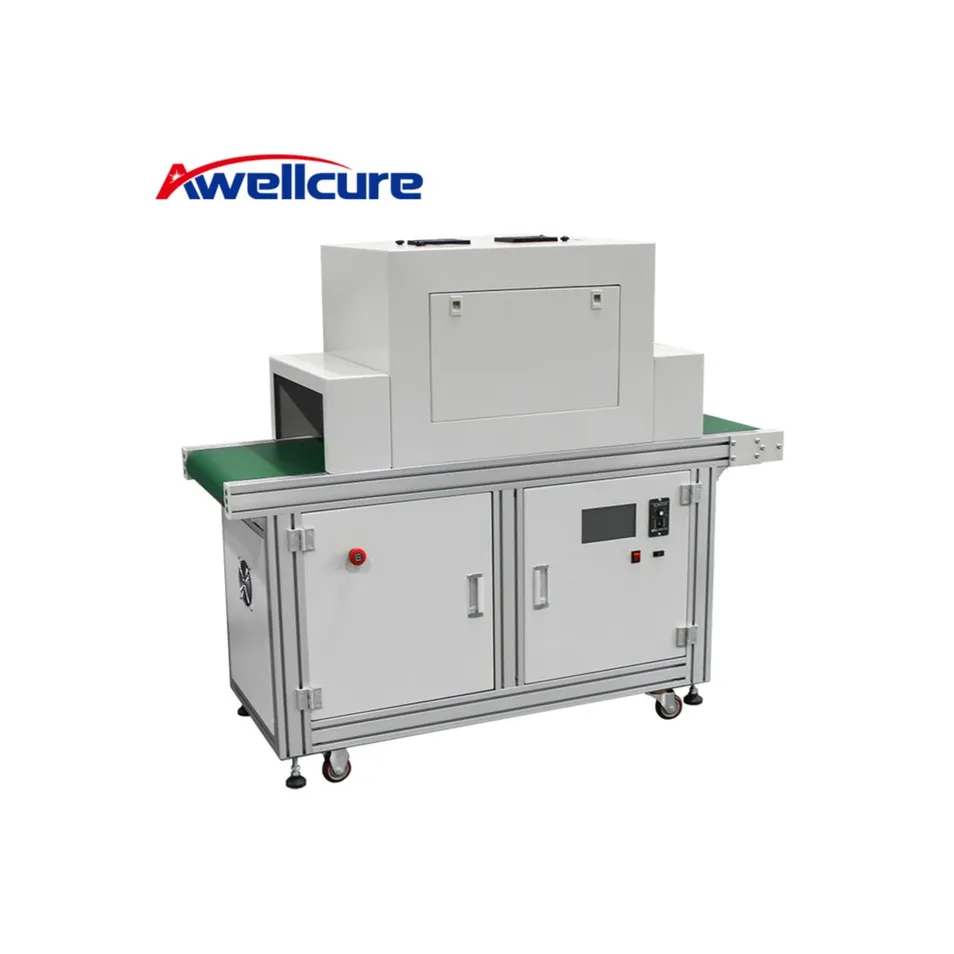

UV-LED Oven Curing Systems
UV-LED Conveyor Curing Systems
UV-LED Measuring Equipment

Main Applications

Adhesives: Precision industrial bonding and sealing in electronic, optical, automotive, medical, and metals manufacturing.
Drying & Coating: Fast drying for UV inks, coatings, and lacquers used in flexographic, offset, label, and packaging operations.

Why Partner With Us?

Comprehensive OEM/ODM capability
Competitive manufacturing pricing with volume discounts
Reliable global logistics support
Turnkey project integration and consultation

Other Product Ranges

We offer a diverse portfolio of auxiliary equipment including UV radiometers, conveyor modules, and customized line/area light sources.

Frequently Asked Questions

Q: What is the typical lead time for standard and custom orders?

A: Standard systems typically ship within 10–15 business days. Fully customized configurations or high-volume orders require 20–30 days depending on component availability.

Q: Do you offer after-sales service and replacement parts internationally?

A: Yes, we provide worldwide technical assistance, rapid shipping on replacement parts, and have partner service locations in key industrial regions.

Q: Can I customize the dimensions or specifications of the UV curing lamp?

A: Absolutely. We offer fully customizable LED heads, customized wavelengths, optical configurations, and tailor-made integration attachments to fit your current production setup.

Q: What documentation do you supply for export shipments?

A: We provide complete export documentation files including Commercial Invoices, detailed Packing Lists, Bills of Lading, Certificates of Conformity (COC), and safety datasheets.

Q: How can I request a quote and place an order?

A: You can reach out directly via our online channels to receive an official quotation. Once specifications are confirmed, orders are processed and confirmed via a Purchase Order (PO).

Q: What is the average operating life of your UV LED light heads?

A: Under normal operating conditions and with proper thermal management (air/fan cooling), our high-power UV LED heads have a lifetime exceeding 20,000 hours.
