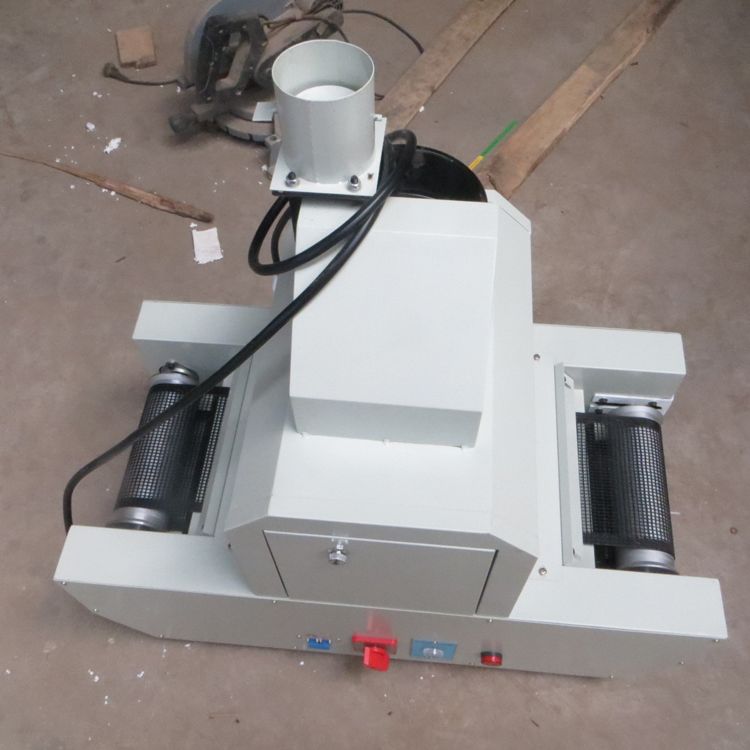

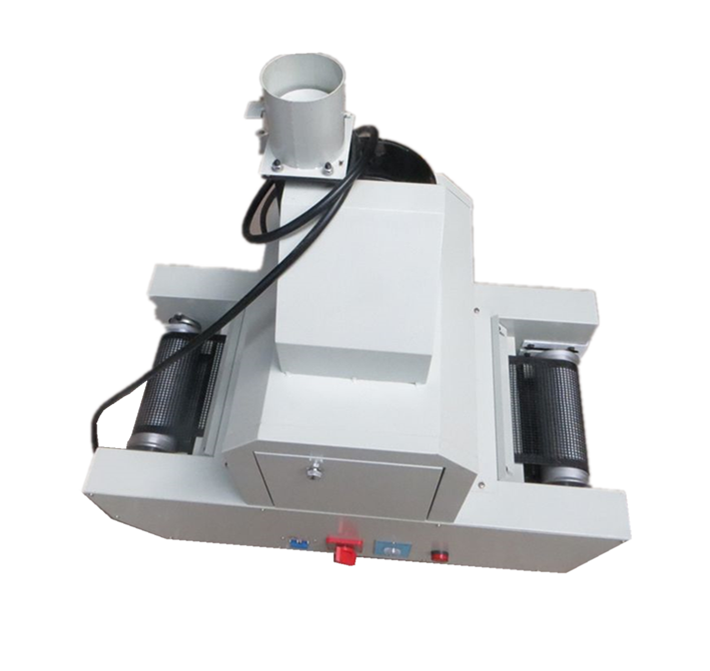

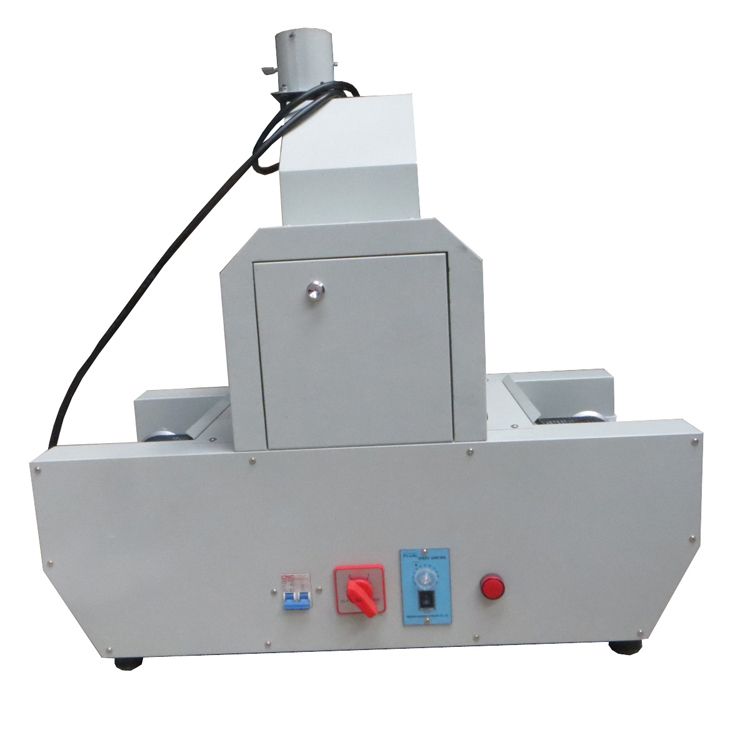

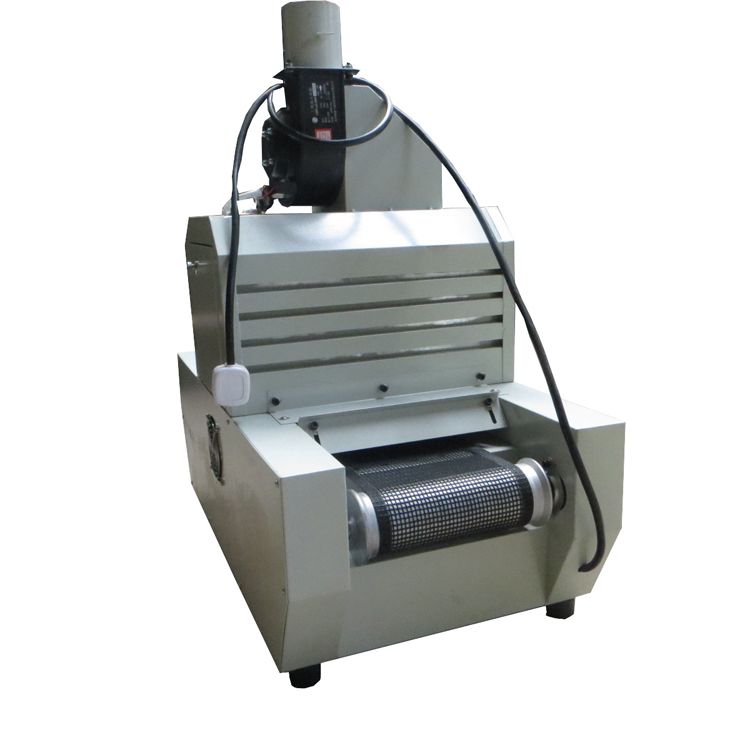

High Quality UV LED Curing UV Conveyor Machine
Description
This is a transmission type UV curing device, widely used in laboratory and mobile phone casings, optical discs, membrane switches, UV plastic coatings for electronic plastic casings; various UV coatings, IMD injection molding products, ink curing; for curing electronic components, liquid crystal film, terminal glue seal, mobile phone component bonding, plastic component bonding and LCD; etc. The device is small in size, light in weight, well-made, easy to move, suitable for desktop placement.
Technical Parameter
| Main wave |
365nm |
| Feed height |
0-50mm |

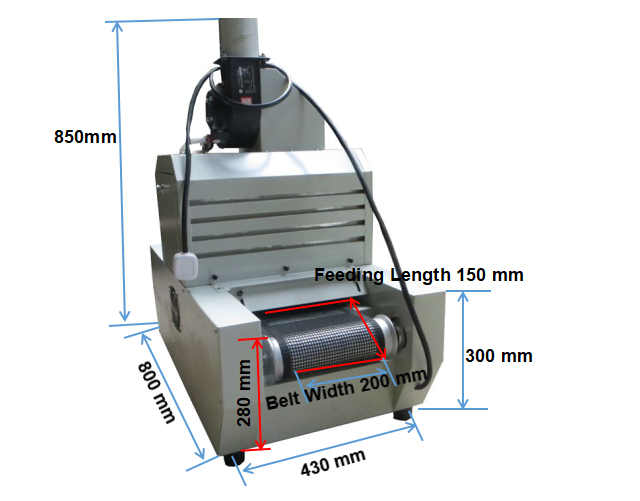

| Dimensions |
800*430*850mm |
| Transmission method |
Net belt transmission |
| Conveying width |
200mm |
| Mesh belt material |
Te-flon |
| Transmission speed |
0-13m/min |
| Lamp |
1KW UV |
| Ventilator |
120w*1 set |
| Transfer motor |
AC electronic governor |
UV Curing Machine Operation
- Start Program: Turn on all power supplies of 220V according to the total open -> drive adjustment -> turn on the fan -> start the UV switch.
- Stop Program: Turn off the UV light switch -> drive off switch -> continue to exhaust for 10 minutes -> turn off the fan switch -> turn off the main power.
- Important Note: After the power supply is interrupted for a period of time, turn it on again, otherwise reduce the service life of the UV light fixture.
Warning: When the UV lamp is lit, it will emit strong ultraviolet rays. The skin should not be exposed to the light source. If you are worried about burns, do not look directly at the light source with your eyes, otherwise it will cause visual impairment.
About More
Frequently Asked Questions (FAQ)
What are the primary applications of this UV curing conveyor machine?
This machine is widely used in laboratories, mobile phone casings, optical discs, membrane switches, and electronic component curing, as well as for various UV coatings, IMD products, and LCD bonding.
What is the dominant wavelength and lamp configuration?
The machine operates on a main wavelength of 365nm and is equipped with a high-performance 1KW UV lamp.
What are the specifications of the conveyor belt?
It features a Teflon mesh belt with a conveying width of 200mm and an adjustable transmission speed ranging from 0 to 13 meters per minute.
How should the machine be shut down properly to maintain lifespan?
First, turn off the UV light switch and the drive switch. Keep the exhaust fan running to ventilate for 10 minutes before turning off the fan switch and the main power supply.
What safety measures must be taken regarding the UV light?
Avoid direct eye contact with the light source and prevent skin exposure to avoid burns and visual impairment caused by strong ultraviolet radiation.
Is this UV curing equipment suitable for smaller workspaces?
Yes, this desktop-friendly device is compact in size (800*430*850mm), lightweight, well-constructed, and highly mobile.
