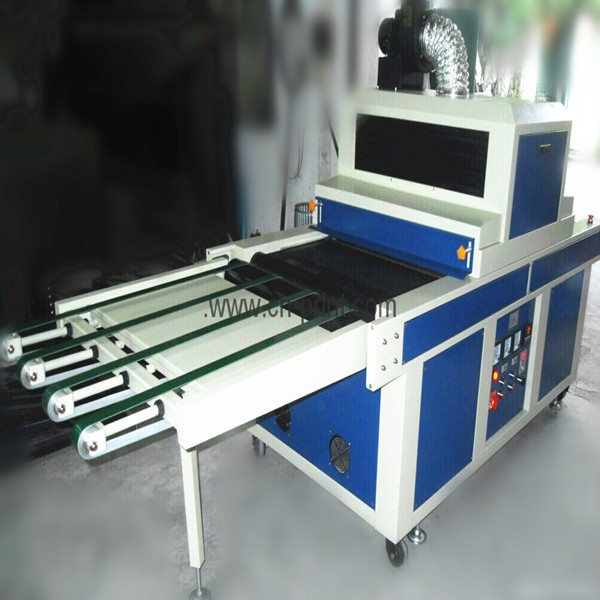

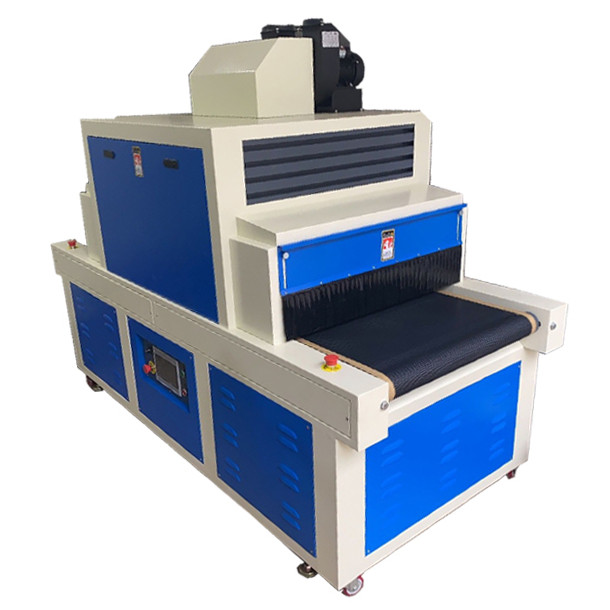

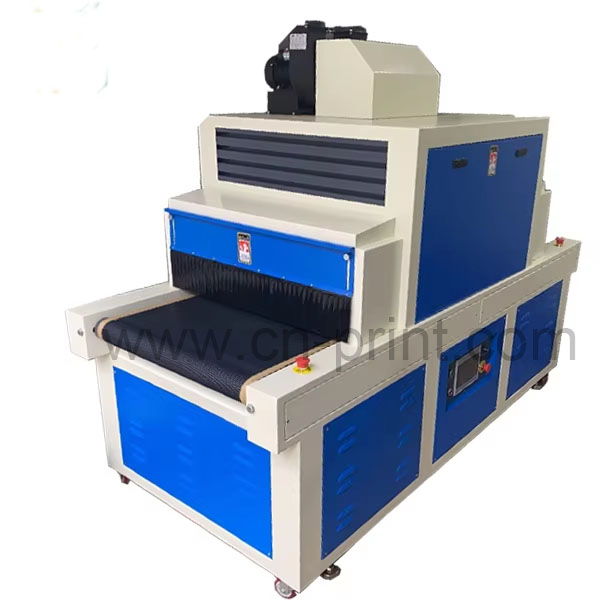

LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
1 / 5
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood
LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood

LC Brand Semi-Automatic Portable LED UV Curing Machine Flexo Plate Crystal Round for Liquid Acrylic Letters Wood

Send Inquiry

Product Description

Product Description

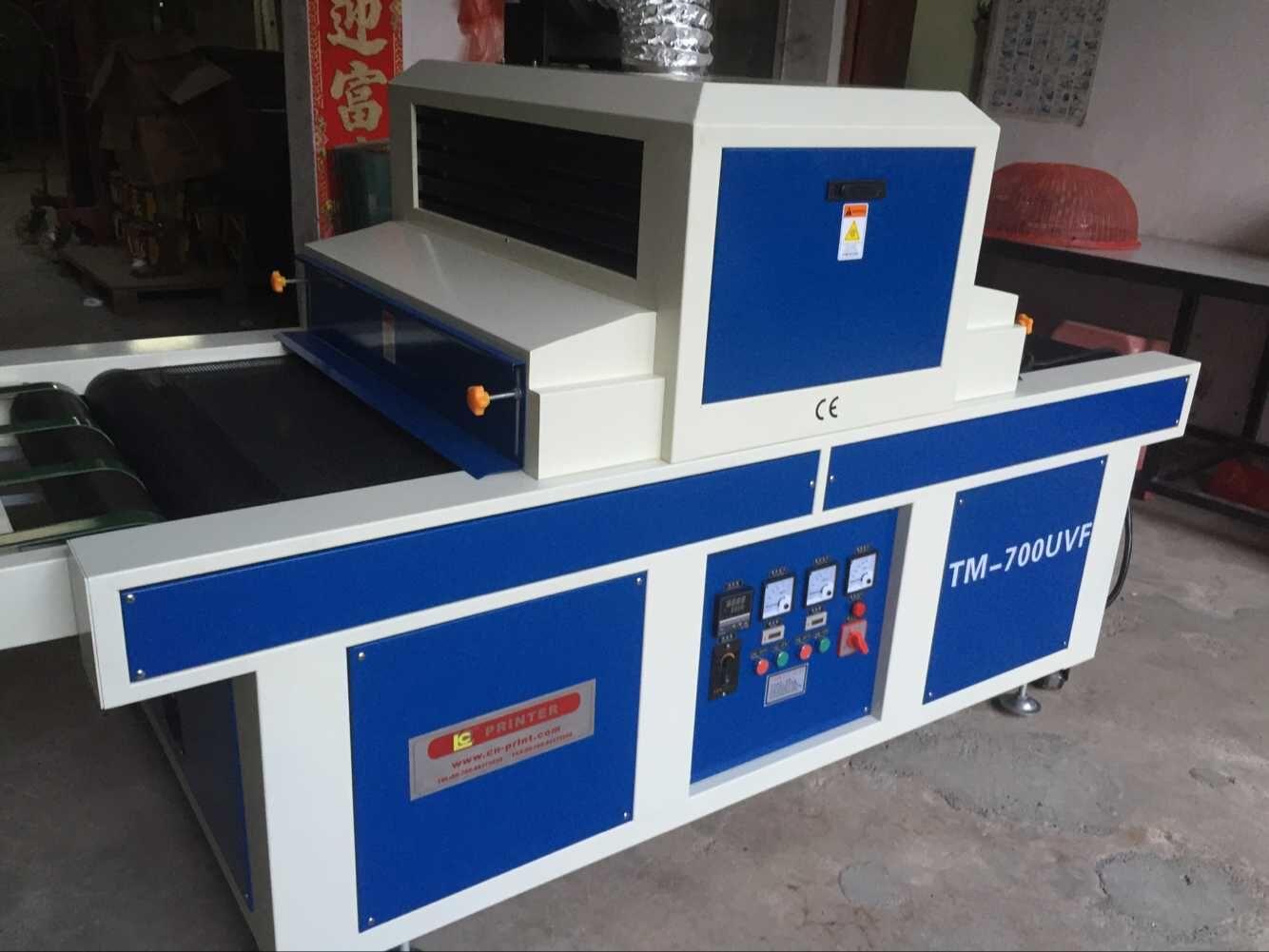

UV Curing System

Advantages:

  • The conveyor speed can adjustment according to the products drying condition;
  • Conveyor belt made by lifelong materials;
  • Famous brand UV lamp installed;
  • Cooling fan installed on the side to remove the heat in curing chamber;
  • Tabletop working and save room area.
Application
Application: Our UV Curing Machine is fit for UV drying, paper UV printing, UV polishing, PVC, PET, PCB after printing UV printing, electronic product UV spraying, packing products UV drying, etc.
UV Curing Machine Application
TM-700UVF-B UV curing machine is used for connecting with offset presses for paper UV cure.
UV Lamp lifetime can reach 1000-1200 hours. The lowest and highest UV lamp operating energy is 50 degrees Celsius and 75 degrees Celsius respectively.
Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light-emitting electrode, filled with the high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance.
This UV lamp than common UV lamp temperature less than 40%, the UV lamp intensity more than 100%.
Specifications
UV Drying products 700*100*2000mm Conveyor belt size L2000* W700MM
UV Lamp power 2PCS*3KW /380V Wind fan wattage 500W/380V
Motor wattage 1000W/1P/380V Total wattage 7.5KW
Conveyor speed 0~30m/min Speed change ways Continue
UV Machine Dimension L*W*H2020*900*1350 Weight 380kg

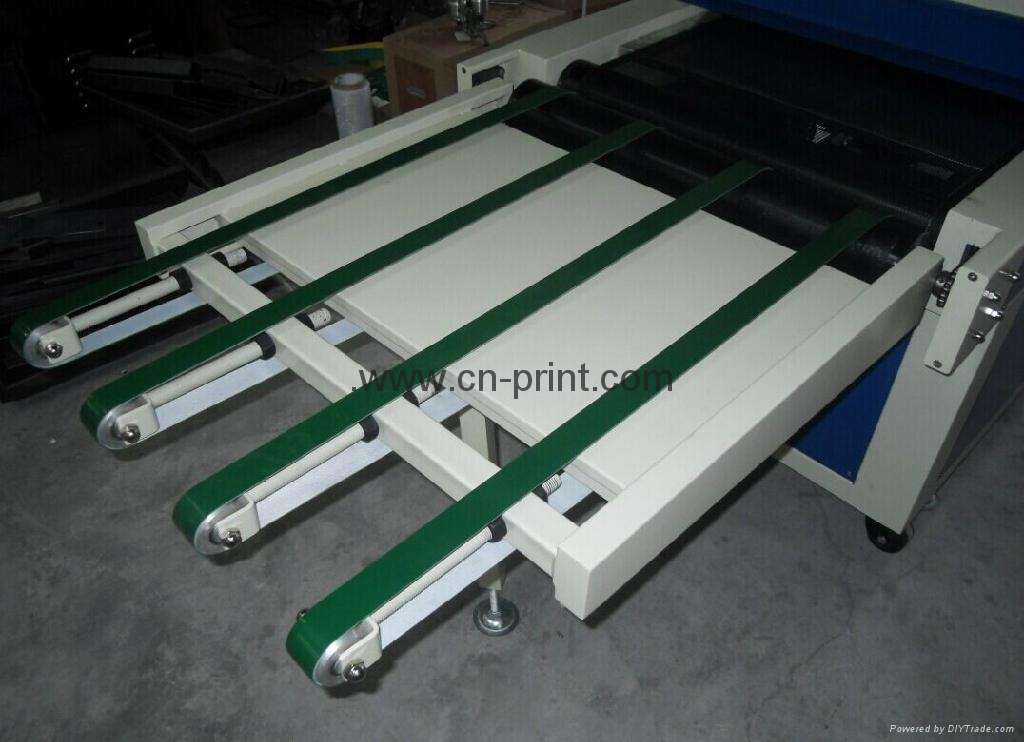

Bridge Structure
Bridge
Conveyor Belt Detail
Conveyor
Samples
UV Cured Sample 1
UV Cured Sample 2
Comment

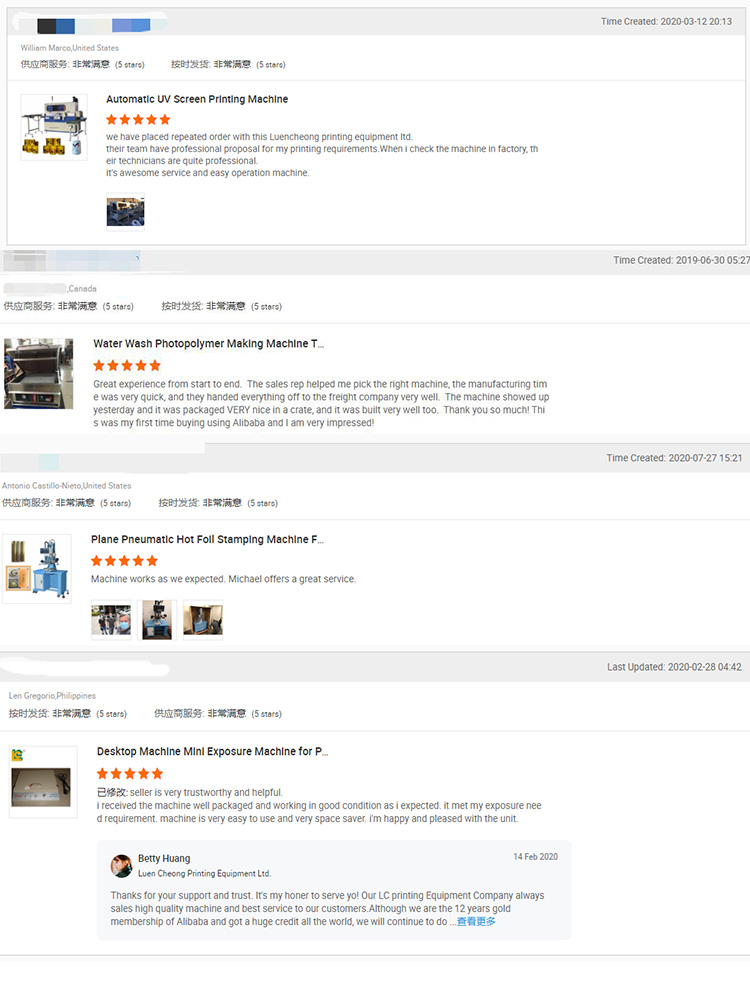

Customer Comment
Production Facility
Facility Image 1

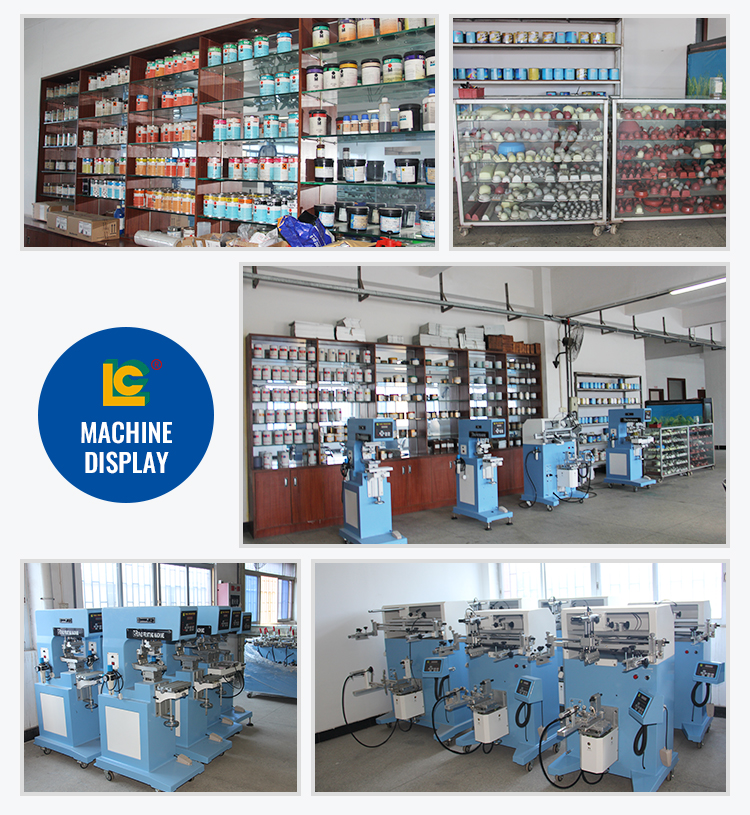

Facility Image 2
Facility Image 3
Facility Image 4
Facility Image 5
Facility Image 6
Packaging and Shipping
Secure Packaging
Shipping Logistics
FAQ Overview
FAQ Guide 1
FAQ Guide 2
Frequently Asked Questions
What materials are suitable for drying with this UV curing machine?
This equipment is suitable for UV drying, paper UV printing, UV polishing, PVC, PET, and PCB after printing. It is also widely used for electronic product UV spraying and packaging product UV drying.
What is the lifespan of the installed UV lamps?
The high-quality UV lamps used in our machine are designed for durability, reaching an active lifespan of 1000 to 1200 hours of operation.
How does the conveyor speed control work?
The machine features a continuous speed adjustment system, allowing the conveyor to run smoothly between 0 and 30 meters per minute to suit different product curing conditions.
What are the advantages of low-temperature high-intensity UV lamps?
Compared to standard UV lamps, these imported low-temperature lamps reduce temperature emissions by less than 40% while increasing UV light intensity by over 100%, protecting heat-sensitive substrates.
How is heat managed inside the curing chamber?
A high-performance 500W cooling fan is installed on the side of the machine to extract heat and maintain the UV lamp operating energy at standard temperatures between 50°C and 75°C.
What are the dimensions and power specifications of the TM-700UVF-B?
The overall dimensions are L2020 * W900 * H1350 mm with a conveyor size of L2000 * W700 mm. The total wattage is 7.5KW (utilizing two 3KW UV lamps and a 1000W motor on a 380V supply).
