365nm 385nm 395nm 405nm Spot Cure LED UV Light Sources Glue Curing Adhesive for Electronic Glass
Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, such as irradiation processes with different intensities and different times, the shortest production efficiency and machine utilization can be achieved, especially in fully automated production lines.
Specifications & Configurations
Applications

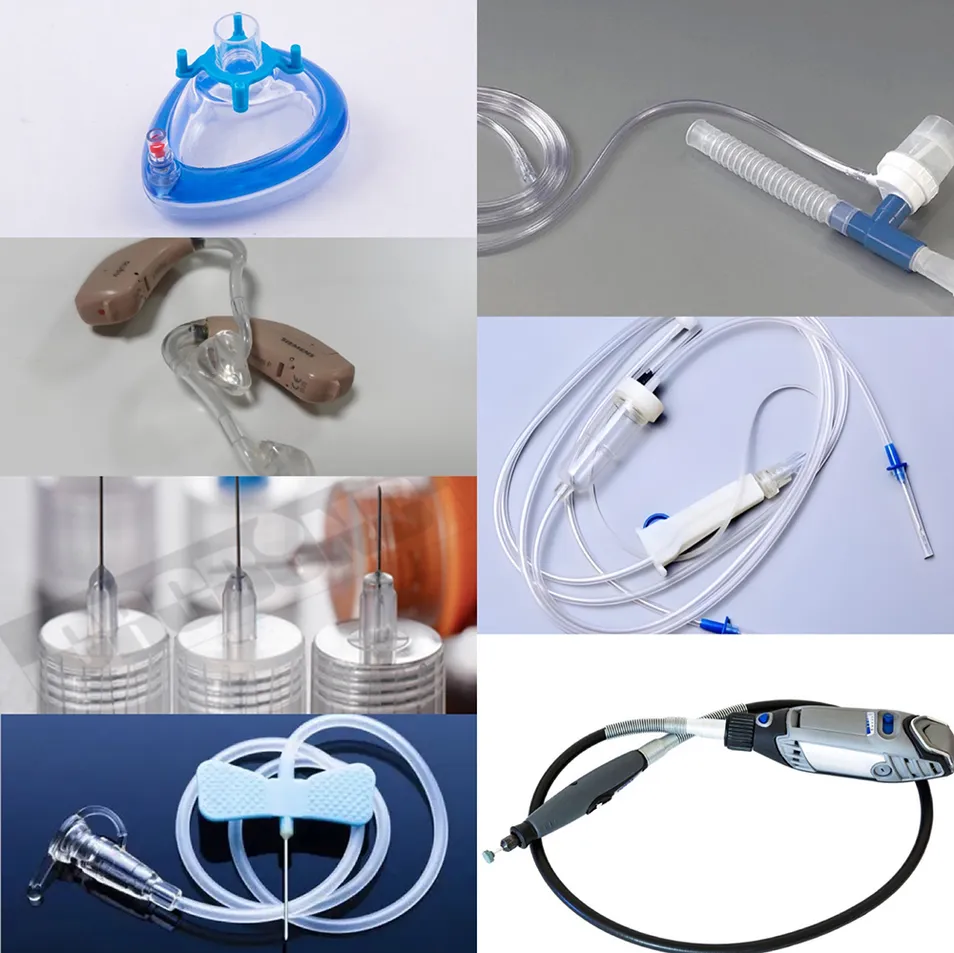

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
UV Ink: UV printing, 3D printing
Key Configurations
Controller:
Support multi language.
Available for 1-8 channels.
Small in size and easy to carry.
Multi LED heads can be independence controlled.
Simple installation and operation.
Record the working time of each LED head and remind the replacement.
Warning for the abnormal situation.

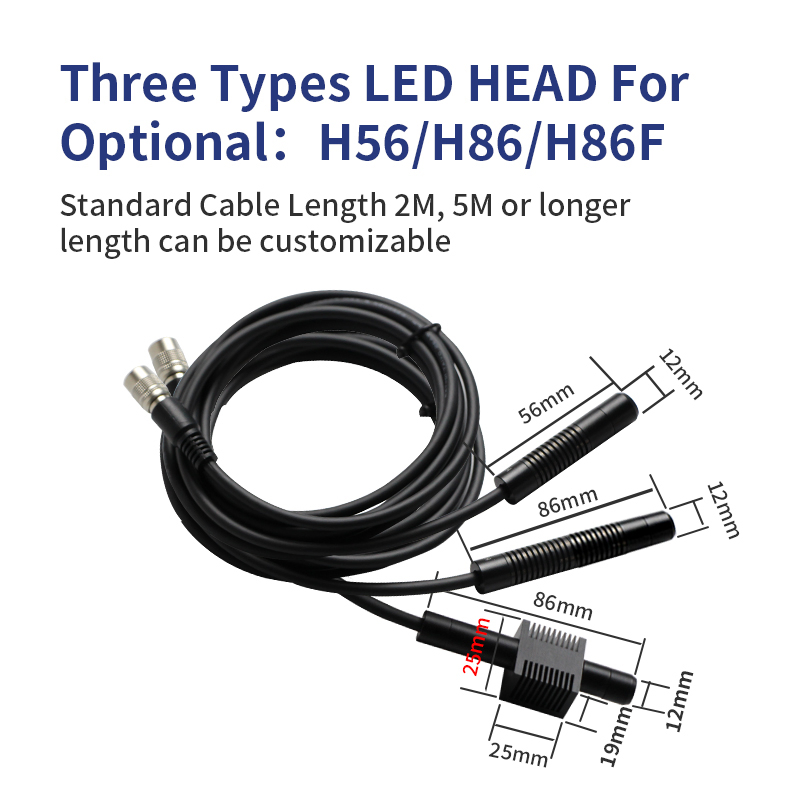

LED Head:
Three types H56, H86, H86F for optional.
The wavelength is 365/385/395/405/470nm+/-10nm.
Highest output optical power of 18W/cm ^ 2.
The core materials are well-known brands: NICHIA high-level LED + DowCorning + HOYA quartz lens.
Use bending-resistant cable (bending resistant 1000w times within R30mm).
Standard cable length is 2m/3m/5m, other length could customize.
Working life >20000 hours, no need to frequently replace the lamp.

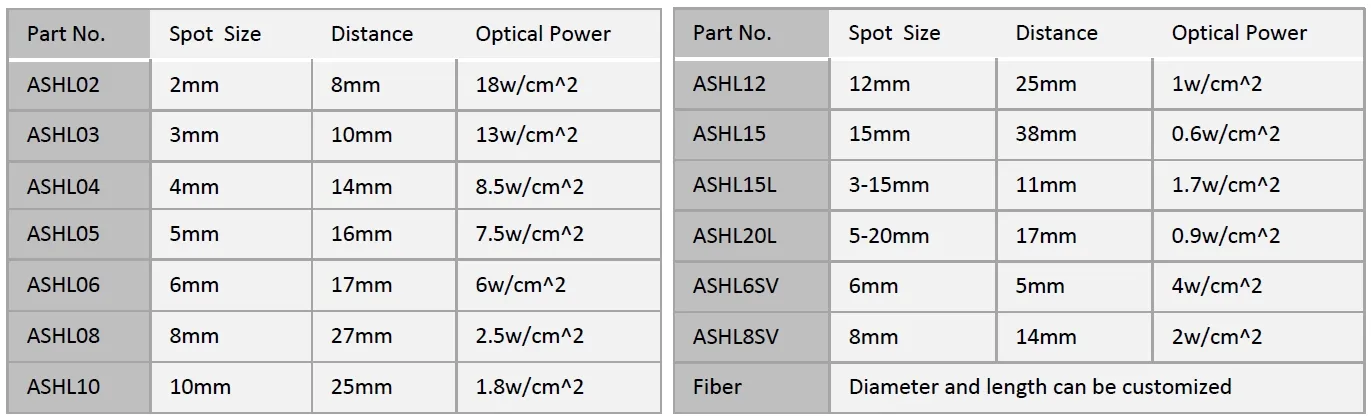

Lens Options:
Different lenses can be chosen to suit application needs:
Standard Lens size: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, etc.
Line Lens size: 3x15mm, 5x20mm, etc.
Vertical Lens size: 6mm, 8mm, etc.
UV Protective Glass: Protecting eyes from UV-LED irradiating light.
Foot Pedal: Connecting with the I/O Port, control the UV light on/off.
Elevation Perspectives
Right Elevation

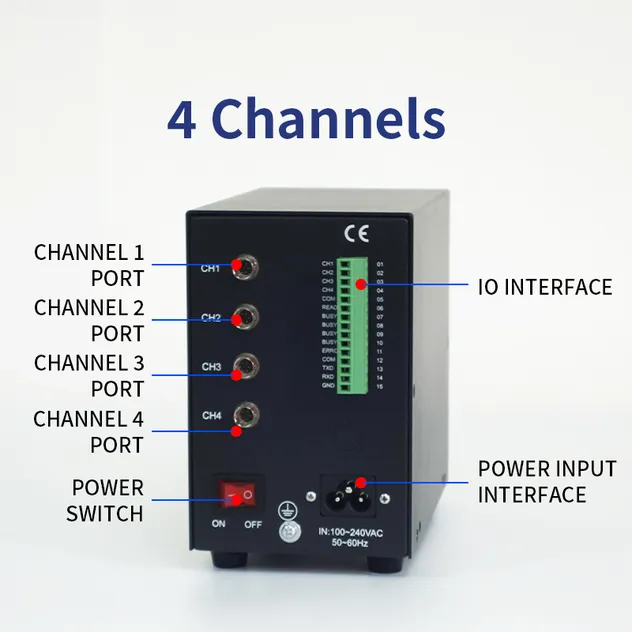

Left Elevation

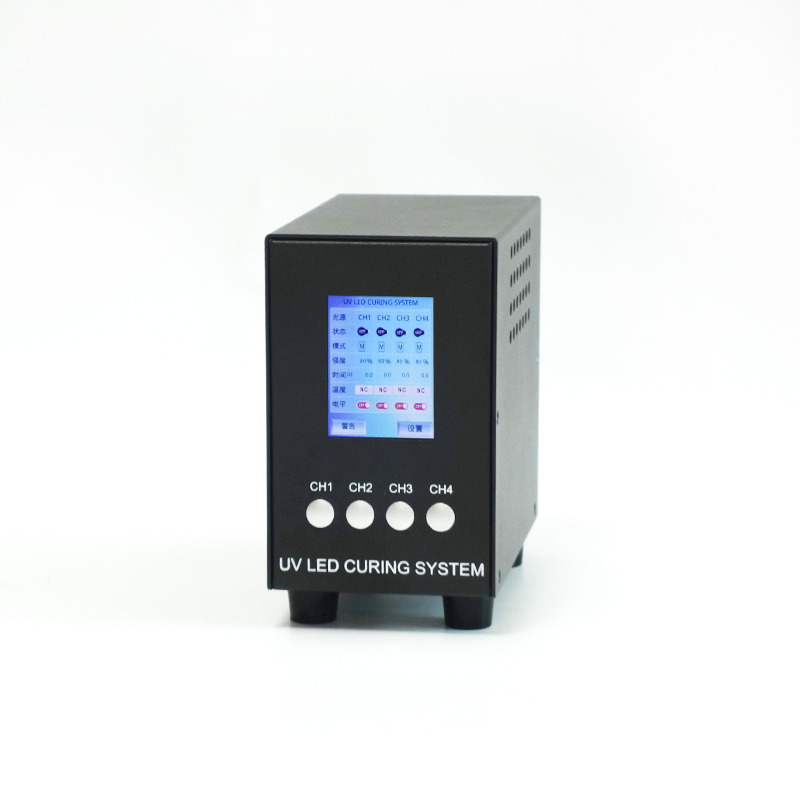

Front Elevation
Technical Specifications
(Custom configurations available upon request.)
Model
A1400-XTP-S
Wavelength
365nm, 385nm, 395nm, 405nm, 470nm
Irradiate lamp heads
1-4pcs
Maximum UV Intensity
18000mw/cm^2
Adjustable range of irradiation power
1%-100%
Control Method
RS232/PLC/Pedal/Touch Screen
LED Life
20000Hrs
LED Head Type
H56, H86, H86F
Optional Lens
Standard Lens size: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm., etc.
Line Lens size: 3x15mm, 5x20mm., etc.
Vertical Lens size: 6mm, 8mm., etc.
Irradiated Mode
Manual: Always on after startup
Automatic: Design irradiation countdown time (0.1S~999.9S)
Step: Implement step irradiation (1-20 steps)
Cycle step: Single/Unlimited
Cooling Method
Natural Cooling or Fan Cooling
Length of Power Cable
2m
Length of LED Head Cable
2m/5m (other length can be customized)
Outer Dimension (L*W*H)
160*92*140mm

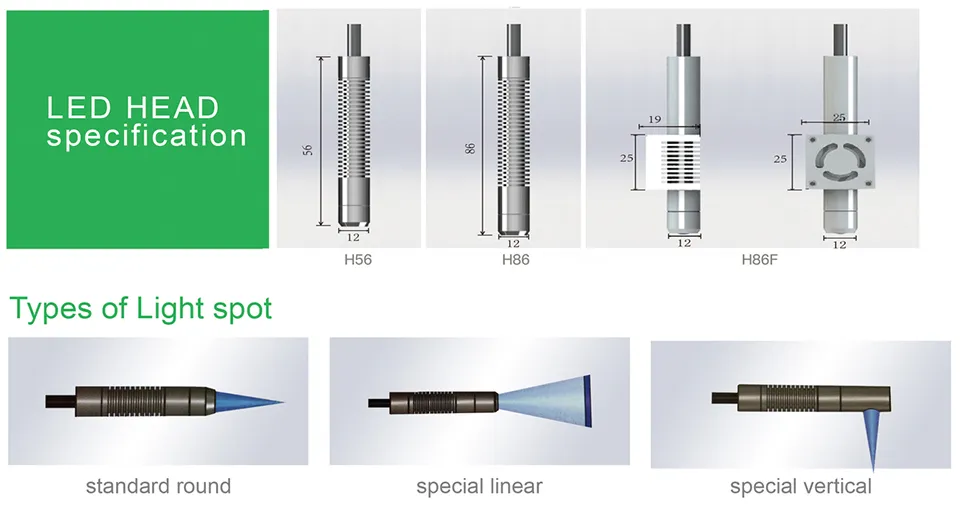

Optional LED HEAD
After Sales Service
Standard Warranty
12 months of coverage.
Extended Warranty
Optional coverage extension up to 36 months.
Global Support
24/7 technical assistance and prompt spare parts supply.
Training
On-site or comprehensive remote operation and maintenance training.

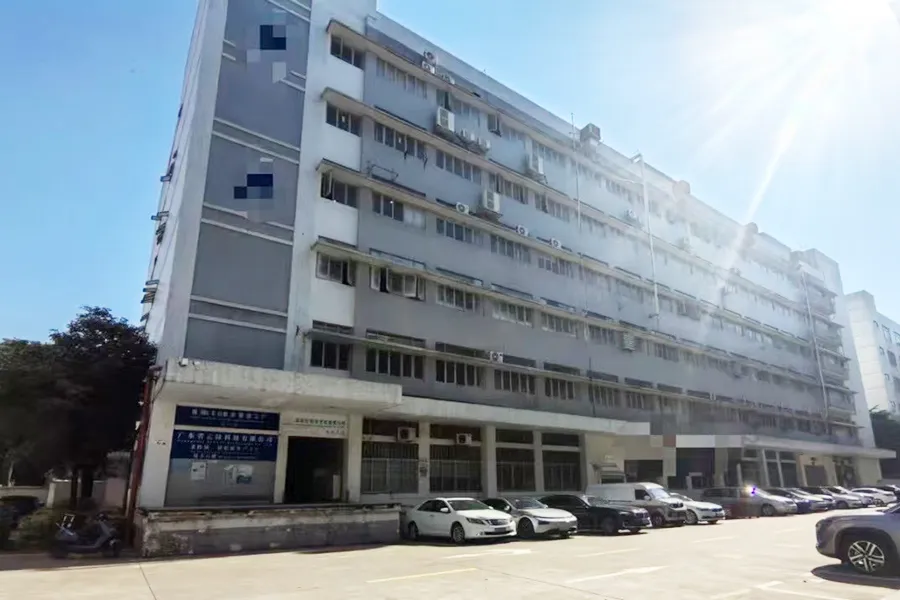

Company Capability
We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS. We export to over 50 countries, offering reliable UV curing machines backed by continuous R&D innovation and strict quality control. We operate our own R&D centers, sales divisions, and modern production facilities.
Main Products:
UV-LED Spot curing system
UV-LED Line curing system
UV-LED Area curing system
UV-LED Oven curing
UV-LED Conveyor curing
UV-LED Measuring system
Main Applications:
Adhesives curing for industrial bonding and sealing (electronic, optical, automotive, metal, and medical fields).
Drying of UV-LED inks, coatings, and lacquers (offset, flexo, inkjet, label printing fields).
Why Choose Us?
OEM/ODM capabilities.
Competitive pricing & bulk discounts.
Fast shipping & customs clearance support.
Turnkey project solutions.
Other Products
UV Radiometer

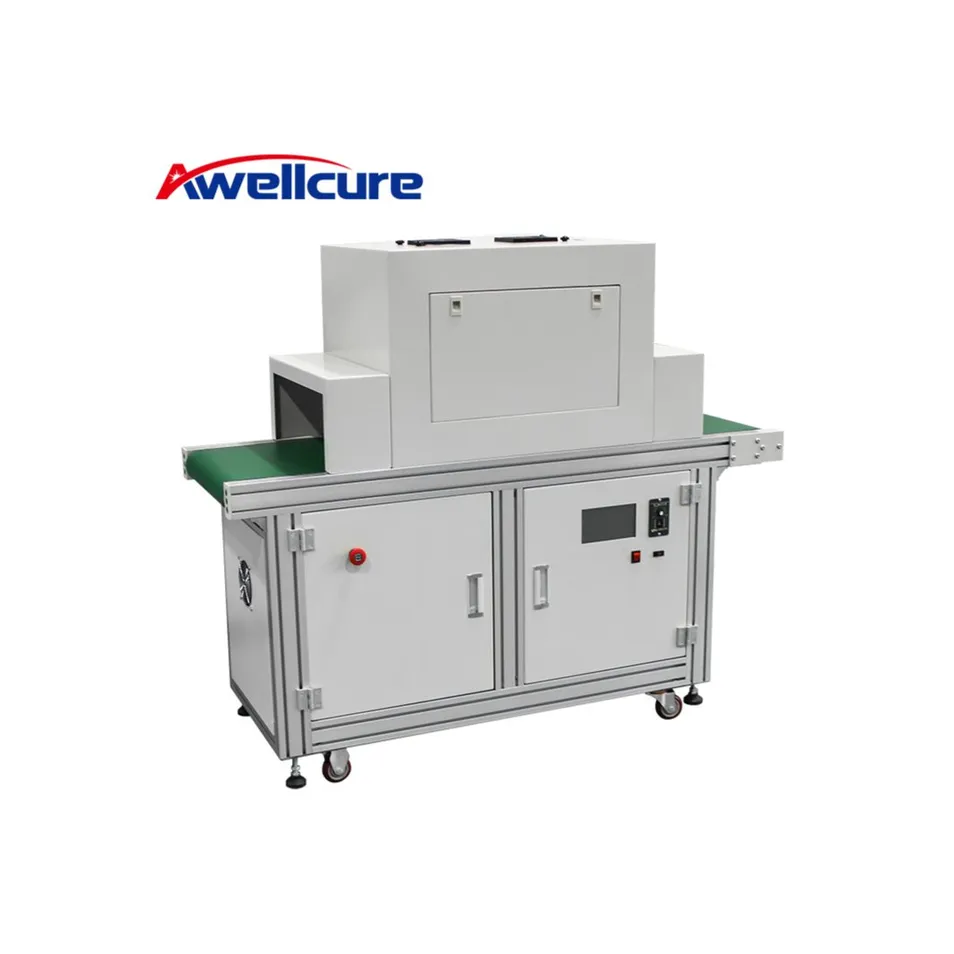

UV LED Conveyor
UV Curing Oven
UV LED Line Curing System
UV LED Area Light Source
Frequently Asked Questions
What is the lead time for standard and customized orders?
Standard models typically ship within 10 to 15 days, while customized units require 20 to 30 days depending on the specifications.
Do you provide overseas after-sales support?
Yes, we have partnered service centers in key regions globally to provide technical assistance, training, and spare parts.
Can I request customized dimensions for the curing lamp?
Absolutely. We support tailor-made structural attachments, customized wavelength variations, and configurations to fit your exact system integration.
What export documentation is standard with your shipments?
We provide a complete export documentation package, including the Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and any other custom clearance files required by destination customs.
How can I initiate and place a purchase order?
Please contact us directly through our official inquiry channels to receive a formal quotation, after which you can finalize and confirm the purchase order.
What wavelengths are supported by the UV LED spot curing heads?
Our UV LED curing heads support wavelengths of 365nm, 385nm, 395nm, 405nm, and 470nm (with a tolerance of +/-10nm) to match various curing adhesives.
