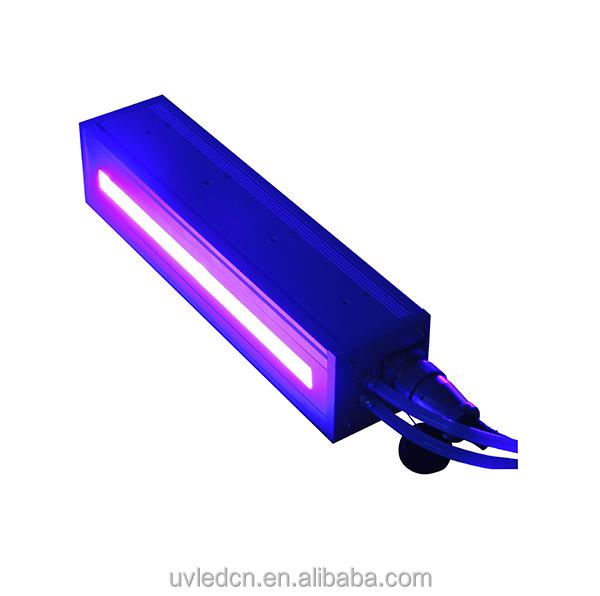

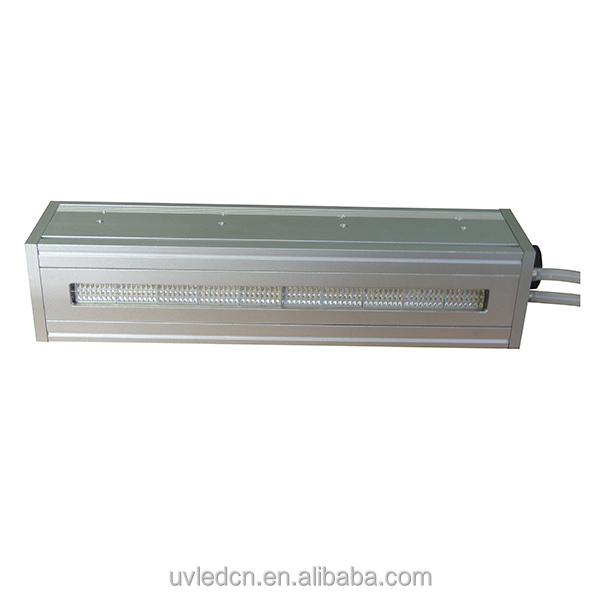

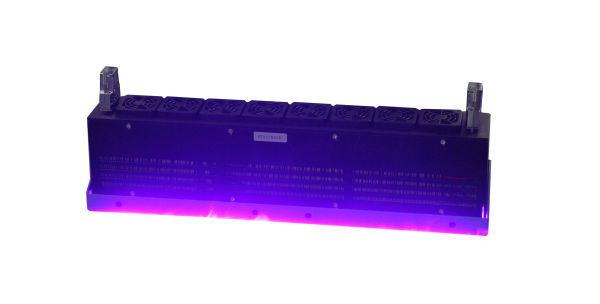

We provide a wide variety of UV LED curing systems for label printers to meet different operational requirements. Available in both air-cooled and water-cooled options, our designs feature all-in-one configurations or external controllers.
We are a pioneer of All-In-One type LED curing systems for label printers.
The system integrates multiple test and control functions. It simplifies the installation process, saves installation time, and minimizes the required space. This makes the entire LED curing system for label printers highly concise, aesthetic, and practical.
Designed for direct AC power input. The integrated LED screen displays lighting runtime, real-time temperature, and light intensity, while incorporating over-temperature and lamp failure alarms. The light intensity is automatically dimmable based on printer speed, and the system can also connect to external PLCs and control panels.
| Model | Light area (MM) | Wavelength (NM) | Light intensity (W/CM²) | Cooling Method | Electric Power | Size (L*H*W) | Weight |
|---|---|---|---|---|---|---|---|
| LWLA330*20 | 330*20 | 385/395 | 20 | Water cooling | 1500W | - | - |
| LFLA330*20 | 330*20 | 385/395 | 16 | Air cooling | 1500W | - | - |
| LFLC330*20 | 330*20 | 385/395 | 16 | Air cooling | 1500W | - | - |
| LWLA267*20 | 267*20 | 385/395 | 20 | Water cooling | 1000W | - | - |
| LFLA267*20 | 267*20 | 385/395 | 16 | Air cooling | 1000W | - | - |
| LFLC267*20 | 267*20 | 385/395 | 16 | Air cooling | 1000W | - | - |
Note: Custom lamp sizes can be manufactured based on customer requirements.

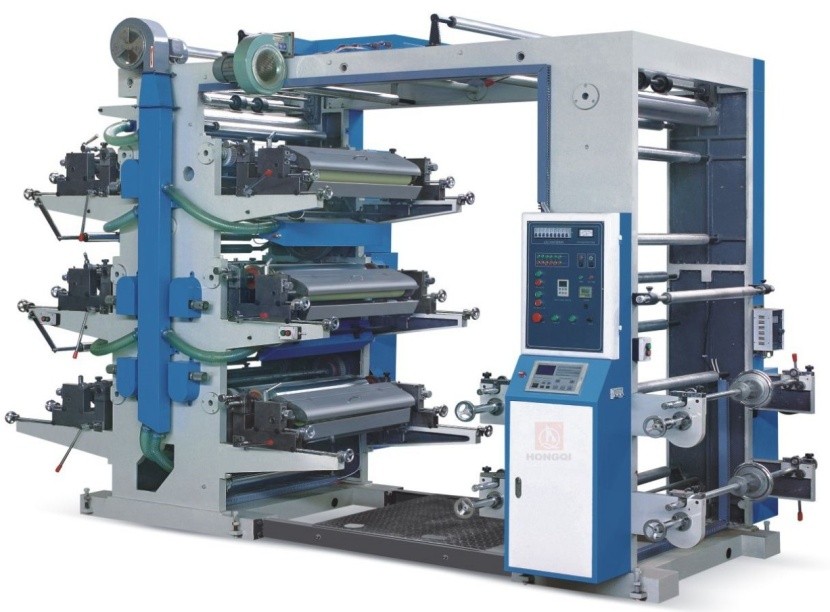

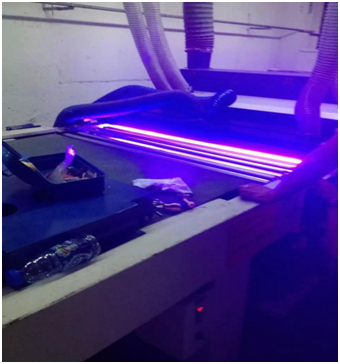

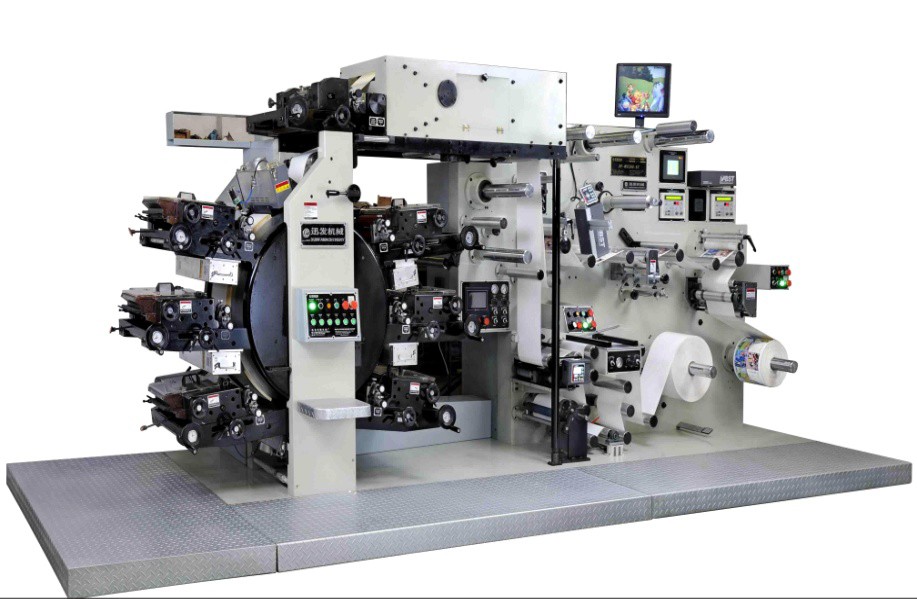

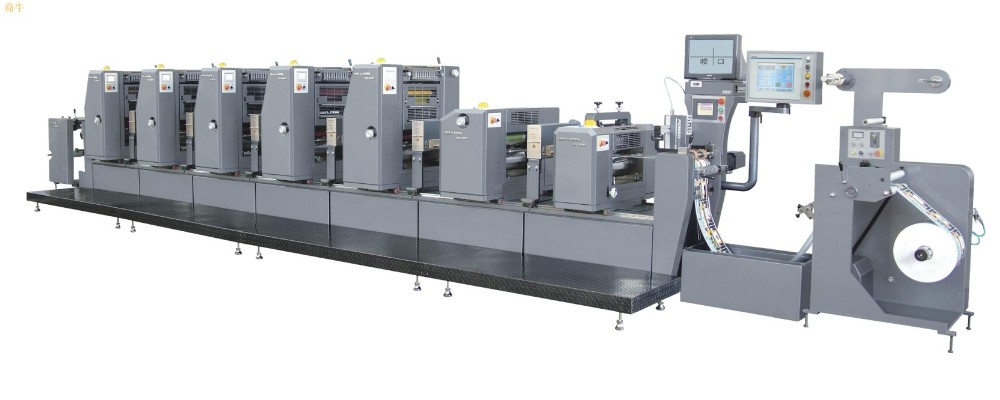

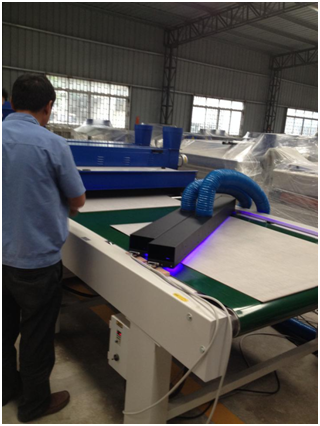

Our UV LED curing systems have been successfully installed on various types of label printers, as shown below:
A1: We provide both air-cooling and water-cooling configurations depending on your specific printing press requirements.
A2: Yes, the systems are designed to cure both traditional UV inks and modern UV LED inks efficiently.
A3: The curing light intensity can be configured to auto-dim and adjust dynamically according to the speed of the printer, or be adjusted manually via the control display.
A4: The system features real-time temperature display, over-temperature control alarms, and a lamp failure warning to alert operators in case a UV LED lamp malfunctions.
A5: Yes. Custom lamp sizes can be designed and manufactured to fit the unique requirements and print dimensions of your label printing setup.
A6: The All-in-One design integrates test and control modules within a compact frame. It simplifies setup, minimizes installation space, and cuts down on configuration time.
