Programmable And Pid Auto Control 1200/1400/1600c Alumina Ceramic Tube/Quartz Tube Vacuum Furnace Laboratory Heating Equipment
Our tube furnaces are all CE certified for temperatures up to 1200/1400/1700 °C and operating temperatures up to 1100/1300/1600 °C, with power ratings based on size. The furnace tubes are equipped with high purity quartz or corundum tubes and are fitted with a pair of stainless steel flanges (with mechanical pressure gauges and stainless steel shut-off valves fitted to the flanges) at both ends. The unit allows sintering of samples under vacuum and gas protection. The precise temperature control system includes 30 stages of temperature increase and decrease curve settings, and its temperature control accuracy reaches ±1 °C.
Product Use:
Widely used in semiconductor, nanomaterials, carbon fibre, graphene and other new materials, new process areas, according to user needs to design and manufacture special specification products.

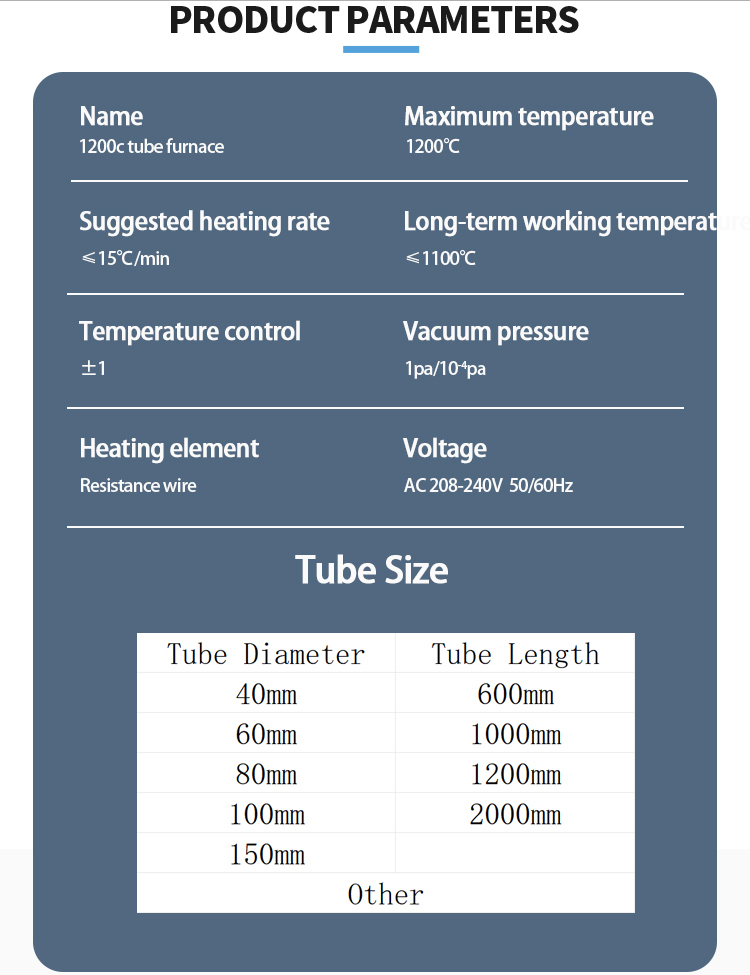

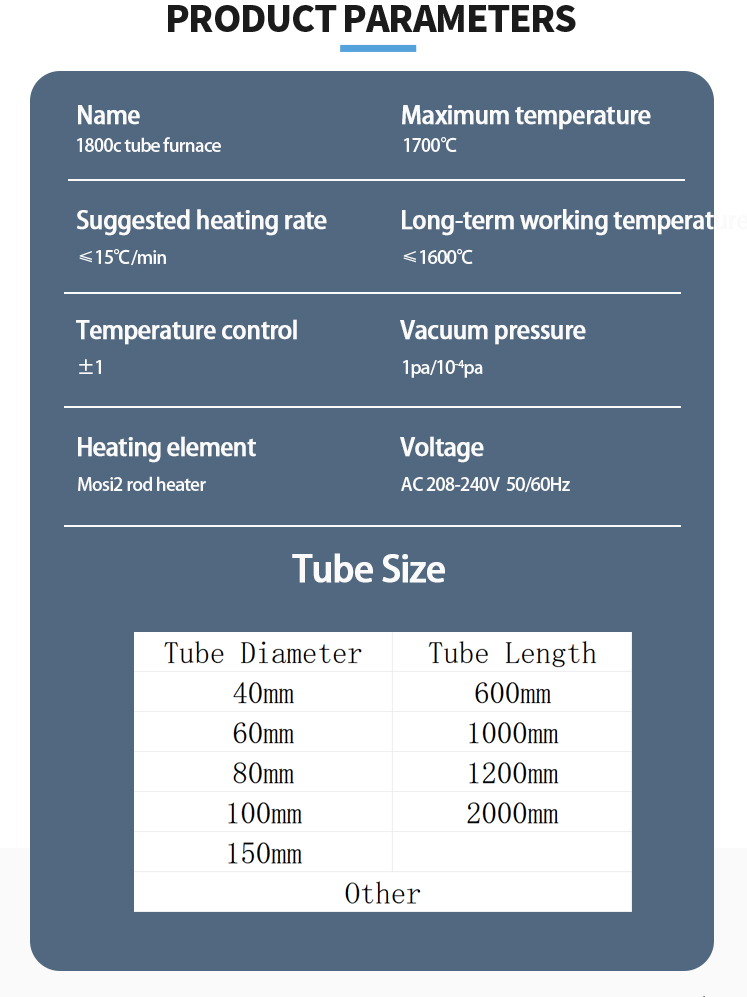

Specification
Parameters
1200c Tube Furnace
1400c Tube Furnace
1800c Tube Furnace
Heating Element
Resistance wire
SiC rod heater
MoSi2 rod heater
Max. Temperature
1200 °C
1400 °C
1700 °C
Long-term working temp
1100 °C
1300 °C
1600 °C
Temperature control
±1 °C
Heating rate
0-15 °C/Min
Tube Size
φ40/60/80/100/150mm L600/1000/1200/2000mm (Other sizes can be customized)
Controllable Temp Zone
1-4 Optional heating zone
Vacuum
Mechanical pump 10-1pa / Molecular pump 10-3pa

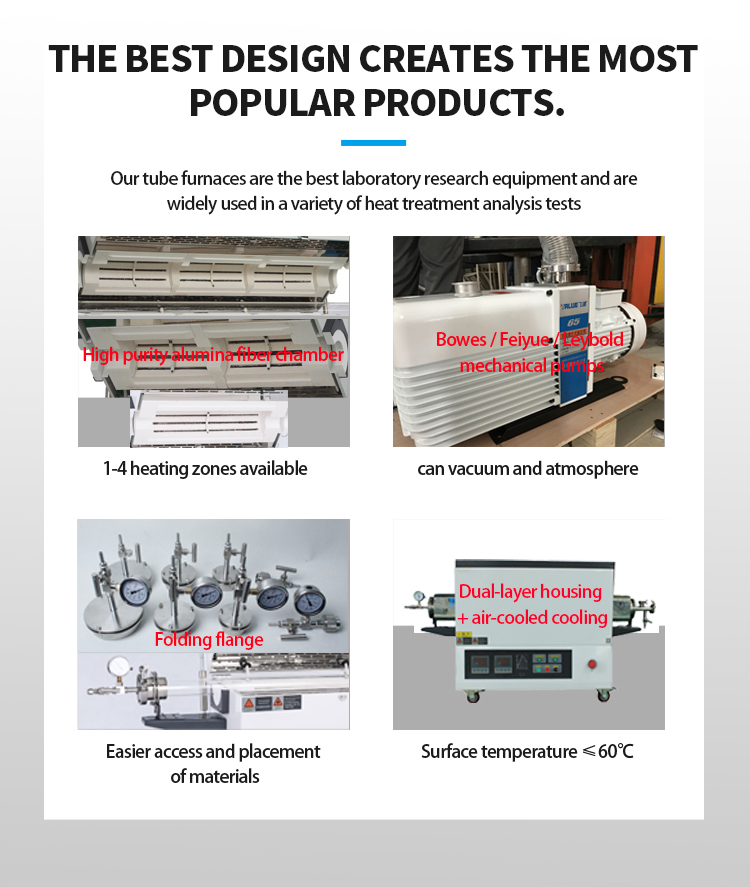

Furnace Features & Details

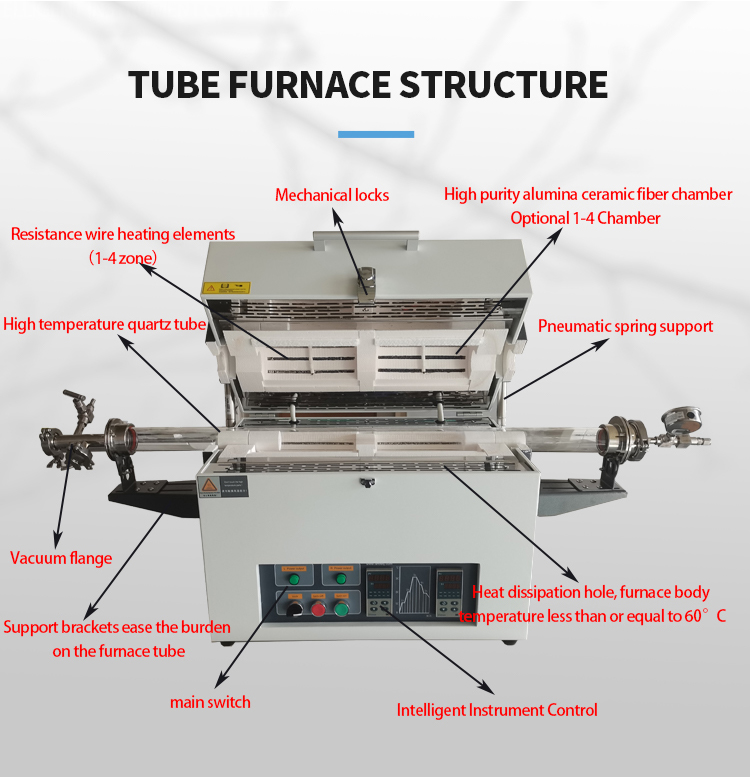

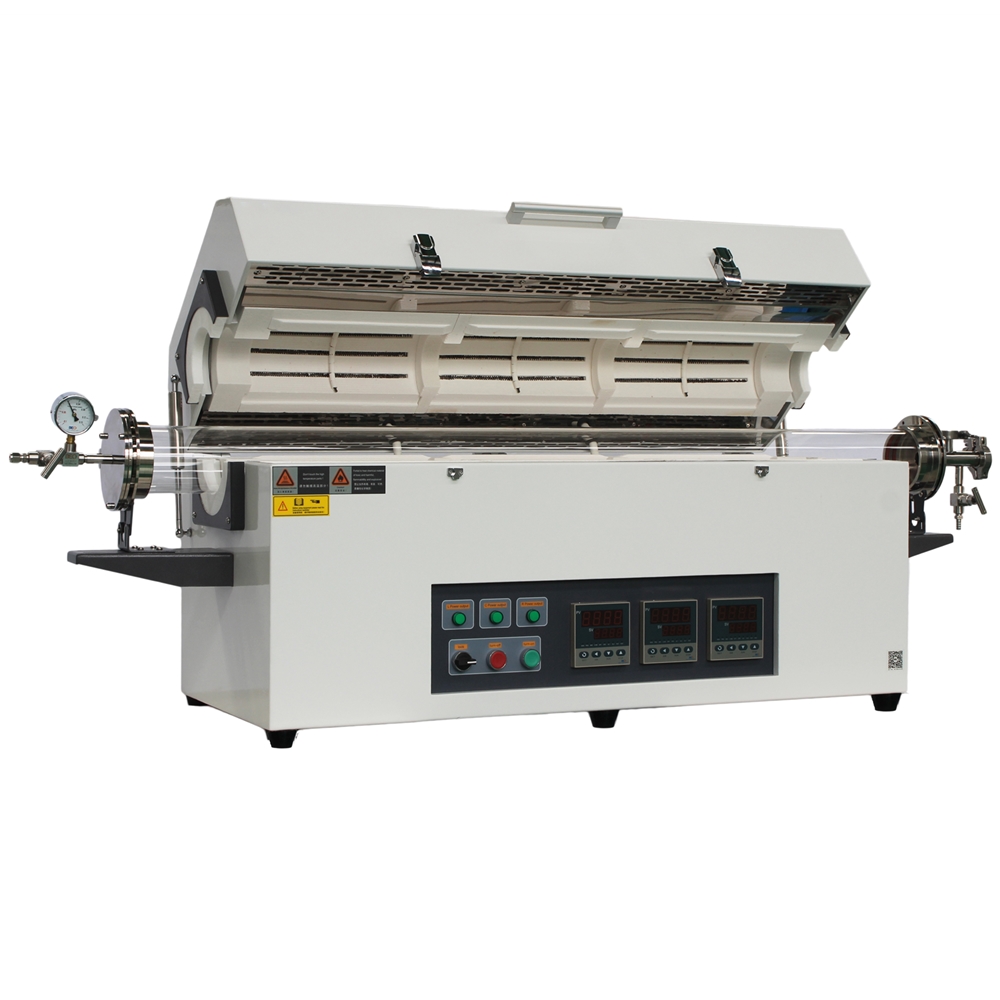

1200c Tube Furnace Features
It can be vacuumed and also can be protected by gas;
Opening type makes it easy to dismantle and install the furnace tube, and the operation is simple;
Can directly move the sealed chamber out of the furnace, speed up the cooling process;
It is possible to see the sintering status of the sample intuitively;
Folding flange reduces the tedious operation when taking and putting materials;
The furnace chamber material using high-purity alumina fibre, can minimise energy loss;
The upper and lower imported resistance wire of the furnace chamber, the temperature field is uniform;
Pneumatic spring support structure allows the operator to open safely at all angles;
Widely used in semiconductor, nano-materials, carbon fibre, graphene and other new materials, new process areas.

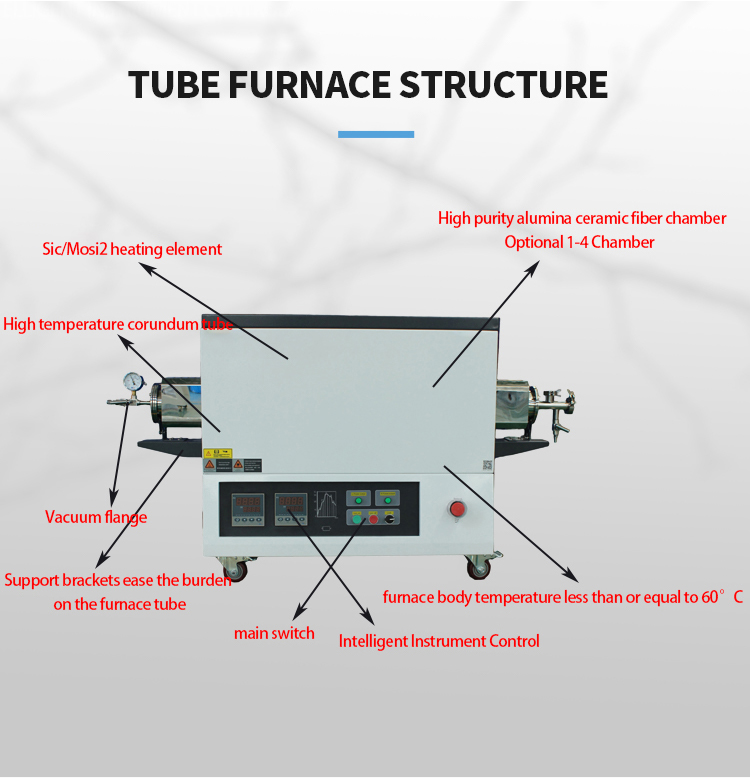

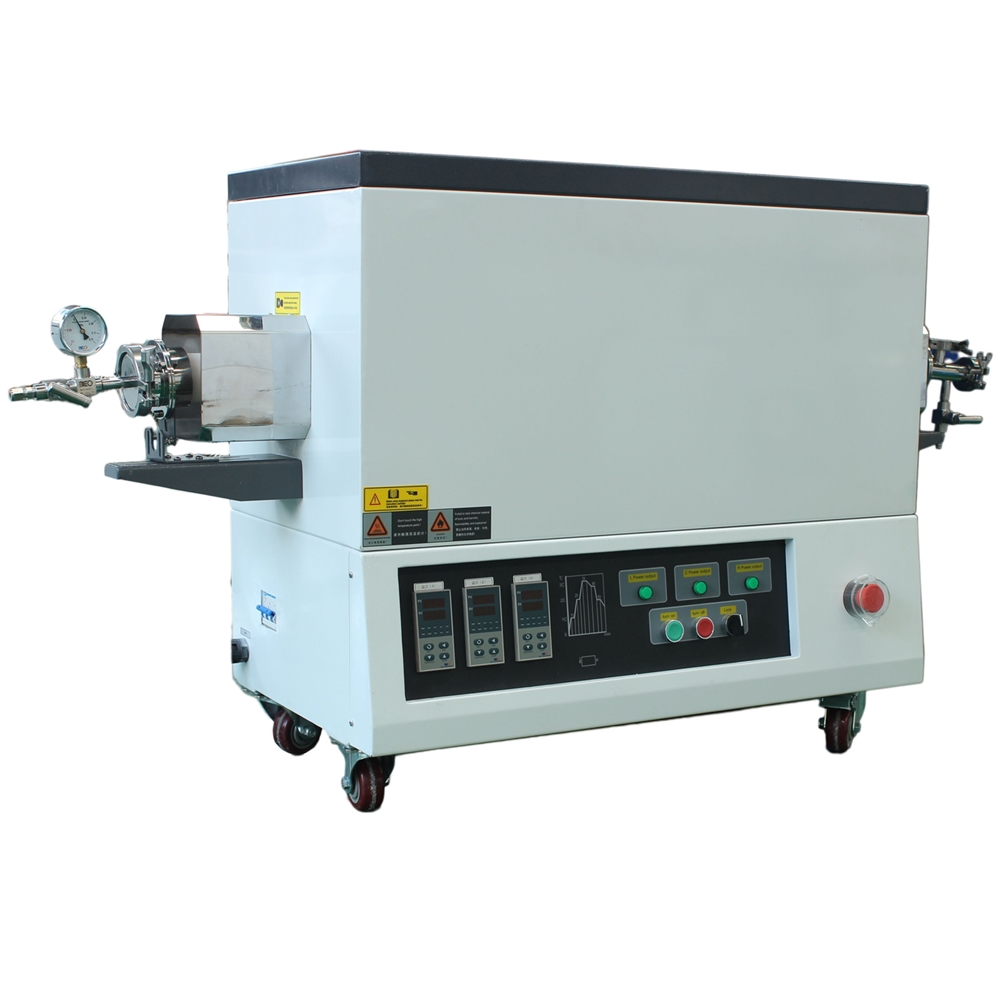

1400/1800 Tube Furnace Features
Using silicon carbon rod heater densely packed in the furnace chamber, the temperature field is uniform, the constant temperature zone is super long;
Using double shell structure and with air-cooling system;
Reasonable structure, simple and convenient experimental operation;
Configuration of flange support frame, reduce the weight of the furnace body;
Adopting high purity alumina as the furnace chamber material, the surface of the furnace chamber is coated with high temperature alumina coating imported from the United States to improve the heating efficiency and the service life of the furnace.

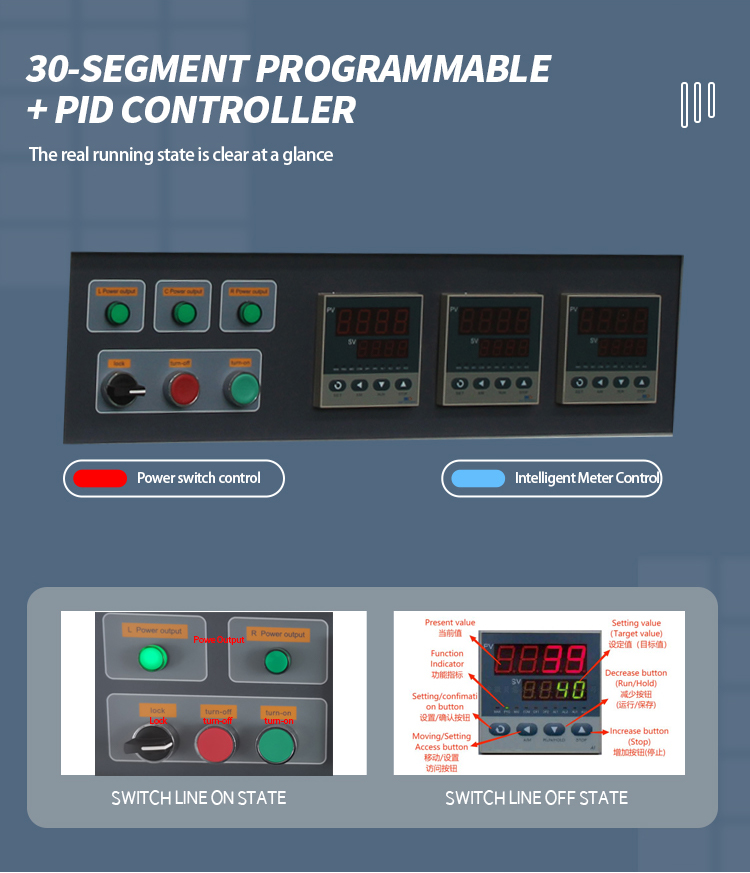

Temperature Control System
Fuzzy PID control and self-tuning regulation.
Intelligent 30-segment programmable control, according to different customer needs to set the temperature rise and fall procedures.
With over-temperature and broken-couple alarm function.
K-type thermocouple, temperature control accuracy ±1 °C.

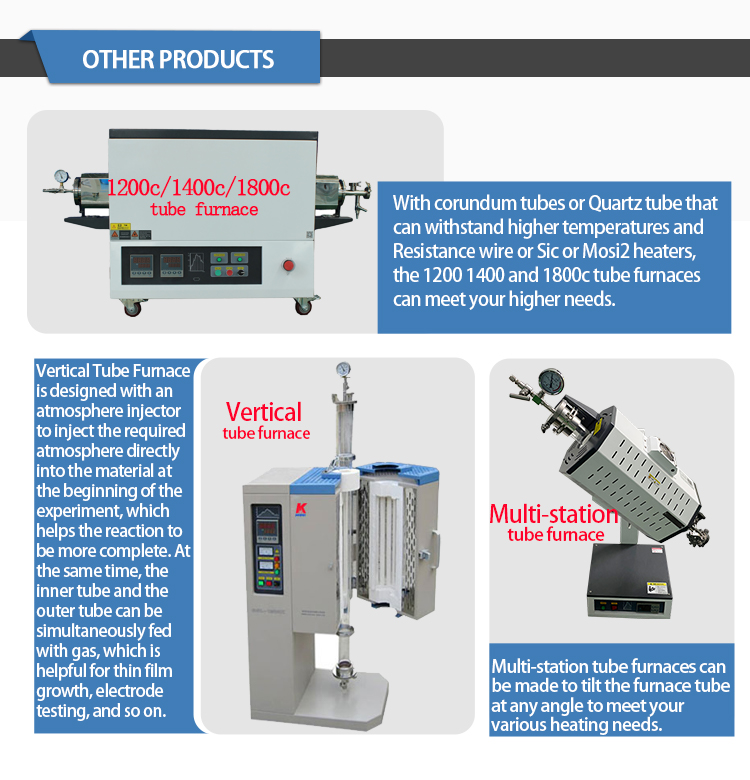

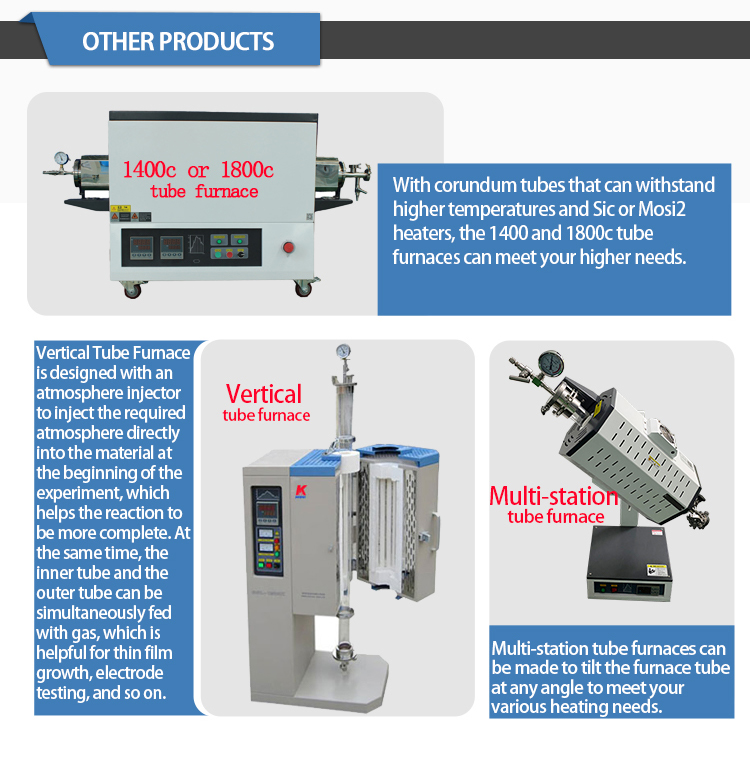

In addition to the standard 1200/1400/1800c Vacuum Atmosphere Furnaces, we offer a wide range of Multi-station/Sliding Tube Furnaces and Vertical or Horizontal Tube Furnaces, etc. If you would like to obtain the most suitable furnace for your use, please contact us to discuss further details.
Company Profile

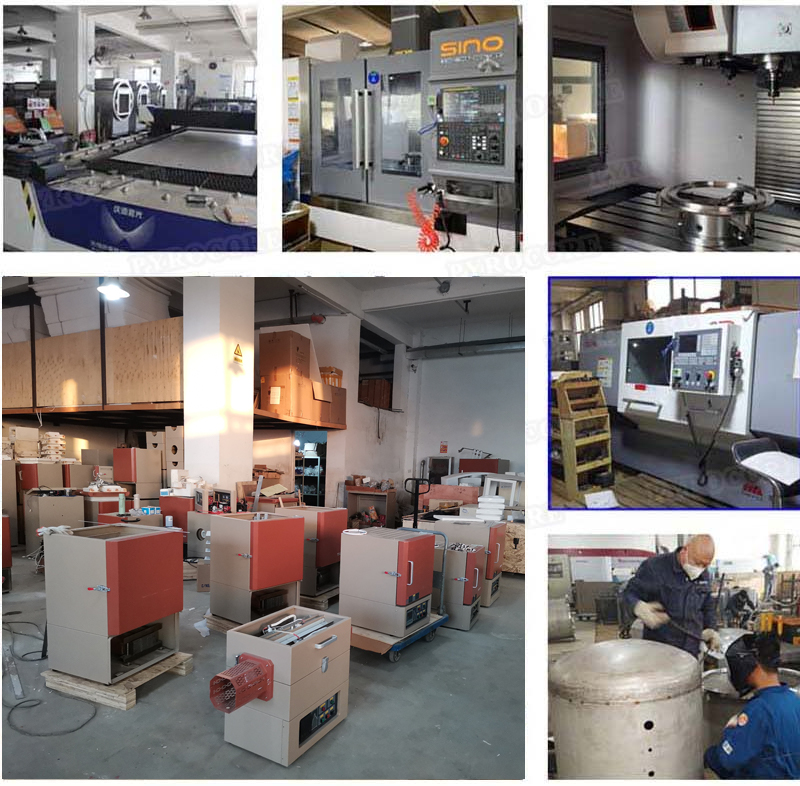

Our Factory
We have a complete set of mechanical equipment and senior technicians with rich production experience in the production of heating equipment. We can design and complete heating equipment for you according to your needs in the shortest cycle. Welcome to consult us.
We have been engaged in high-temperature heating equipment for more than ten years, and have been focusing on the R&D, design, and production of heating equipment. Especially in the rotary tube furnace and high-temperature vacuum furnace with rich production experience. We have the ability to tailor-made for you according to your production process requirements and customize a heating device that meets your requirements. If you have this need, please contact us.
Over the years, we have focused on providing customers with heating equipment solutions, and customer satisfaction is also our goal. If you need heating equipment, please contact us.
Packing & Delivery
Package:
To ensure that customers receive the stove and accessories without any damage, we pack the stove in three layers.
First, the stove is wrapped in clear plastic paper, and then the gaps are filled with Styrofoam. Finally packed in wooden boxes and reinforced with steel straps.
Shipping:
1. By express, such as DHL, UPS, FEDEX, etc. It usually takes 3-4 days to arrive.
2. It usually takes 5-7 days to arrive by air to the air port.
3. By sea to seaport, it usually takes 15-30 days to arrive. (depending on the voyage)
4. If your delivery time is urgent, we suggest you choose express or air freight.
5. If it is not very urgent, we recommend you to choose sea freight, which is very cheap.
Frequently Asked Questions
1. Can you customize a product without a design solution?
We have a professional team of designers who can provide design solutions and process according to customer requirements for equipment.
2. How to ensure the quality of products?
Before delivery, we will test each function of the equipment, and issue a test report for customer inspection, and then deliver the goods after confirmation.
3. How long will it take to ship?
Generally 25-40 days, depending on your specific requirements for equipment.
4. Are we unprofessional in the operation and installation of your machine?
We will provide product instructions and installation instructions, and if necessary, we can provide video instructions for installation. Also, we have professional engineers who can solve all problems.
5. How to ship?
We support sea, air, rail transportation, etc., you can choose according to your needs. Of course you can also arrange the transport yourself.
6. What heating elements are used in your tube furnaces?
We use resistance wires for temperatures up to 1200 °C, Silicon Carbide (SiC) rod heaters for temperatures up to 1400 °C, and Molybdenum Disilicide (MoSi2) rod heaters for temperatures up to 1700 °C.
