UV LED Curing Machine for Water Transfer Decals Screen Printing Water Slide Paper Coating

1 / 5

UV LED Curing Machine for Water Transfer Decals Screen Printing Water Slide Paper Coating

Send Inquiry

Product Description

Product name	UV LED curing machine
Power	220V 50HZ
Light wavelength	395nm (accept customized)
Conveyor High	85 CM
Weight	250 KG
Conveyor Length	600mm / 720mm / 800mm
Conveyor width	600mm / 720mm / 800mm
Lamp power	3.6kw / 4kw / 4.3kw
Shining way	Vertical light emitting chip
Cooling system	Water cooling with power in one
Working temperature	40°C below

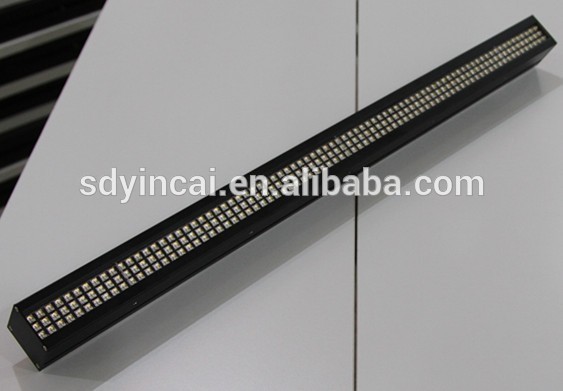

Light source	7070 LG LED
Product size	7070 LG LED
Packing size	2.511.3m

Key Features

Super Long Life

LED-UV lamp imported from Korea. Service life over 20,000 hours. Our guaranty is 3 years or 10,000 hours.

Advanced Cooling System

The light source module is cooled by a water cooling system for a stable and reliable curing effect.

Thermal Protection

Heat remains stable under 45℃ during long-term operations. The luminous chip automatically powers off and alarms if temperatures exceed 45℃.

Custom Specifications

We customize LED-UV curing machines to fit various light lengths, manual lifts, or conveyor belt configurations.

Eco-Friendly & Safe

Operates with no ozone emissions or UVC rays, ensuring a completely safe working environment for operators.

Ultra-Low Power Consumption

Significantly reduces energy use, saving 5 to 20 times more power compared to traditional UV curing equipment.

Applying with UV-LED screen printing ink is a perfect match. Suitable UV-LED inks include water transfer printing ink categories, PET, PC, and other plastic ink categories, coated metals, foil laminations, etc. Depending on the specific wavelength requirements and characteristics, various specifications and properties can be made to order. The UV-LED lamp includes a three-year and 10,000-hour warranty.

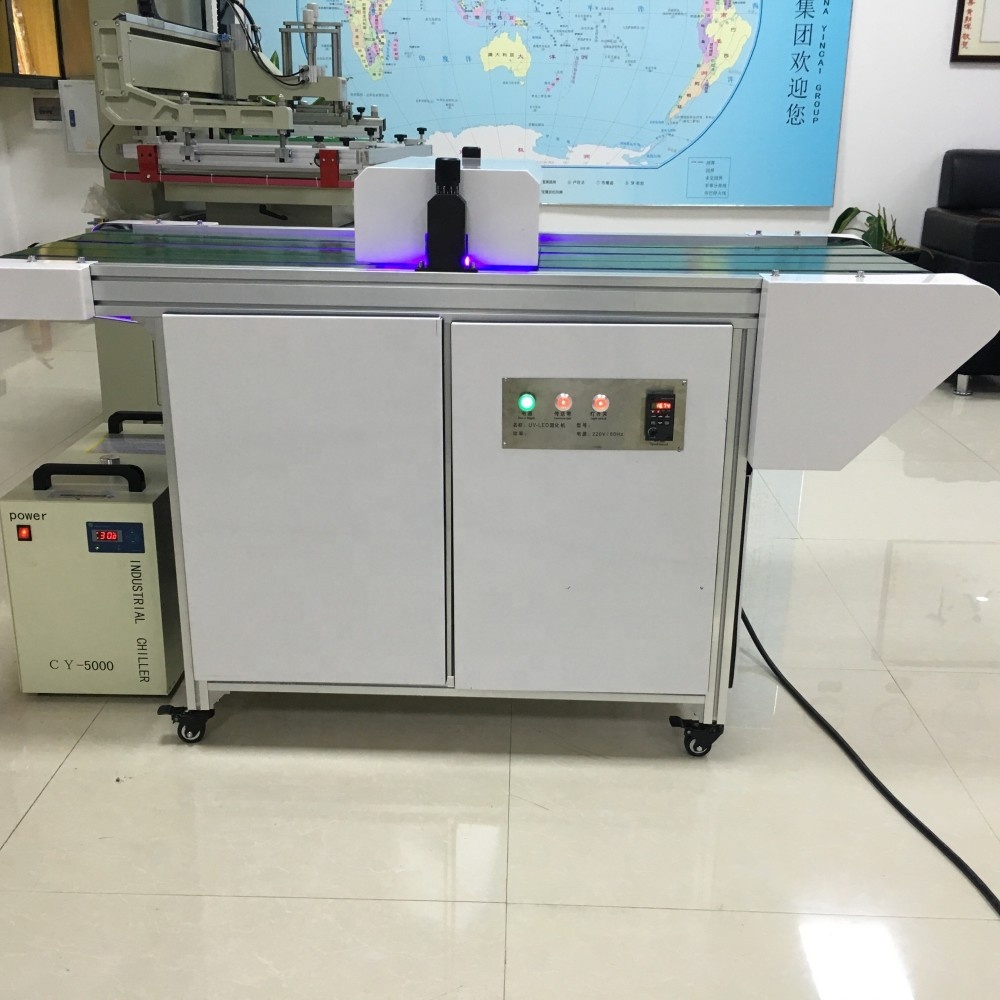

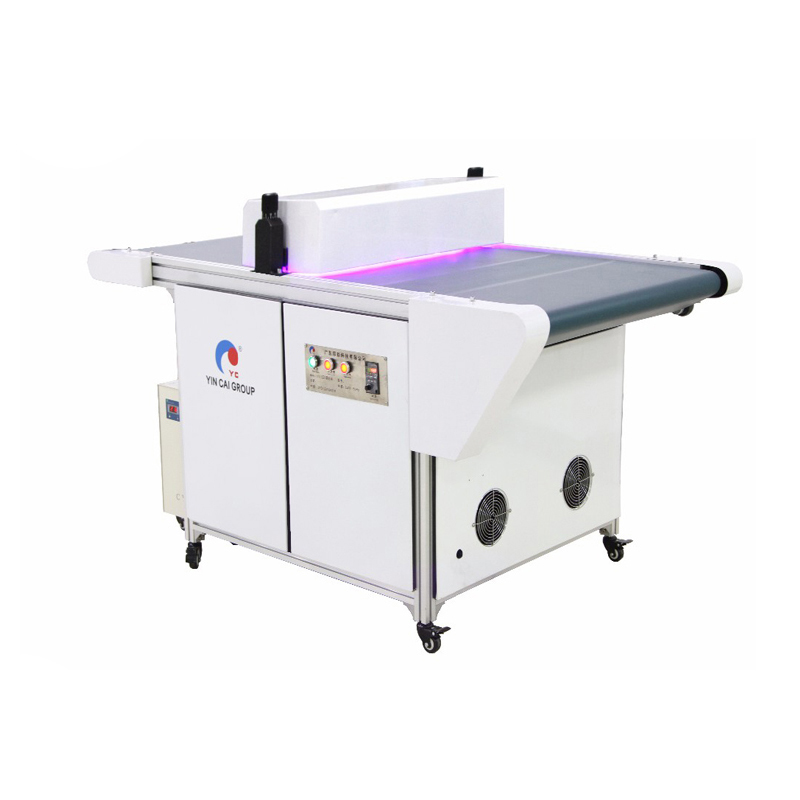

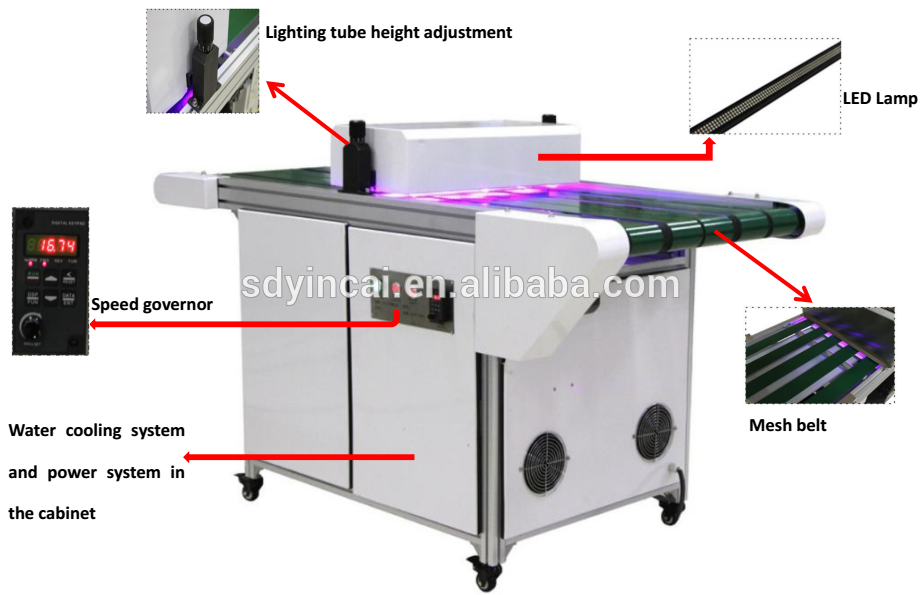

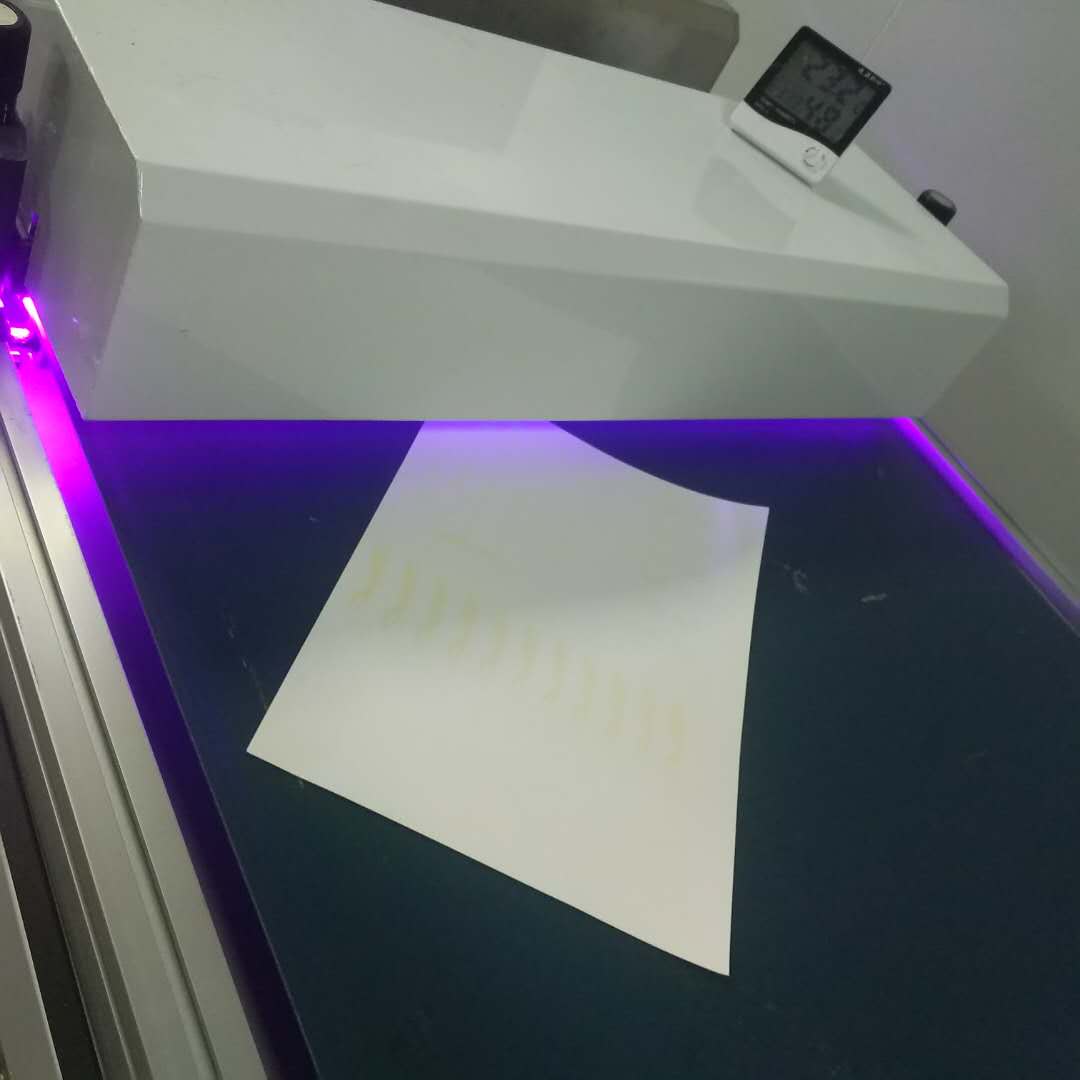

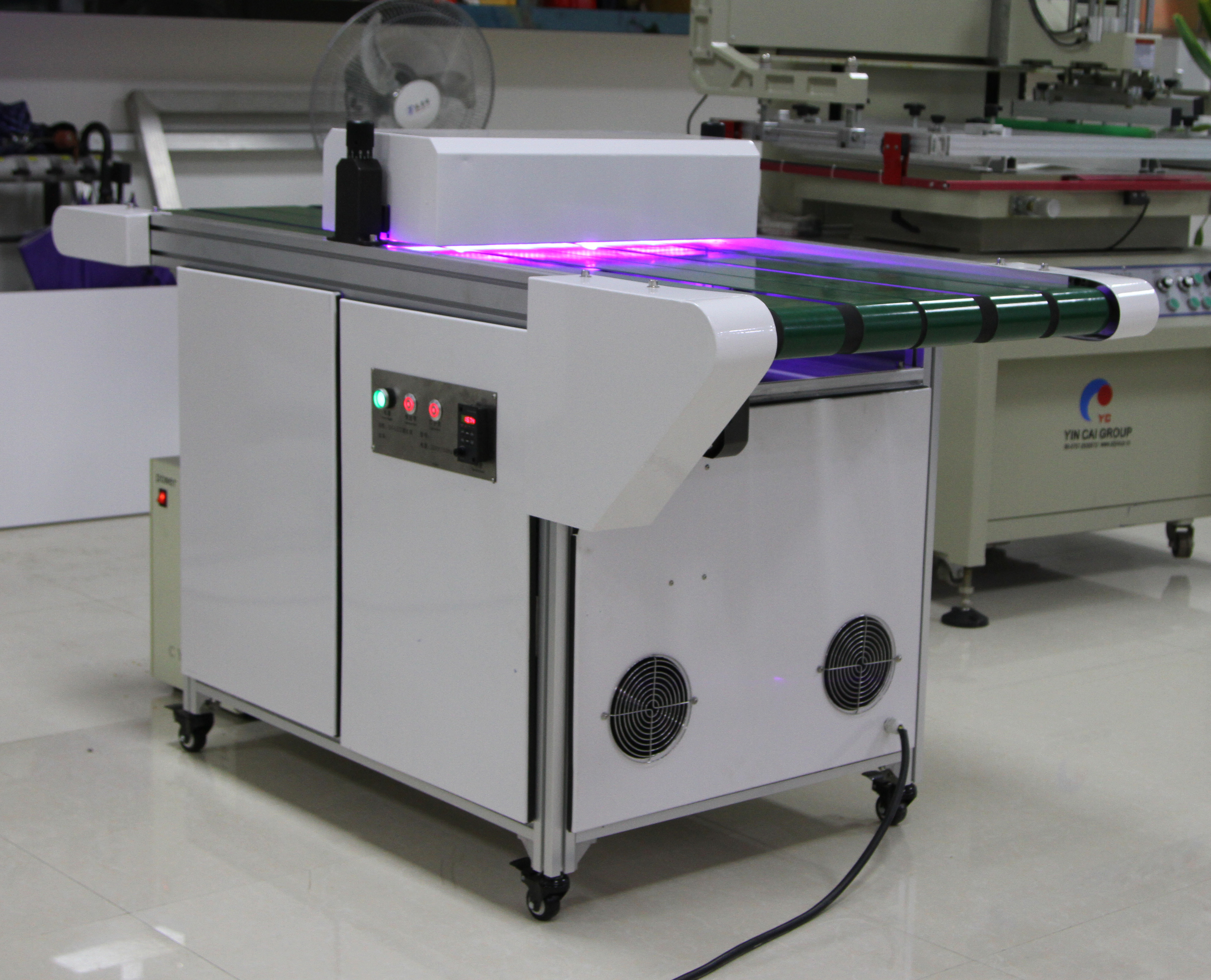

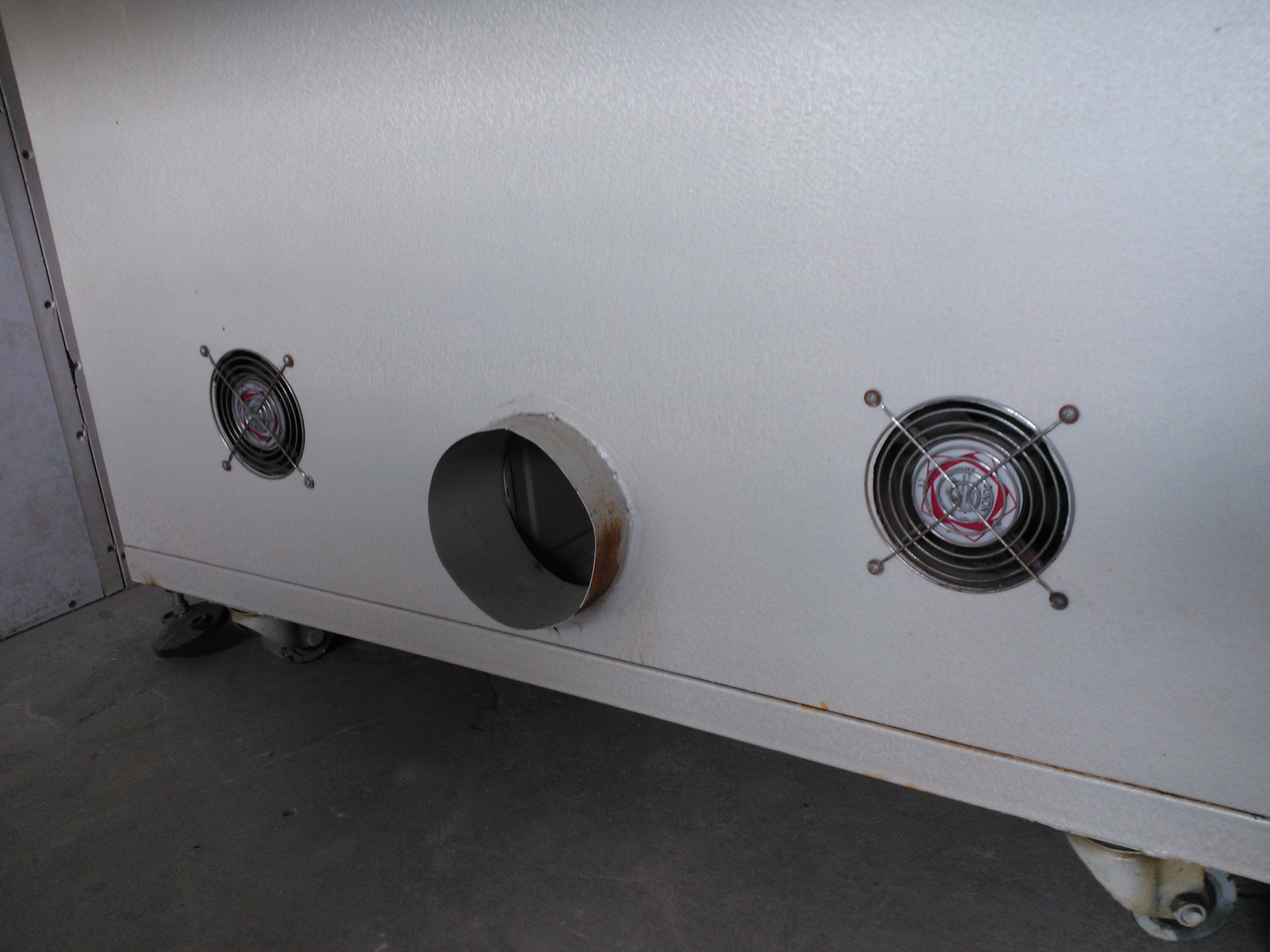

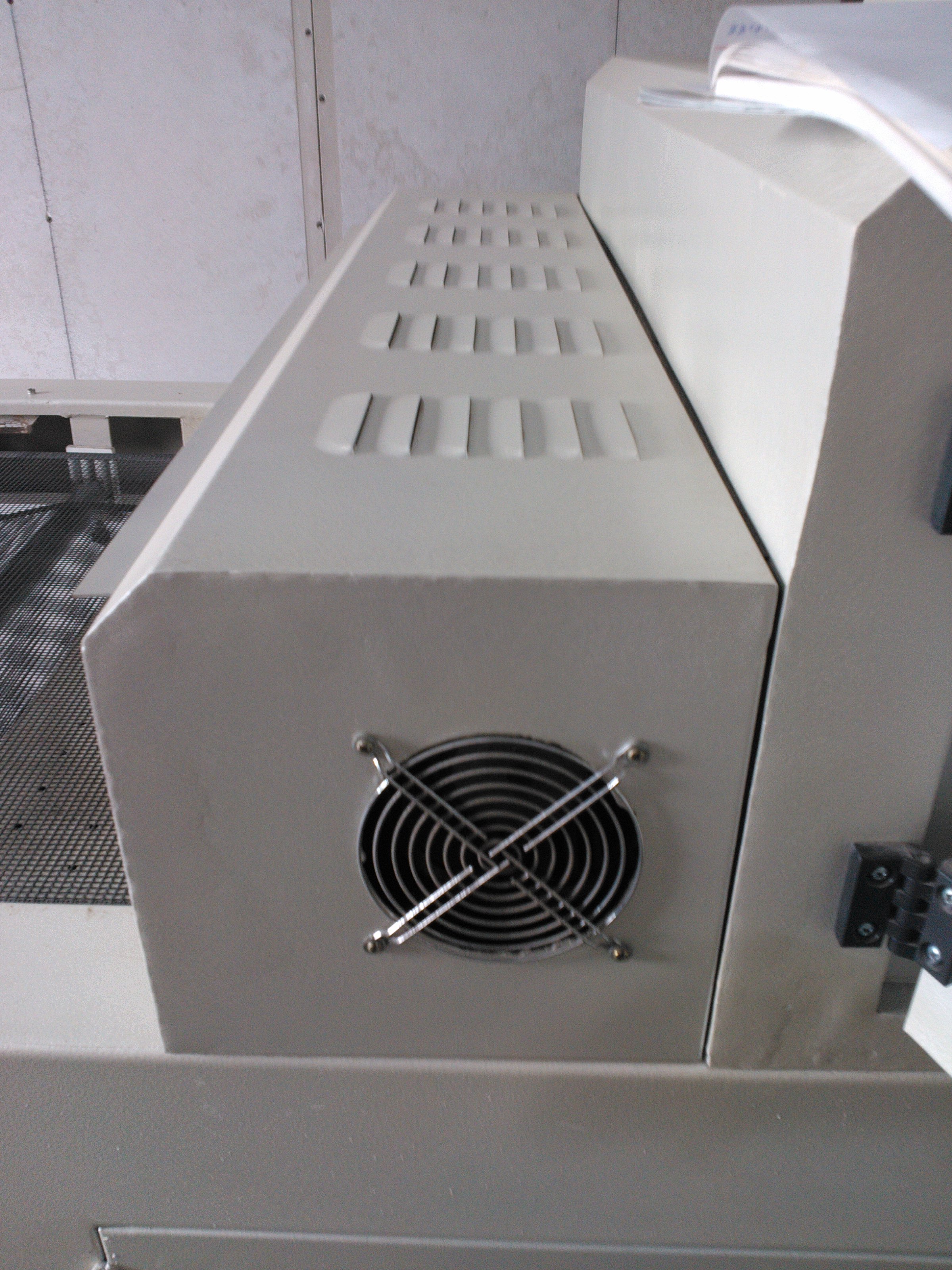

Detailed Images

Frequently Asked Questions

Q What printing materials are compatible with this system?

It is compatible with water transfer ink for water slide decal paper. The suitable water slide substrates include glass, ceramics, metals, plastics, and wood.

Q Why choose our water transfer screen printing solutions?

Our manufacturing facilities have specialized in water transfer screen printing (including decals, ink, and machinery) for over 16 years (since 2006). We hold proprietary product patents and work with highly experienced technicians to oversee the entire production process, ensuring industry-leading quality and minimizing after-sales issues.

Q How long is the standard delivery time?

Generally, delivery takes 7-10 working days for decals and 15-25 working days for machinery, depending on the ordered quantity.

Q What are the accepted payment terms?

We accept T/T. For sample orders, 100% payment is required prior to production and once order details are confirmed. For batch orders over USD 1,000, a 50% deposit is required in advance, with the remaining 50% balance paid before loading.

Q What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 piece. (Note: Decals may incur an extra module fee; ink is available starting at 1 kg or 1 liter).

Q What warranty is provided for the curing system?

The UV-LED curing system lamp comes with a comprehensive warranty of 3 years or 10,000 operating hours.
