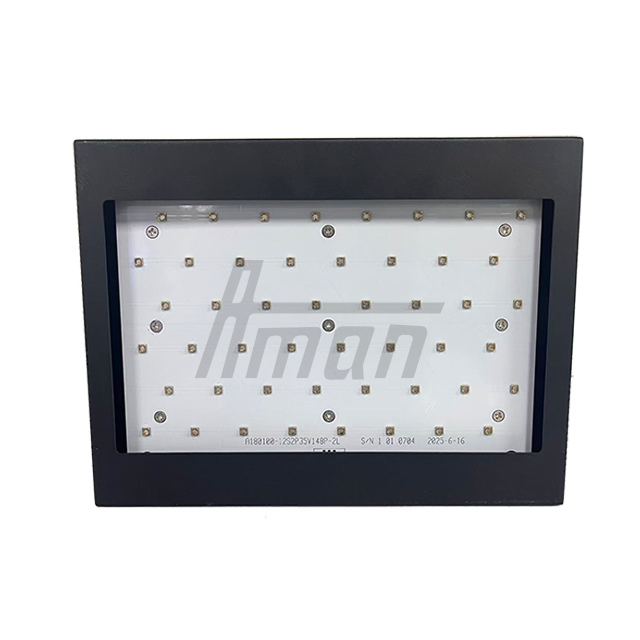

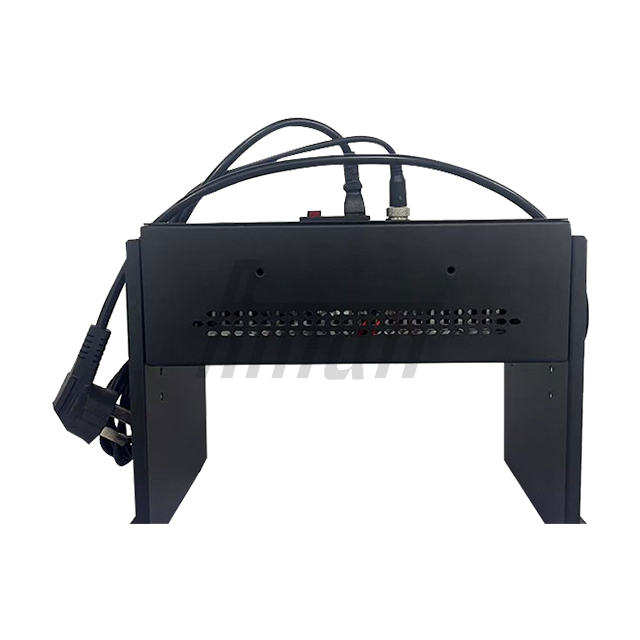

UV LED Integrated Machine - 300W

Power: 300W Luminous Dimensions: 280*100mm

Model	AIOV1H280100F-12S2P
Power	300W	Lifespan	15000-20000h
Chip	SA	SA	SA
Peak Wavelength	365nm	395nm	405nm
Max Optical Power	400mW/cm²	800mW/cm²	800mW/cm²
Luminous Dimensions	280*100mm	Material	Sheet Metal

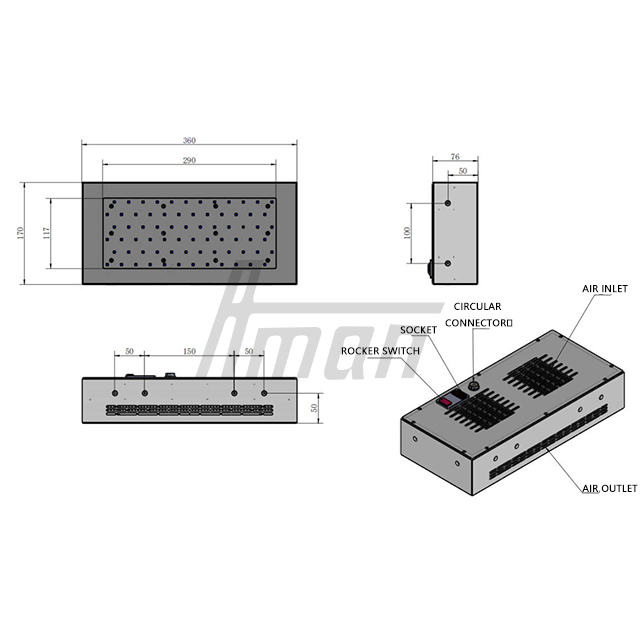

Overall Dimensions	L360*W170*H76	Usage Environment	0℃-30℃ / 30%-85%RH
Net Weight	3.25KG	Illumination Altitude	30-50mm

Product Description

High Quality and Professional UV LED will Bring You Better Benefits

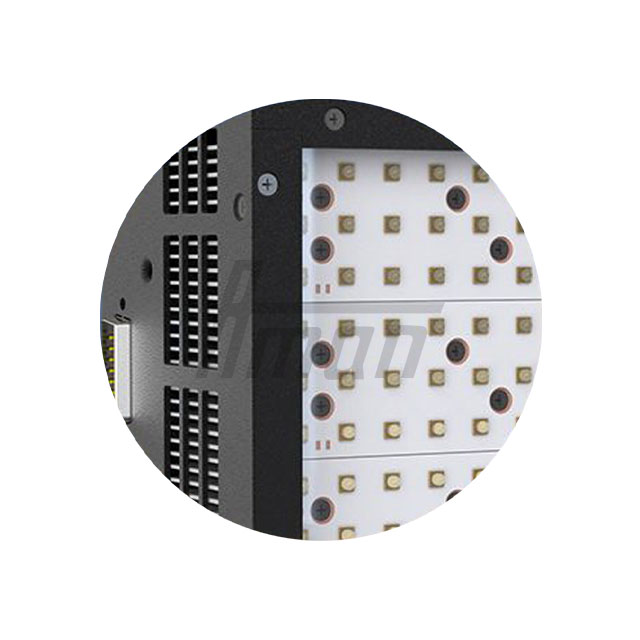

Excellent Materials

Aluminum alloy sheet metal material has a smooth surface, good hand feel, corrosion resistance, and wear resistance.

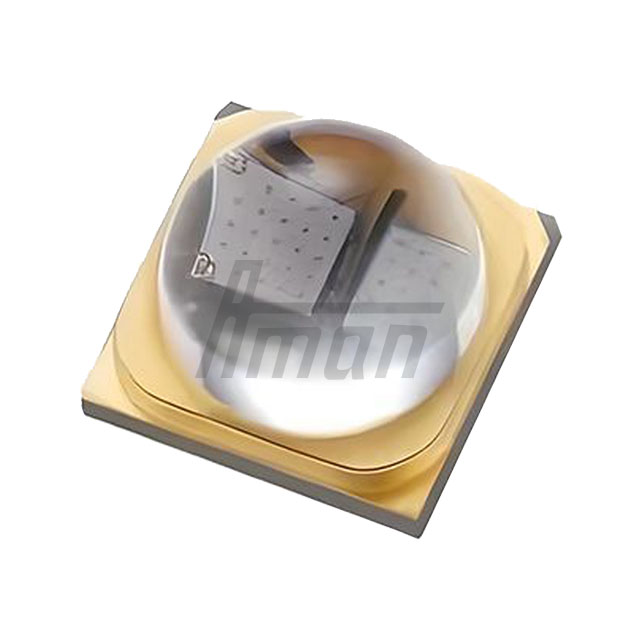

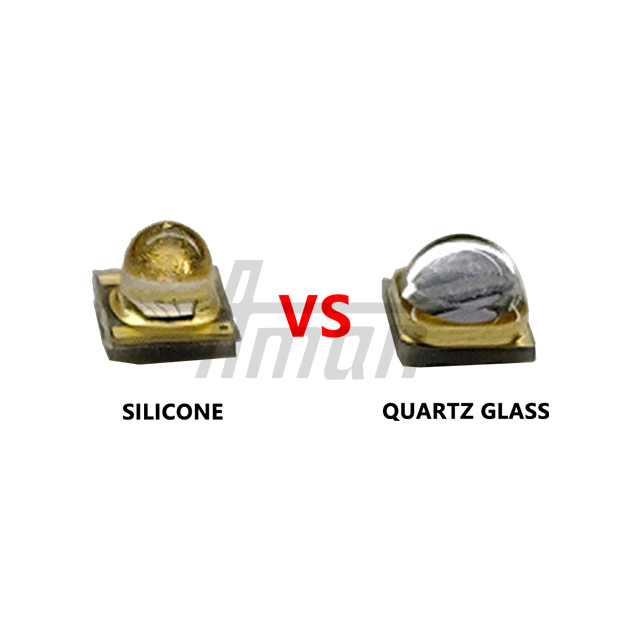

Quartz Lens

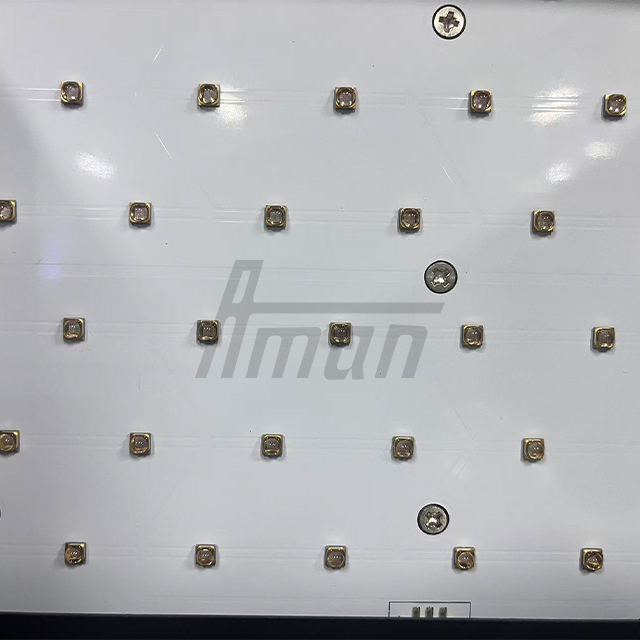

Using original chips, more stable and efficient.

Efficient Heat Dissipation

High quality fan, strong wind power, good heat dissipation, and more stable product.

UV LED Advantages

• Stable work and long service life, more than 20,000 hours.
• Low operating costs, no consumables, low power consumption, and simple maintenance.

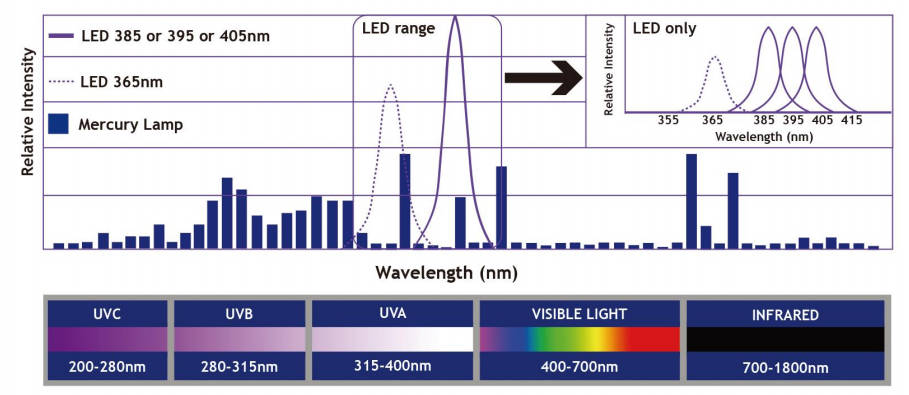

• Pure ultraviolet wavelength, no infrared output, cold light source.
• No need to preheat, that is, open and close, the intensity reaches the highest instantaneous, production efficiency is fast.
• LED chip light source, no mercury, zero pollution, green, safe and environmentally friendly.

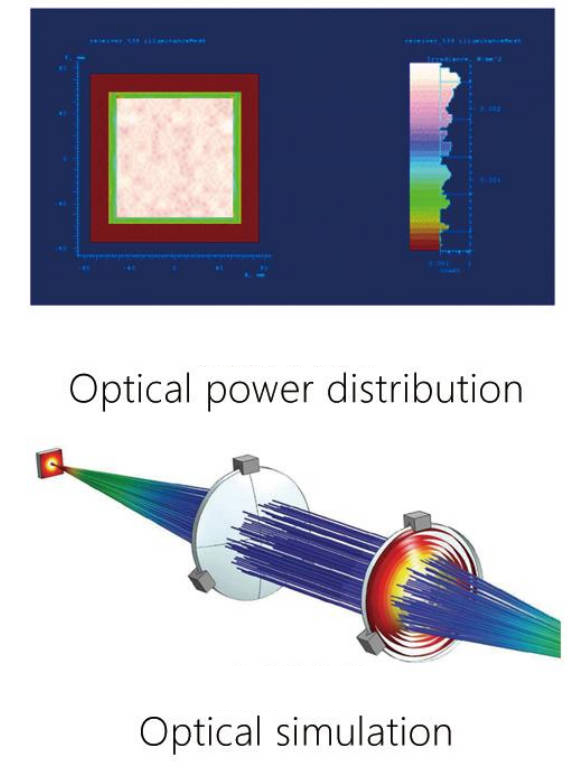

• Optical lens focusing, high optical power, good uniformity.
• Multi-channel independent control, work independently.
• Under the volume, light weight, easy to install and use.

UV LED Curing Light Selection Method

• 1
  Select Wavelength: 365nm, 395nm, 405nm

  If you don't know how to choose, you can ask the UV glue or ink supplier. According to the industry experience: UV glue is generally 365nm or 405nm, and UV ink is 395nm.

• 2
  Luminous Windows: Length and width of the product to be irradiated in mm

  If the above is flow irradiation, normally only the length needs to be provided.

• 3
  Choose energy: Energy required to cure the glue or ink in mJ or MW

  mJ and other UV lamps MW*time S, for example: 1000MW/cm2, 3 seconds is 3000mj, the mW value is directly related to the irradiation distance.

• 4
  Controller: Touchscreen version and rotary knob

  The touch screen version has stronger functions, and the price is different from that of the knob type. You can choose according to your needs. For specific functions, please check the controller page.

• 5
  Control Method: Passive short-circuit and active 24V input

  Select the control method as needed, UV printers generally use 24V input, and the rest use passive short-circuit lighting signals (dry contacts).

• 6
  LED Lamp Cable: Standard Length: 2 meters, 3 meters

  The standard is 2 meters, and the other types are standard 2 meters and 3 meters. Choose the length of the wire according to the actual requirements. When using on a glue dispenser, it is recommended to choose the side outlet for the lamp head line.
