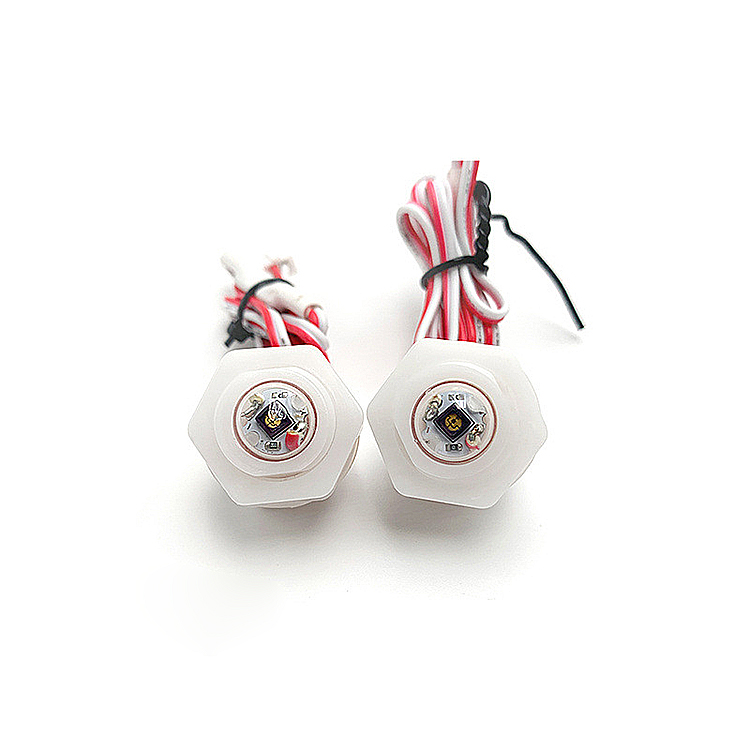

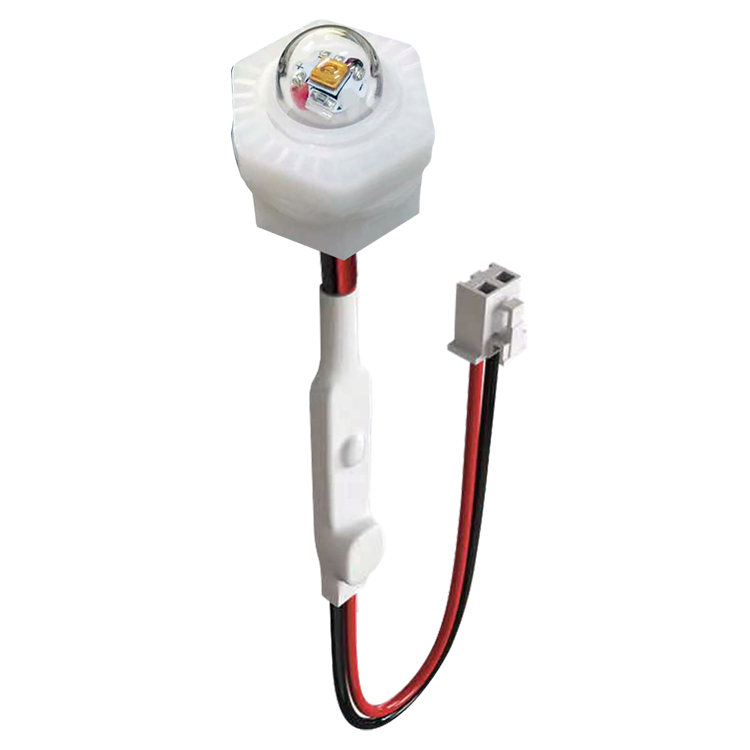

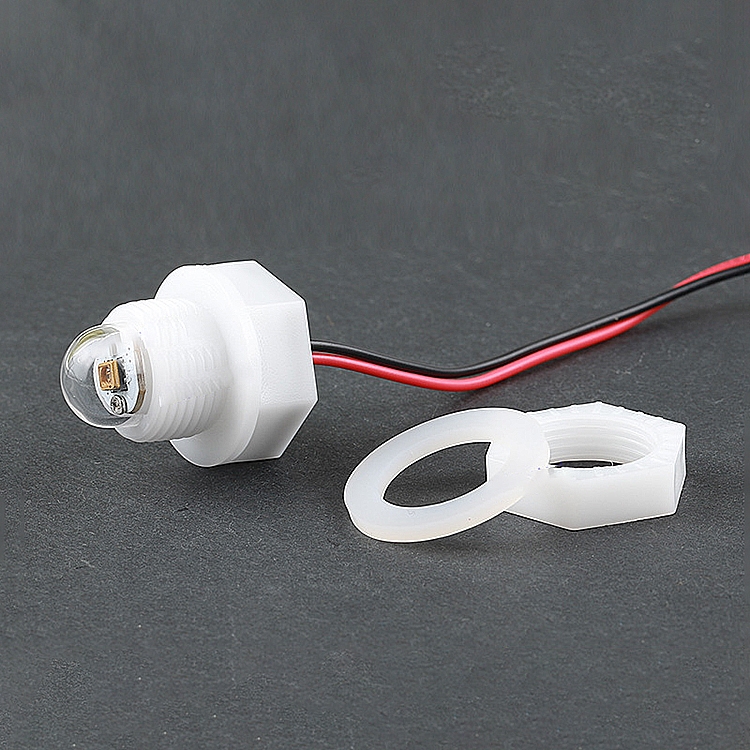

275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank
275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank
275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank
275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank
1 / 4
275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank
275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank
275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank
275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank

275nm 280nm Commercial Plastics Waterproof Water Proof Treatment System UVC LED Module For Water Tank

Send Inquiry

Product Description

Waterproof Water Treatment UVC LED Module
Products Display
JS-M920 UVC LED Module
JS-M920
Size: φ15mm*13mm (Thickness)
Voltage: DC12/24V
Output Radiant Power: 3-5mW
Peak Wavelength: 270-280nm (Regular)
255-260nm / 260-270nm (Customized)
JS-M940 UVC LED Module
JS-M940
Size: φ36.5mm*25mm (Thickness)
Voltage: DC12/24V
Output Radiant Power: 6-9mW
Peak Wavelength: 270-280nm (Regular)
255-260nm / 260-270nm (Customized)
JS-MB40 UVC LED Module
JS-MB40
Size: φ24mm*24mm (Thickness)
Voltage: DC12/24V
Output Radiant Power: 4-7mW
Peak Wavelength: 270-280nm (Regular)
255-260nm / 260-270nm (Customized)
Waterproof Water Treatment UVC LED Module Details
UVC LED Module Diagram

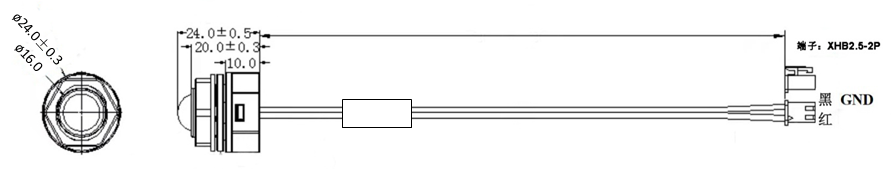

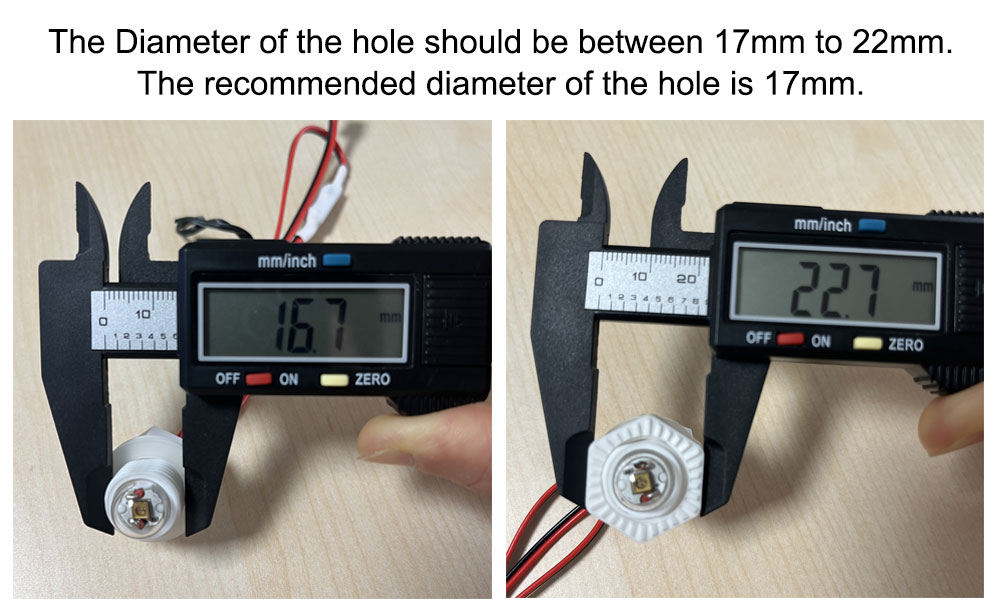

Waterproof UVC LED Module Dimension
Model MB40
Voltage DC12V or DC24V
Peak Wavelength 270nm-280nm (Regular)
260nm-270nm (Customized)
255nm-260nm (Customized)
UVC LED inside 35AM(UVC) (Regular)
35AH(UVC+UVA) (Customized)
35AR(UVC+Blue) (Customized)
Output Radiant Power 4-7mW, 7-12mW, >12mW
Sterilization Rate 99.9%
Application Water tank within 10L
Terminal Type Customized
Length of the wire Customized
ODM OEM Service

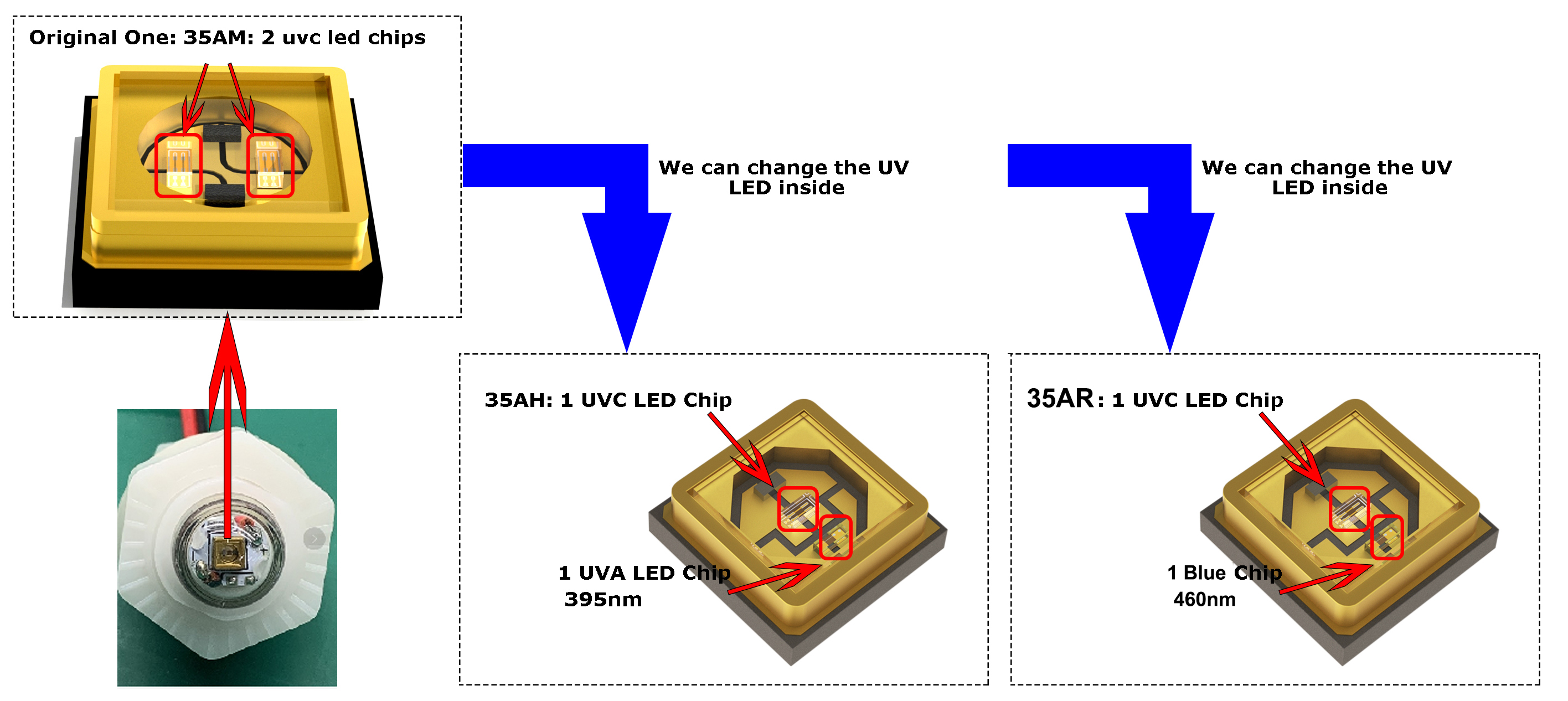

1. ODM OEM Service -- UVC LED
Not only the UVC LED Module, we are also the manufacturer of UVC LED, we can change the UVC LED inside according to your requirement.
ODM OEM UVC LED Options

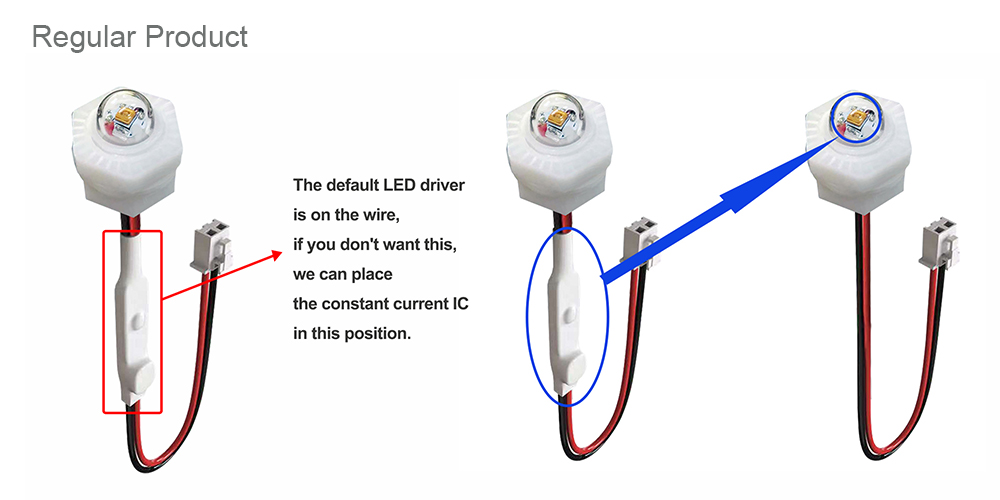

2. ODM OEM Service -- The position of the Constant Current Driver
Constant Current Driver Positioning

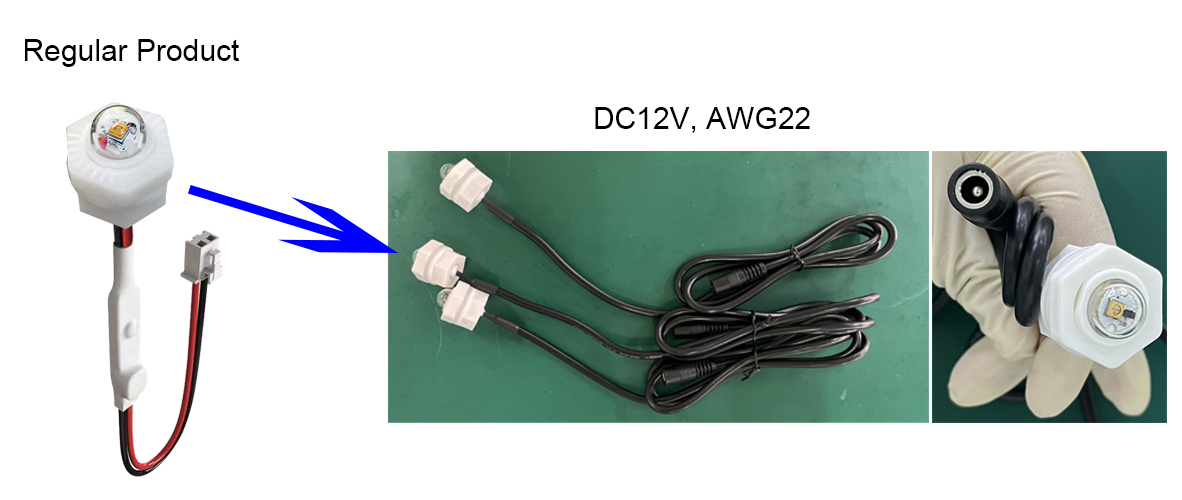

3. ODM OEM Service -- The Wire and the Terminal Type
Wire and Terminal Customization
Product Application
Waterproof Water Treatment UVC LED Module Usage
  • Water purifier
  • Pet water dispenser
  • Humidifier
  • Floor cleaning robot
  • Cabinet

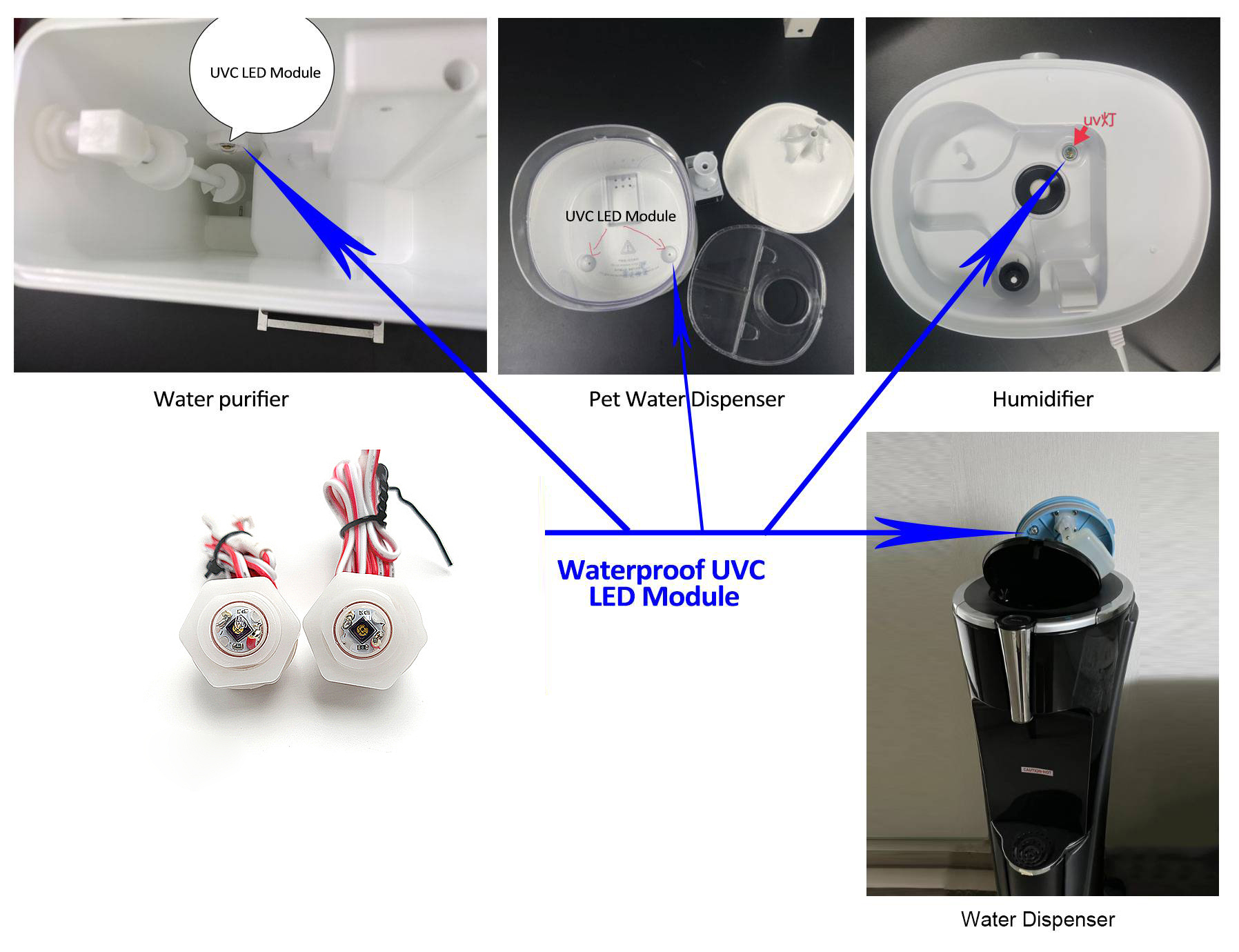

UVC LED Module Application
Why Choose Us - Advantage
1. Waterproof Test
---- Good sealing, no need to worry about leakage.

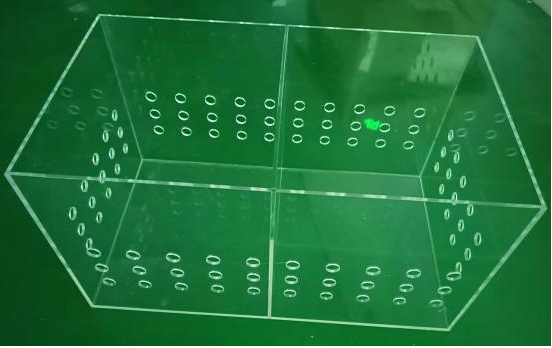

Waterproof Testing 1

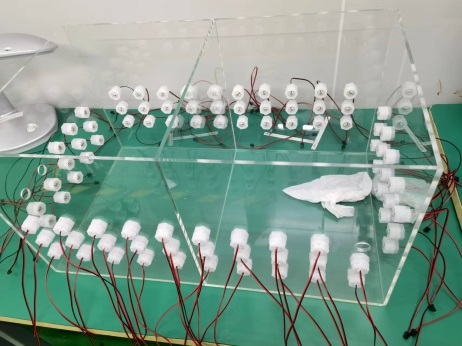

Waterproof Testing 2

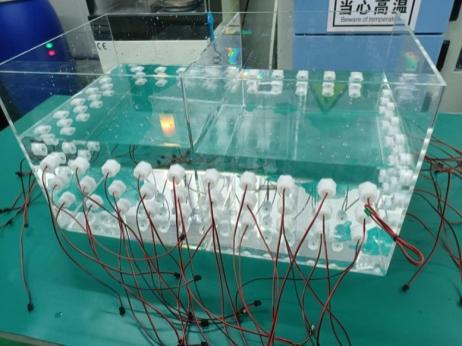

Waterproof Testing 3

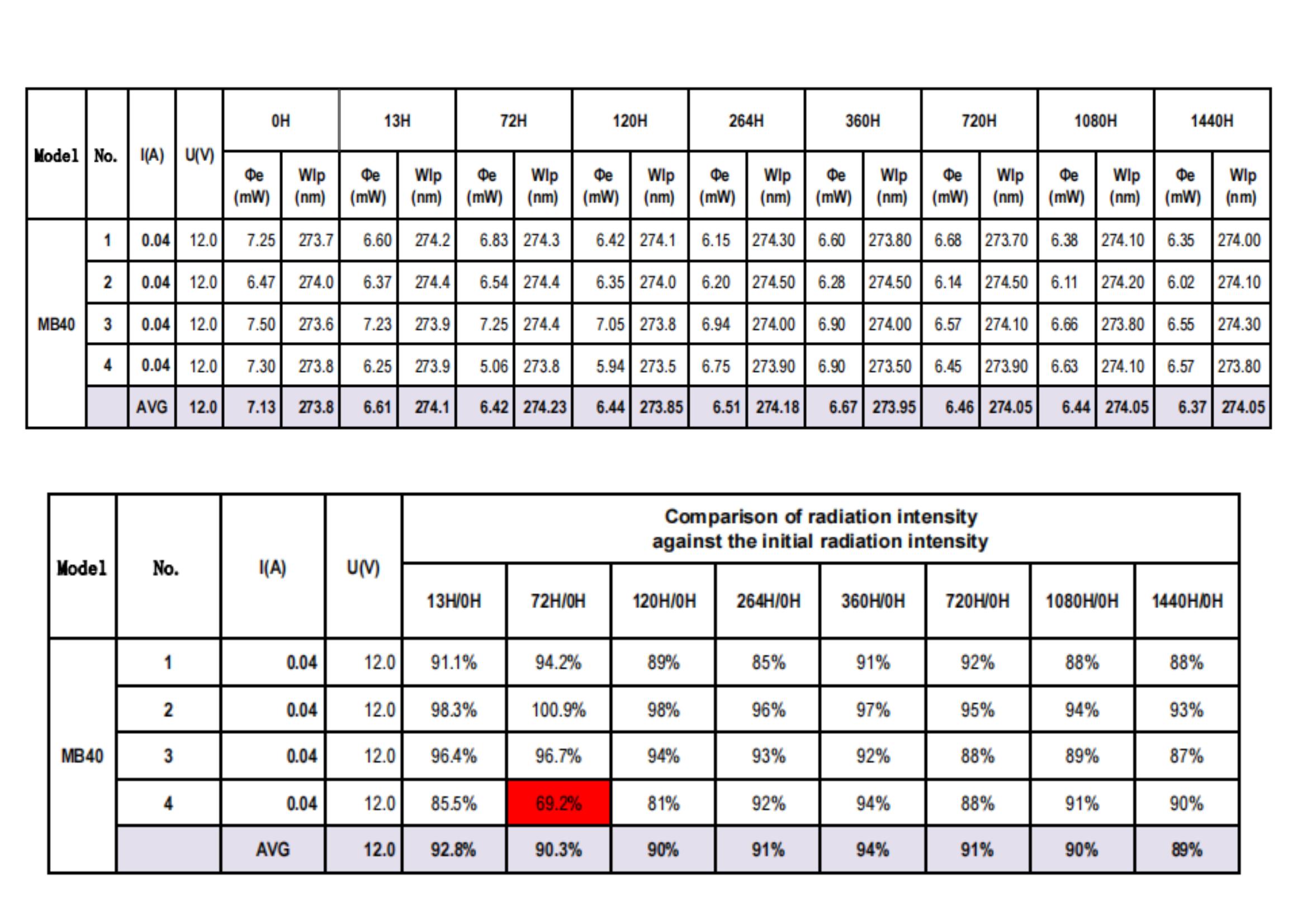

2. Aging Test
---- Strong stability, quality assurance.
Aging Test Process

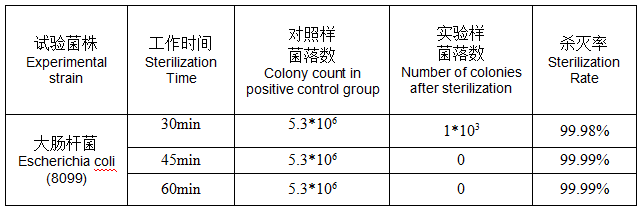

3. Bactericidal Test
---- We have our own microbiology lab and usually use E. coli to test the bactericidal rate of UVC LED modules.

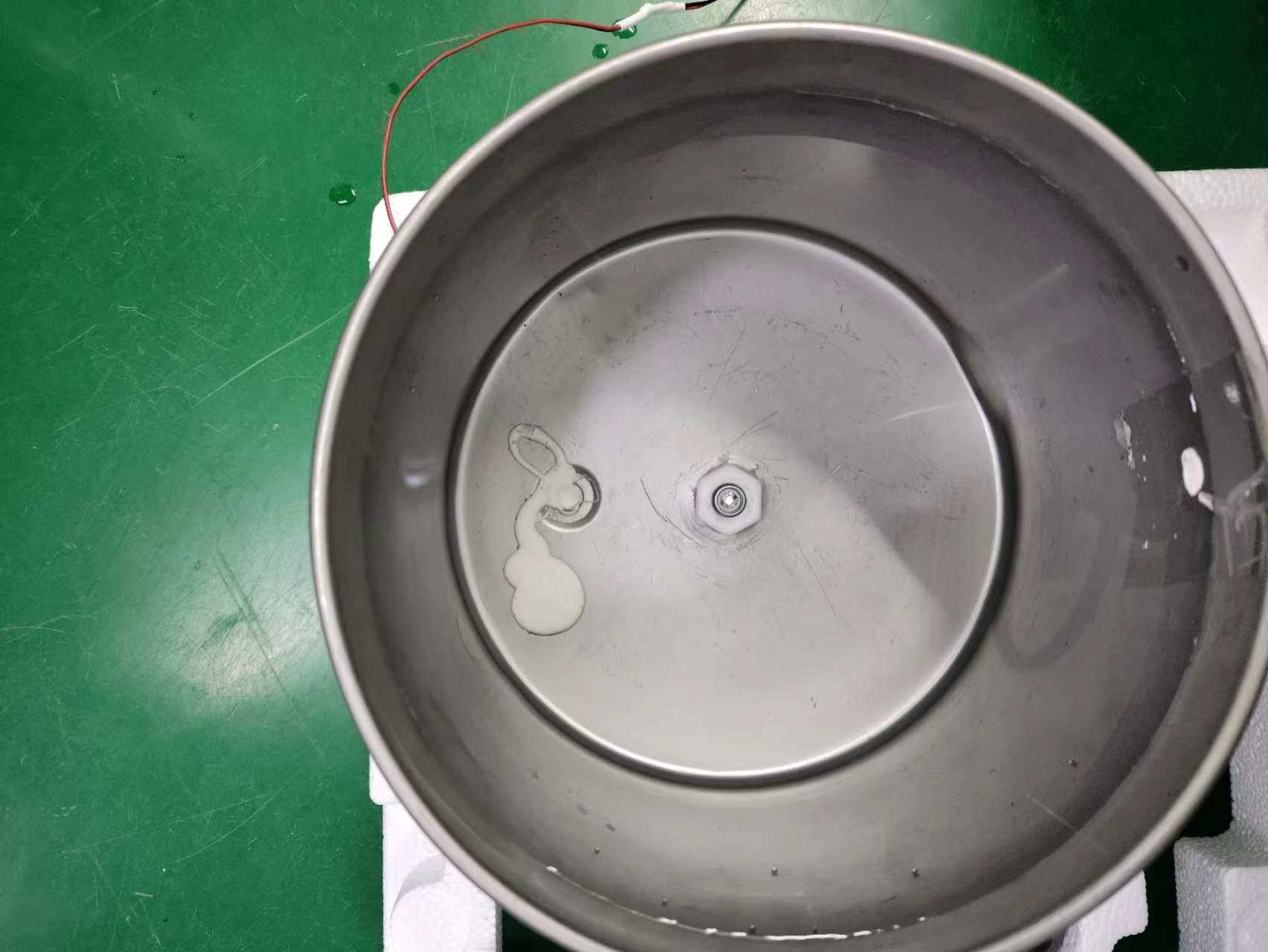

Microbiology Lab Test 1
Microbiology Lab Test 2
Microbiology Lab Test 3
Manufacturing Technique
Manufacturing Technique Flow
Company Profile
Facility Image 1
Facility Image 2
FAQ
Are you a trading company or a manufacturer?
We are a factory and have specialized in this field for more than 20 years.
Do you provide samples? Is it free or extra?
Yes, samples are charged and can be returned after formal order placement.
Do you accept customization?
Yes, we can provide you with ODM & OEM services according to your needs.
How long is your delivery time?
Generally, it is 7-10 days if the goods are in stock.
What size of installation hole is required?
A hole size of 17mm-22mm is required, with 17mm being the optimal choice.
What is the sterilization rate of these modules?
The UVC LED modules deliver an outstanding sterilization rate of up to 99.9%.
