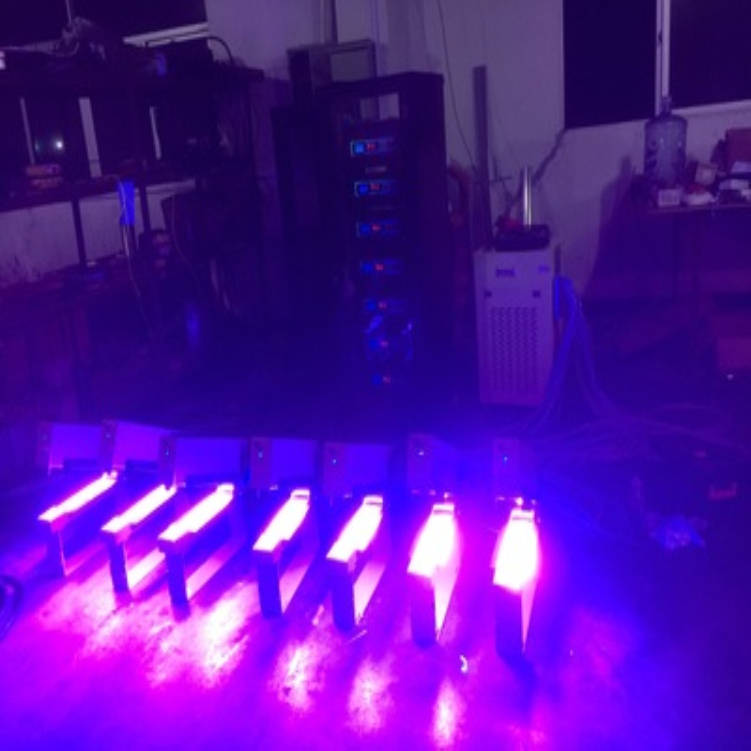

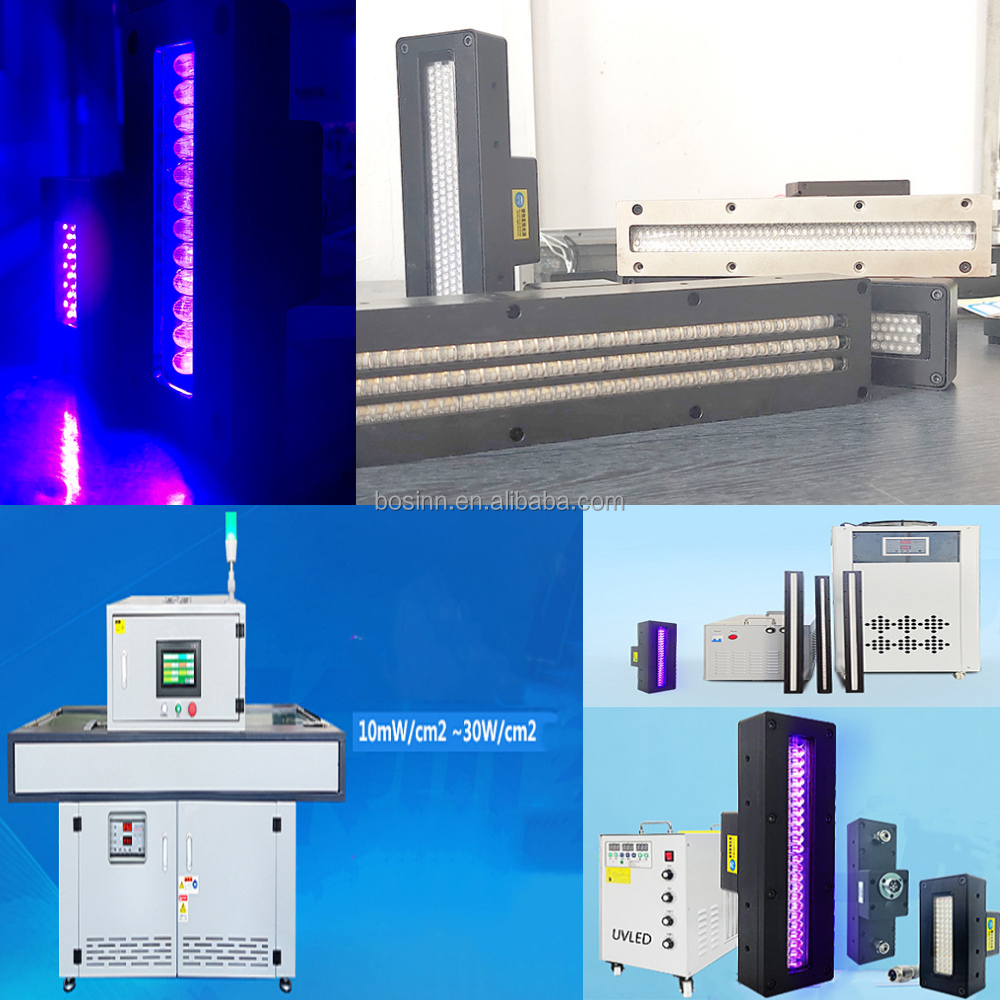

Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
1 / 5
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing

Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing

Send Inquiry

Product Description

LED UV curing lamp printing and printing EUV Silk screen Printing UVA ink Glue curing lamp complete equipment
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
Water Cooling UV LED Curing Machine Electronic Parts Components Shadowless Glue 310nm UV Curing Lamp for Flexo Printing
UV LED Source Parameters
Parameter Item Specification Details
Total light source power (W) 1296
Overall size of the light source head (L * W * H; mm) 670 * 103 * 200
Effective light output size (L * W; mm) 430 * 33
Effective curing size (L * W; mm) 450 * 35
Number of beads (pieces) 432

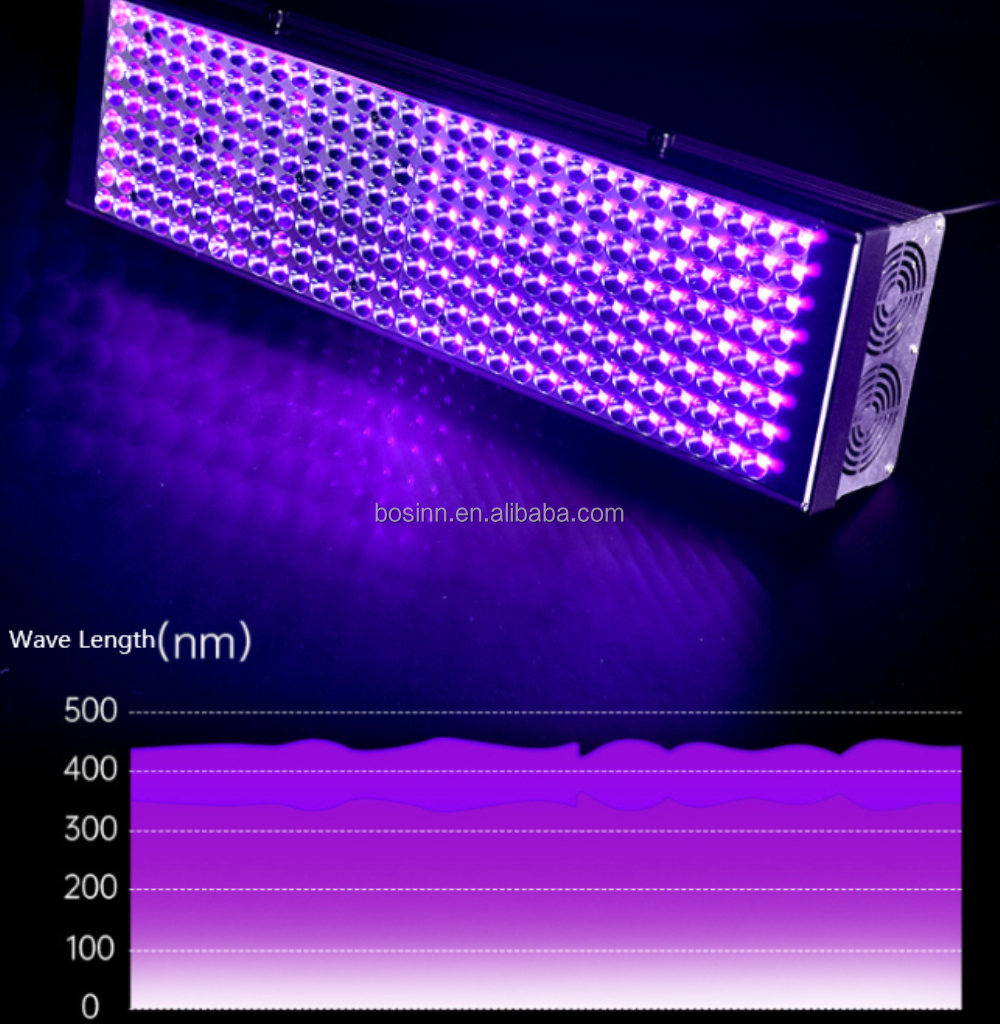

Wavelength (nm) 390 ~ 395
UV LED Light Source Features
  • High UV radiation intensity: Capable of replacing mercury lamps with significantly higher power consumption.
  • Eco-friendly & Energy-saving: Zero ozone and mercury emissions, making it safe for the human body and environment.
  • Instant On/Off: Switch on and off instantly as needed without any preheating cycle required.
  • Low Maintenance: Designed with a simple, robust structure that minimizes maintenance overhead.
  • Extended Lifespan: Engineered for highly durable performance and a long operational lifetime.
Technical & System Design Features
  • Modular Design: The light source head features a highly adaptable modular configuration.
  • Military-Grade Power Supply: Equipped with short circuit, leakage, overcurrent, overvoltage, and undervoltage protection systems.
  • Stepless Dimming: Allows smooth, precise control over curing output levels.
  • Smart Alarms: Built-in line disconnection and LED dead-point detection alerts.
  • Visual Interface: Clean operation display with sound and light alarm mapping to fast-locate faults.
  • Exceptional Uniformity: Assured UV energy uniformity metric ≥ 98%.
  • Versatile Applicability: Fully compatible with dry film, wet film, wiring, and solder masks.

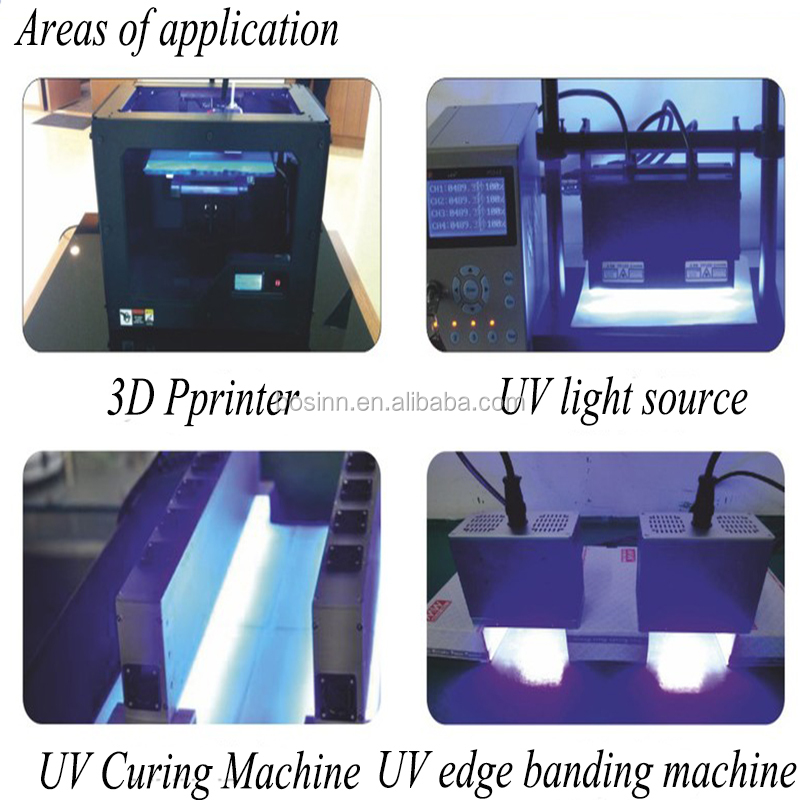

Primary Application Areas
Exposure Machines UV Inkjet Printers Character Printers UV Offset Printing UV Silk Screen Printing UV Pad Printing

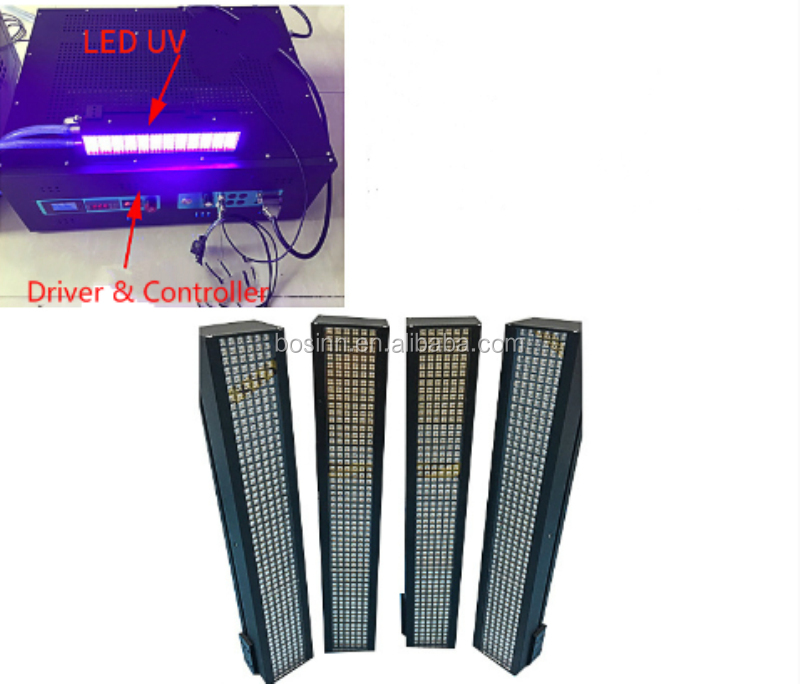

Water Cooling UV LED Curing Machine Application

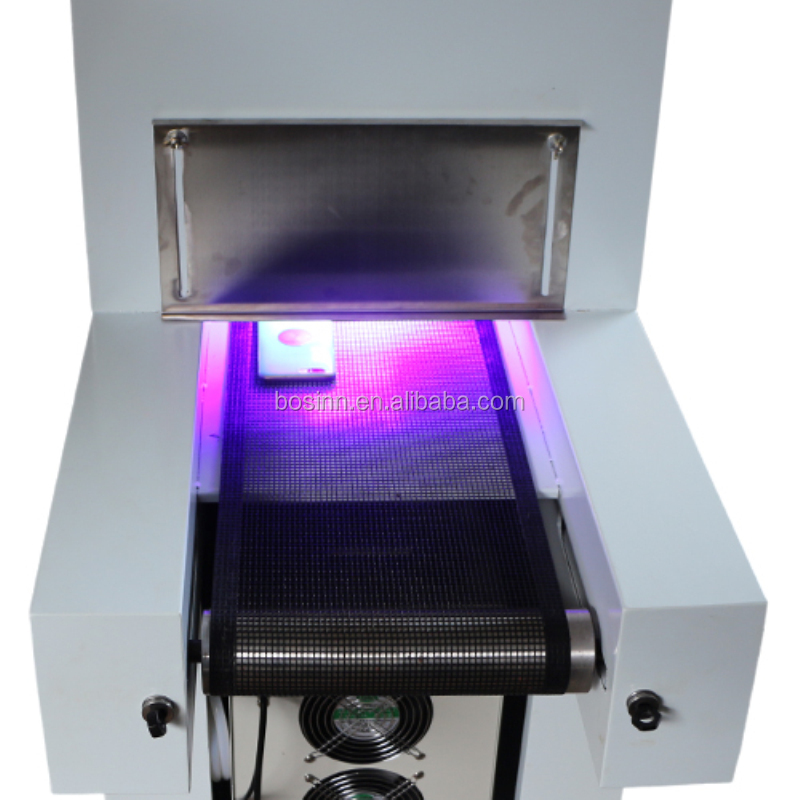

Water Cooling UV LED Curing Machine Close-Up

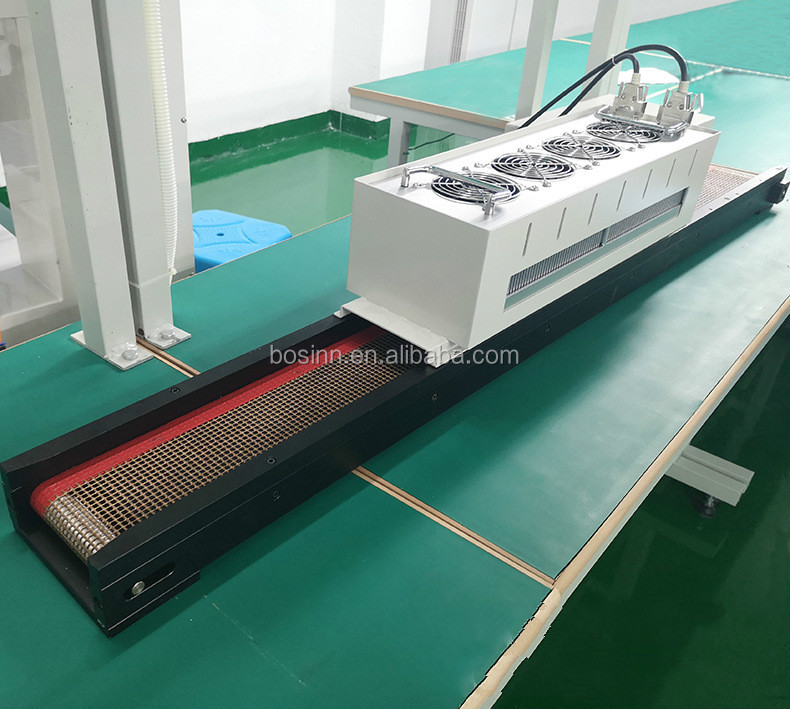

UV LED Curing Machine Components

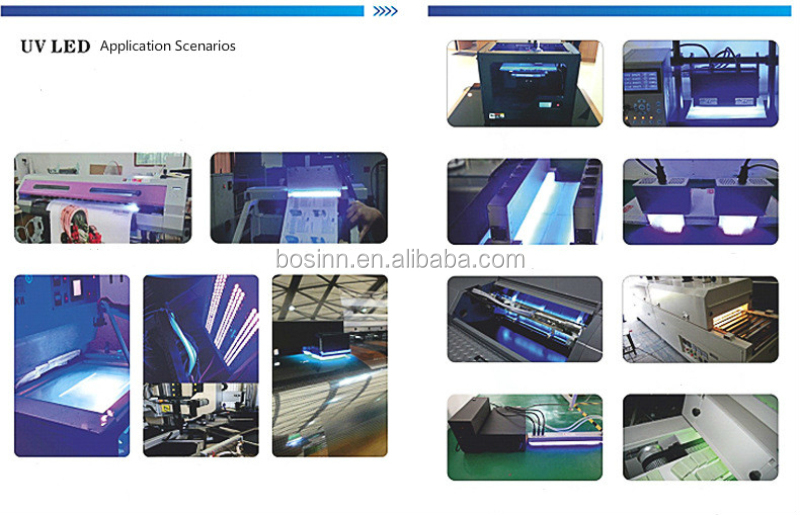

UV Curing System Details
UV LED Module Profile

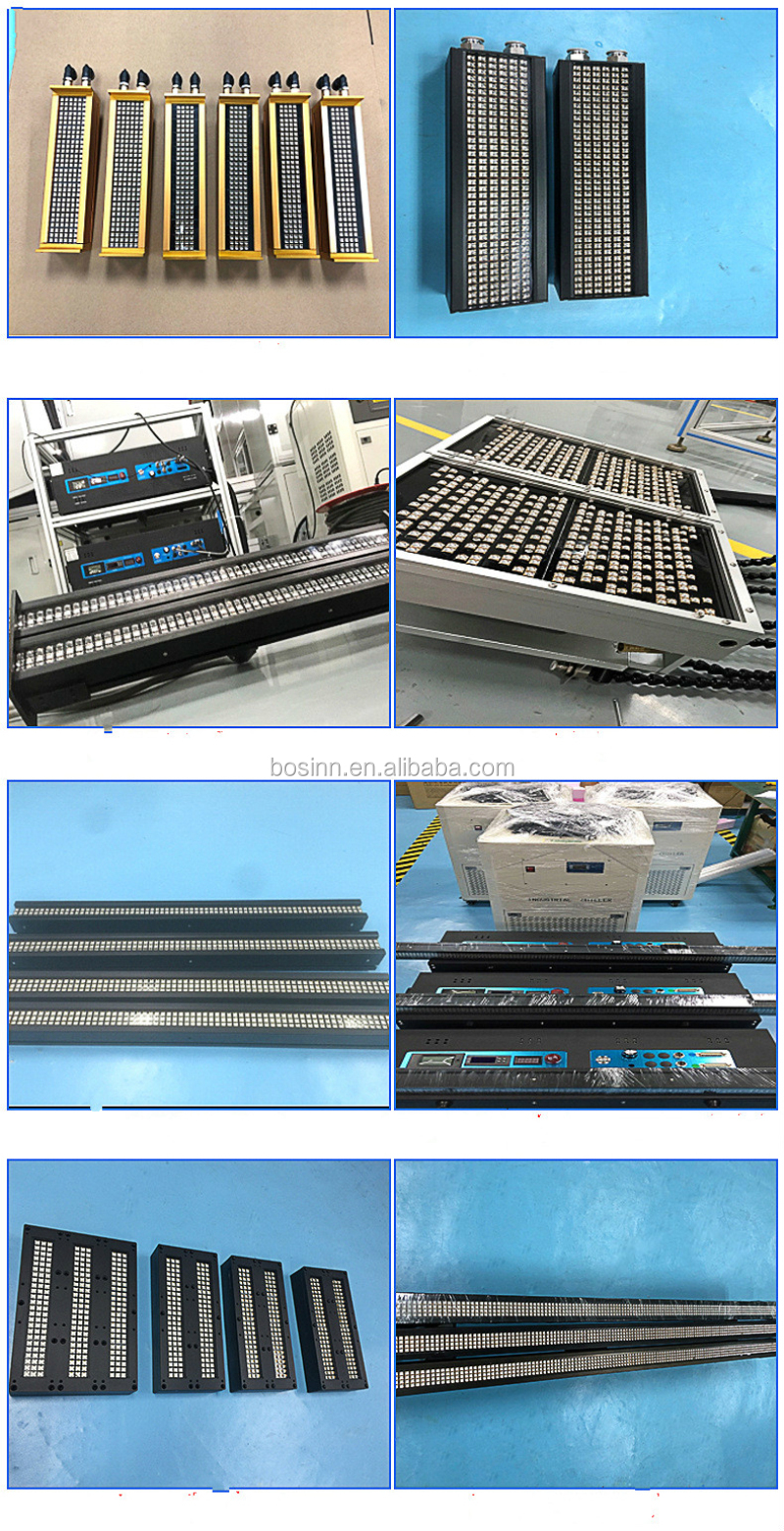

Curing Chamber System

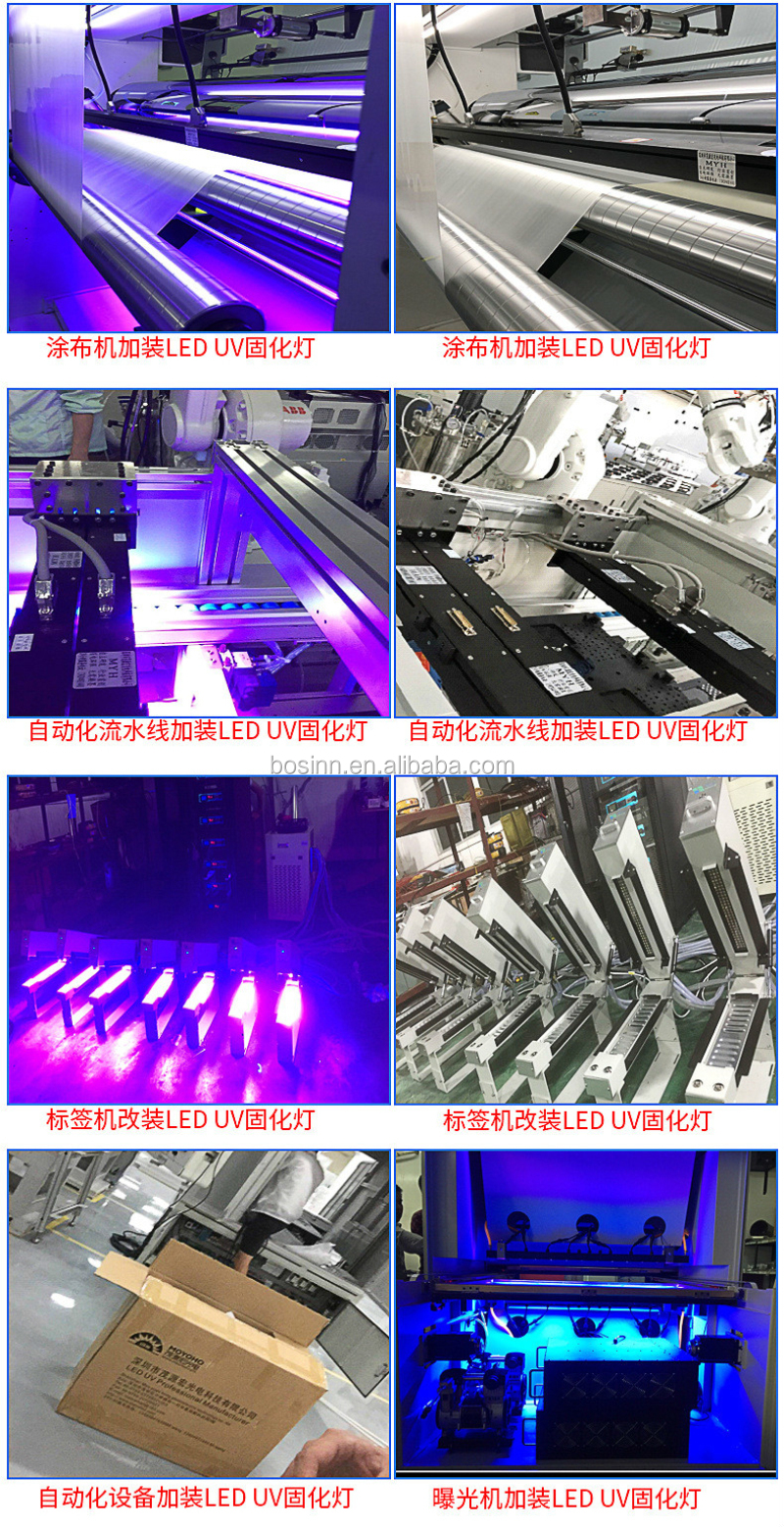

UV Light Curing Structure

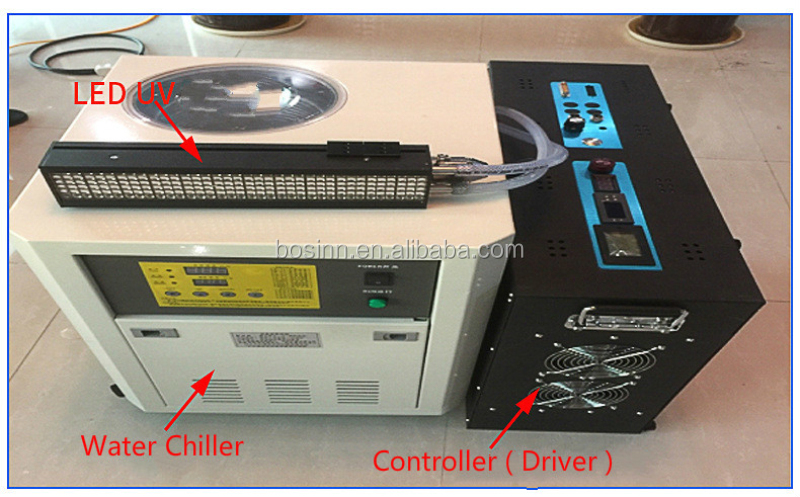

Industrial UV LED Unit
Compact Curing Lamp Head

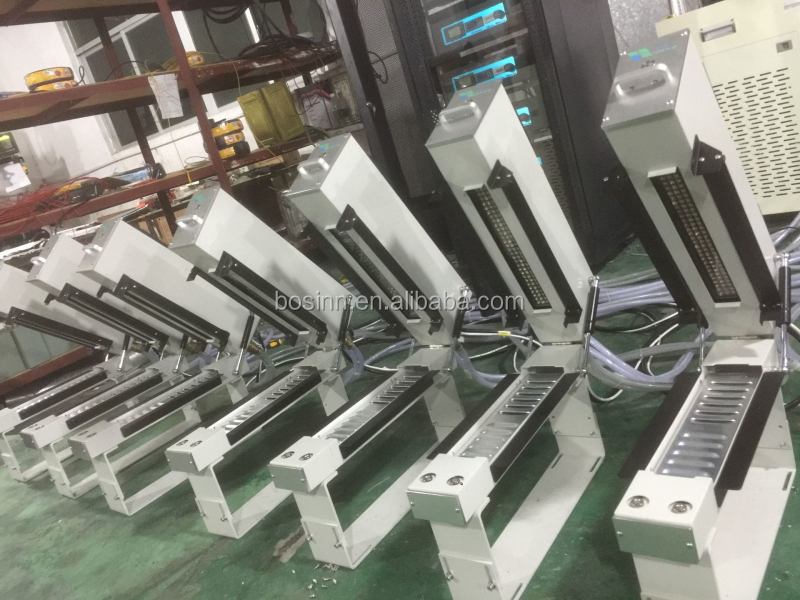

UV Curing Application Display
High Intensity UV LED setup

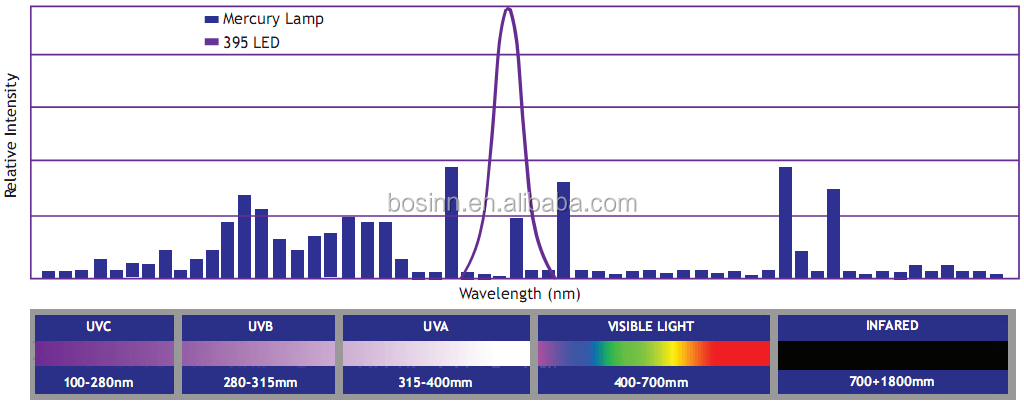

System Dimensions and Parameters Chart
Complete UV Curing System Equipment

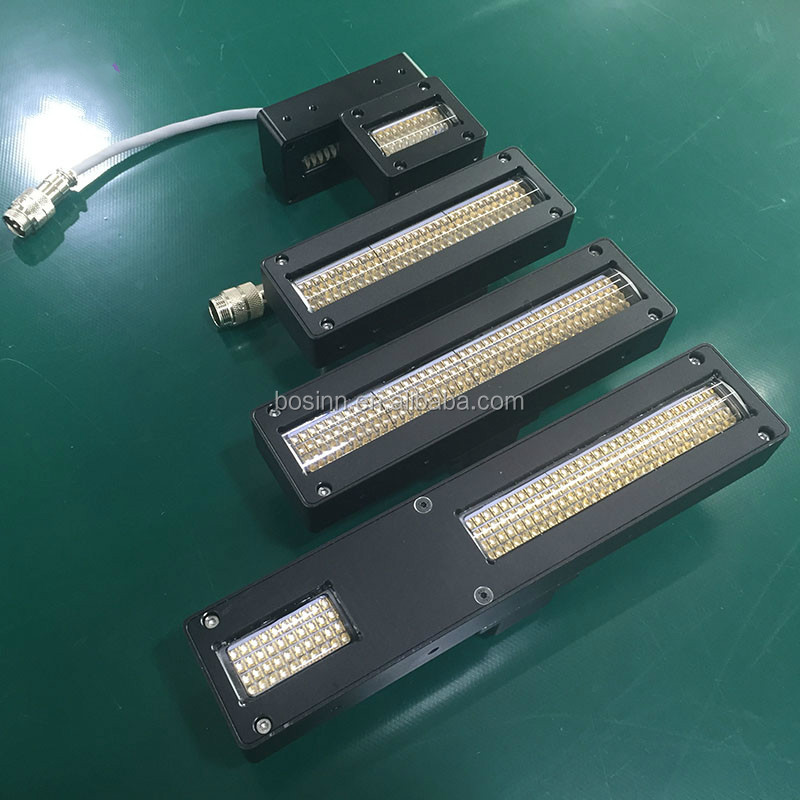

Power Supply Controller Unit
Power Curing Management System
Manufacturing & Technical Resources
Facility Equipment 1
Facility Equipment 2

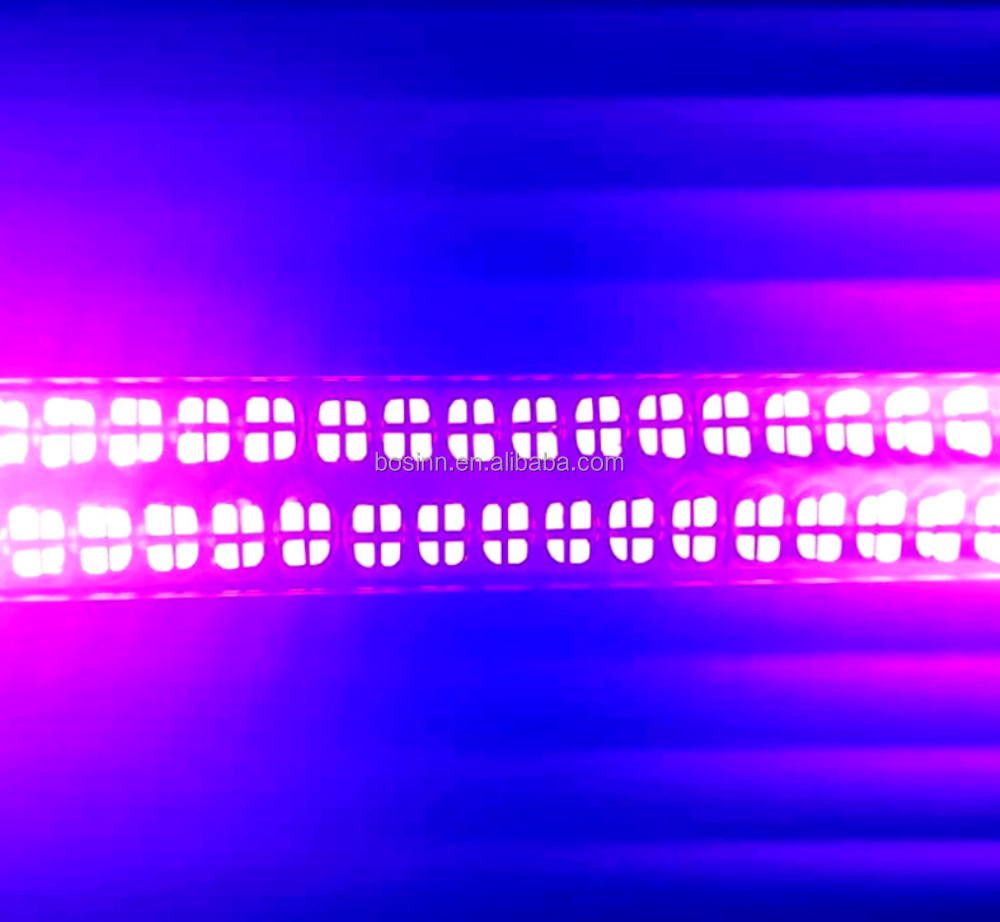

Production Facility View

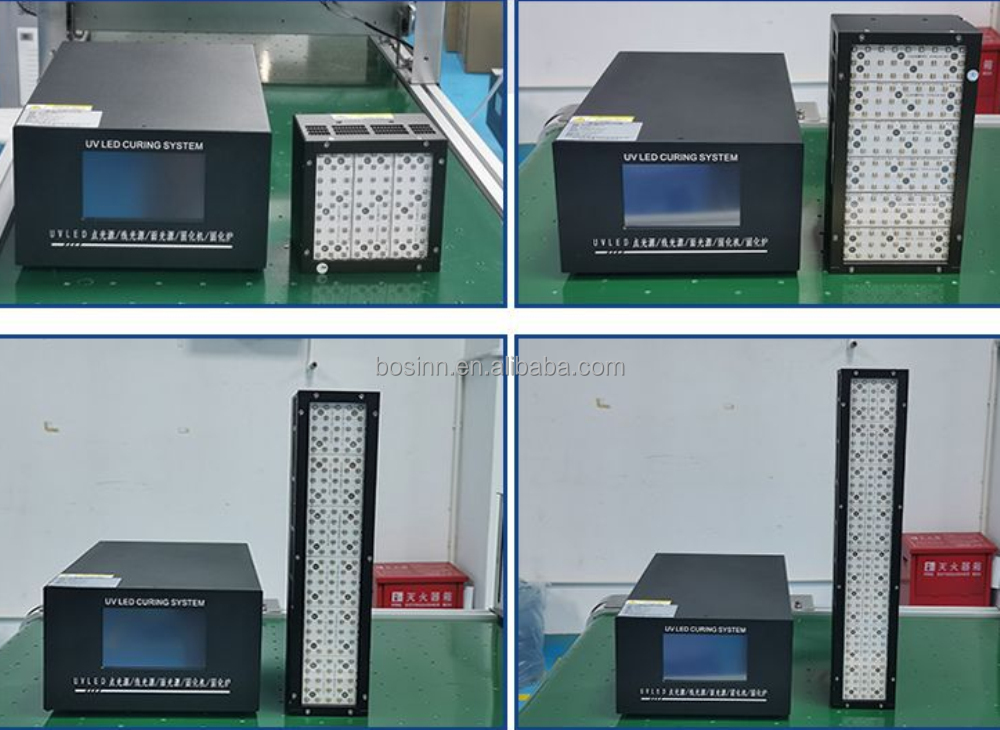

Technical Workshop

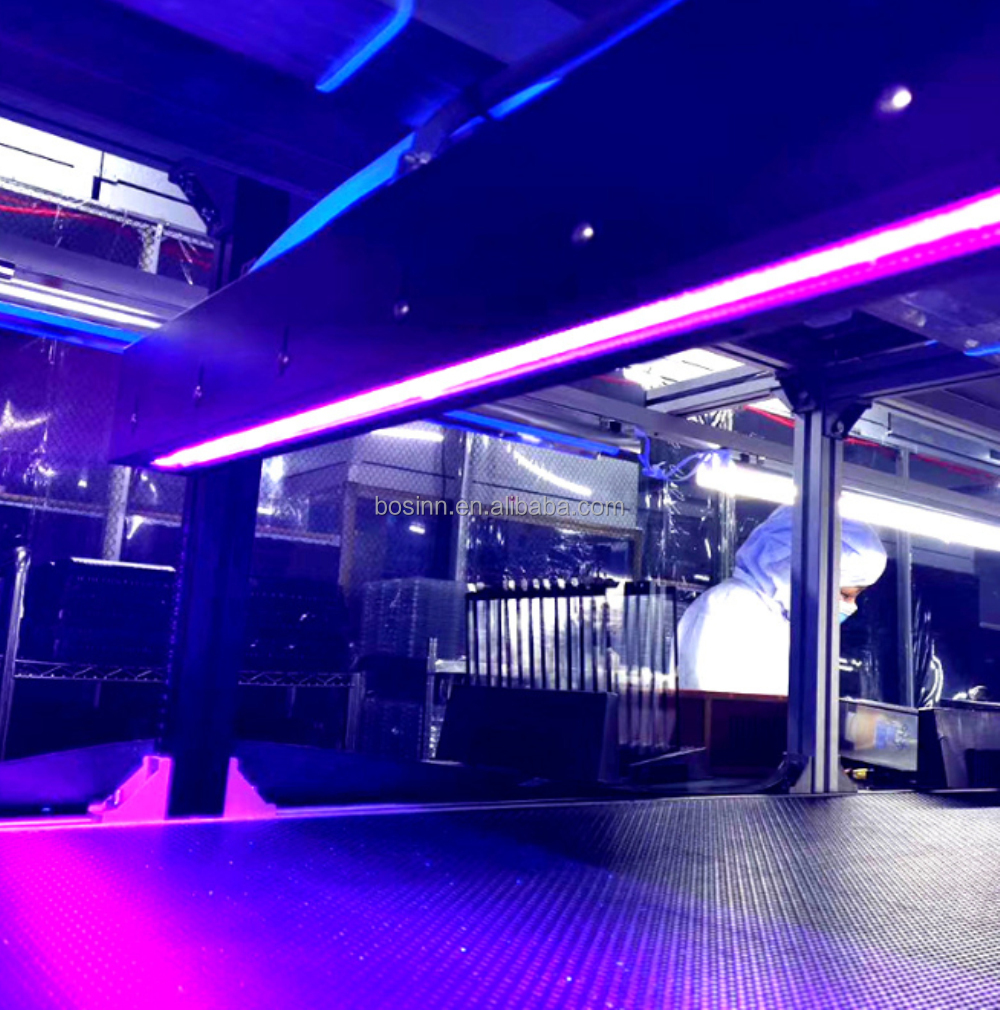

Assembly Environment

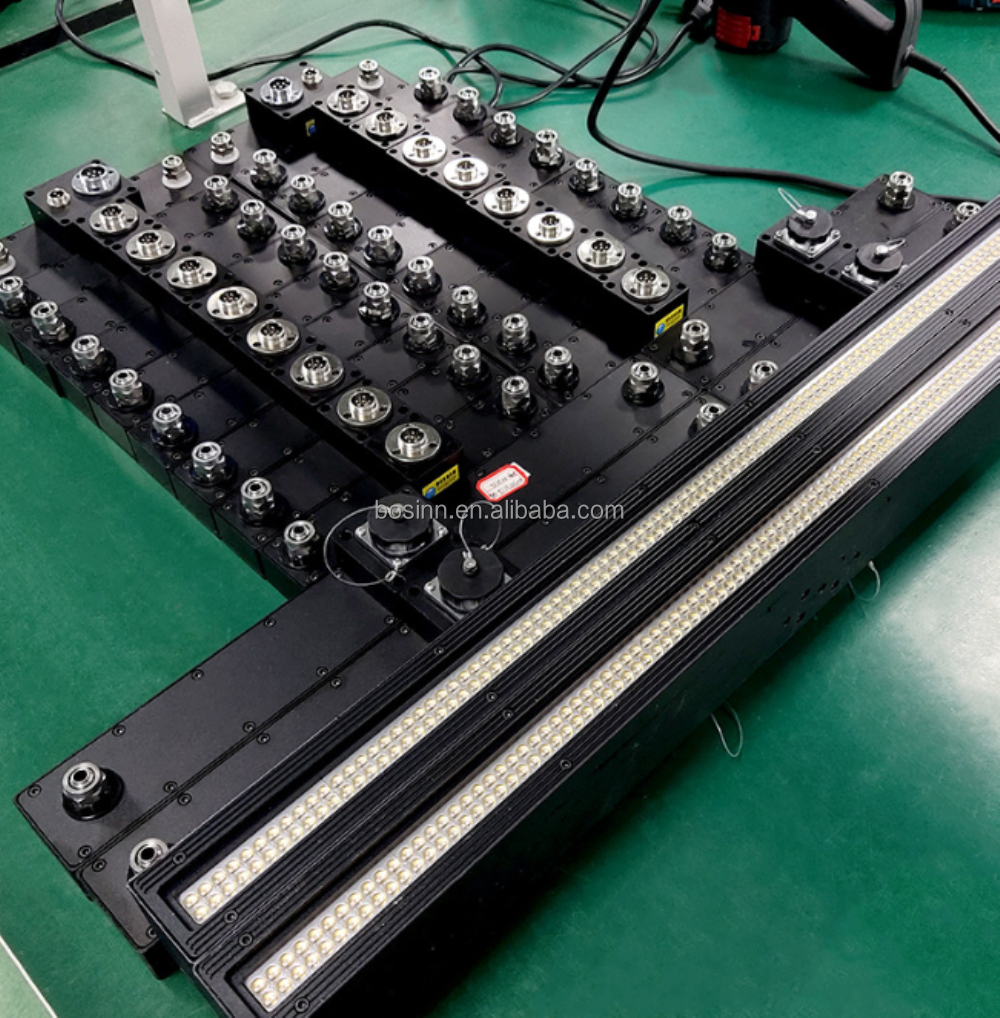

Quality Inspection

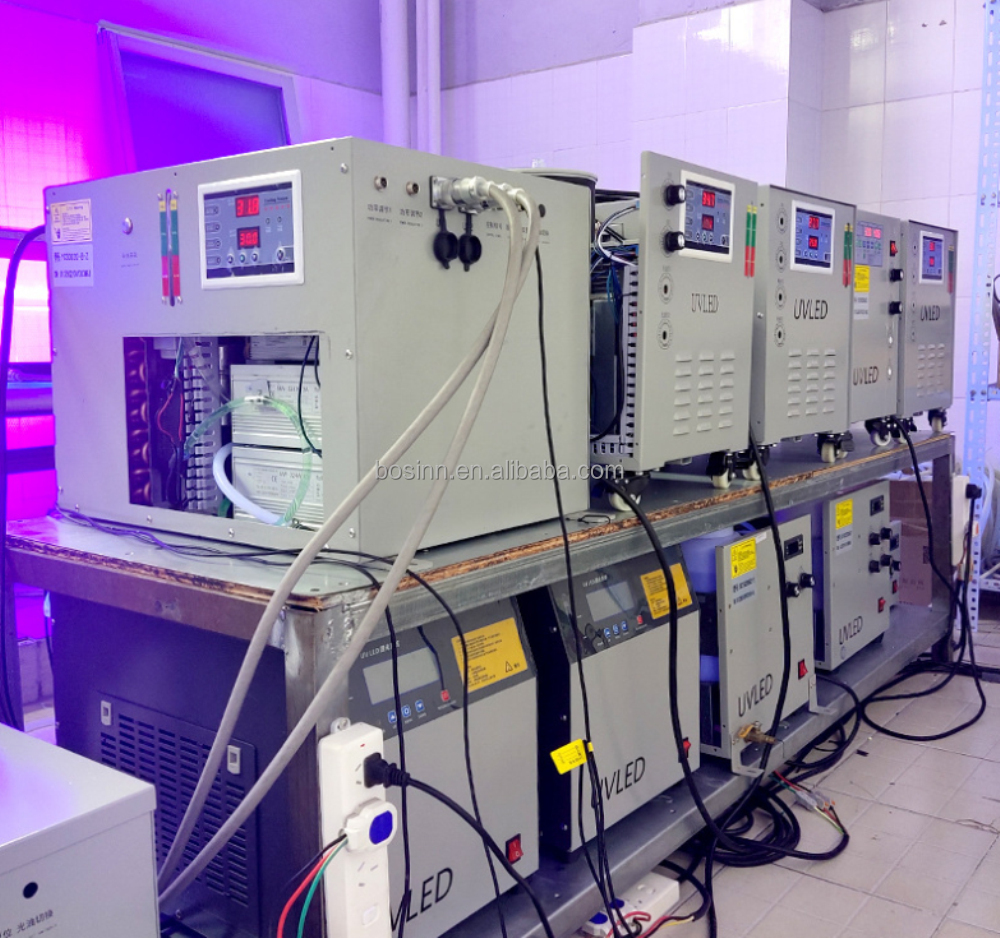

Testing Department

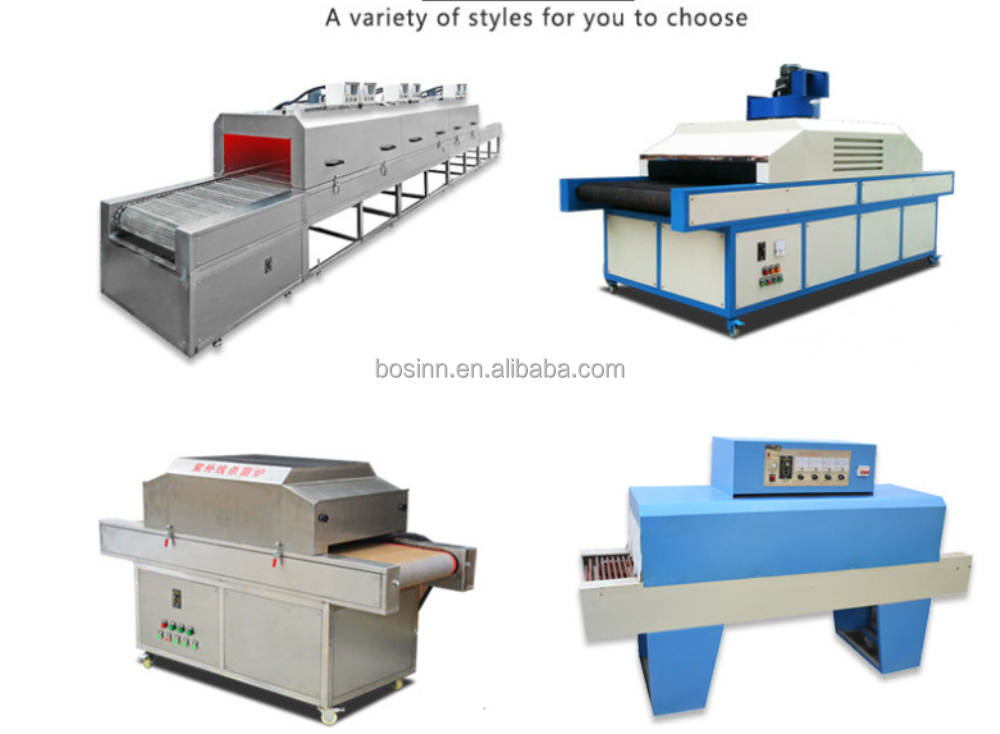

Production Flow Process

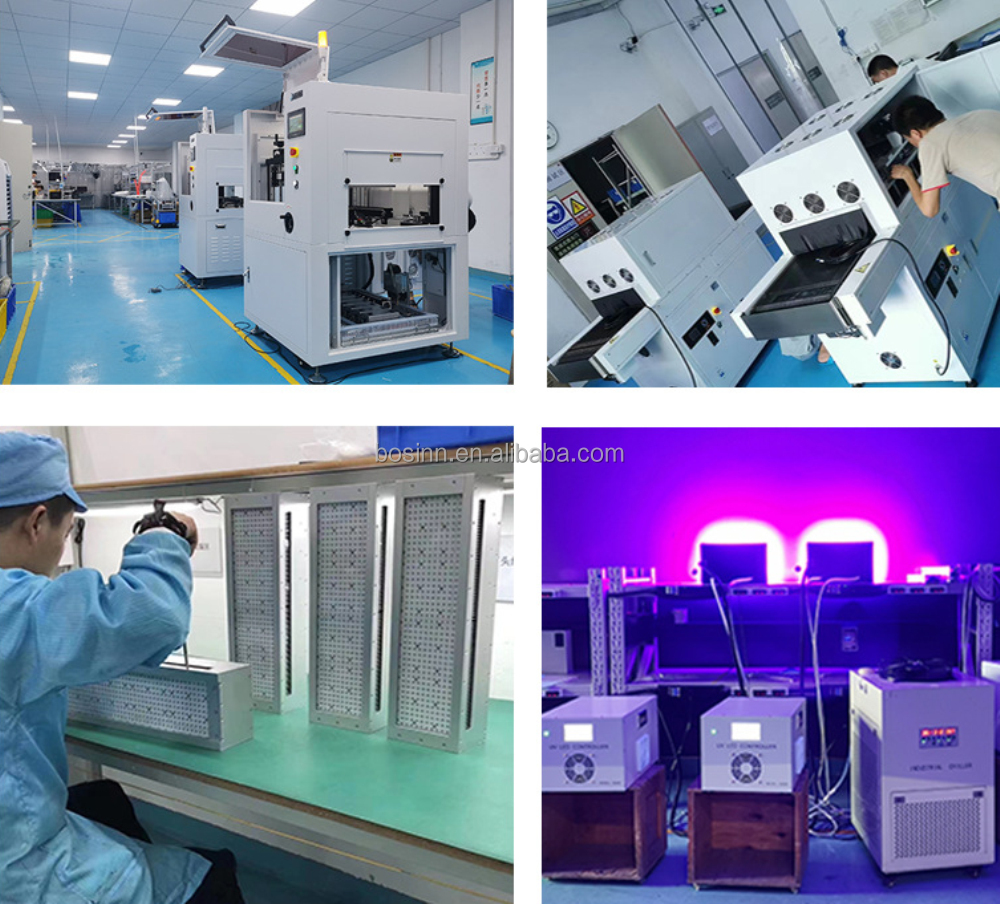

Technical Layout Configuration
Frequently Asked Questions (FAQ)
What is the wavelength of this UV LED curing system?
This UV LED curing lamp operates at a wavelength of 390~395 nm, which is ideal for curing UVA inks, adhesives, and various coating materials.
Does the equipment require preheating before starting?
No. Unlike traditional mercury lamps, this UV LED light source can be switched on and off instantly as needed without any preheating phase, improving work efficiency and saving energy.
What kind of safety protection does the power supply feature?
The system uses a special military-grade UVLED constant current power supply with comprehensive protection features, including short circuit, leakage, overcurrent, overvoltage, and undervoltage protection.
How uniform is the light output across the curing area?
The system is engineered to provide high performance with a UV energy uniformity rating of ≥ 98% over the effective curing area of 450*35 mm.
What applications is this UV LED curing system suitable for?
It is highly suitable for exposure machines, UV inkjet printers, character printers, UV offset printing, UV silk screen printing, UV pad printing, and processing materials like dry film, wet film, wiring, and solder masks.
